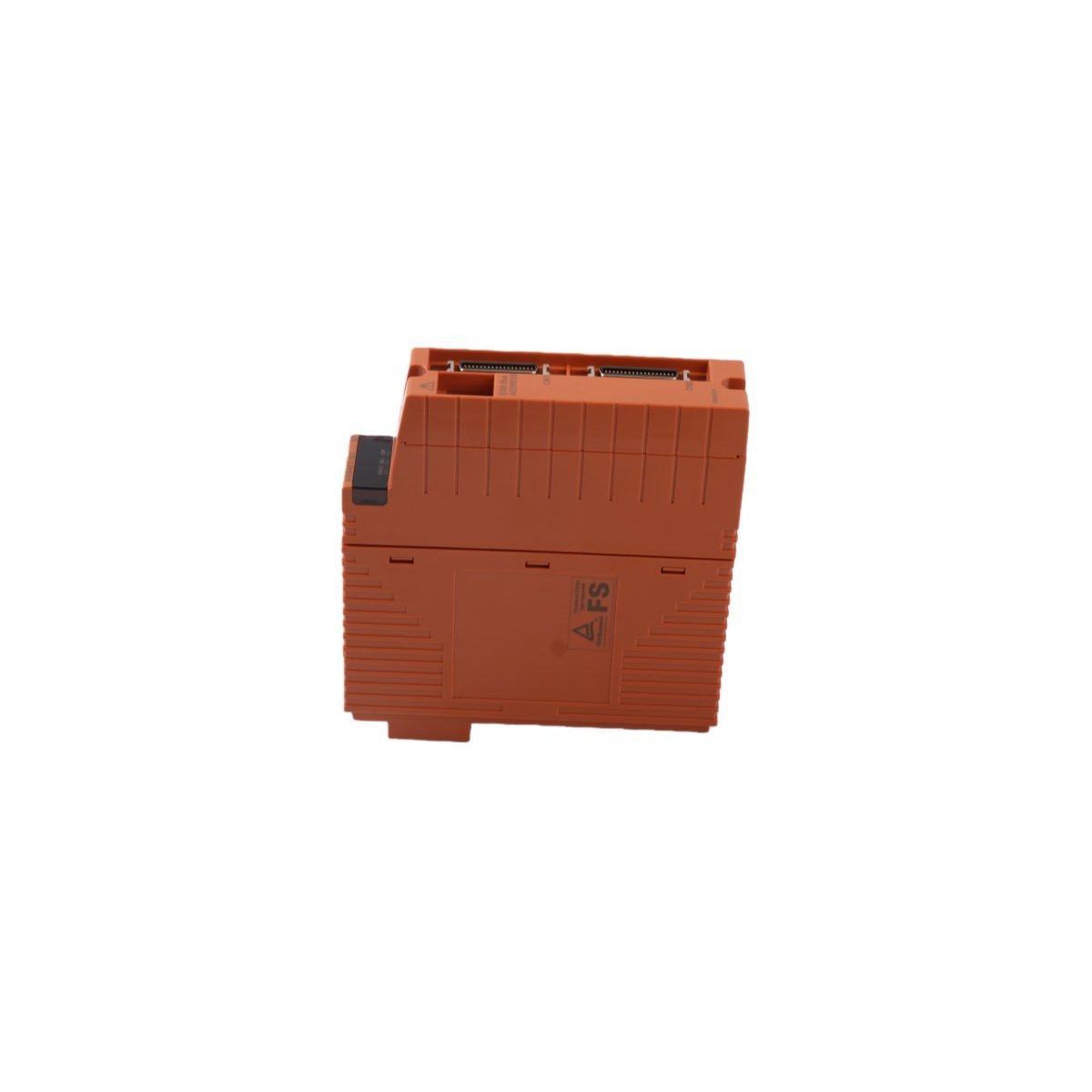

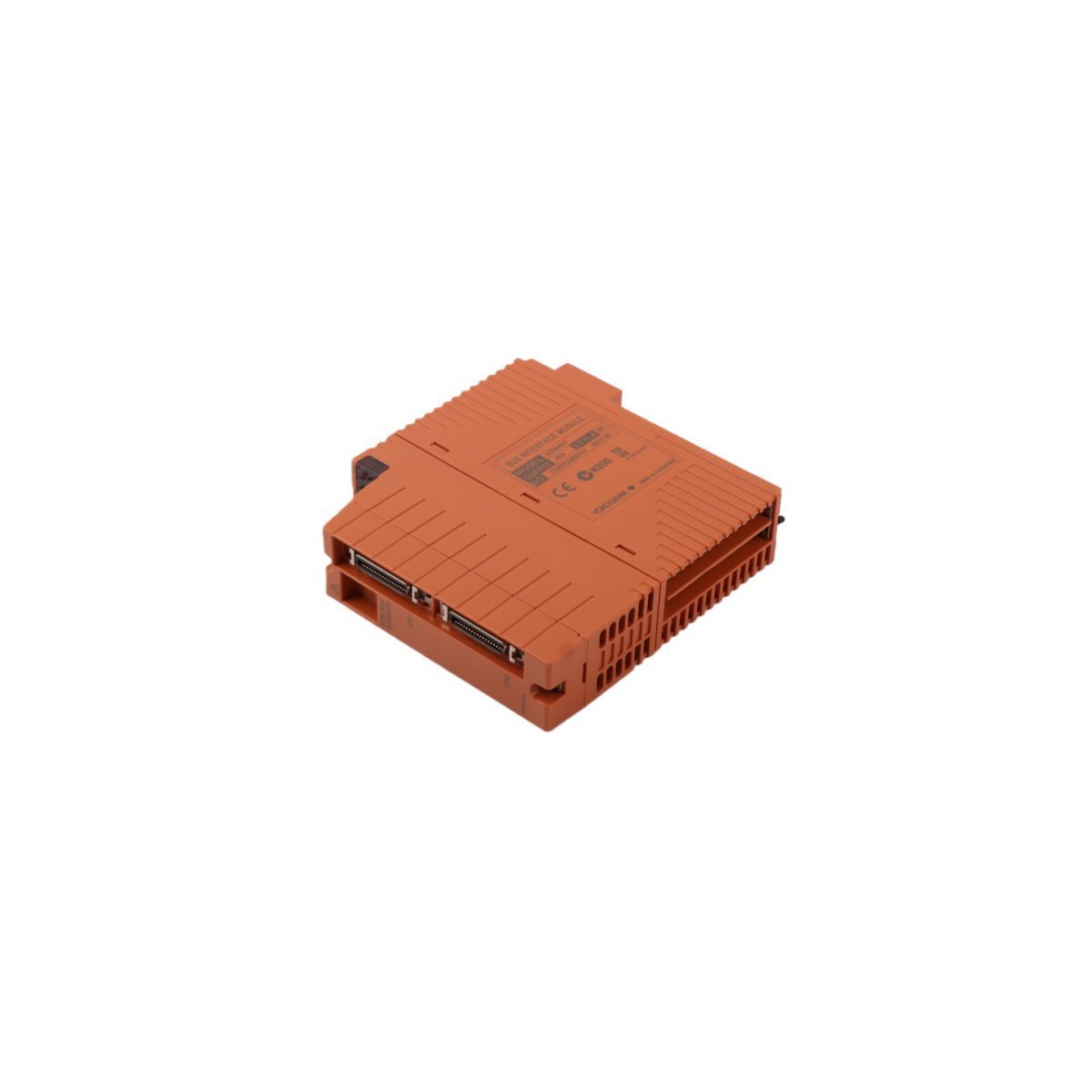

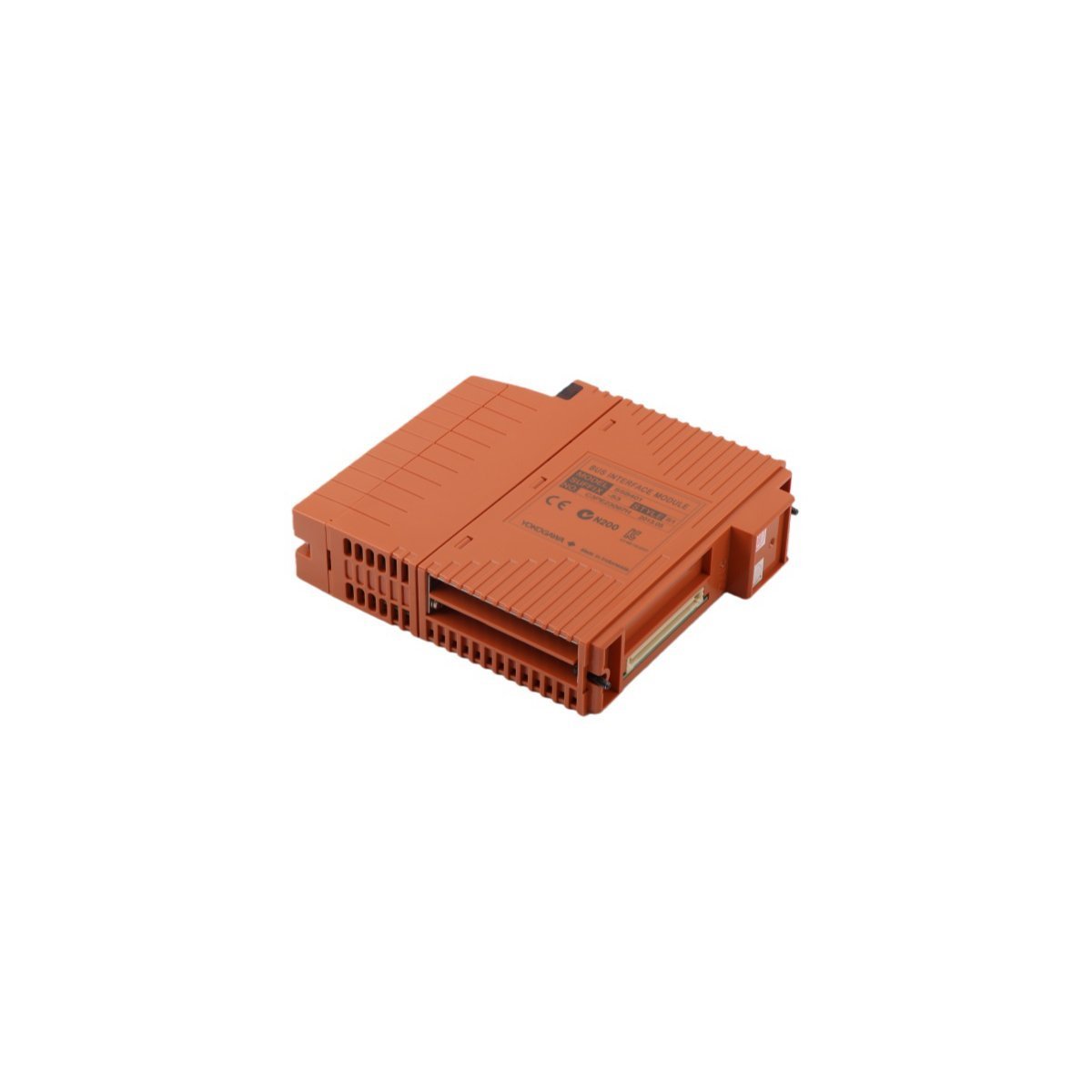

Yokogawa SSB401-53 S1 Optical ESB Bus Repeater Master Module

The Yokogawa SSB401-53 S1 functions as the primary transmission hub for optical ESB bus extension. This master module converts electrical signals into optical pulses for long-range data transport. It enables the Field Control Station (FCS) to communicate with remote I/O nodes effortlessly. By utilizing fiber optic technology, the module eliminates common electrical noise issues. Consequently, it maintains high-speed data integrity across the entire Distributed Control System network. This component is essential for geographically dispersed plant architectures.

Summary of Technical Specifications

Network Topology and Versatility

System engineers gain significant flexibility when deploying the SSB401-53 S1 module. The hardware supports both chain and star network configurations seamlessly. This adaptability allows for optimized cabling routes based on specific plant layouts. Furthermore, the master module works in tandem with slave-side repeaters to bridge large distances. It facilitates the expansion of the CENTUM VP system without sacrificing performance. Users can scale their automation infrastructure as operational needs grow.

Industrial Durability and Signal Protection

The SSB401-53 S1 thrives in demanding environments where traditional copper wiring might fail. Fiber optic cables provide total galvanic isolation between different system segments. This protection prevents damage from lightning strikes or high-voltage surges effectively. Additionally, the module operates reliably in temperatures ranging from 0°C to 55°C. The robust hardware design minimizes signal attenuation over its 2-kilometer reach. Therefore, the module ensures continuous uptime for mission-critical industrial processes.
