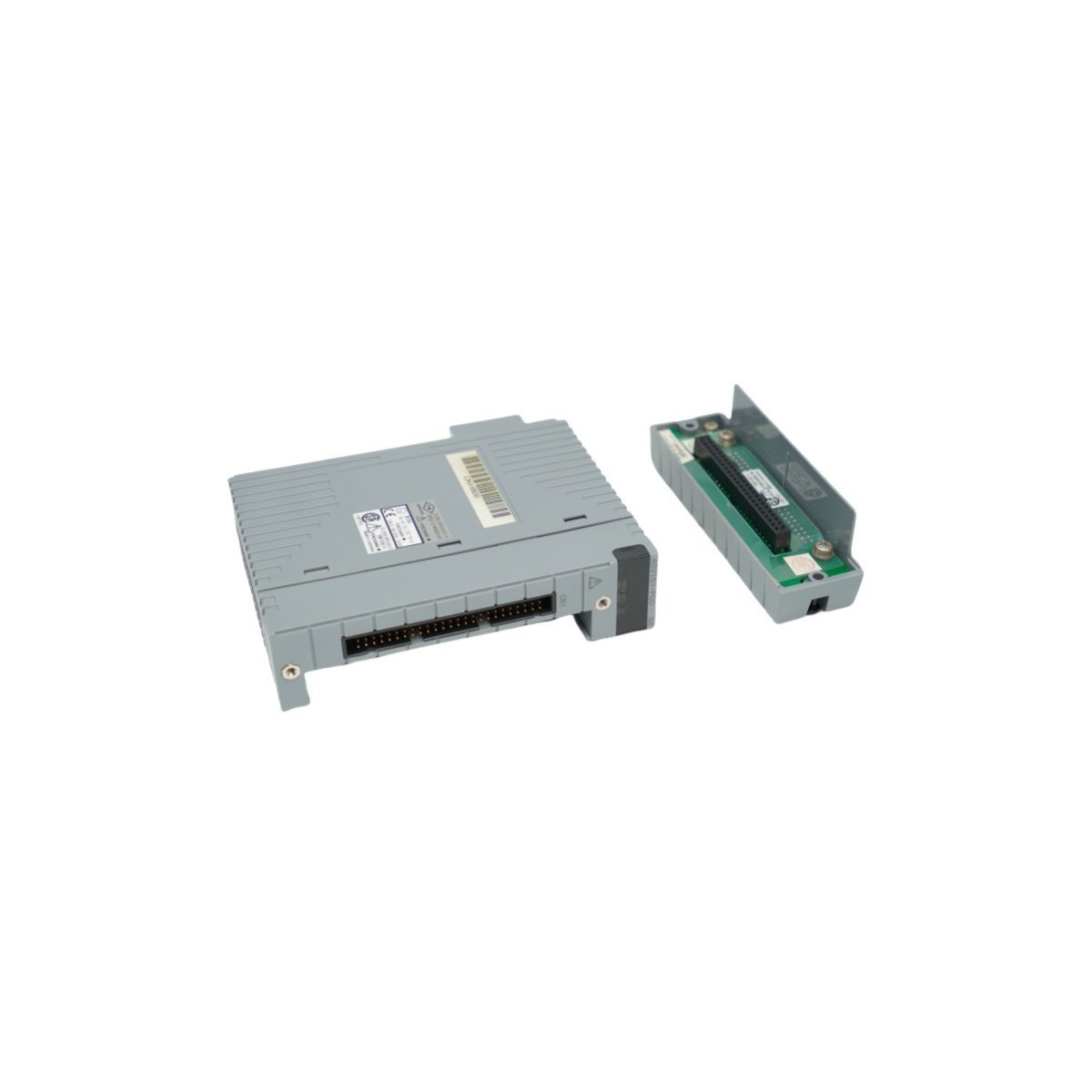

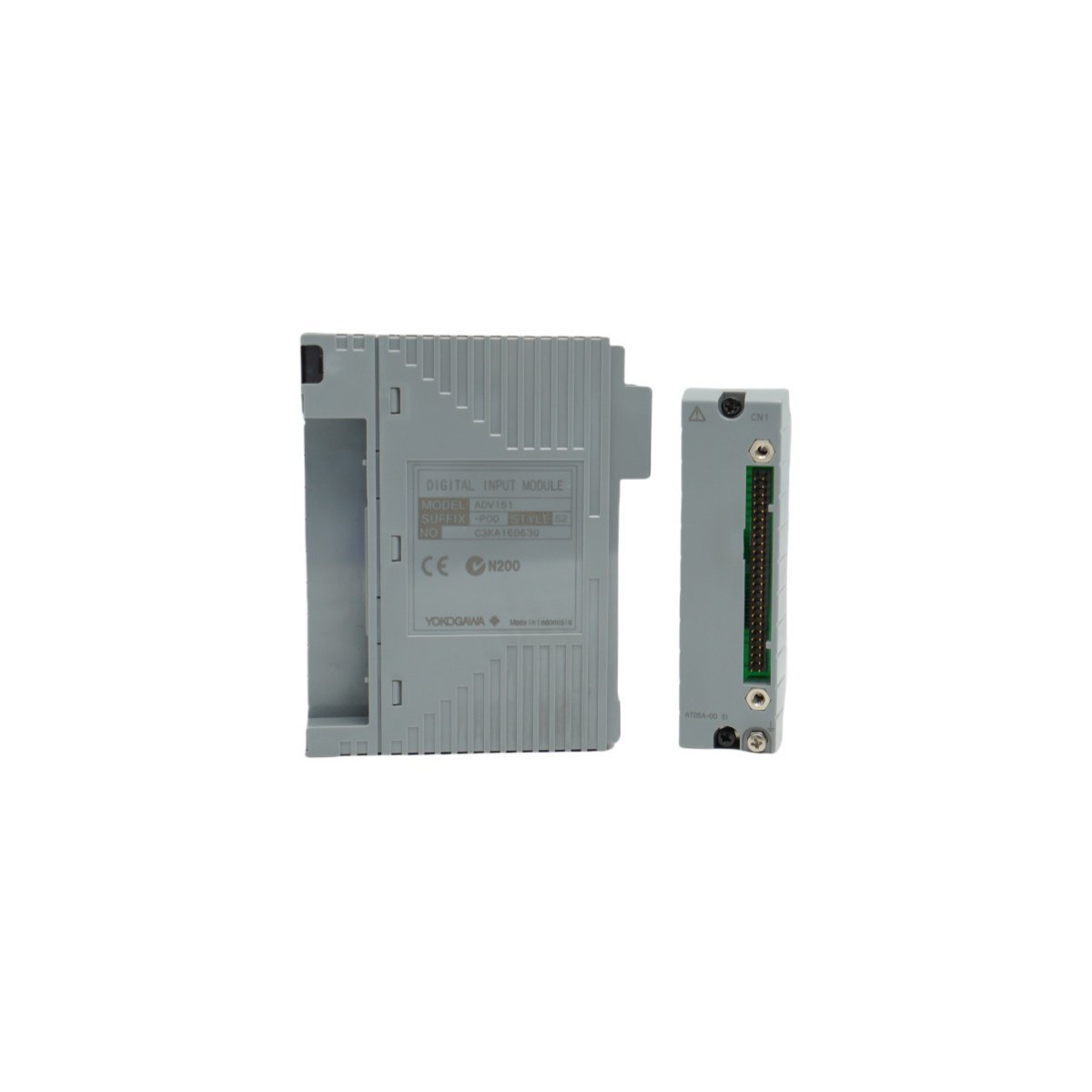

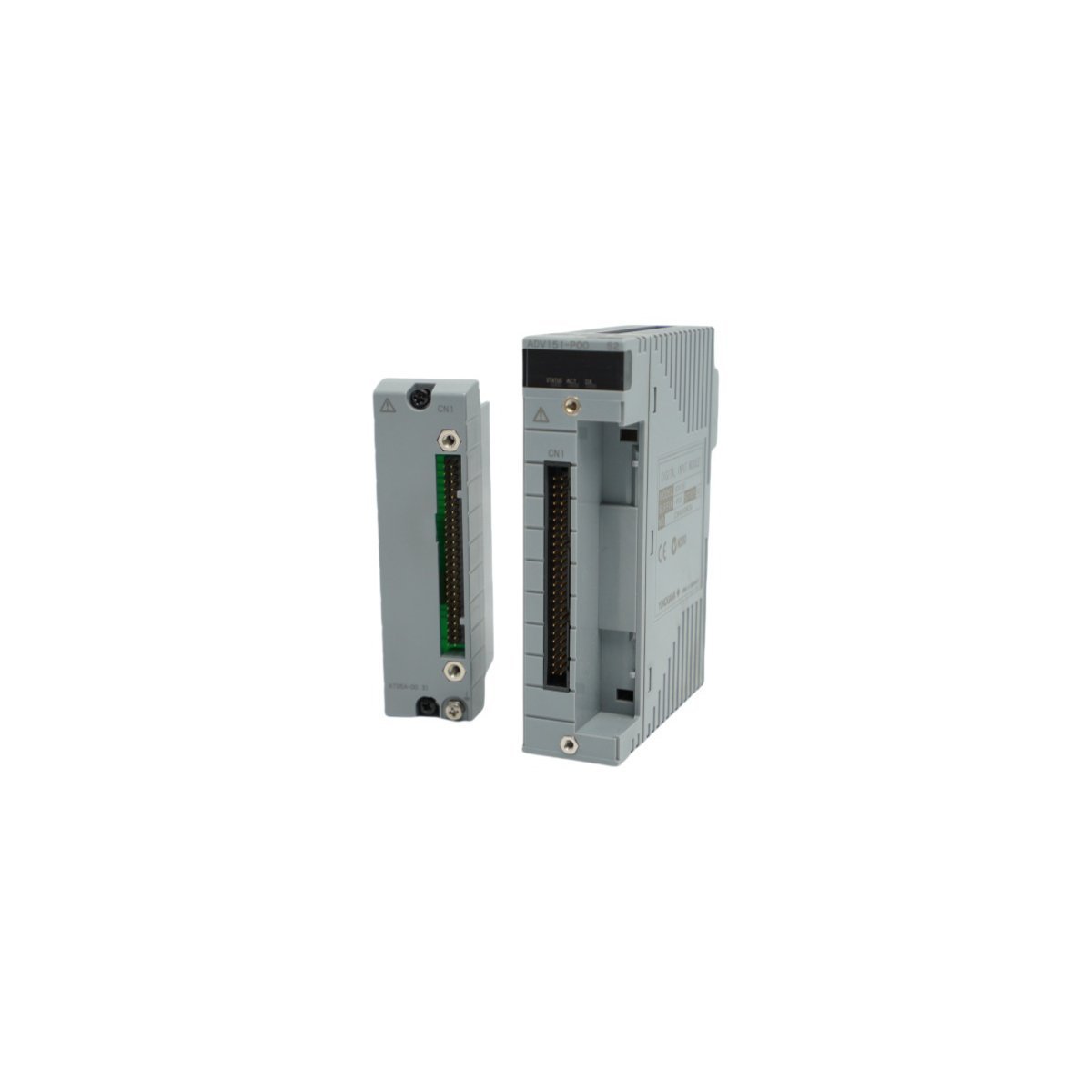

The ADV151-P00 S2 ATD5A-00 serves as a high-density digital input interface for the Yokogawa CENTUM VP DCS. This module handles 32 channels of discrete signals from field devices. It ensures precise data acquisition for complex automation tasks. The hardware converts external contact signals into internal logic for process control. Consequently, operators receive real-time updates on plant status and equipment health.
Functional Capabilities and Performance
This module supports 24 VDC input signals to maintain compatibility with standard industrial sensors. Internal photocouplers isolate each channel to prevent electrical noise from disrupting the system. Furthermore, the module features a fast response time for time-critical monitoring. The robust circuitry allows for stable operation in high-interference environments. Users can configure the input filtering to eliminate signal chatter or contact bounce.
Technical Specifications
| Parameter | Specification Details |
| Number of Channels | 32-channel isolated inputs |
| Rated Input Voltage | 24 VDC (+10% / -10%) |
| Input Current | 4.1 mA (typical at 24 VDC) |
| Isolation Voltage | 1500 V AC between input and system |
| External Connection | Pressure clamp or KS cable |
| Power Consumption | Max 2.5 W at 24 VDC |
| Operating Temperature | -20 to 70 degrees Celsius |
| Weight | 0.24 kg |
Industrial Application and Integration
System integrators typically deploy this module in oil refineries and chemical plants. It excels in monitoring valve positions, motor statuses, and safety switch feedbacks. Because it integrates natively with CENTUM VP, setup requires minimal engineering effort. The ATD5A-00 terminal block attachment facilitates quick wiring and simplifies maintenance. Moreover, the compact 3.2cm width maximizes cabinet space efficiency in dense installations.
