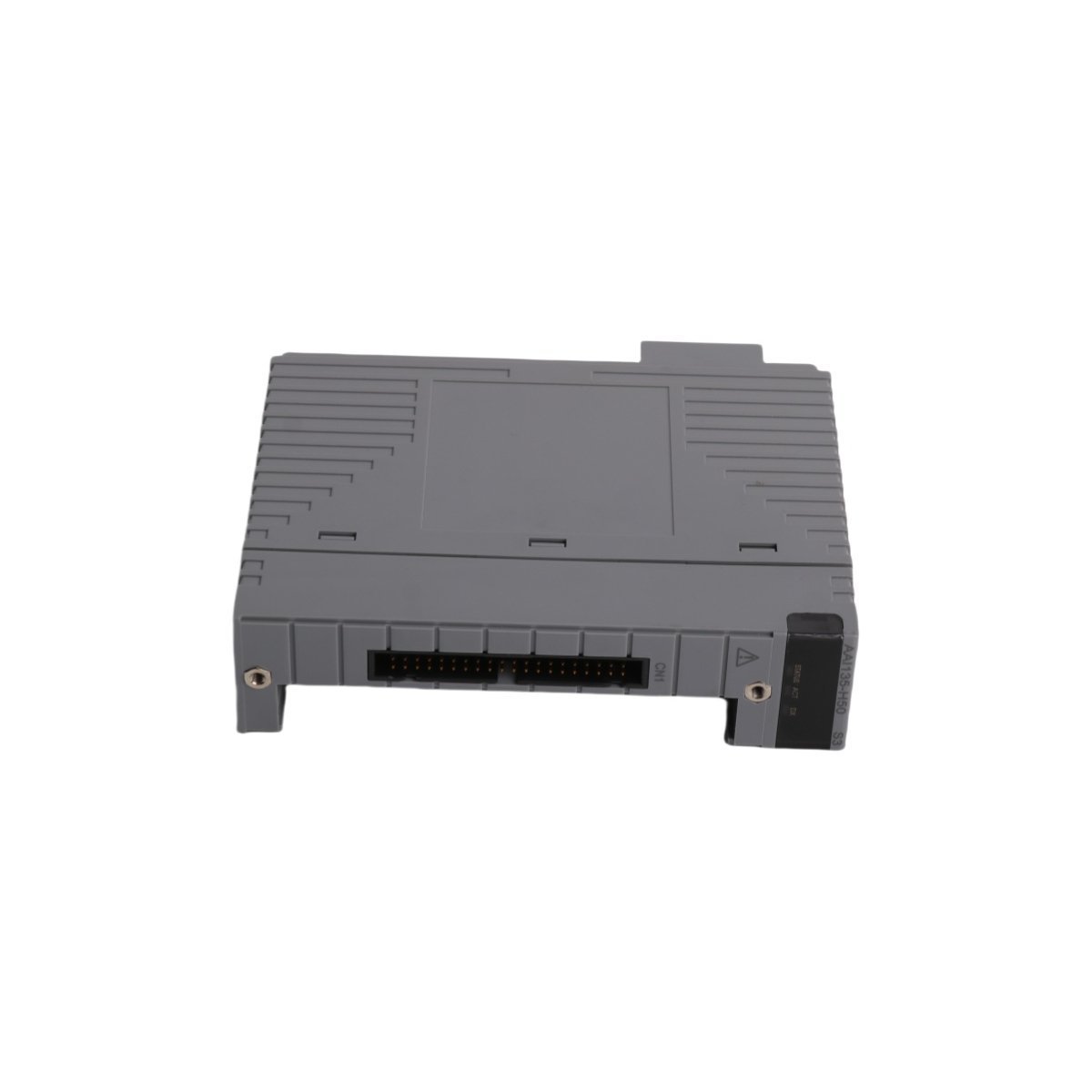

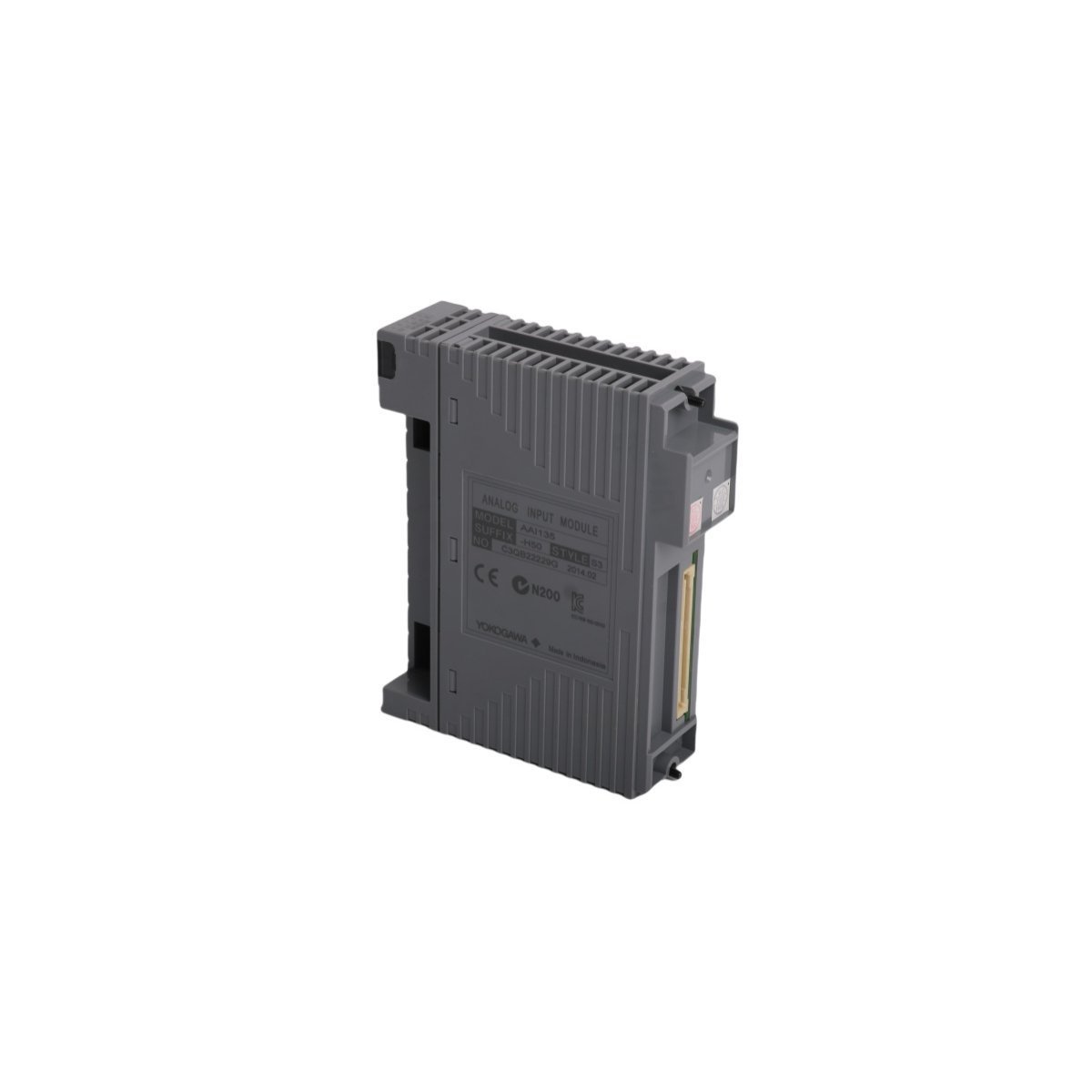

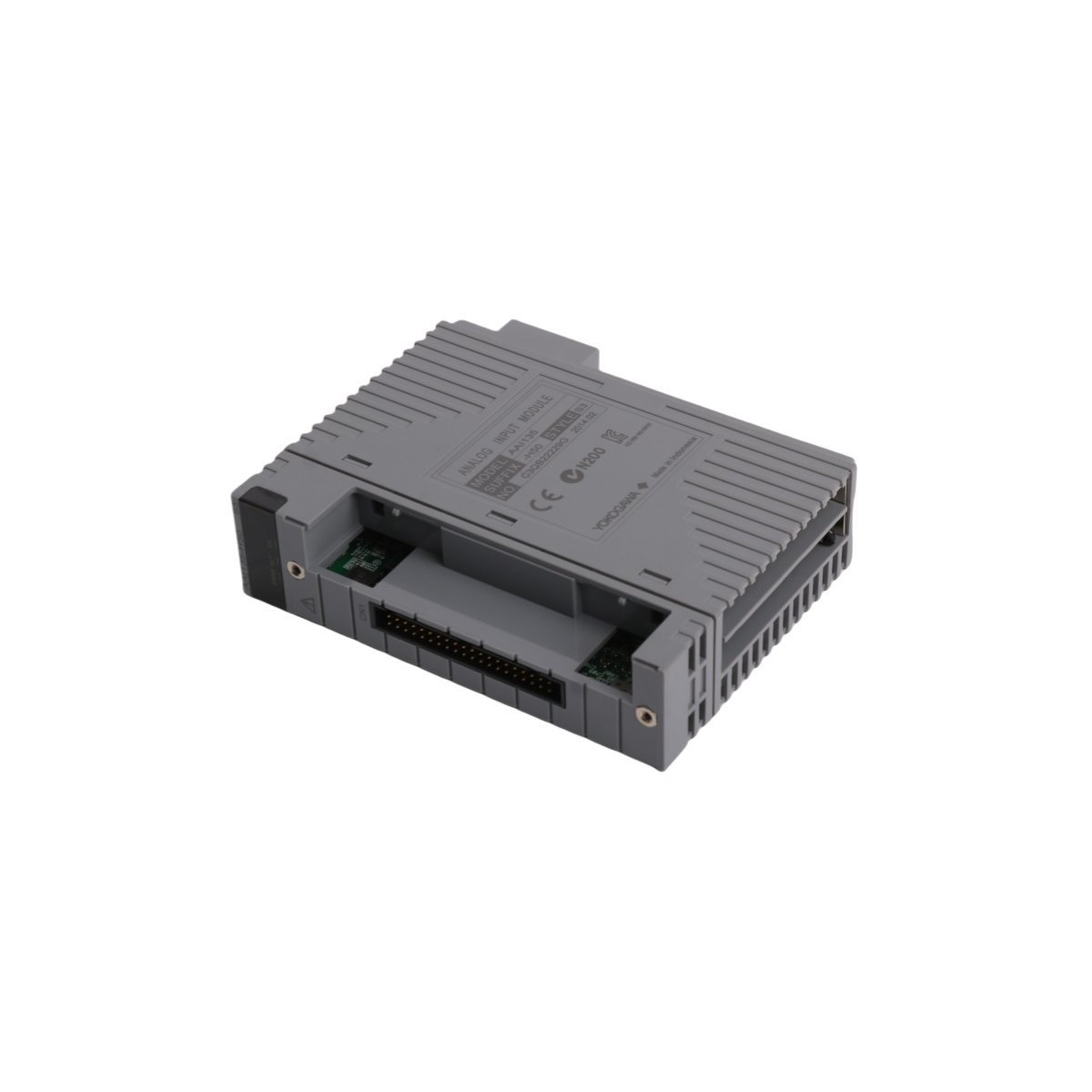

The Yokogawa AAI143-H50 S1 serves as a high-density signal acquisition interface for the CENTUM VP DCS environment. This module efficiently processes 16 channels of isolated current inputs. It facilitates precise data conversion for critical process variables. Furthermore, the hardware supports the HART 7 communication protocol. This integration allows users to access advanced field instrument diagnostics. Consequently, it bridges the gap between smart field devices and the control layer.
Technical Specification Overview
| Feature | Specification Detail |
| Manufacturer | Yokogawa |
| Model Number | AAI143-H50 S1 |
| Input Signal Range | 4 to 20 mA DC |
| Number of Channels | 16 (Isolated) |
| Protocol Support | HART 7 Digital Communication |
| Accuracy Rating | ±0.05% of full scale |
| Module Dimensions | 3.2 x 10.6 x 13.0 cm |
| Weight | 0.18 kg |
Advanced Signal Protection
Signal integrity remains a core priority for the AAI143-H50 S1 architecture. The module utilizes a triple-isolation design to safeguard data. This includes channel-to-channel isolation and field-to-system electrical separation. Such engineering effectively neutralizes heavy electromagnetic interference. As a result, the module maintains superior measurement stability in noisy industrial settings. Each channel also features dedicated conditioning circuits for various transmitter types.
Reliability and Maintenance Features
Yokogawa designed this module to support continuous industrial production. The hot-swappable architecture allows for online hardware replacement. Therefore, maintenance teams can swap modules without triggering system shutdowns. The front panel includes a multi-color LED matrix. This display provides immediate status updates for every input channel. Additionally, optional dual-redundancy configurations offer an extra layer of operational safety. These features ensure maximum availability for mission-critical processes.
