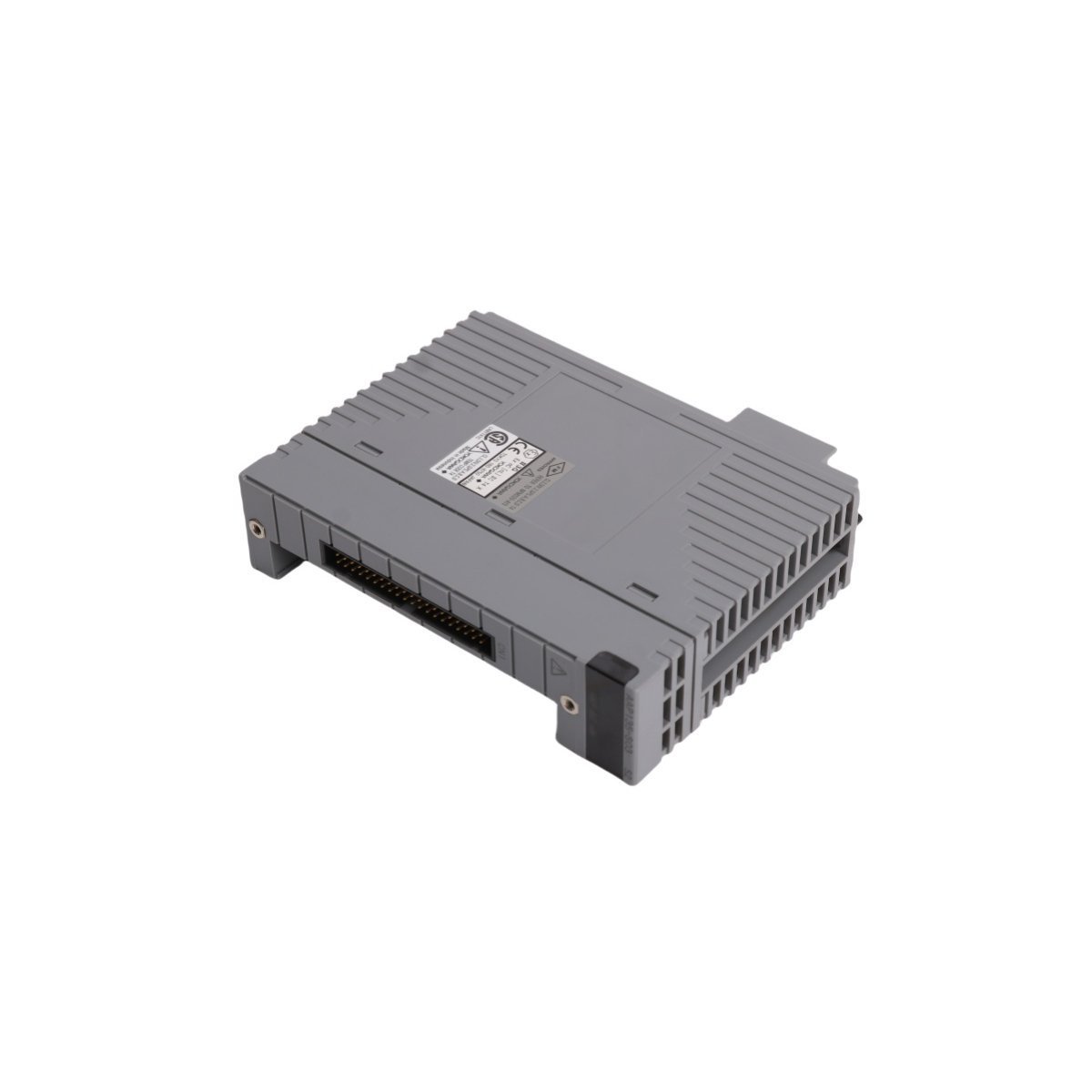

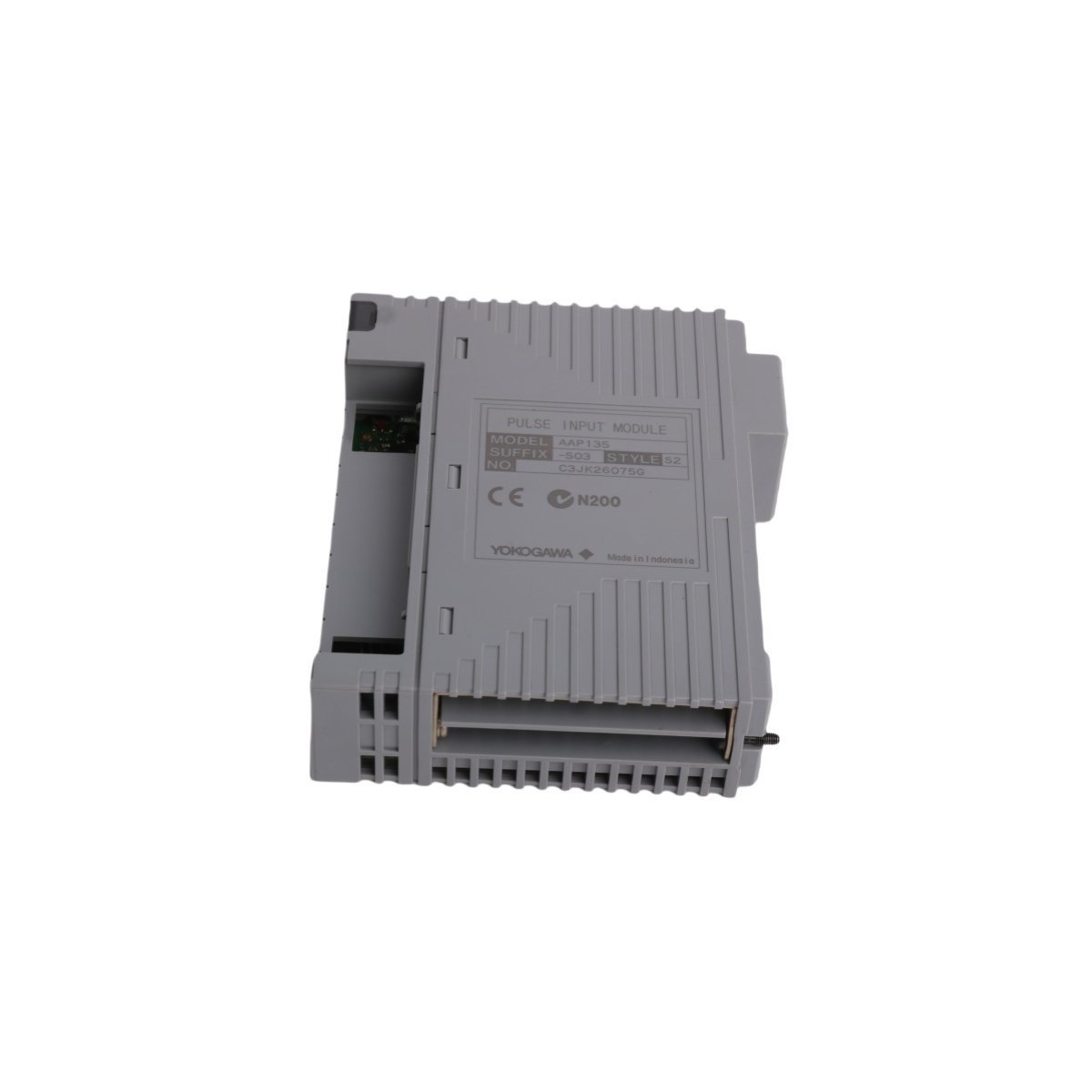

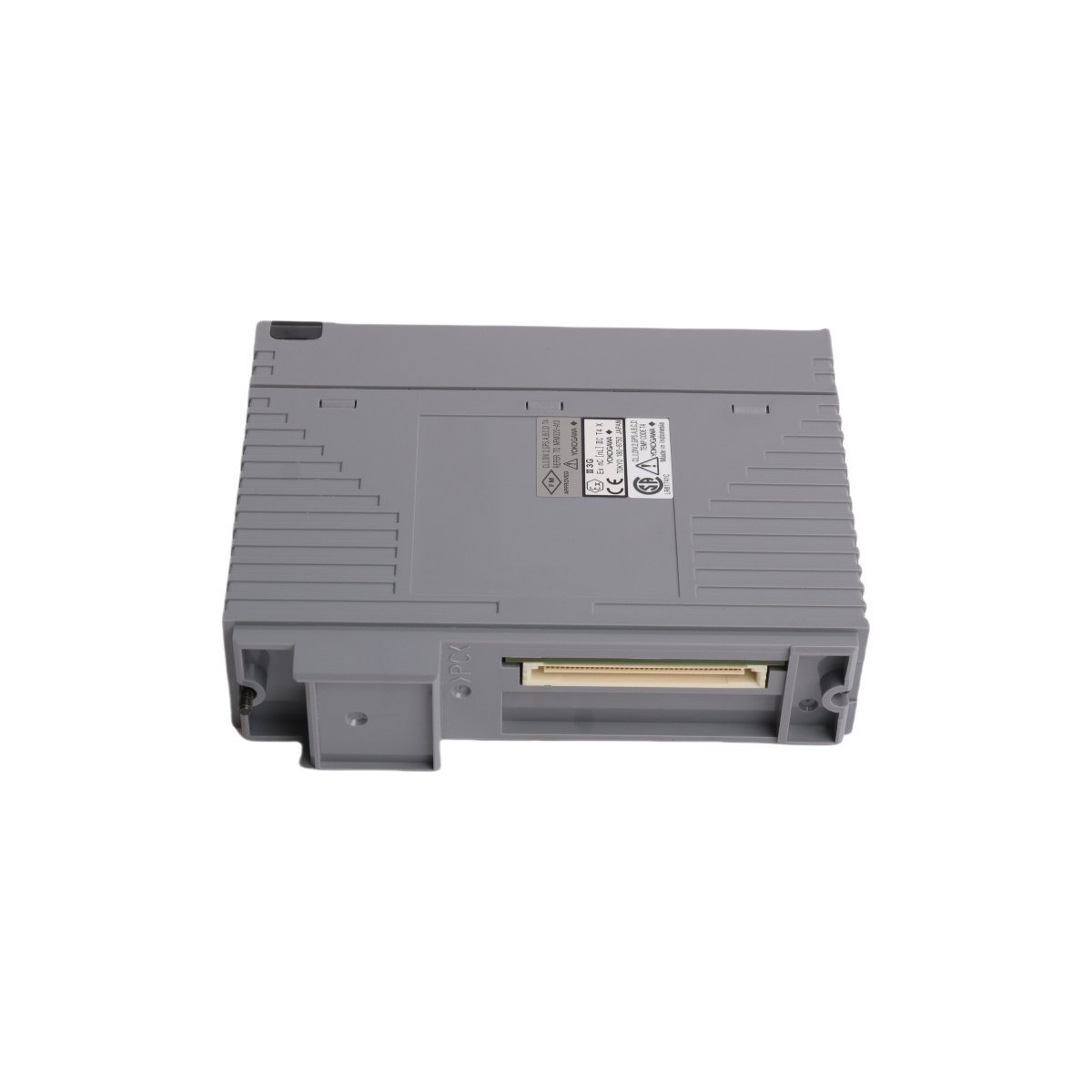

Yokogawa AAP135-S50 Pulse Input Module

The Yokogawa AAP135-S50 functions as a specialized pulse input interface for the CENTUM VP control system, facilitating the high-speed acquisition of frequency and pulse-count data from field instruments. This module primary manages signals from flowmeters, tachometers, and other pulse-generating sensors while simultaneously supporting bidirectional HART communication. By integrating these two data streams, the unit allows operators to monitor primary process variables alongside secondary device diagnostics. Consequently, the AAP135-S50 serves as a critical bridge between traditional pulse-based measurements and intelligent digital field management.

Robust Hardware Design for Critical Environments

Constructed with industrial-grade components in Japan, the AAP135-S50 meets the rigorous demands of safety-instrumented and mission-critical systems. The module’s compact 0.32 kg chassis facilitates efficient use of cabinet space, while its low power consumption reduces internal heat buildup. Additionally, the unit can support SIL2-rated safety loops when configured within appropriate system architectures. This combination of durability and safety compliance makes it an ideal choice for the chemical, oil and gas, and power generation industries where uninterrupted signal processing is a mandatory requirement.

Technical Specifications Summary

Seamless System Connectivity

The AAP135-S50 simplifies the engineering workflow by allowing standard function blocks to access HART variables directly. This integration enables predictive maintenance by providing real-time access to device-specific data, such as totalizers and sensor health status. Because the module maps these variables automatically to the DCS environment, it significantly reduces the time required for loop configuration and commissioning. Furthermore, the robust physical design ensures that the module remains a long-term asset in the plant’s automation lifecycle, supporting both modern smart-field architectures and legacy pulse-output instrumentation.
