Allen Bradley GCU08CB-130 80173-109-01-3 GCT Thyristor Module

Allen Bradley GCU08CB-130 80173-109-01-3 Board Module

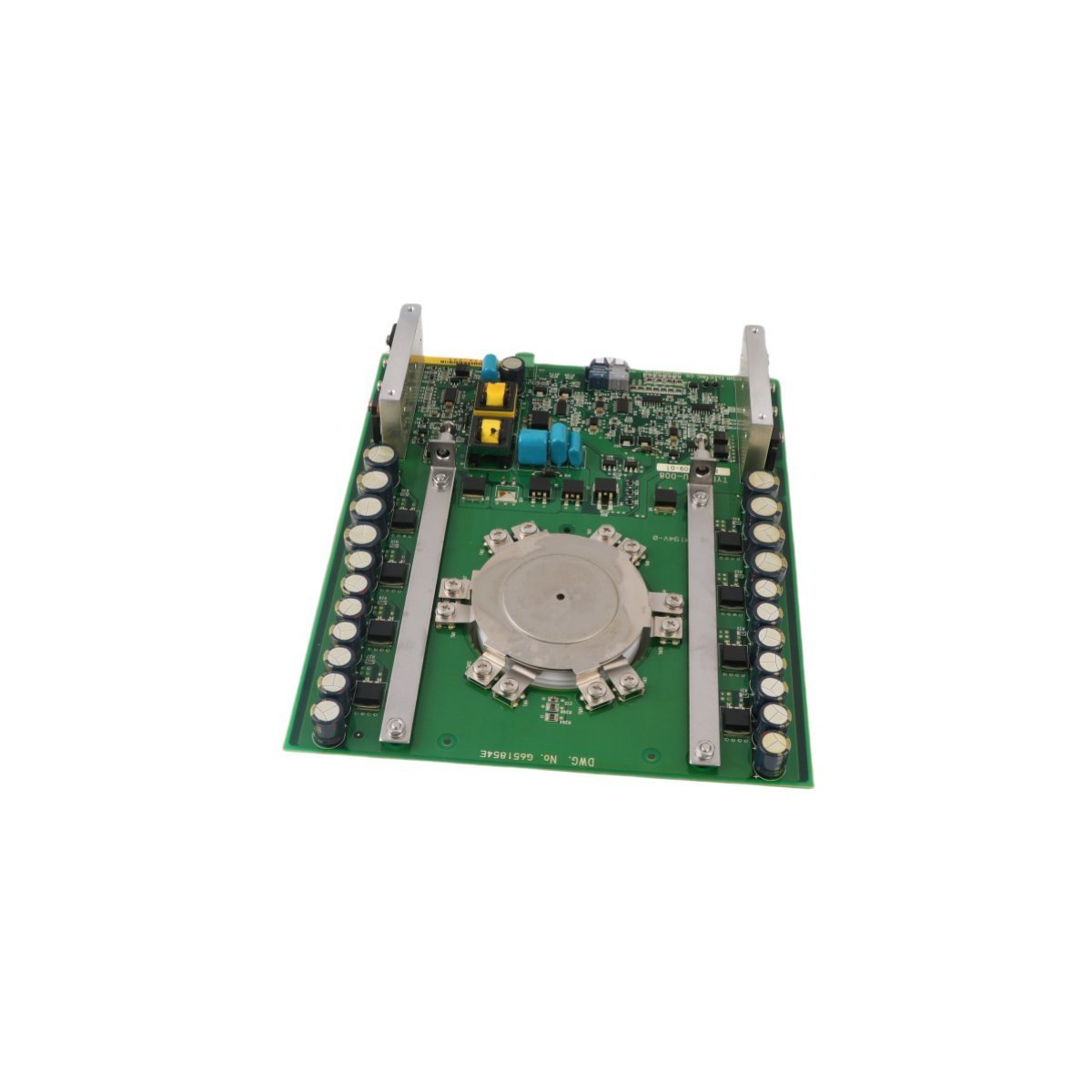

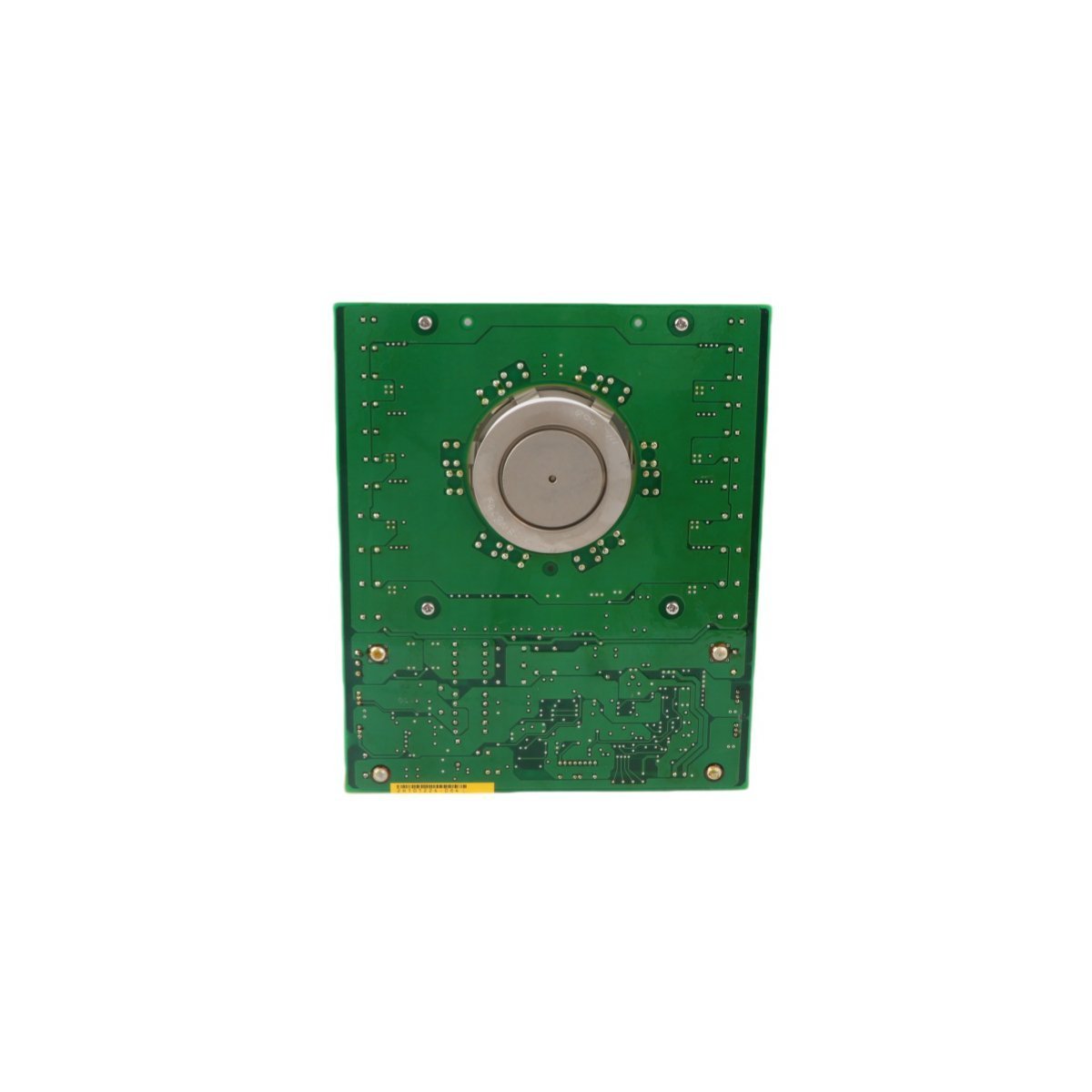

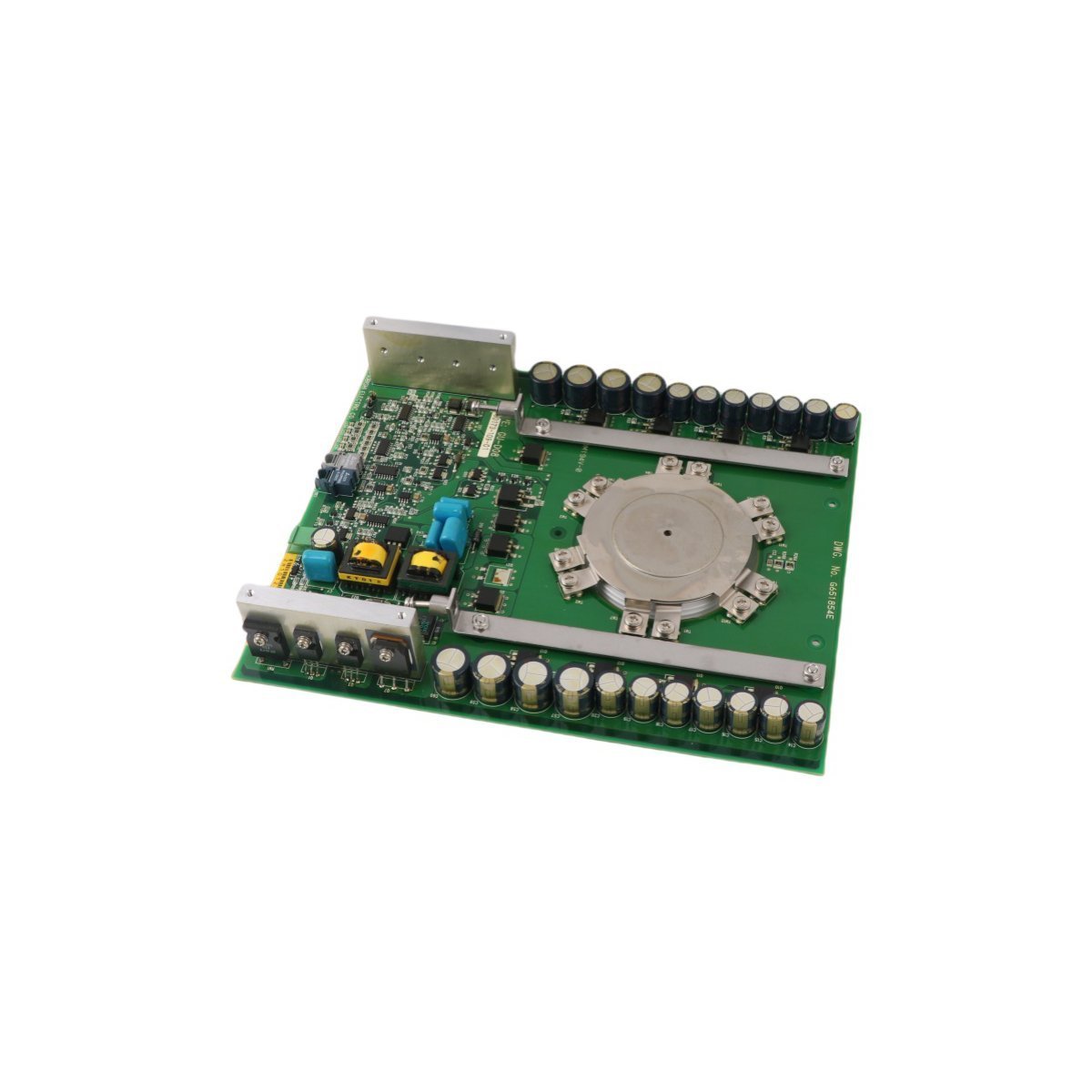

The Allen Bradley GCU08CB-130 80173-109-01-3, also cataloged as the GCU08CB-130 Board Module, operates as a dedicated hardware component for GCT thyristor gate control execution within PLC and high-power drive networks. Configured for gating pulses execution, this unit drives switching commands to heavy industrial solid-state electronics, combining digital and analog feedback verification signals on a single printed circuit board structure. The module establishes direct electrical conduction via dedicated interface tracking to manage high-current thyristor switching sequences while sustaining signal integrity under intense electrical noise profiles.

Hardware Specifications

Deterministic Sub-Bus Processing and Gating Density Scaling

The Allen Bradley GCU08CB-130 80173-109-01-3 utilizes local backplane bus communication velocity interfaces to synchronize thyristor firing sequences with central PLC processors. The integrated gate drive circuitry maximizes I/O density scaling by packing multiple control pathways onto a compact board footprint, enabling synchronous control across multi-phase converter setups. Firmware flash compatibility checks embedded in the host system govern data routing, allowing the hardware matrix to maintain precise timing during full-load power transitions. High galvanic isolation barriers separate the low-voltage control inputs from the high-power thyristor circuits, neutralizing common-mode electrical noise and protecting the upstream industrial network from transient voltage spikes.

Frequently Asked Questions

Q: How does a technician verify firmware flash compatibility for the GCU08CB-130 80173-109-01-3 module?

A: The board functions primarily as a hardware gating interface card. Firmware flash compatibility constraints apply directly to the master PLC controller or drive processor module rather than the board module itself, which reads direct electrical gating signals dynamically.

Q: Does this board module support hot-swap toolless replacement while the thyristor unit is energized?

A: No. Technicians must fully de-energize the drive system and PLC rack before replacing this module. Pulling the board under power can break gate terminal circuits, causing erratic thyristor firing or catastrophic breakdown of the power semiconductor bank.

Q: What onboard diagnostic features assist in troubleshooting gating circuit failures?

A: The module incorporates built-in diagnostic test paths that sample feedback status from both analog and digital loops. If the system detects a mismatch between commanded gate pulses and thyristor reaction, the host controller logs a hardware loop fault code to locate the failure immediately.

Field Installation Guidelines

• Chassis Grounding and Isolation: Secure the board module firmly onto the designated chassis frame using all provided factory mounting screws. Ensure the ground traces achieve metal-to-metal contact with the enclosure frame to prevent electrical noise from disrupting the gating loops.
• Gate Cable Routing Barriers: Route high-power thyristor gate cables and auxiliary feedback lines completely separate from low-voltage network cables. Use grounded metal conduit pathways to mitigate electrical cross-talk caused by high-frequency PWM or thyristor switching transients.
• Terminal Interface Engagement: Align the multi-pin connector plug squarely with the mating socket before pushing the board home. Uneven insertion force can bend pins, which interrupts signal channels and compromises the system’s plug-and-play functionality.
• Thermal Management: Verify that cooling air currents move freely across the card face. High-power gating assemblies emit continuous thermal loads, requiring steady cabinet ventilation to hold ambient temperatures within the 0 to 60 deg C operating threshold.
