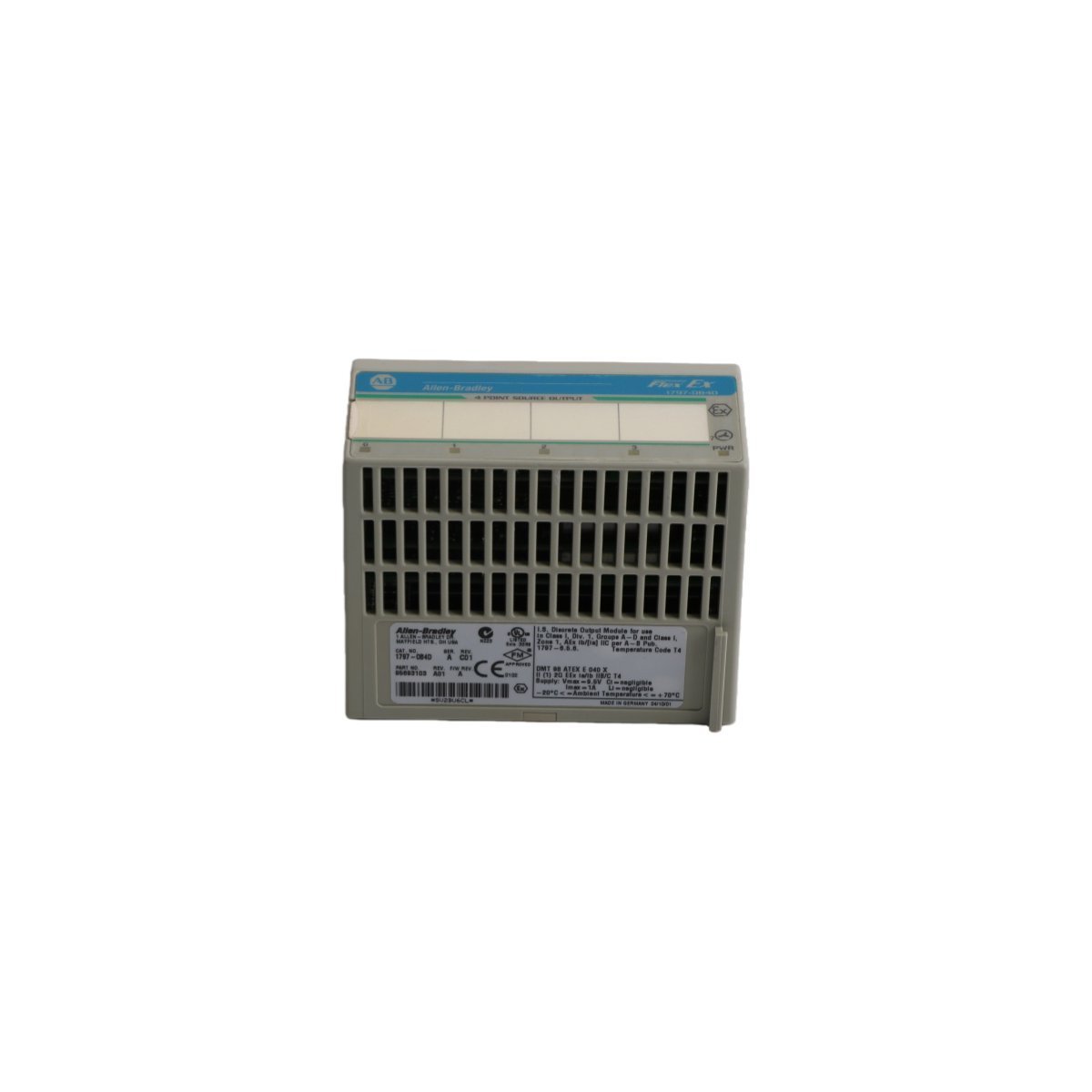

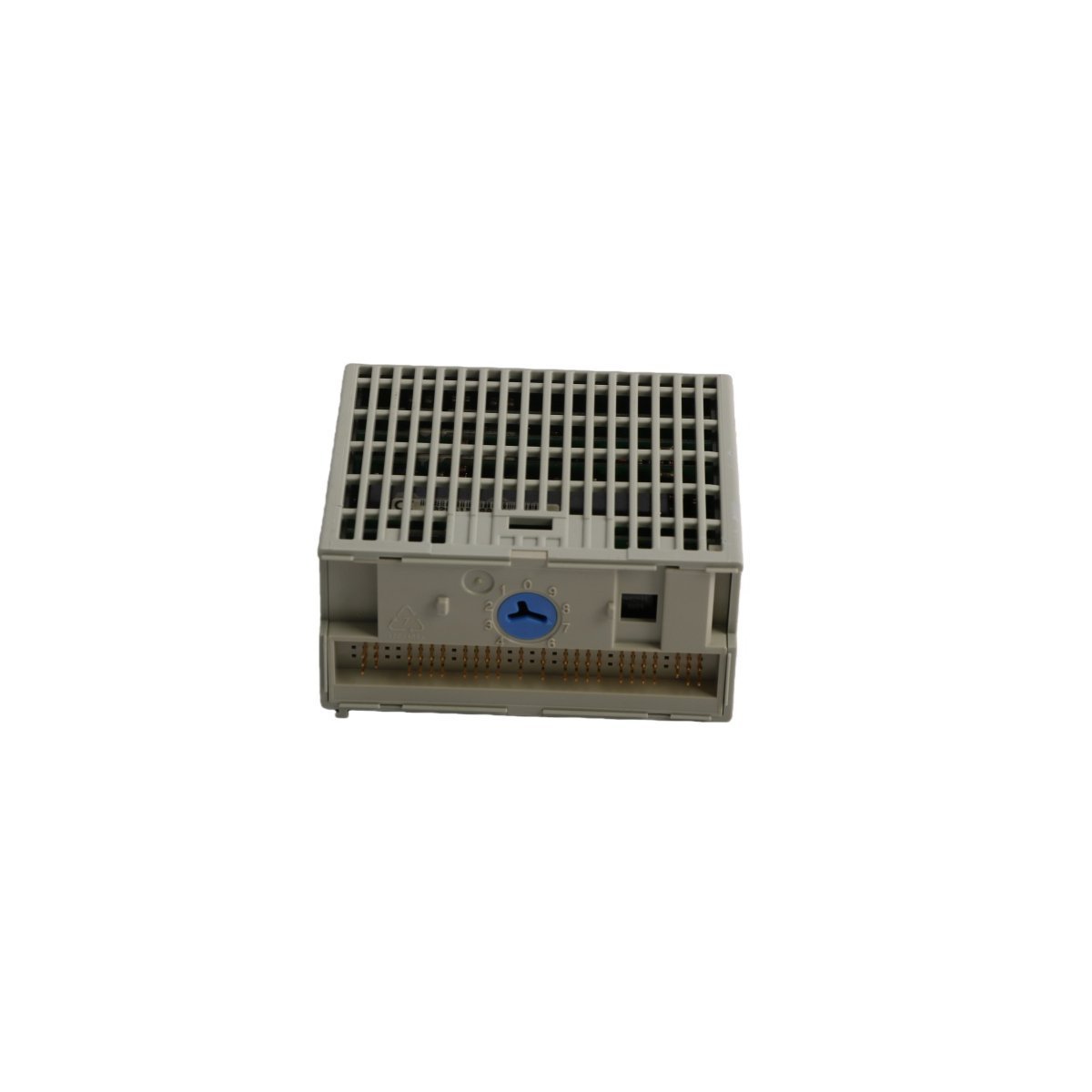

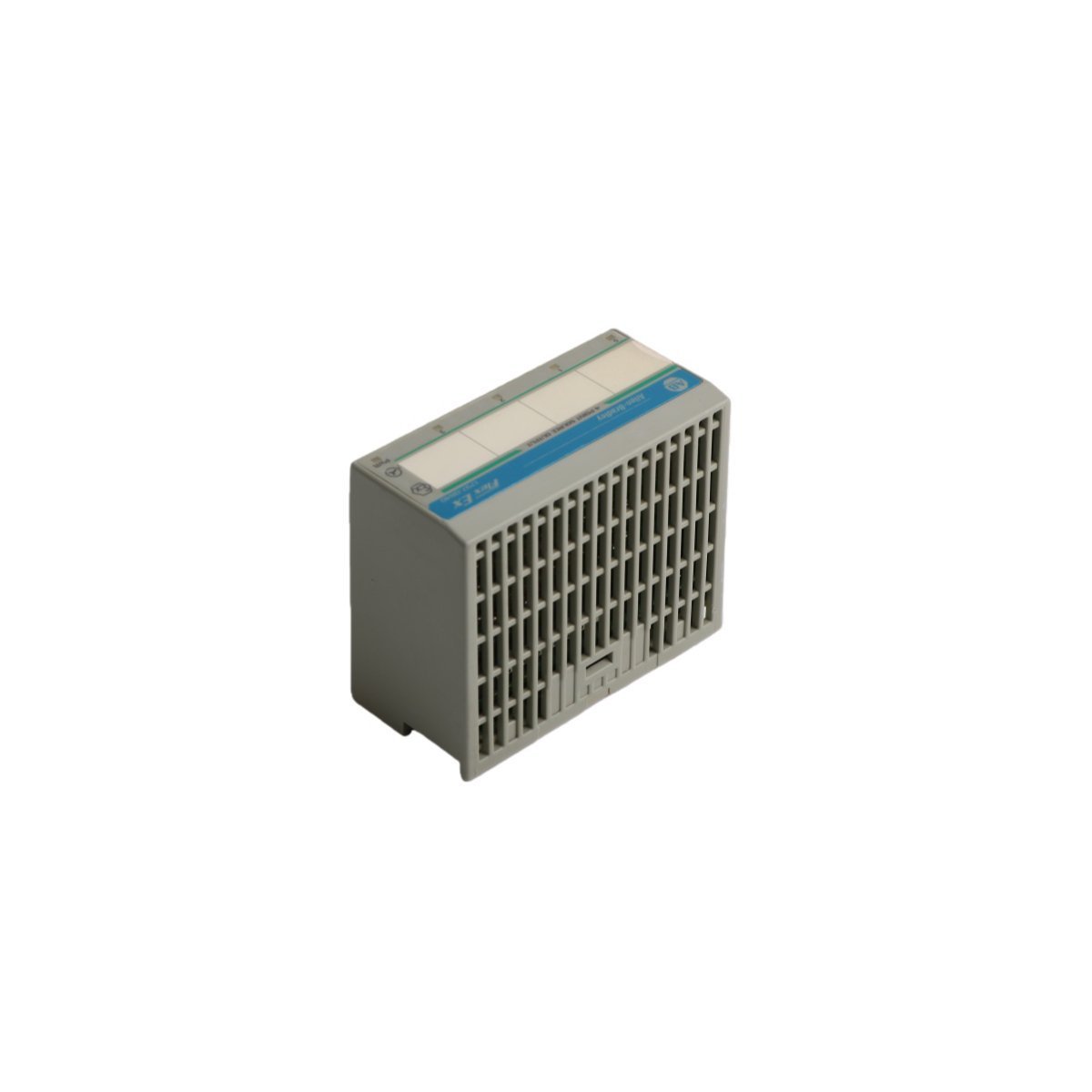

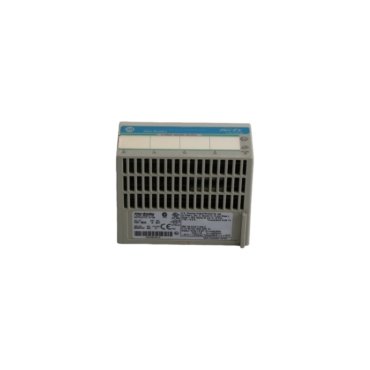

Allen-Bradley 1797-OB4D Flex EX Output Module

The Allen-Bradley 1797-OB4D serves as a specialized intrinsically safe digital output module within the FLEX Ex I/O family. Engineered specifically for hazardous areas, this module provides four sourcing output channels that facilitate the control of field-side actuators, solenoid valves, and indicators. By utilizing a non-isolated sourcing architecture, the unit allows multiple outputs to share a single common power return, which effectively streamlines the wiring process in complex control cabinets.

Technical Specifications

Key Technical Characteristics

• Advanced Fault Diagnostics: The module monitors each channel individually for critical failures such as open circuits (wire breaks) or short circuits. This intelligence allows the system to trigger a flashing red LED indicator immediately upon detecting an anomaly, significantly accelerating the troubleshooting process.
• High-Speed Execution: With a rapid 2-millisecond update rate across the system backplane, the module ensures that output states reflect controller commands almost instantaneously. This responsiveness supports high-precision actuation in time-sensitive industrial processes.
• Intrinsically Safe Design: As part of the FLEX Ex line, this module meets stringent safety standards for operation in environments where explosive atmospheres may exist, providing a secure interface for hazardous-area field devices.
• Real-Time Visual Monitoring: Each of the four channels features a dedicated yellow status LED. These indicators provide operators with immediate visual confirmation of active outputs directly on the module faceplate.
• Rugged Electronic Protection: Beyond standard diagnostics, the unit incorporates onboard electronic protection to prevent hardware damage from electrical faults, ensuring a long operational life in unconditioned industrial settings.
