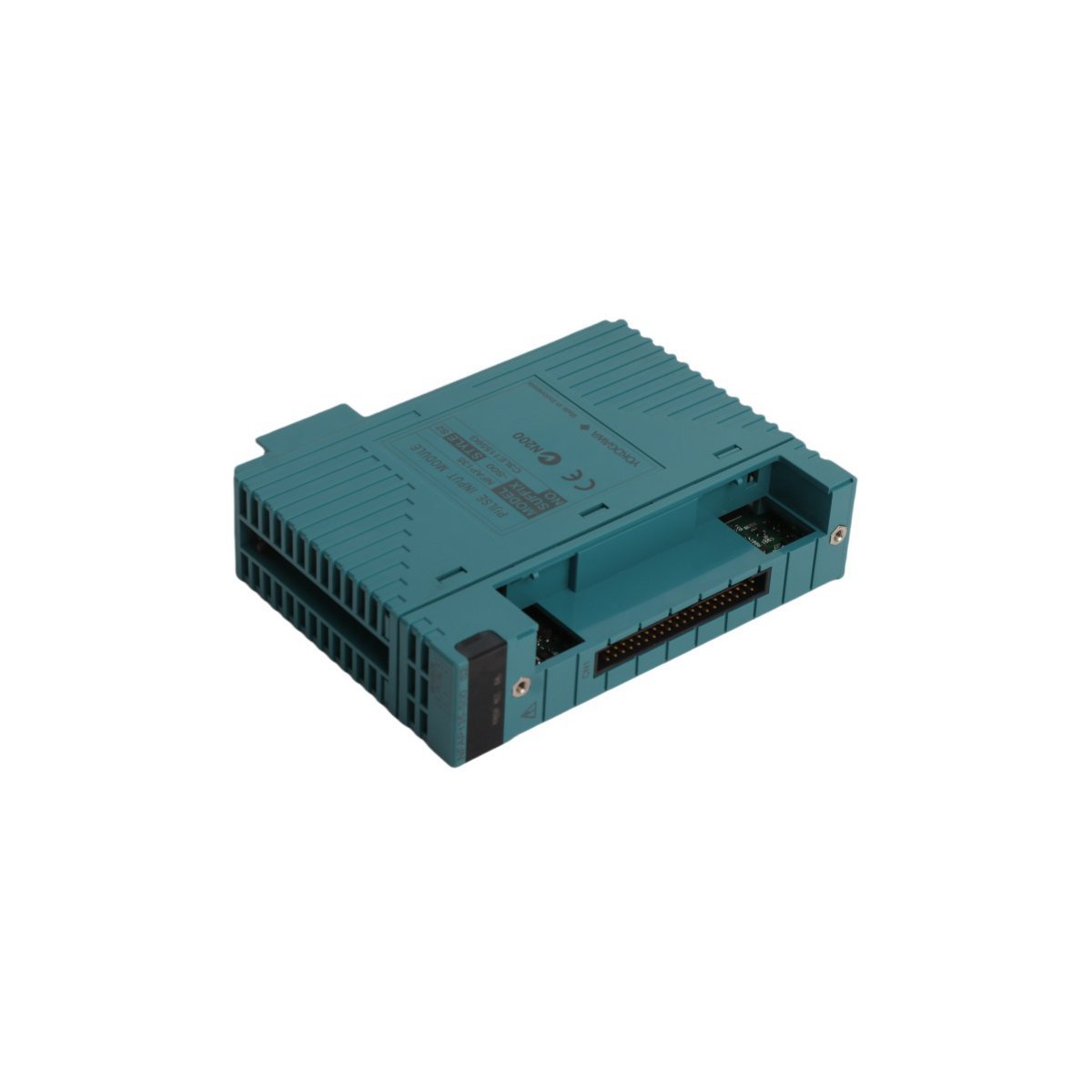

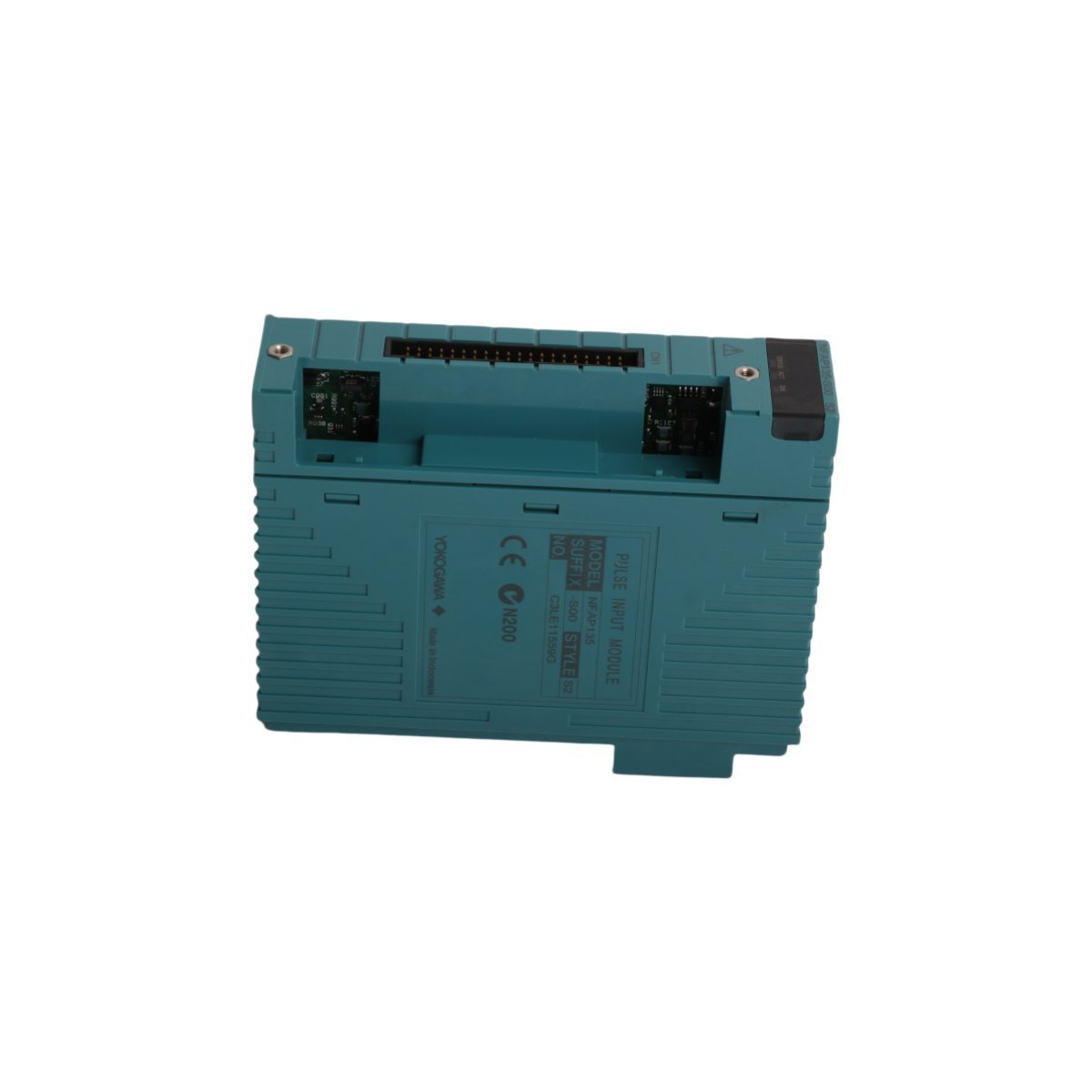

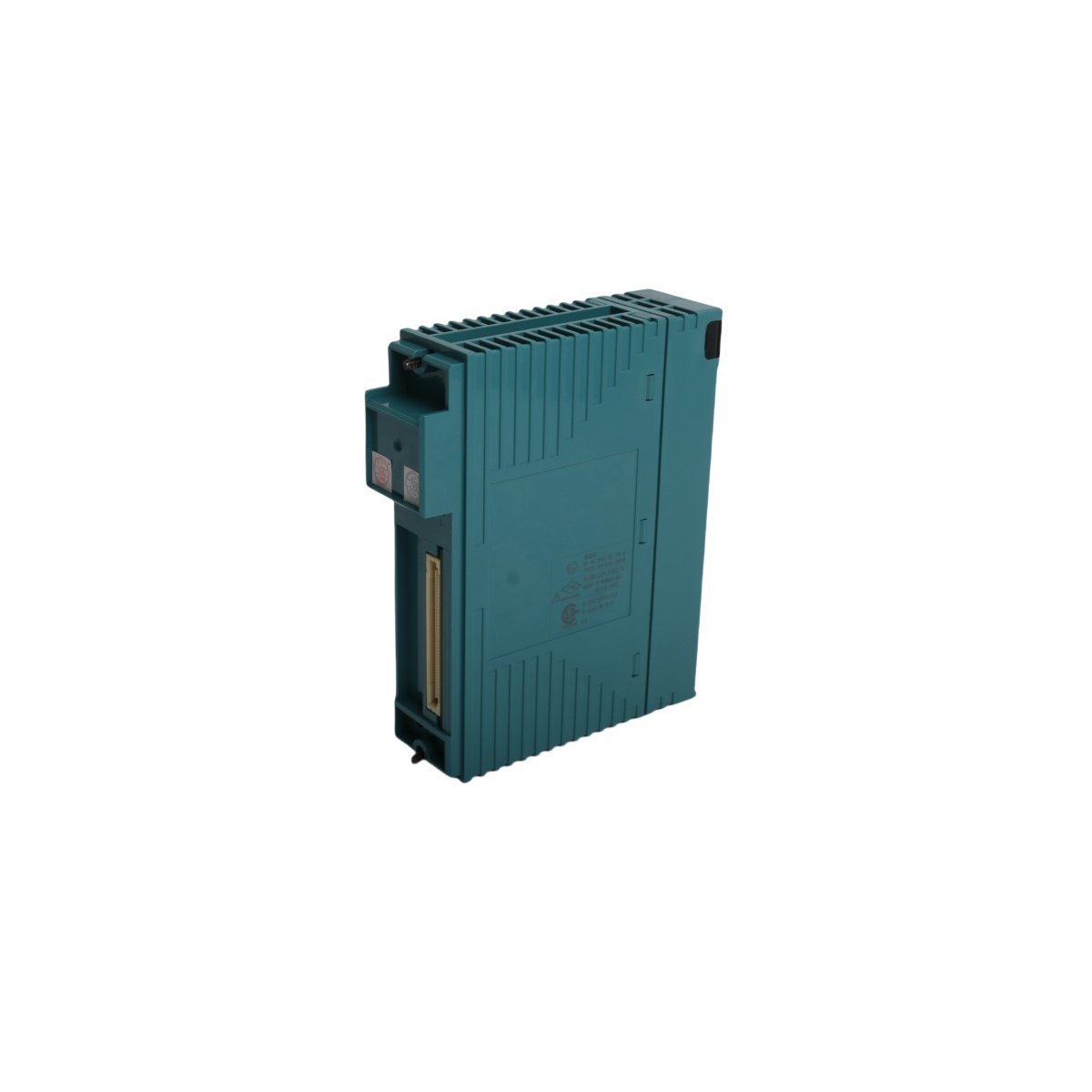

Yokogawa NFAP135-S00 S2 Pulse Input Module

The Yokogawa NFAP135-S00 S2 serves as a critical interface for high-speed pulse signal processing. This module captures frequency data from various field instruments with extreme accuracy. It effectively converts pulses from turbine flow meters and rotary encoders into digital variables. Furthermore, the unit features eight independent channels to manage multiple sensors simultaneously. The hardware handles rapid signal detection for real-time process control. Consequently, it remains a top choice for high-speed manufacturing and energy monitoring.

Technical Performance Specifications

Signal Conditioning and Interference Protection

Maintaining data purity is a primary function of the NFAP135-S00 S2 architecture. Each input channel utilizes robust isolation to block ground loop currents. Moreover, the module includes a configurable filter function to eliminate contact chattering. This ensures the controller receives clean data from mechanical relays and solid-state sensors. The internal 68 k$\Omega$ pull-up resistance further stabilizes signal transitions. Therefore, the module provides reliable performance even in electromagnetically noisy environments.

System Integration and Field Versatility

The NFAP135-S00 S2 offers flexible power options to accommodate diverse field devices. Users can select between 12V and 24V DC transmitter power supplies via software settings. This versatility simplifies the integration of various 2-wire and 3-wire pulse generators. Additionally, the 2ms refresh rate supports the tracking of fast-changing process variables. The compact design fits seamlessly into standard Yokogawa DCS racks. Such efficiency optimizes cabinet space and reduces overall installation costs.
