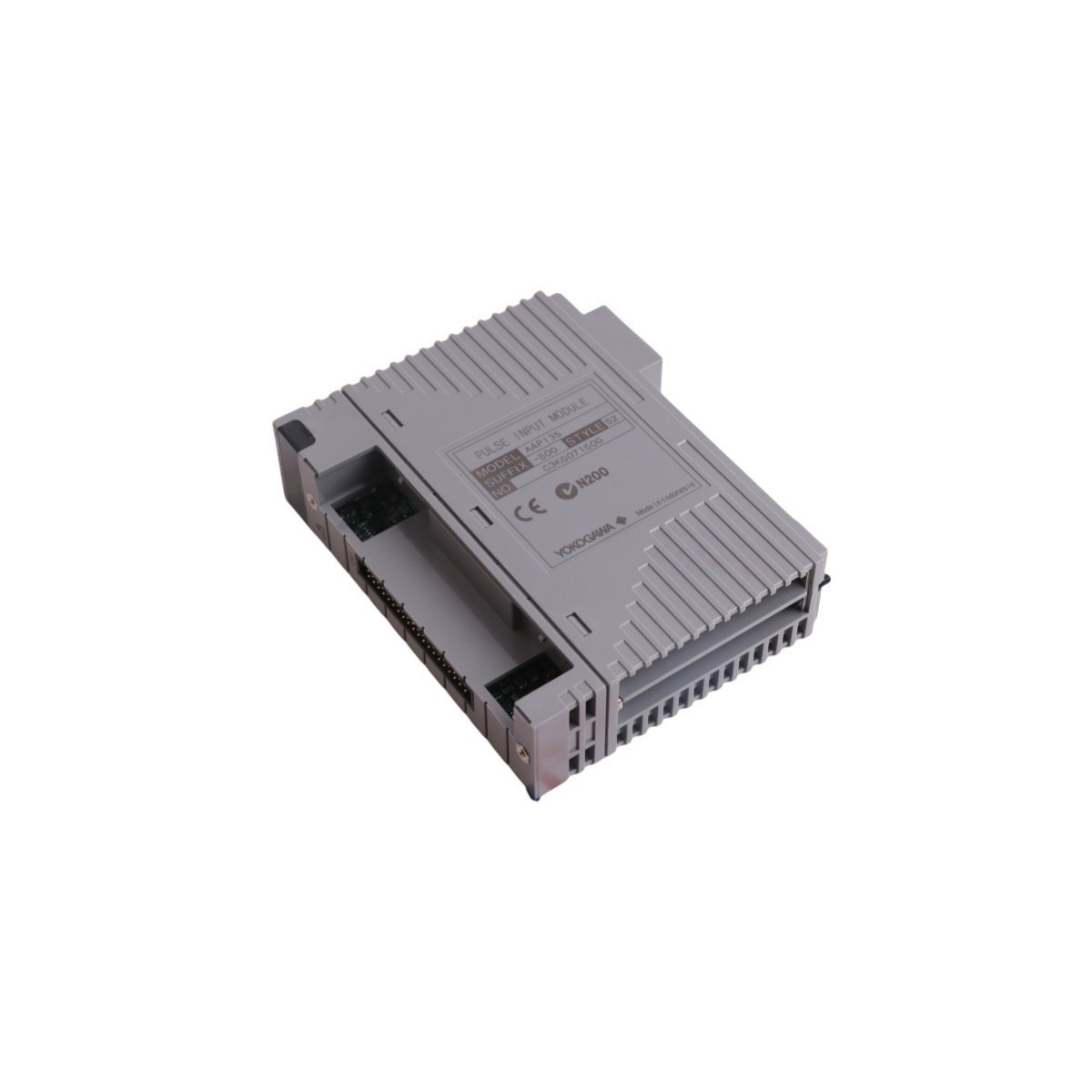

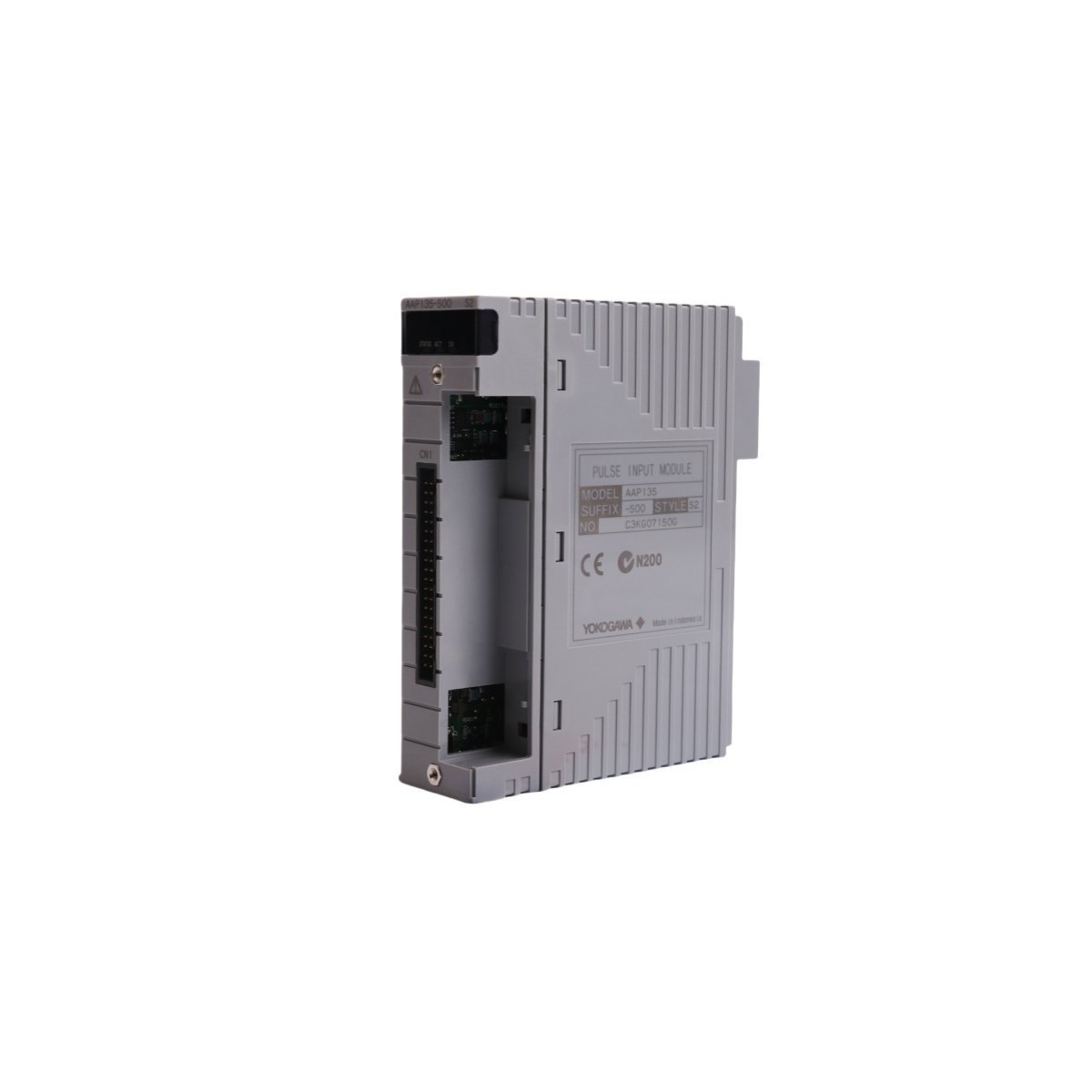

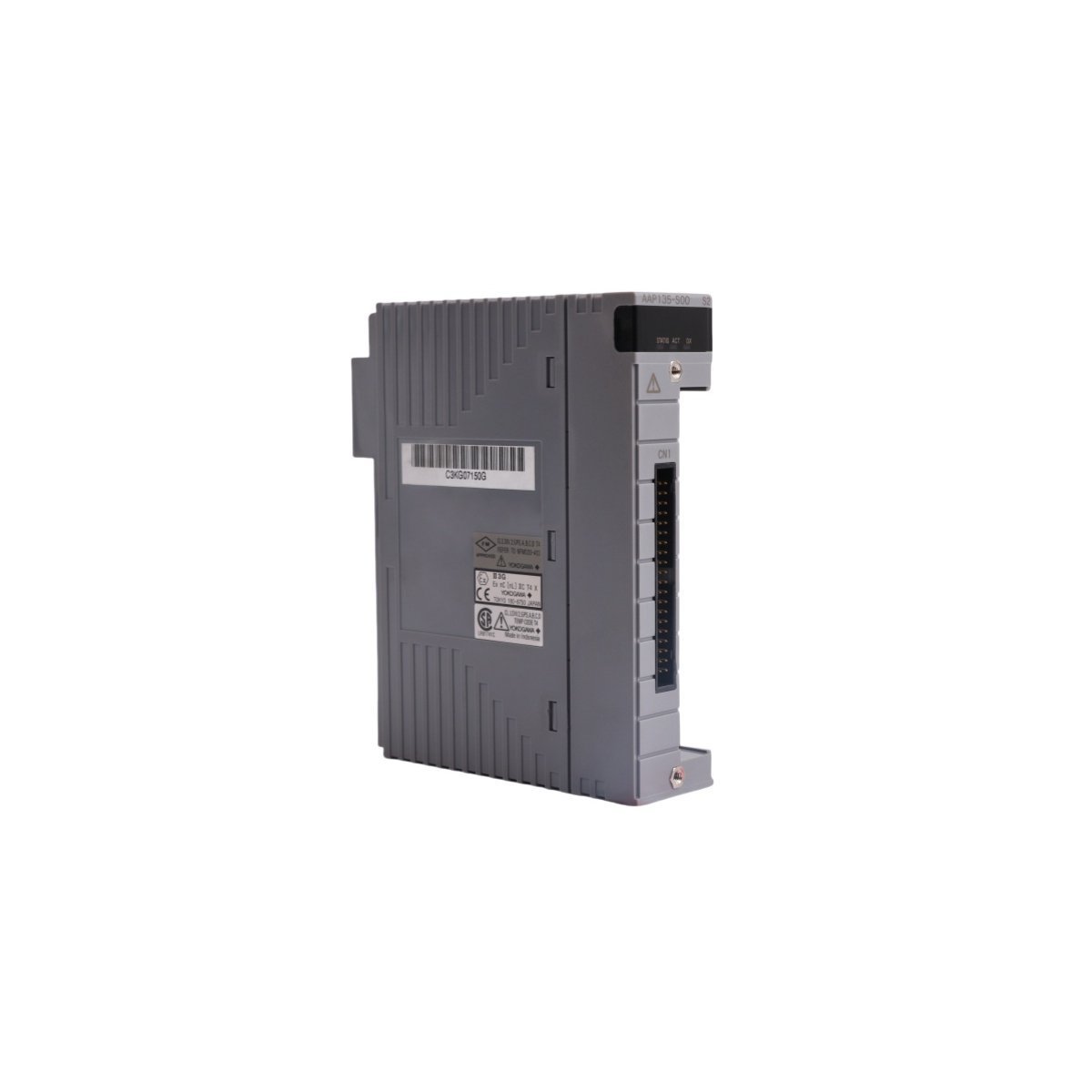

Yokogawa AAP135-S00 S2 Pulse Input Module

The Yokogawa AAP135-S00 S2 provides essential pulse measurement functions for distributed control systems. This module accurately captures frequency and count data from field instruments. It supports a diverse range of input types including voltage pulses and current pulses. Additionally, it handles contact ON/OFF signals and 2-wire or 3-wire sensor configurations. The hardware excels in monitoring flow meters and speed sensors across industrial plants. Consequently, it delivers precise data for real-time process calculations.

Technical Performance and Data Specs

Advanced Channel Isolation and Safety

Measurement integrity remains a core feature of the AAP135-S00 S2 architecture. Each of the eight input channels features robust electrical isolation. This protection blocks system-level noise and prevents interference between individual sensor links. The module withstands up to 500 V AC to ensure hardware longevity. Furthermore, high-speed optocouplers allow for a minimum pulse width detection of 40 $\mu$s. These safety measures protect the DCS processor from field-side electrical surges.

Seamless Integration and Maintenance

System engineers benefit from the compact modular footprint of this input unit. The hardware fits easily into standard Yokogawa I/O racks for simplified installation. Moreover, the 2-millisecond update rate ensures high-speed response for critical control loops. The unit functions reliably in demanding process environments. Visual status indicators help technicians verify input activity at a glance. Furthermore, the standardized design supports hot-swapping during active system maintenance. This reduces plant downtime while upgrading or replacing components.
