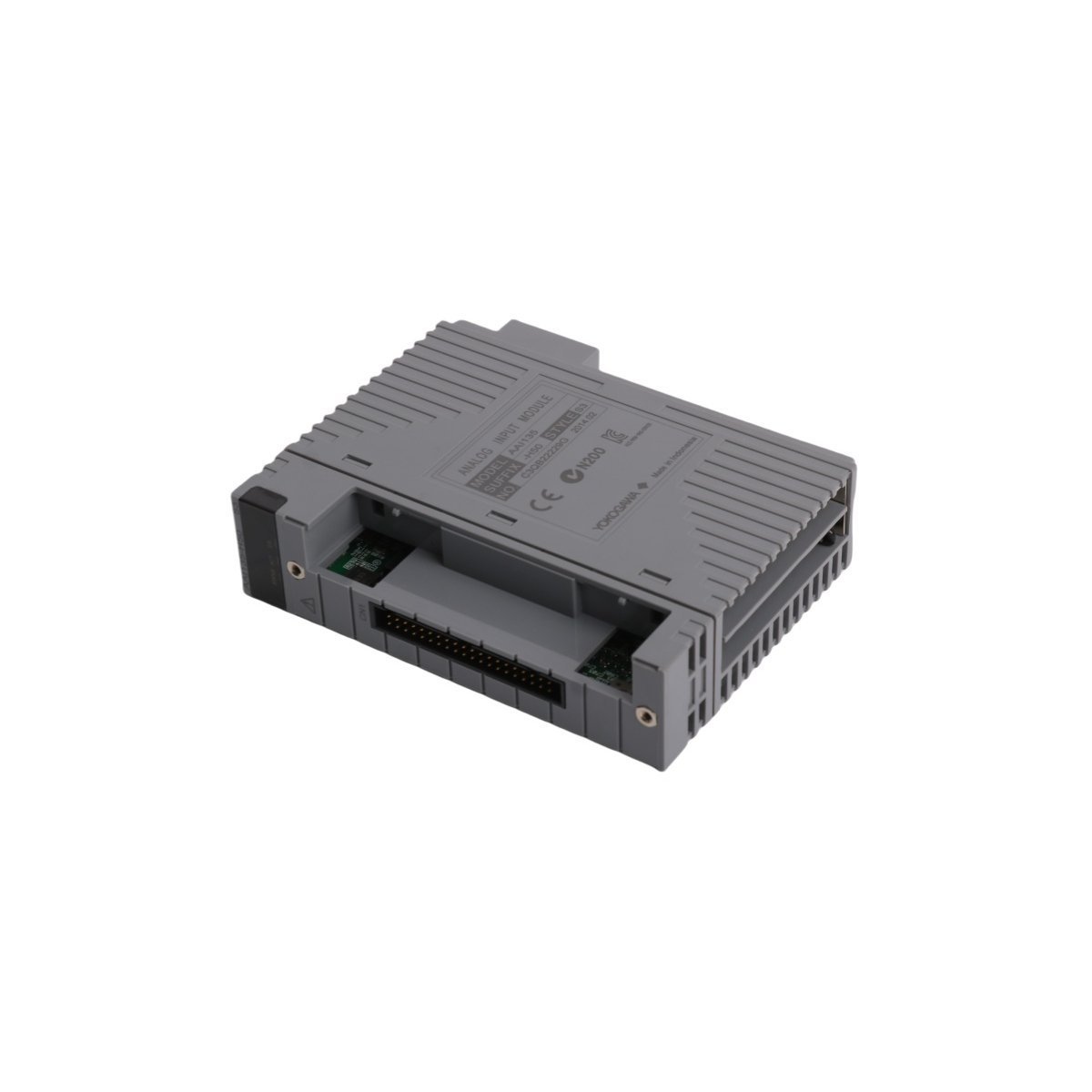

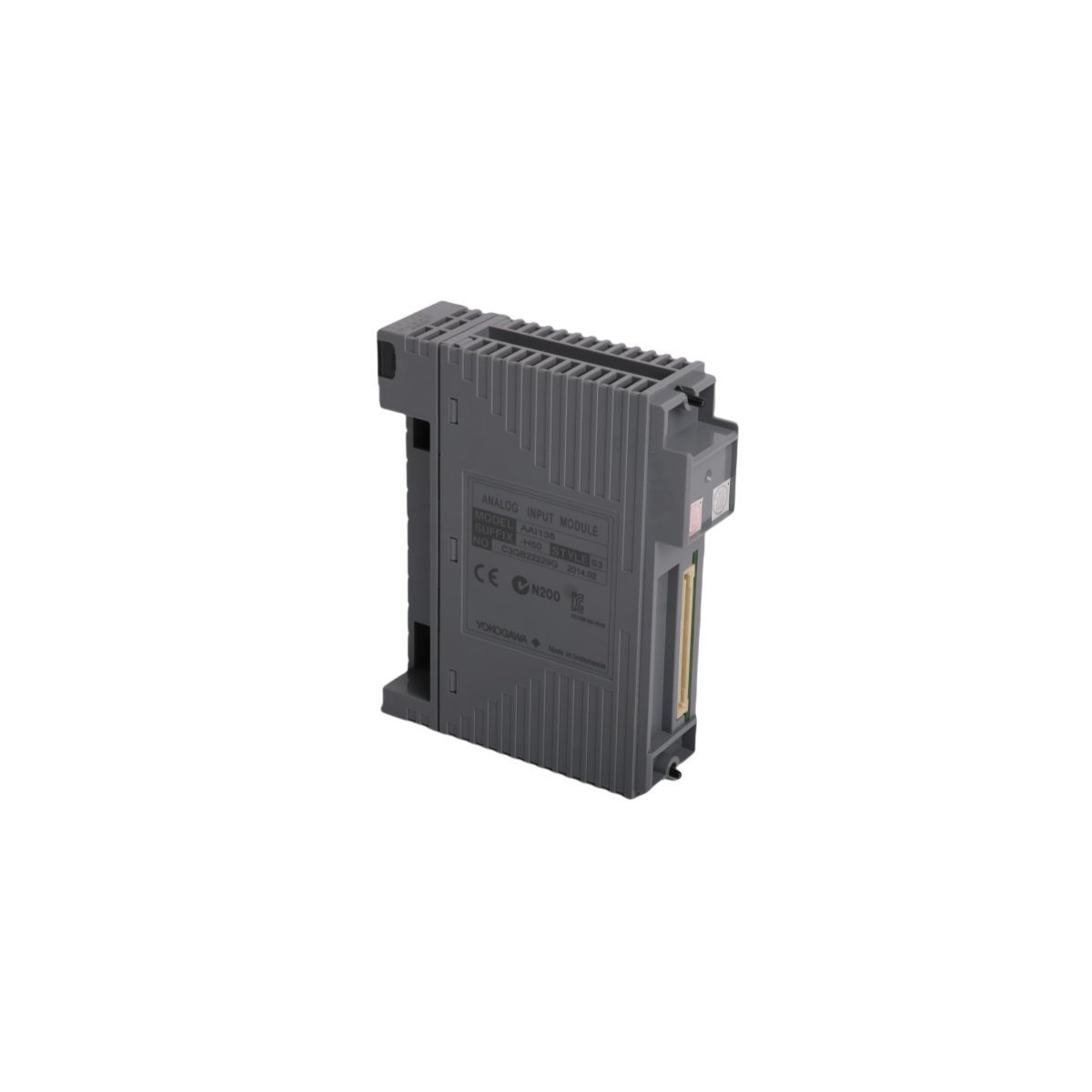

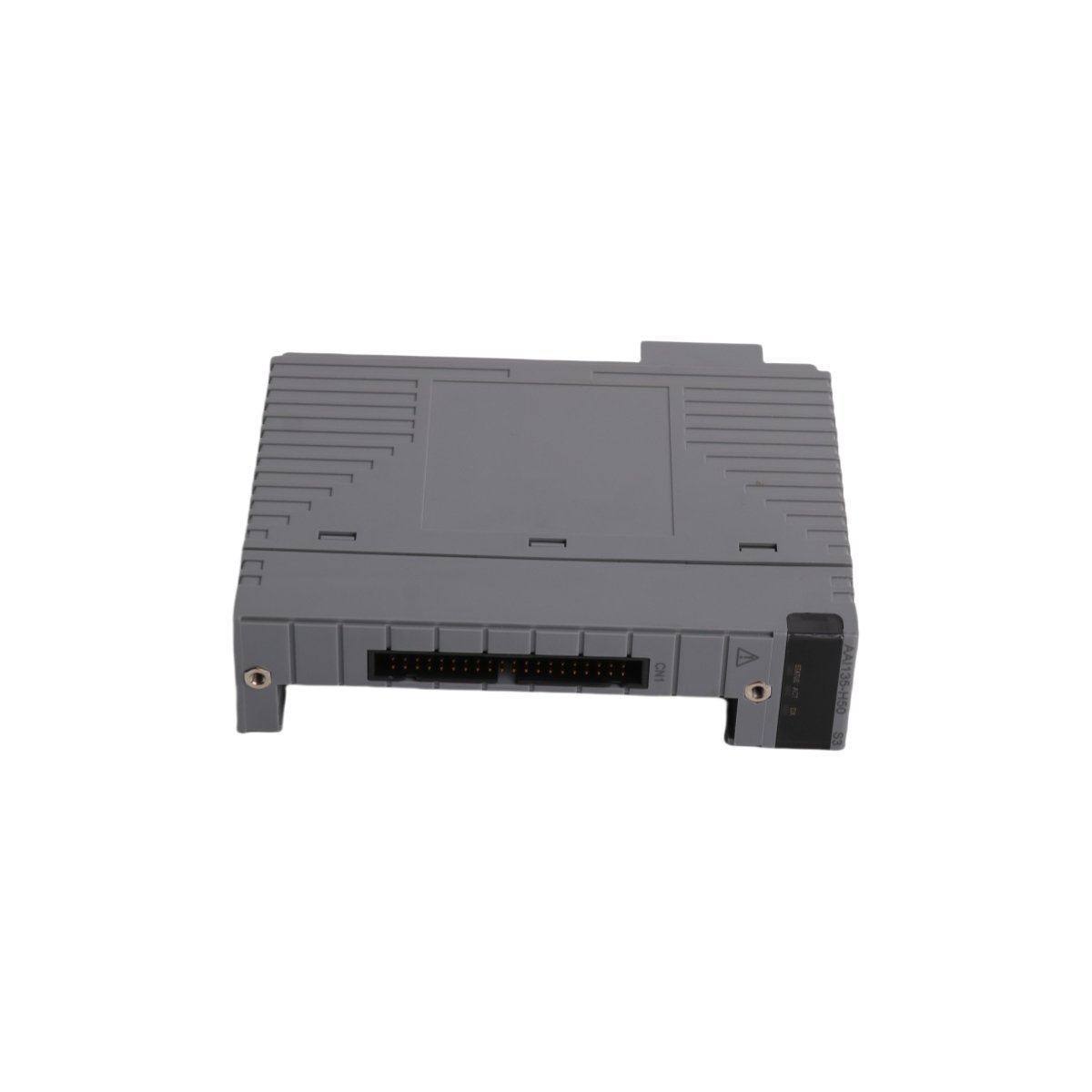

Yokogawa AAI543-H50 S1 Current Output Module

The Yokogawa AAI543-H50 S1 acts as a primary control interface for industrial actuators. This high-density module provides 16 isolated channels to drive field devices. It converts digital control commands into standard 4 to 20 mA analog signals. Furthermore, the unit supports HART 7 digital communication over the analog loop. This allows for simultaneous process control and remote device diagnostics. Consequently, it streamlines maintenance by providing real-time data from smart valves and positioners.

Summary of Technical Characteristics

Signal Integrity and Safety Design

Reliability remains the core focus of the AAI543-H50 S1 hardware architecture. Each output path features multi-stage isolation to block electrical interference. This design effectively prevents ground loops in complex plant wiring systems. Moreover, the module includes a sophisticated noise filtration circuit for stable signal delivery. Such features ensure precise control even in electrically noisy environments. The unit also supports redundant configurations for mission-critical loops. Therefore, it maintains continuous operation during a single hardware failure.

Maintenance and Diagnostics Features

Yokogawa designed the AAI543-H50 S1 for rapid servicing and minimal downtime. The module supports full hot-swap functionality for immediate on-site replacement. Meanwhile, a front-facing LED array provides instant status updates for every channel. These visual cues allow technicians to identify fault conditions at a glance. The rugged housing resists thermal stress and mechanical vibrations in industrial cabinets. Additionally, the HART compatibility enables proactive asset management from the control room.
