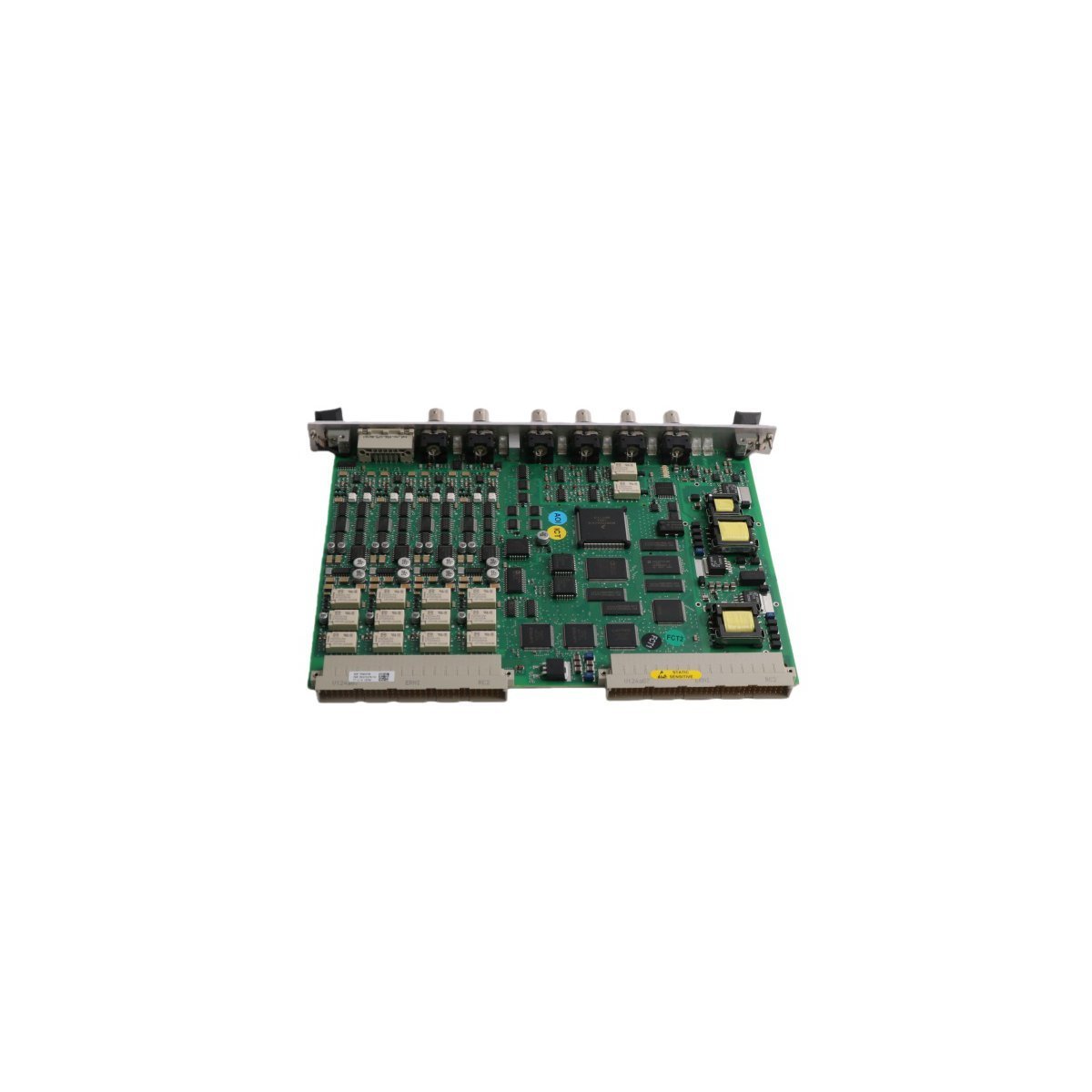

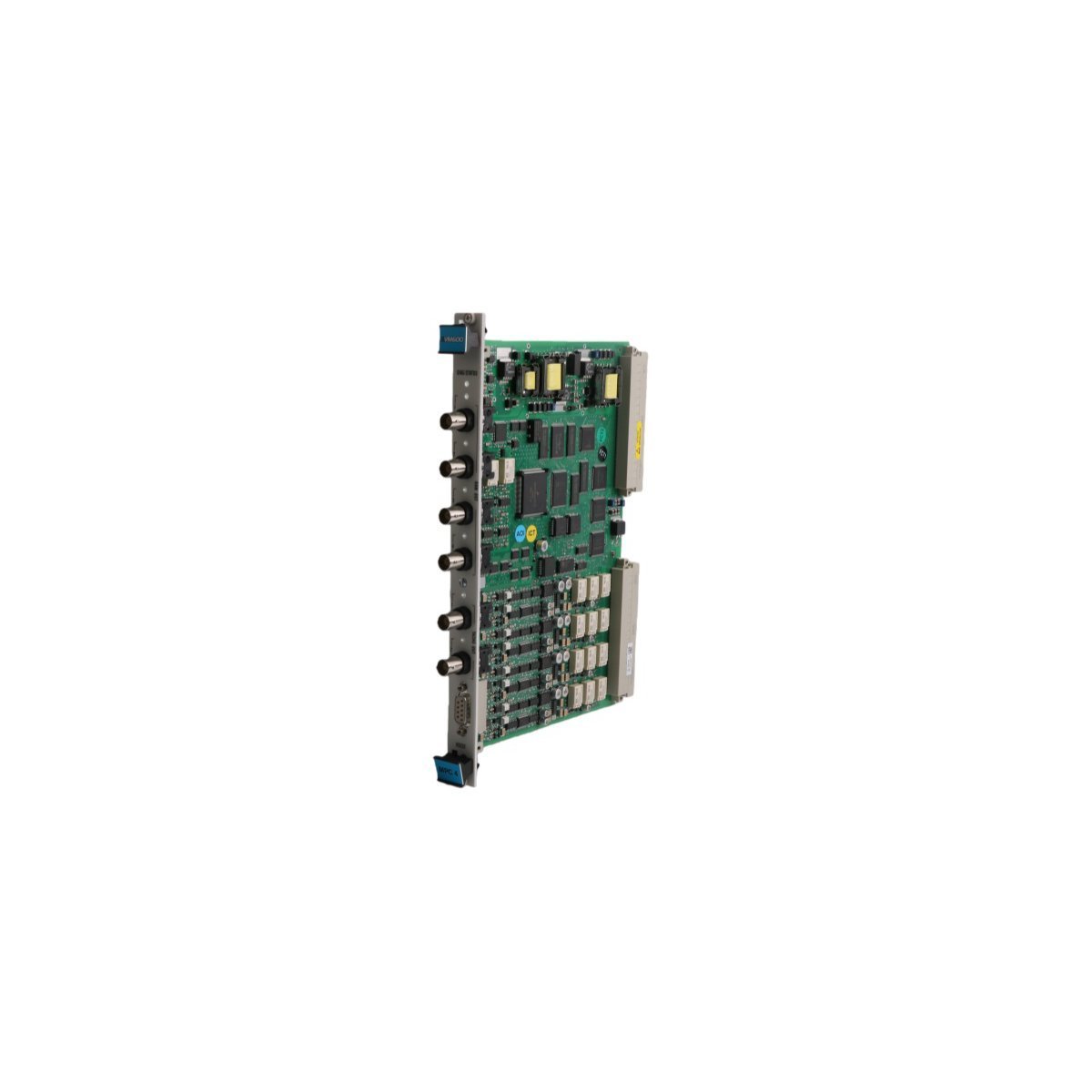

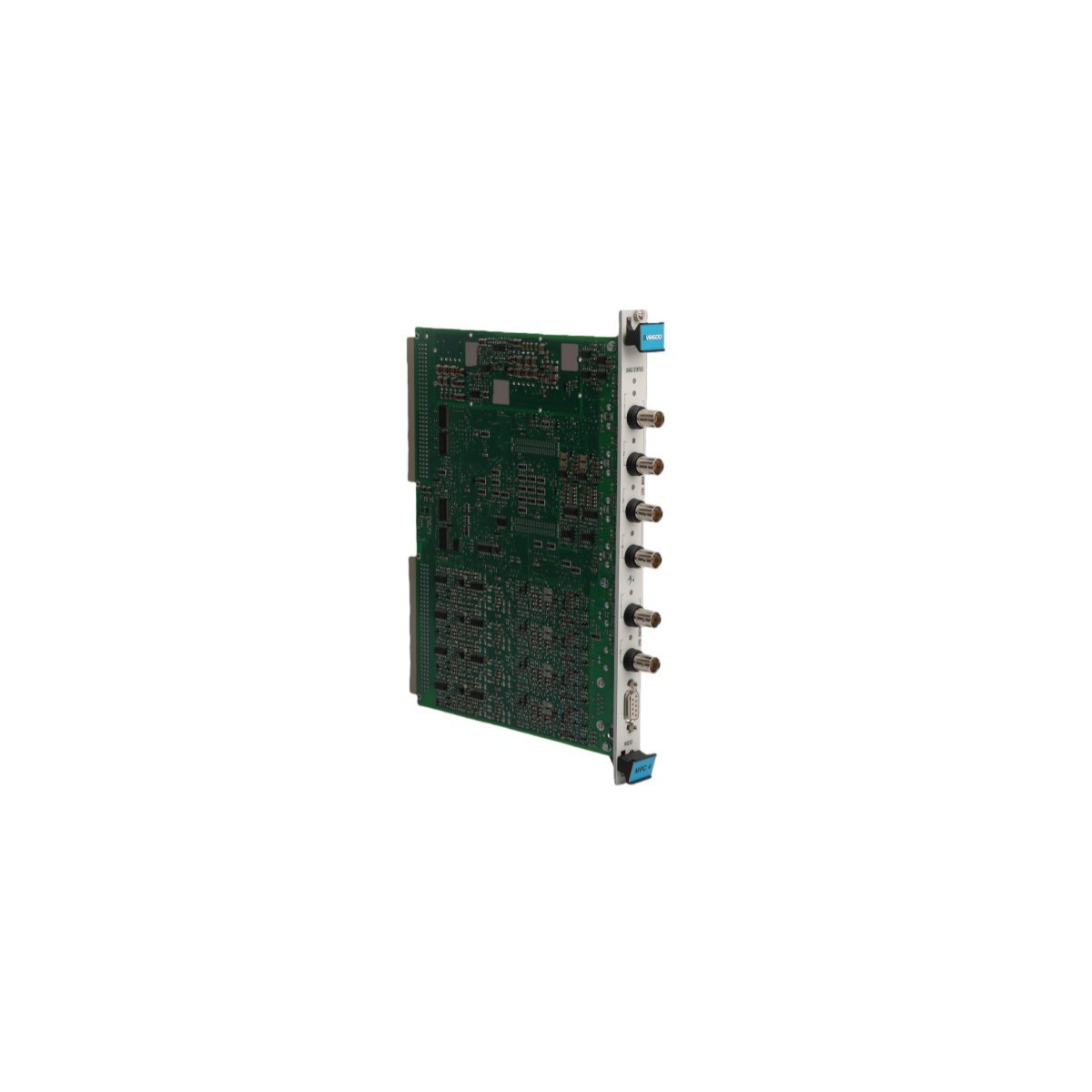

VIBRO-METER VM600 MPC4 200-510-076-114 Machinery Protection Card

The Vibro-Meter VM600 MPC4 (200-510-076-114) acts as the primary monitoring engine for industrial machinery protection. It processes data from four dynamic signal channels and two tachometer inputs simultaneously. Consequently, the card provides real-time oversight of critical rotating assets. It serves as a versatile interface for various sensor types. This includes support for accelerometers, proximity probes, and velocity sensors. The module ensures equipment stays within safe vibration and displacement limits.

Core Technical Specifications

Key Performance Characteristics

Advanced digital algorithms drive the signal processing capabilities of this module. It performs complex mathematical tasks such as integration and differentiation. Furthermore, the unit supports multiple rectification methods for precise measurements. Operators can monitor relative vibration, thrust position, and eccentricity through one unit. This multi-parameter approach eliminates the need for several separate monitors. Integrated order tracking also correlates vibration data with shaft rotational speed.

Configuration and Safety Control

Engineers utilize the MPSX software platform to customize the card’s protection logic. This programmable framework allows for specific alarm strategies tailored to unique machinery. Additionally, the card features adaptive thresholds that respond to varying operational states. Front-panel LED indicators offer immediate visual feedback on channel status. The hardware supports hot-swapping to ensure continuous system availability during maintenance. Such features maximize uptime in critical process environments.
