Allen-Bradley 1756-HSC/B ControlLogix High-Speed Counter Module

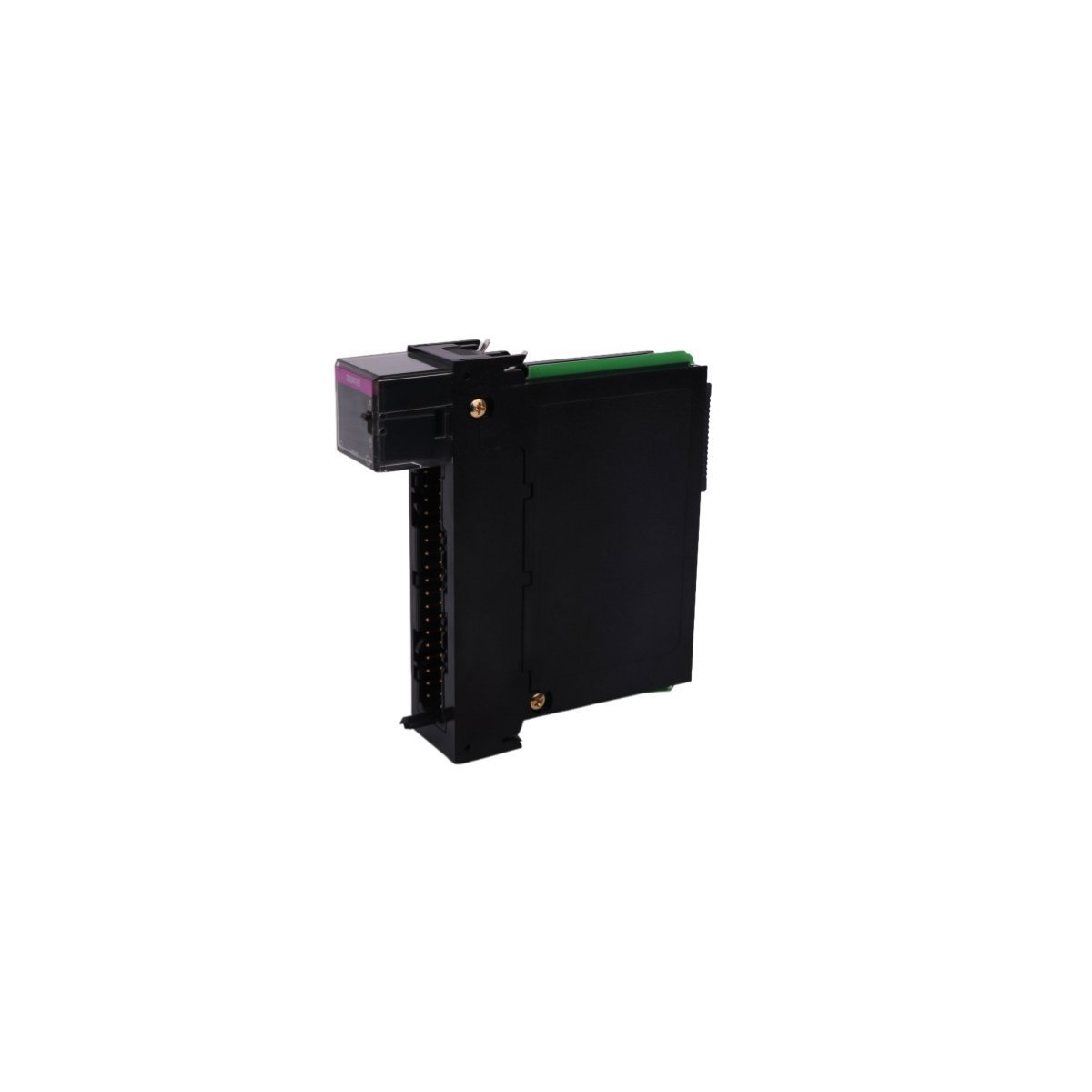

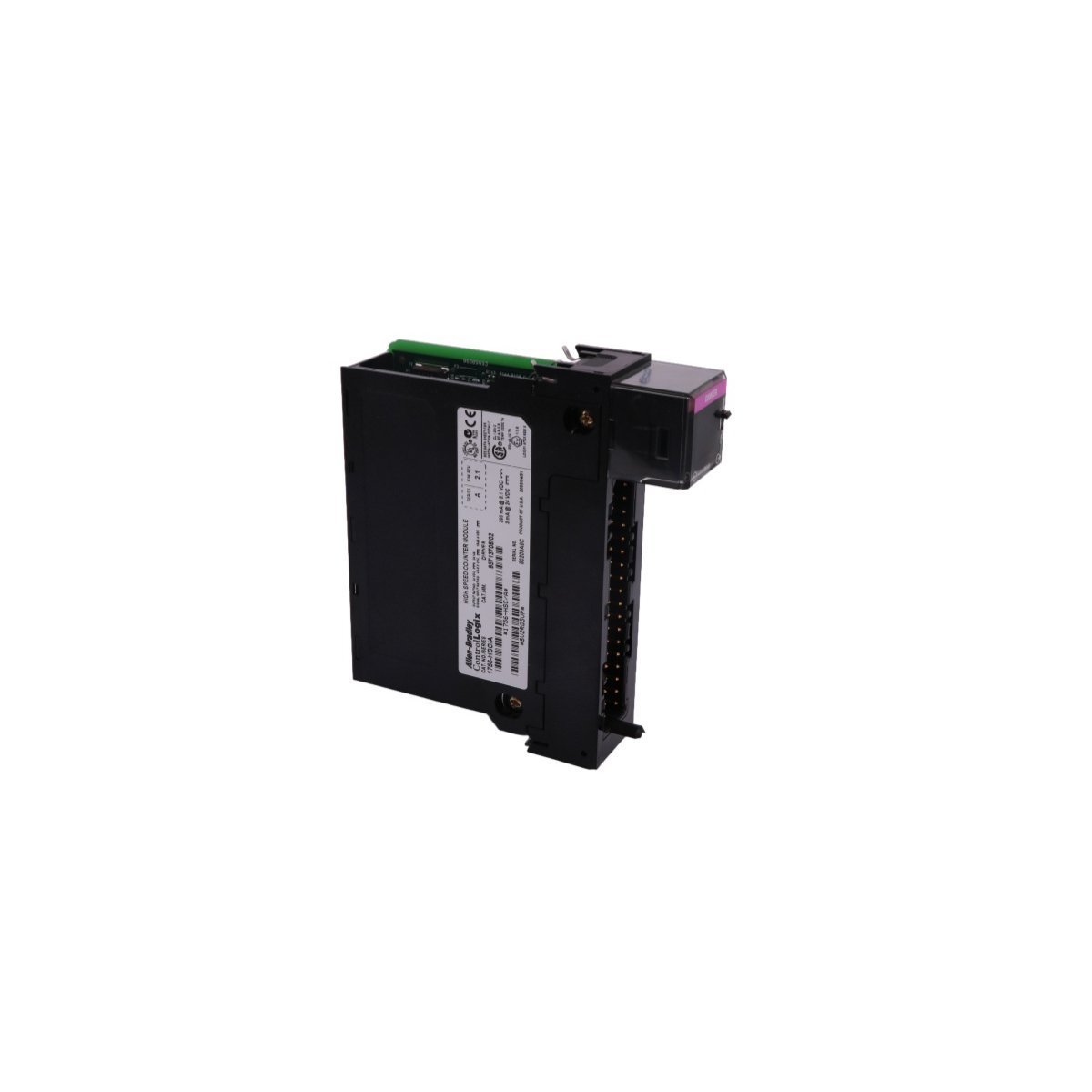

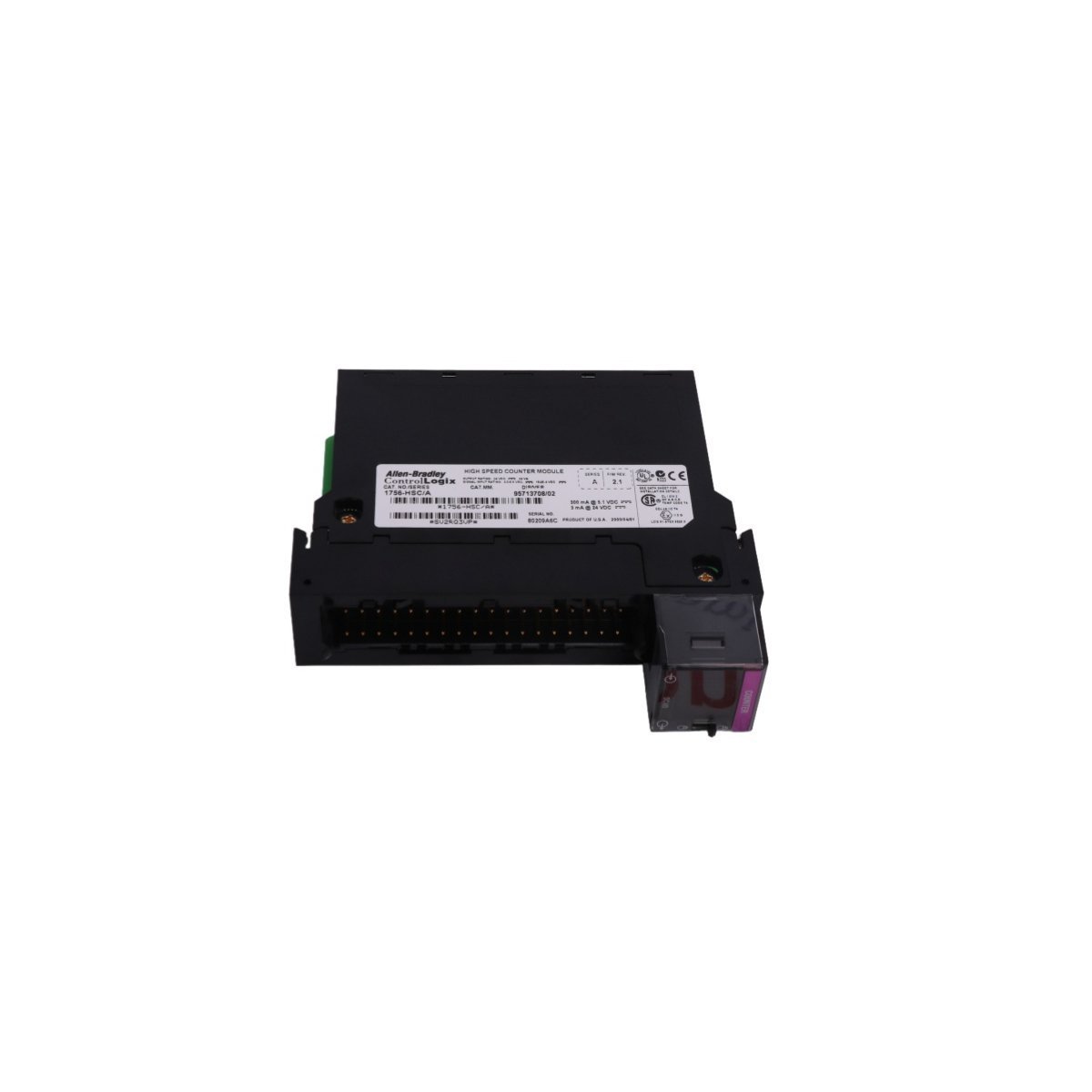

Allen-Bradley 1756-HSC/B High-Speed Counter Module

The Allen-Bradley 1756-HSC/B, also cataloged as the 1756-HSC/B High-Speed Counter (HSC) Module, operates as a dedicated hardware component for high-frequency pulse acquisition and precision motion monitoring within ControlLogix platform architectures.

Suffix Breakdown & Model Matrix

• 1756: Indicates the ControlLogix I/O platform series.
• HSC: Specifies the module function as a High-Speed Counter.
• /B: Denotes the hardware revision level, incorporating refined firmware compatibility and updated processing circuitry compared to the original series A iteration.

Hardware Specifications

Allen-Bradley Industrial Control Characteristics

The 1756-HSC/B integrates directly into the ControlLogix backplane to manage deterministic pulse counting independent of the CPU scan cycle. Through local on-board processing, the module executes high-speed logic, which reduces latency for critical output activation. Firmware flash compatibility allows the module to receive updates via the ControlLogix backplane, maintaining alignment with evolving communication service requirements. Furthermore, the high I/O density scaling supports complex motion profiles, processing frequency measurements and rate calculations at high throughput rates while maintaining signal integrity across the internal bus.

Frequently Asked Questions

Q: Does the 1756-HSC/B support hot-swap capabilities within the ControlLogix chassis?

A: Yes, this module supports Removal and Insertion Under Power (RIUP). Users may extract or insert the module into a powered chassis without disrupting the operation of other modules.

Q: How does the module handle signal debounce for mechanical encoder inputs?

A: The module implements configurable digital filtering via software. Users adjust these filters to suppress transient noise or contact bounce, which ensures accurate pulse incrementing for mechanical sensor interfaces.

Q: Can this module share encoder signals across multiple controllers?

A: The module performs local counting tasks. While it communicates data to the owner controller via the backplane, it does not act as an Ethernet router for sharing raw encoder signals directly to remote network nodes.

Field Installation Guidelines

1. Chassis Mounting: Align the module with the chassis guides and slide it fully into the slot. Tighten the top and bottom retaining screws to ensure proper grounding to the chassis backplane.
2. Wiring Termination: Utilize the appropriate 36-pin RTB (Removable Terminal Block). Strip wire insulation to the specified length to prevent exposed conductors, then torque terminal screws according to manufacturer torque specifications to guarantee physical connection stability.
3. Shielding: Terminate encoder cable shields at the designated chassis ground point. Avoid routing high-speed signal cables alongside high-voltage AC power lines to minimize electromagnetic interference and potential cross-talk.
4. Verification: After installation, perform a status check using the RSLogix or Studio 5000 software to verify that the module initializes and shows no fault codes on the front-panel LED indicators.
