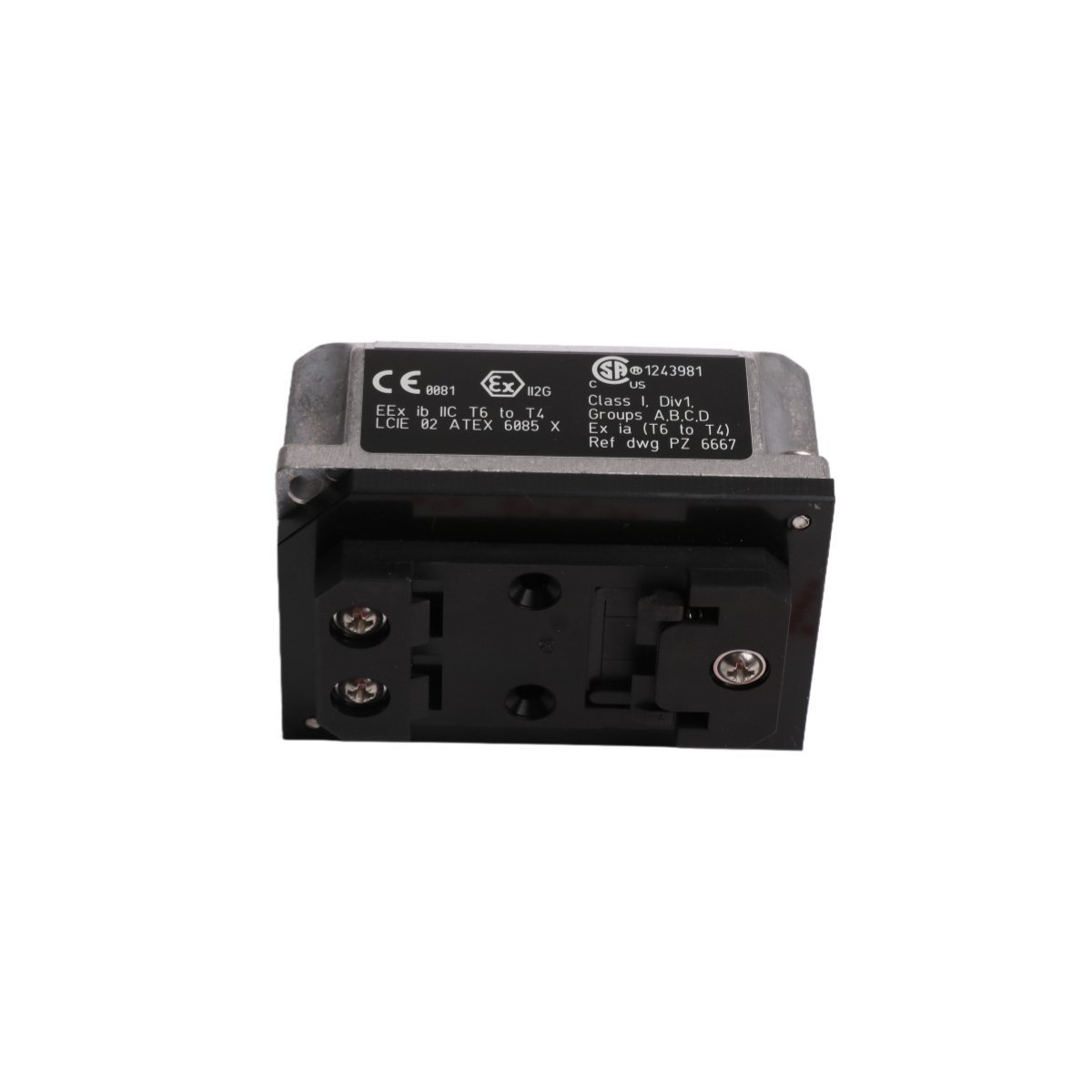

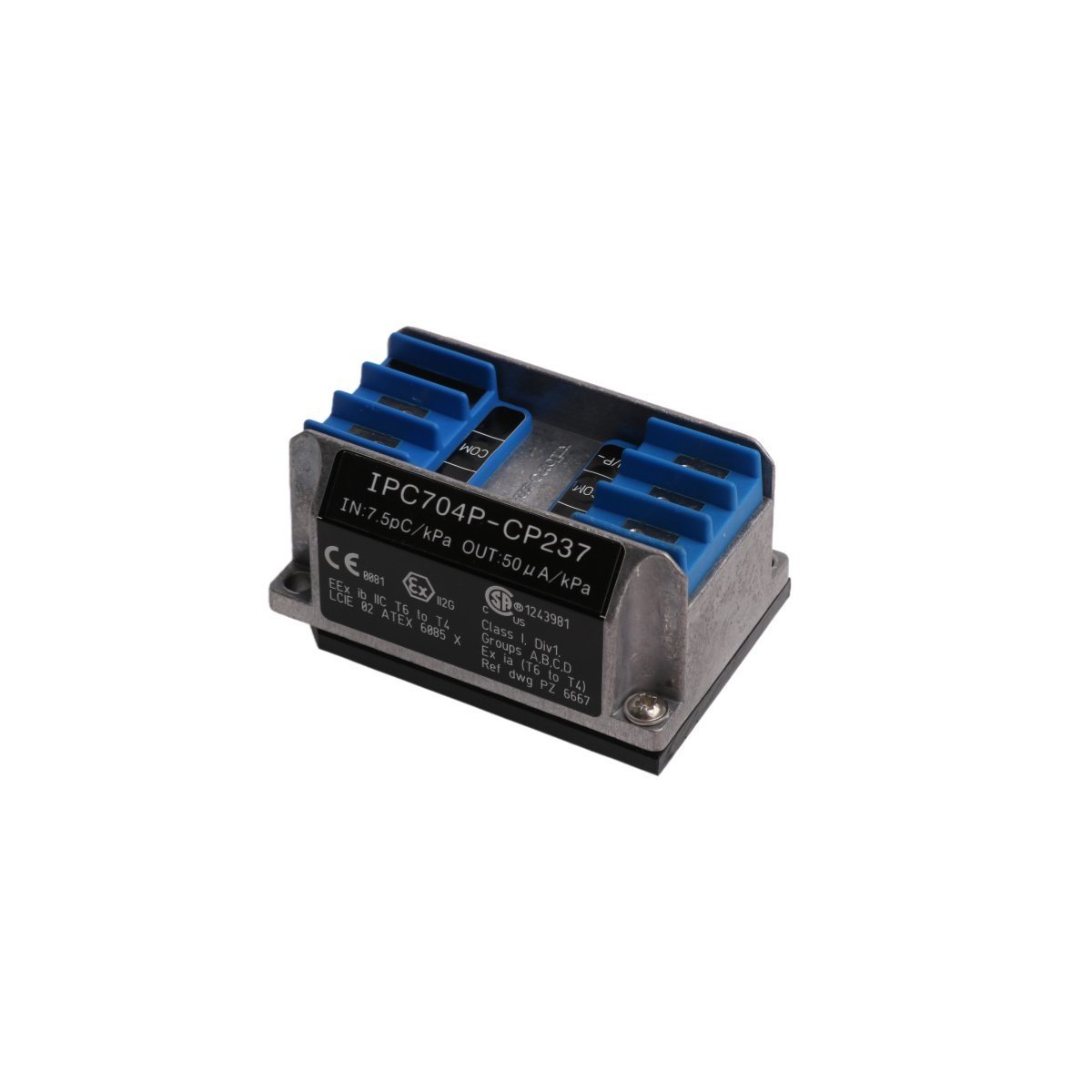

VIBRO-METER IPC704 244-704-000-042 Signal Conditioner

The Vibro-Meter IPC704 244-704-000-042 performs critical signal transformation for industrial vibration monitoring systems. This device primarily converts high-impedance charge signals from piezoelectric sensors into stable current or voltage outputs. Consequently, it allows for reliable data transmission across long distances in demanding industrial environments.

Engineered with a robust aluminum housing, the IPC704 ensures the integrity of sensitive vibration data. It interfaces seamlessly with various monitoring platforms to provide continuous machinery protection. This unit represents a vital link between raw sensing hardware and high-level control systems like PLCs.

Core Functions and Capabilities

• The module supports flexible 2-wire and 3-wire transmission configurations for diverse installation needs.
• Integrated RFI filters protect both input and output stages from electromagnetic and radio interference.
• Onboard signal processing includes configurable high-pass and low-pass filtering to isolate specific frequencies.
• An optional integrator circuit allows the unit to provide velocity measurements from acceleration inputs.
• The device maintains signal accuracy over distances reaching 1000 meters via GSI separation units.
• Multiple mounting options include standard DIN-rail adapters or specialized weather-proof polyester enclosures.

Technical Specifications
