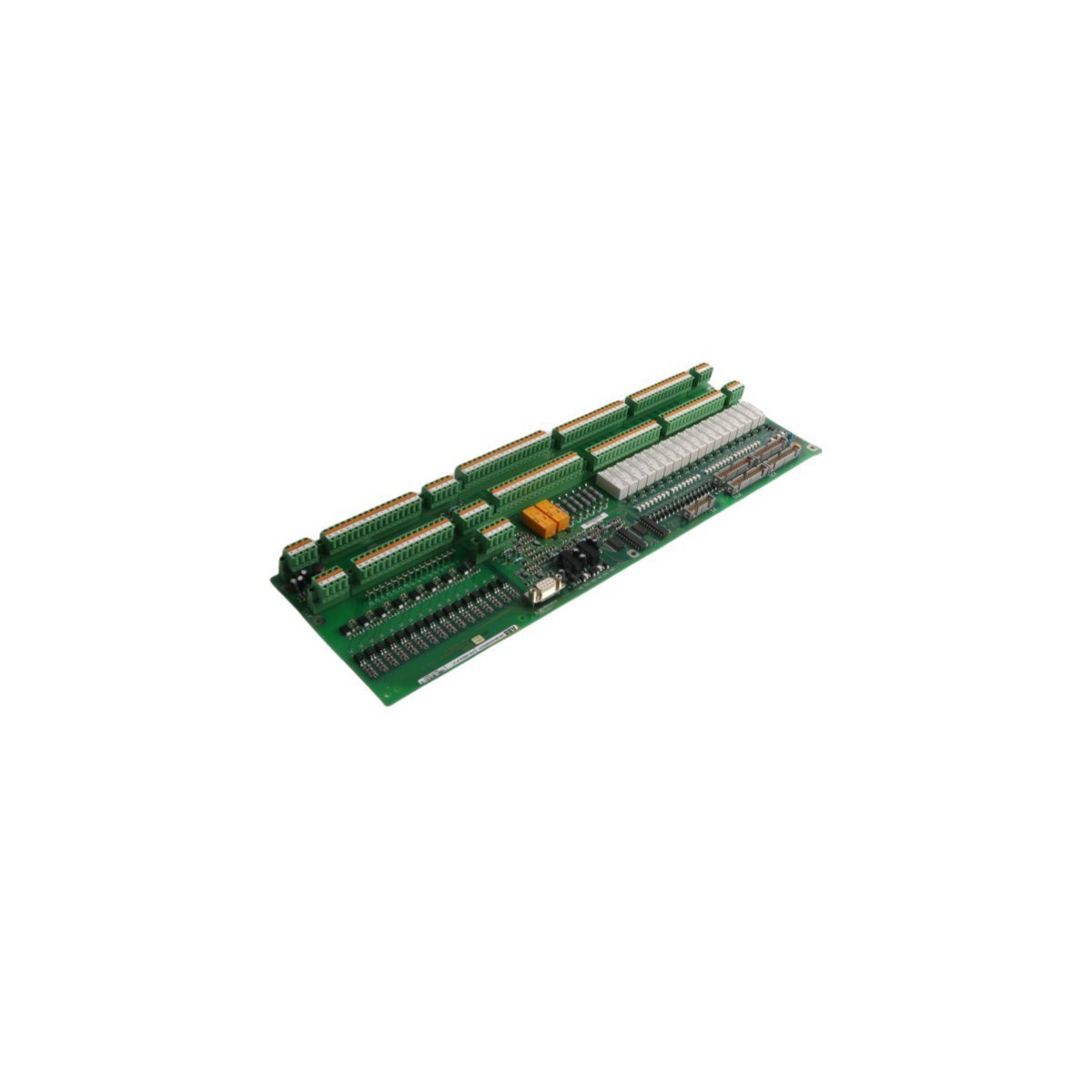

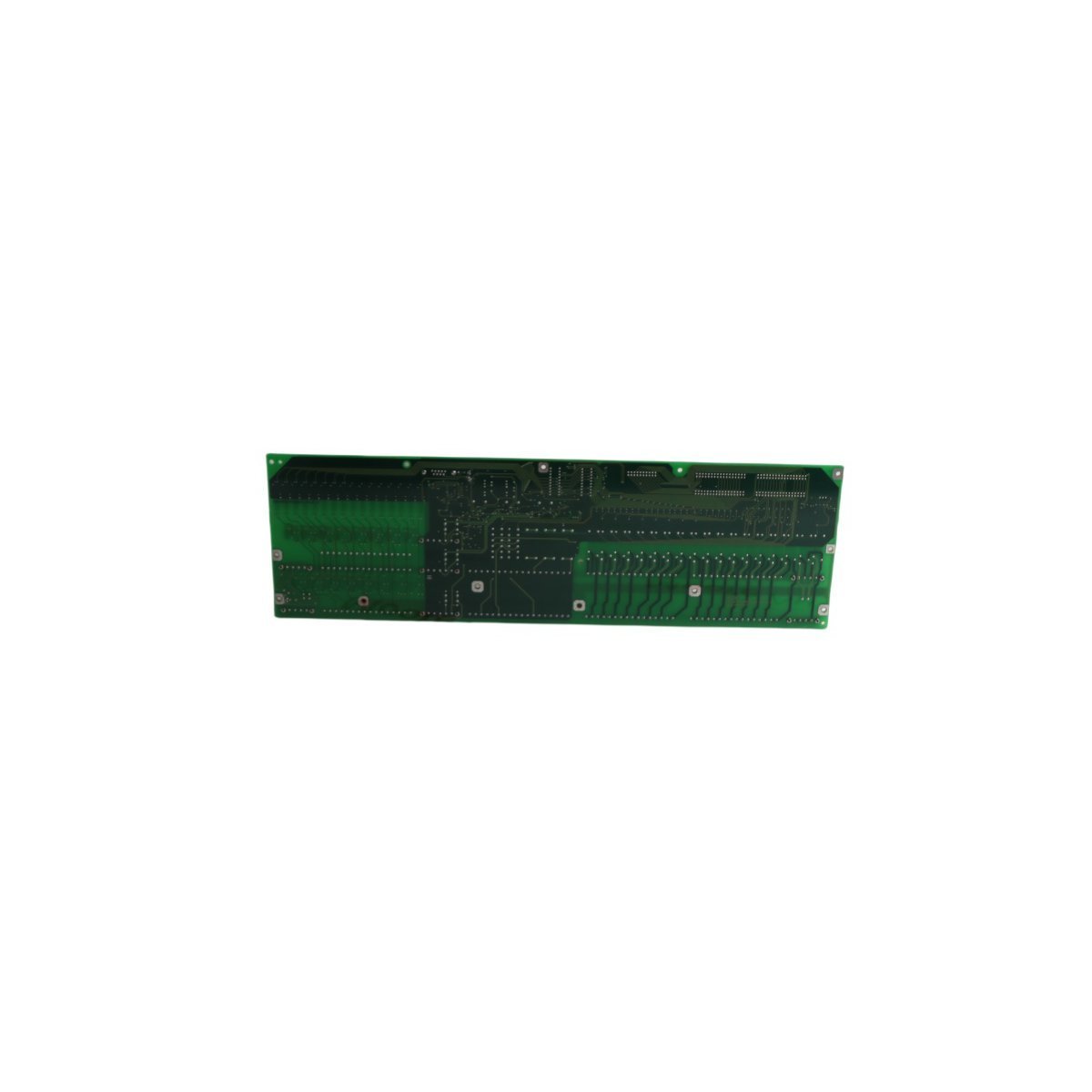

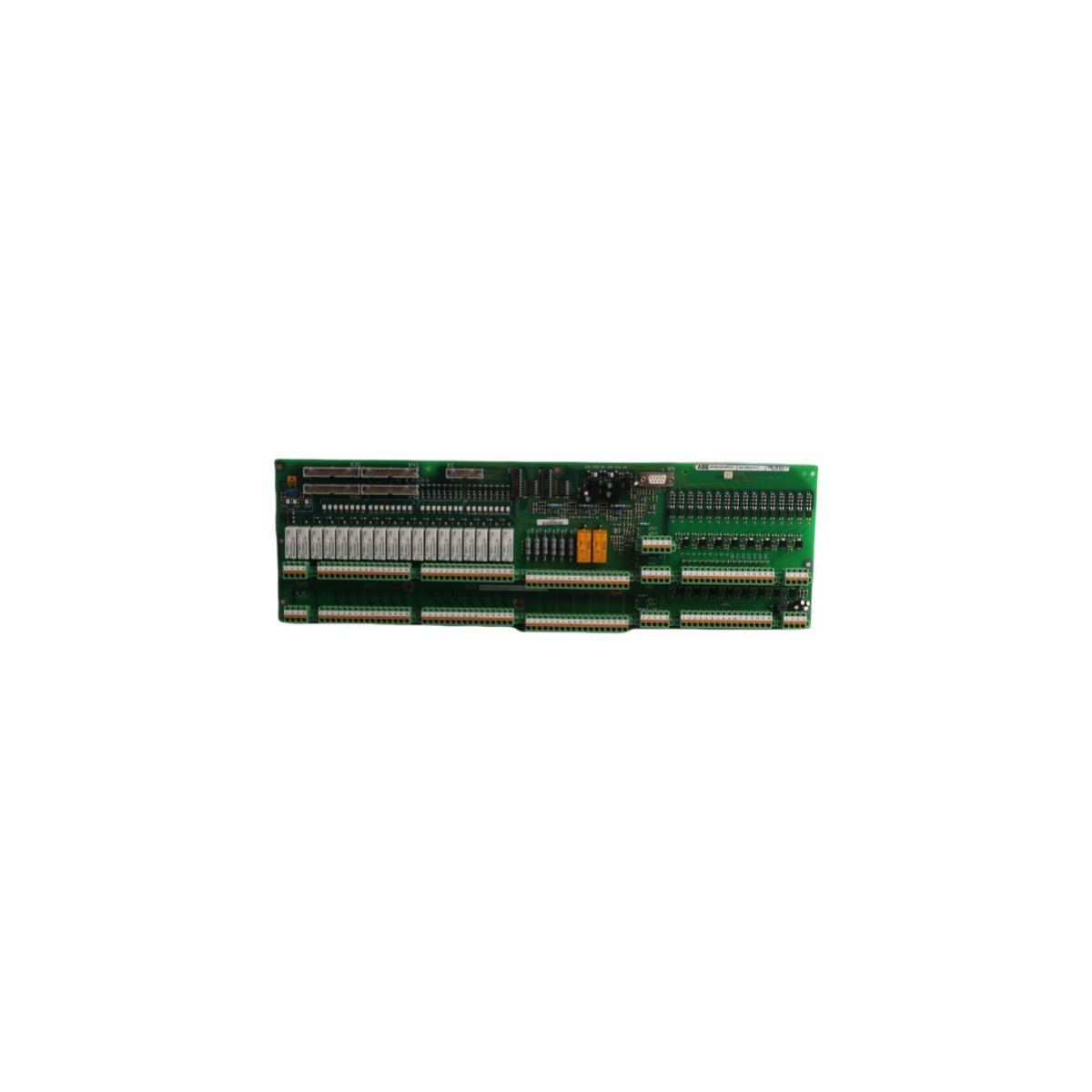

ABB 3BHB006208R0001 UNS0883A-P,V1 Fast I/O PCB Assembled
The ABB 3BHB006208R0001, also designated as the UNS0883A-P,V1 Fast I/O Board, executes high-speed digital signal processing within real-time power regulation loops for UNITROL Excitation Systems.
Hardware Specifications
Parameter
Specification
Model
UNS0883A-P,V1
Order Number
3BHB006208R0001
Brand
ABB
Origin
Sweden
Weight
0.92 kg
Dimensions
49 cm x 15 cm x 3.2 cm
System Platform
Distributed Control Systems (DCS)
Application Range
UNITROL Static Excitation Platforms
Local Interface
Fast Input/Output (FIO) infrastructure
Networking Service
Integrated Ethernet router channels
Status
Active
Tariff Code
8537101190
Industrial Control & Drive Features
This assembled circuit board captures transient binary inputs and drives fast-acting outputs to sustain deterministic loop execution velocities. The architecture utilizes dedicated backplane bus communication velocity licenses to eliminate serialization bottlenecks between sub-assembly nodes. Because industrial networks demand high isolation metrics, the sub-assembly separates processing core logic from inductive field switching noise. Furthermore, full firmware flash compatibility allows immediate hardware synchronization following system restoration procedures.
Frequently Asked Questions
Q: How does the module handle high-frequency electrical interference on input lines?
A: Integrated galvanic isolation boundaries suppress common-mode electrical noise across all fast input channels before processing occurs.
Q: What action does the sub-assembly initiate during a localized bus network failure?
A: The board forces all connected digital outputs into a safe state immediately while asserting a flag over the backplane bus interface.
Q: Does this hardware revision support hot-swapping procedures inside an active controller chassis?
A: Field technicians must isolate system power sources before removing this board to preserve the physical integrity of the backplane connectors.
Field Installation Guidelines
Align the 49 cm edge-card tracks smoothly within the dedicated slots of the controller housing frame.
Press the faceplate assembly firmly until the rear pin headers engage completely into the active system backplane connector block.
Verify structural grounding continuity by tightening the metallic panel screws directly onto the common frame grounding busbar.
Weight
0.92 kg
Country of Origin
Sweden
Dimension
49 x 15 x 3.2 cm
