Product Overview

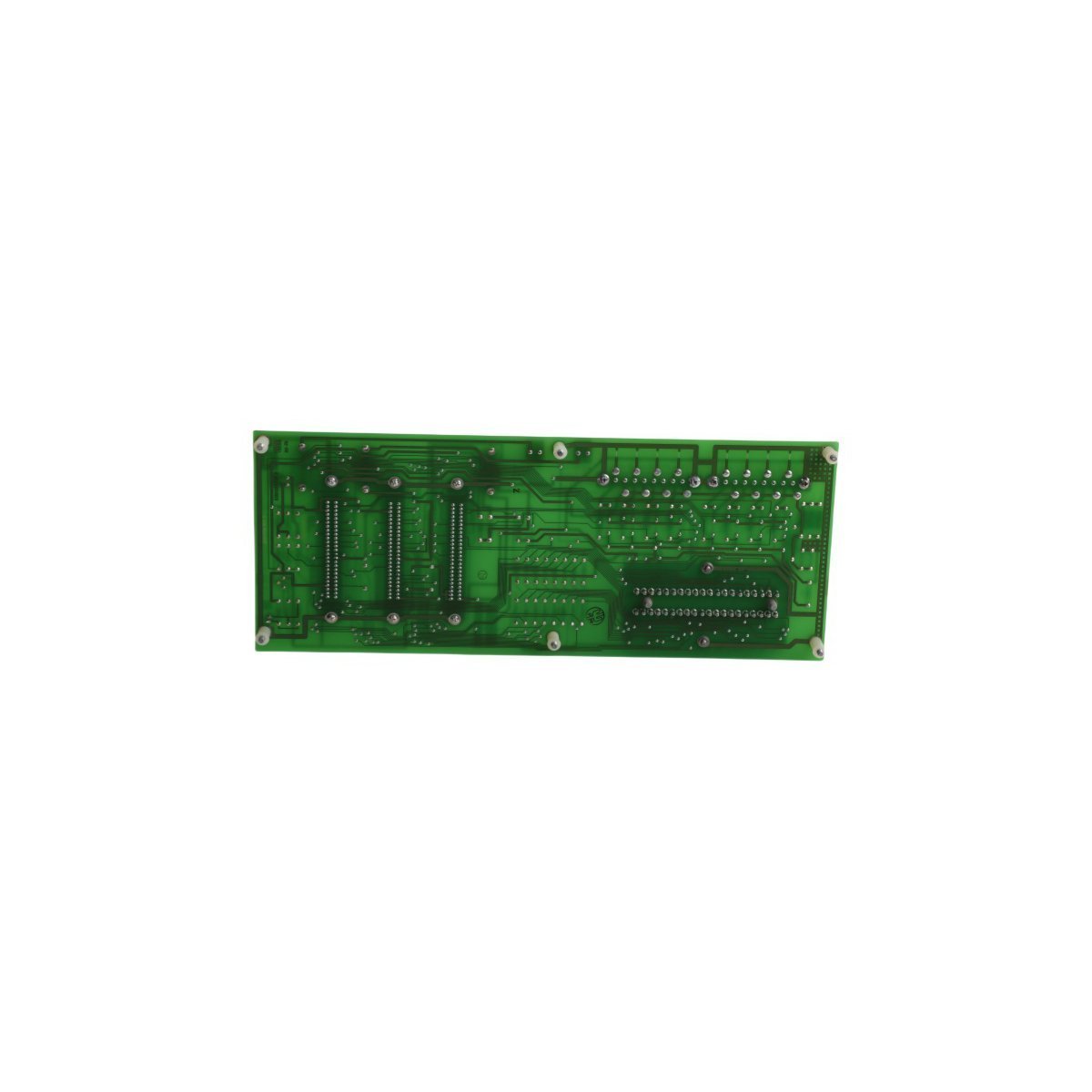

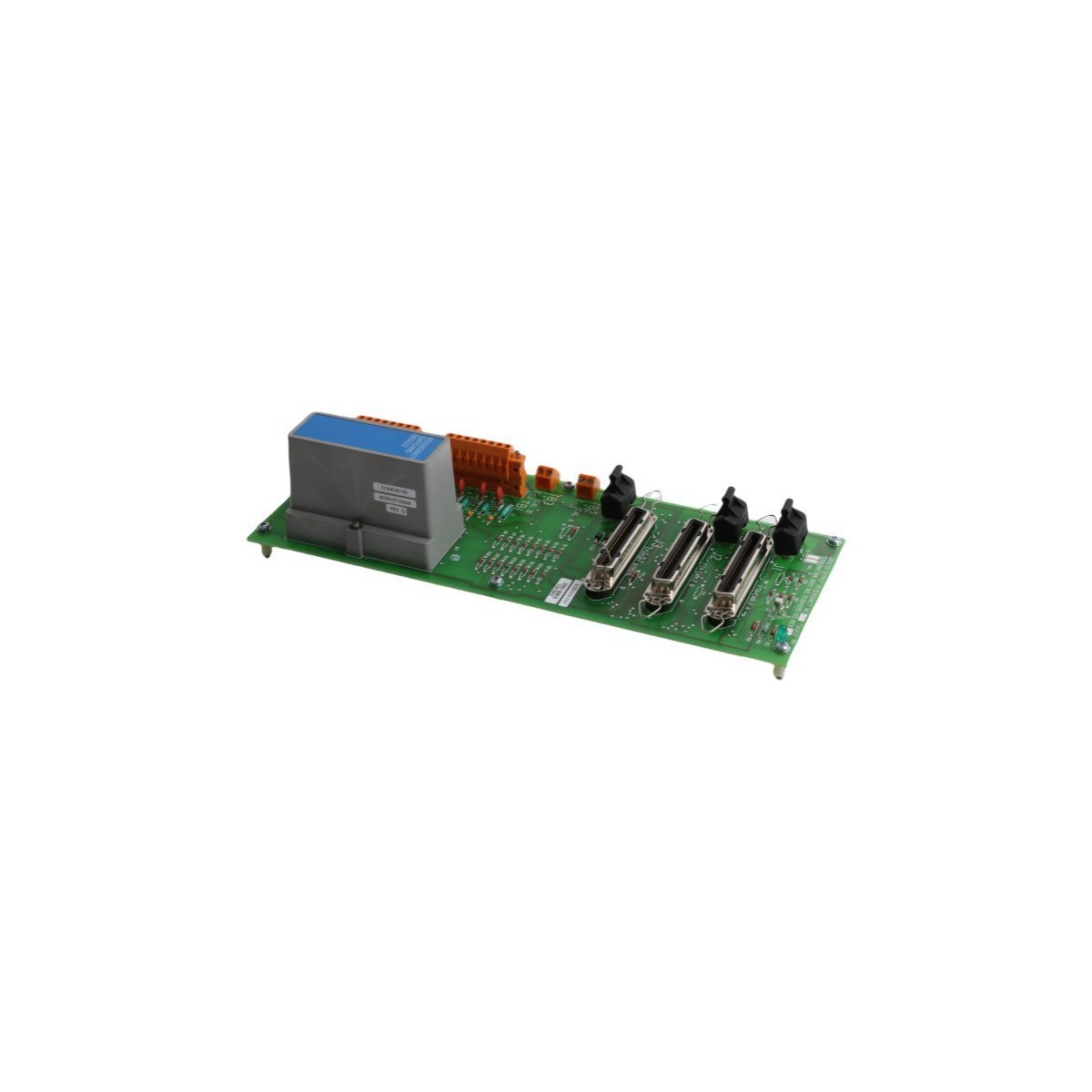

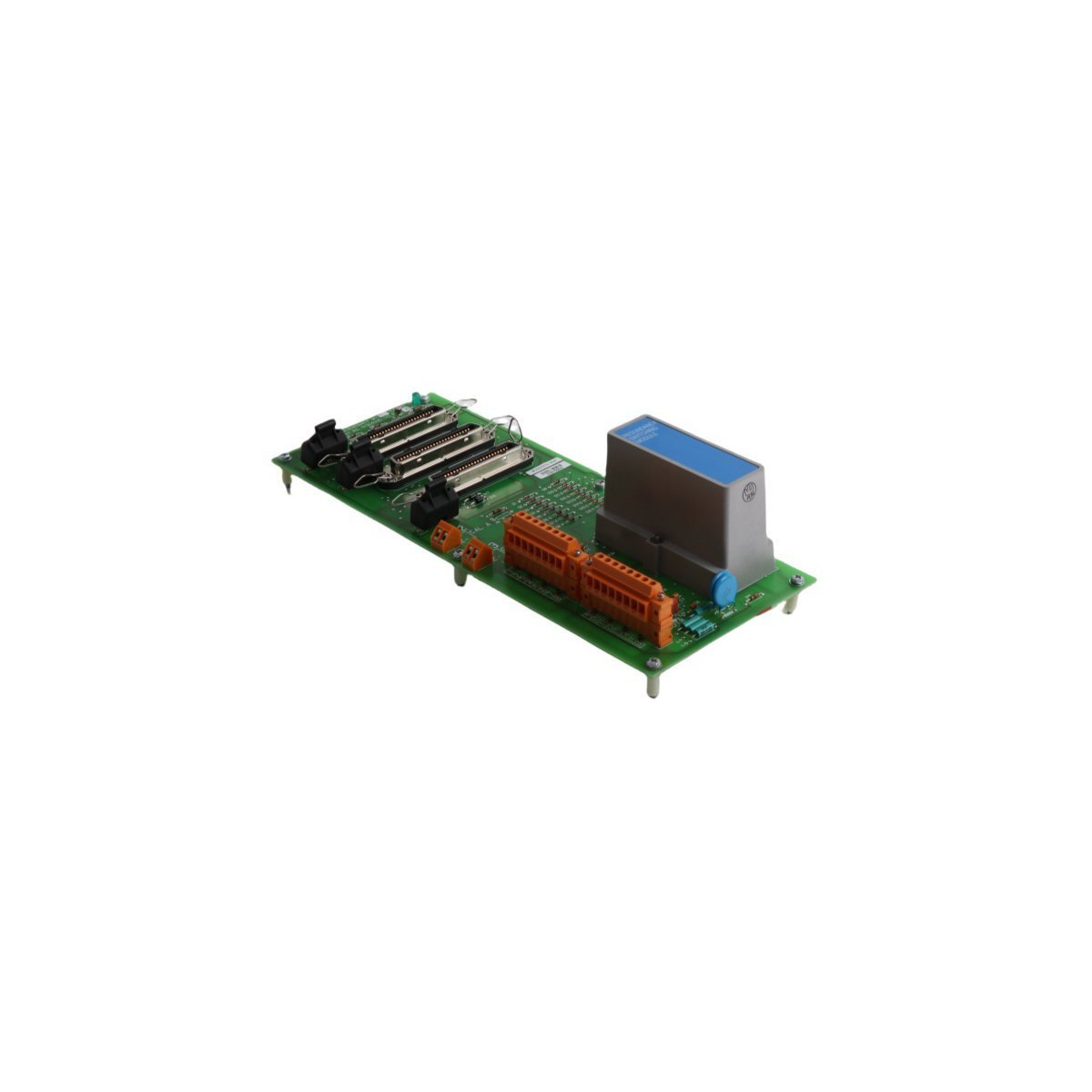

The Honeywell MU-TAOX12 51304335-100 acts as a dedicated field termination assembly for analog output signals within the TDC 3000 Distributed Control System architecture. This module interfaces directly with the system’s control hardware to distribute accurate control variables to field instruments like control valves and actuators.
Technical Specifications
- Manufacturer: Honeywell
- Model Designation: MU-TAOX12
- Part Number: 51304335-100
- Product Series: MU-T Series (TDC 3000 / Experion Systems)
- Equipment Class: Distributed Control System (DCS) Component
- Function: Analog Output Field Termination Assembly (FTA)
- Physical Dimensions: 3.5 cm x 14.0 cm x 14.5 cm
- Net Weight: 1.18 kg
- Customs Tariff Code (HS Code): 8537101190
- Country of Origin: United States
Key Technical Characteristics
Signal Integrity and Routing
This field termination assembly optimizes signal paths between the I/O processors and field equipment. It manages standard loop signals with high precision, which prevents signal attenuation across industrial networks.
Industrial Grade Construction
Engineered for harsh industrial environments, the module features rugged circuitry that resists thermal stress and vibration. The robust physical footprint supports vertical or horizontal DIN rail mounting within standard control cabinets.
Simplified Maintenance and Wiring
The terminal blocks offer clear channel identification to facilitate rapid field wiring and troubleshooting. Consequently, maintenance technicians can isolate control loops quickly during routine diagnostics to minimize process interruptions.
