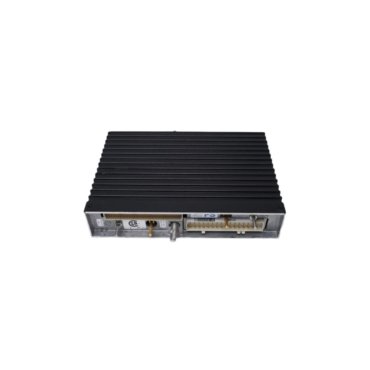

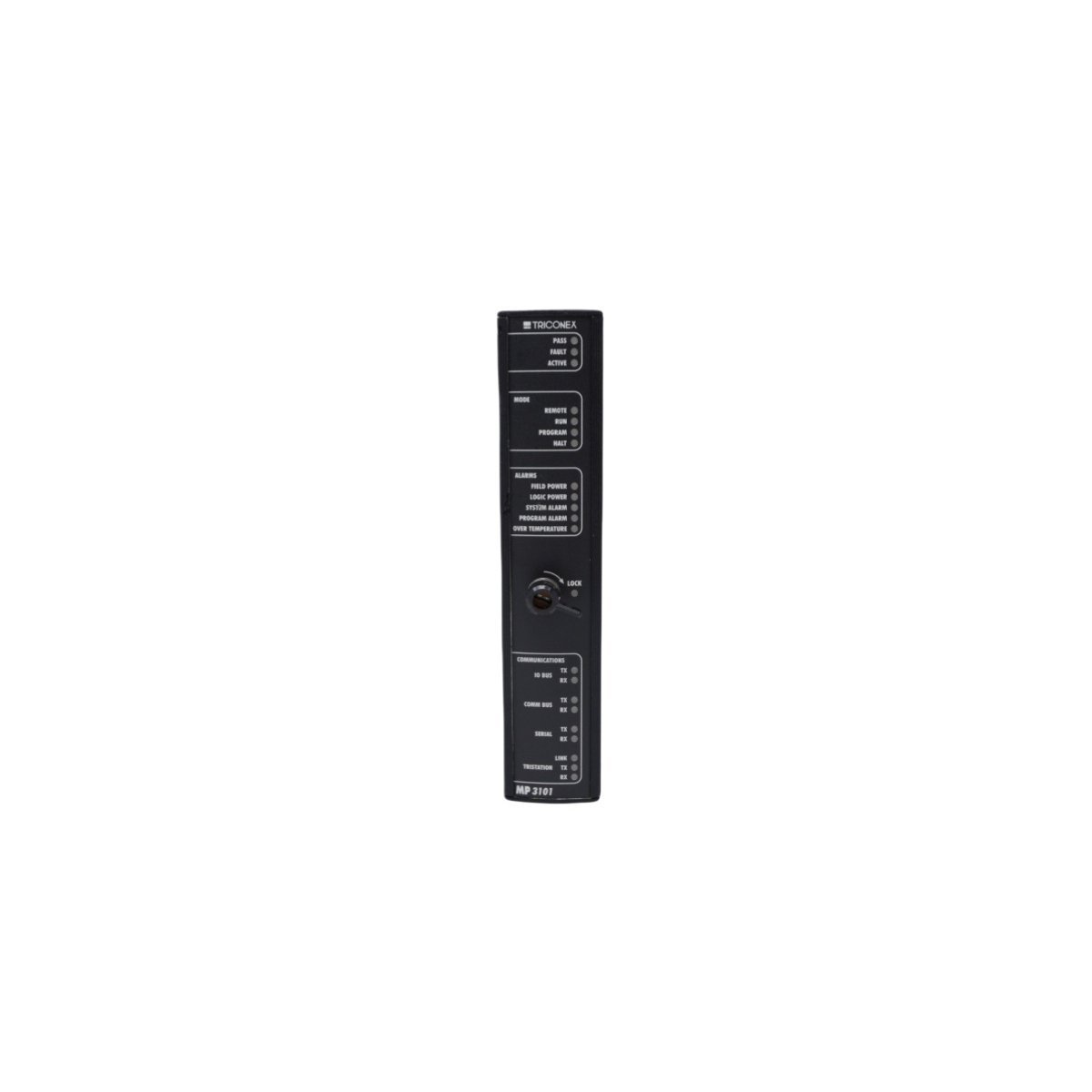

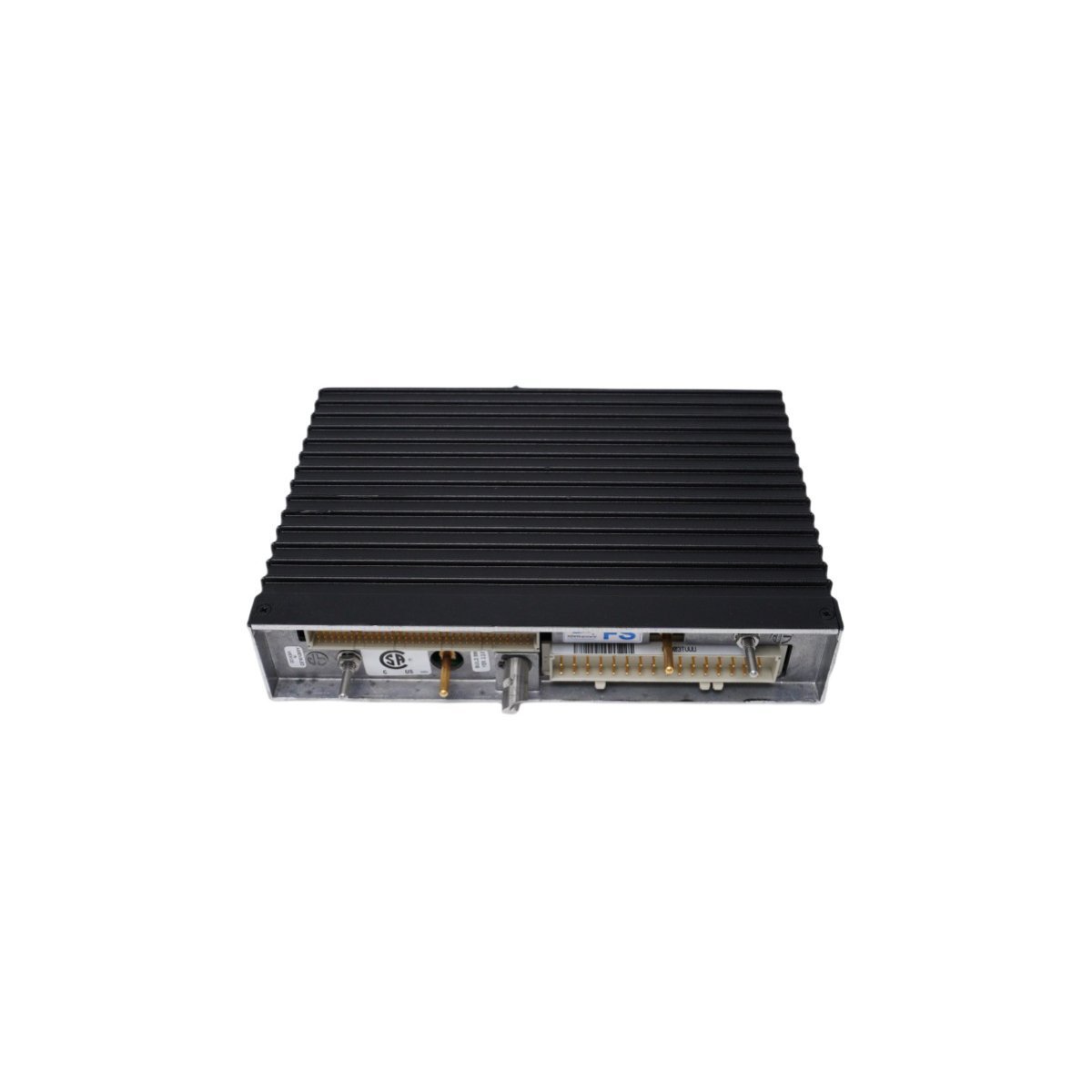

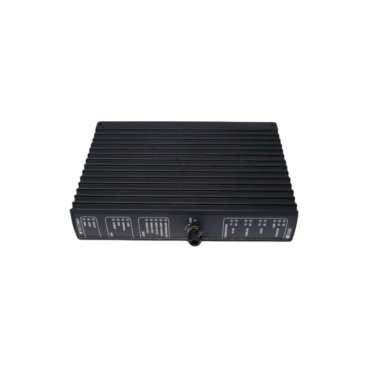

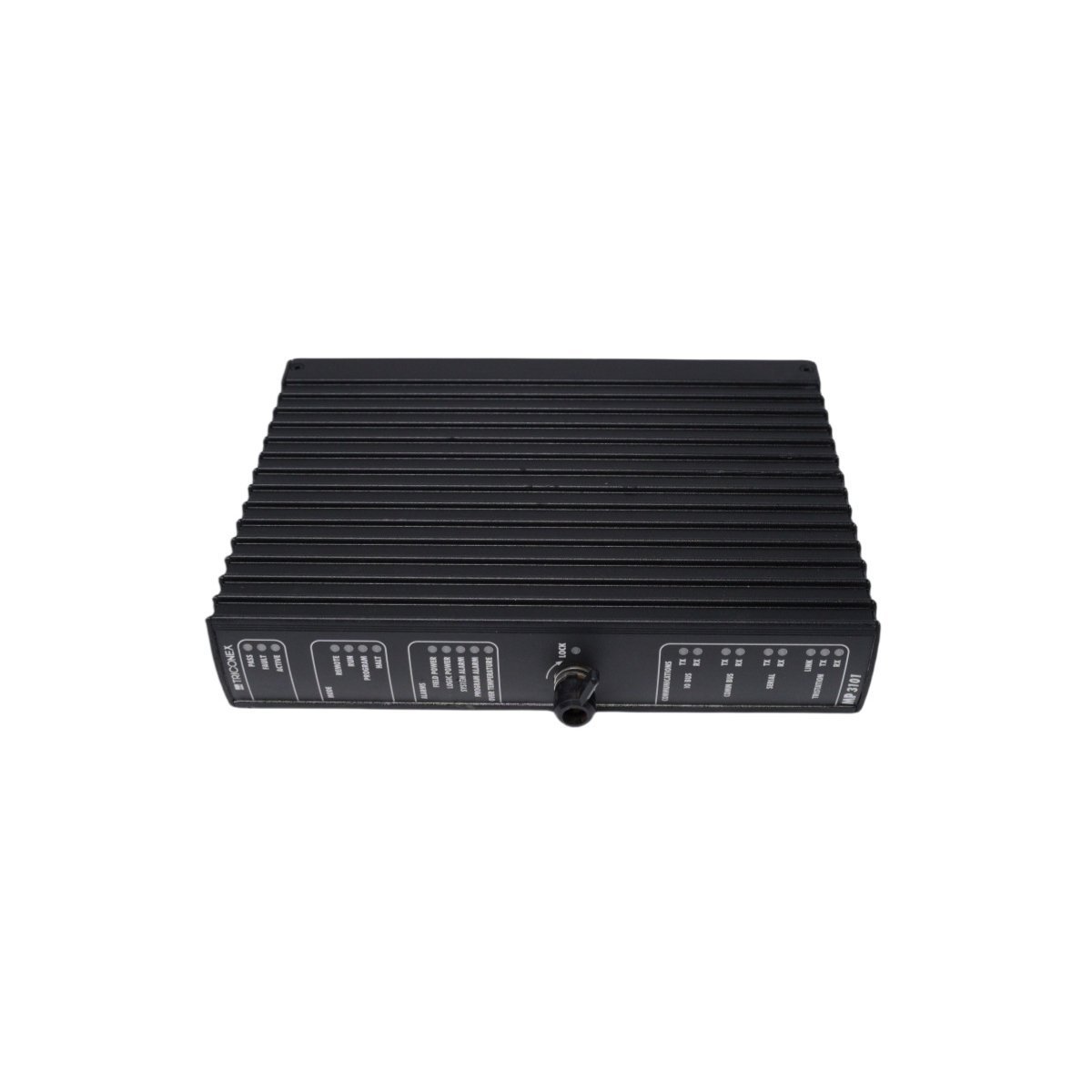

Triconex MP3101 Main Processor Module

The Triconex MP3101 serves as the primary computational heart of the Trident safety system. It utilizes a Triple Modular Redundant (TMR) architecture to provide maximum fault tolerance. This module operates as one of three identical processors within a synchronized triad. Consequently, the system maintains uninterrupted control even if a single hardware component fails. Each unit independently executes the control program while managing dedicated communication and I/O tasks.

During the execution cycle, the MP3101 receives field data via the triplicated backplane. It then stores this information in local memory for cross-channel verification. Because the module uses high-speed TriBus technology, it can synchronize data with its peers in real-time. This specialized communication ensures all three processors remain in a consistent state.

Data Integrity and Hardware Voting

The MP3101 incorporates sophisticated Direct Memory Access (DMA) hardware to facilitate rapid data comparison. This hardware-based voting mechanism identifies and corrects discrepancies between the three processing channels. If the module detects a mismatch, it applies a majority-voting rule to determine the correct output. Therefore, the safety system provides highly reliable data without manual intervention.

Internal diagnostics constantly monitor the health of the microprocessor and memory circuits. These background tests ensure the module can detect latent faults before they impact process safety. Such a robust diagnostic suite allows the MP3101 to meet stringent SIL 3 certification requirements.

Industrial Implementation and Safety Use

Facilities such as chemical plants and power stations rely on the MP3101 for critical protection. The module excels in Emergency Shutdown (ESD) and Burner Management Systems (BMS). Because it supports hot-swapping, maintenance teams can replace a processor without stopping the plant. This capability significantly enhances the availability of the entire Safety Instrumented System (SIS).

The MP3101 also manages complex logic for Fire and Gas (F&G) detection networks. Its design specifically targets environments where failure is not an option. By prioritizing fail-safe performance, this processor ensures secure operation in the most hazardous industrial sectors.
