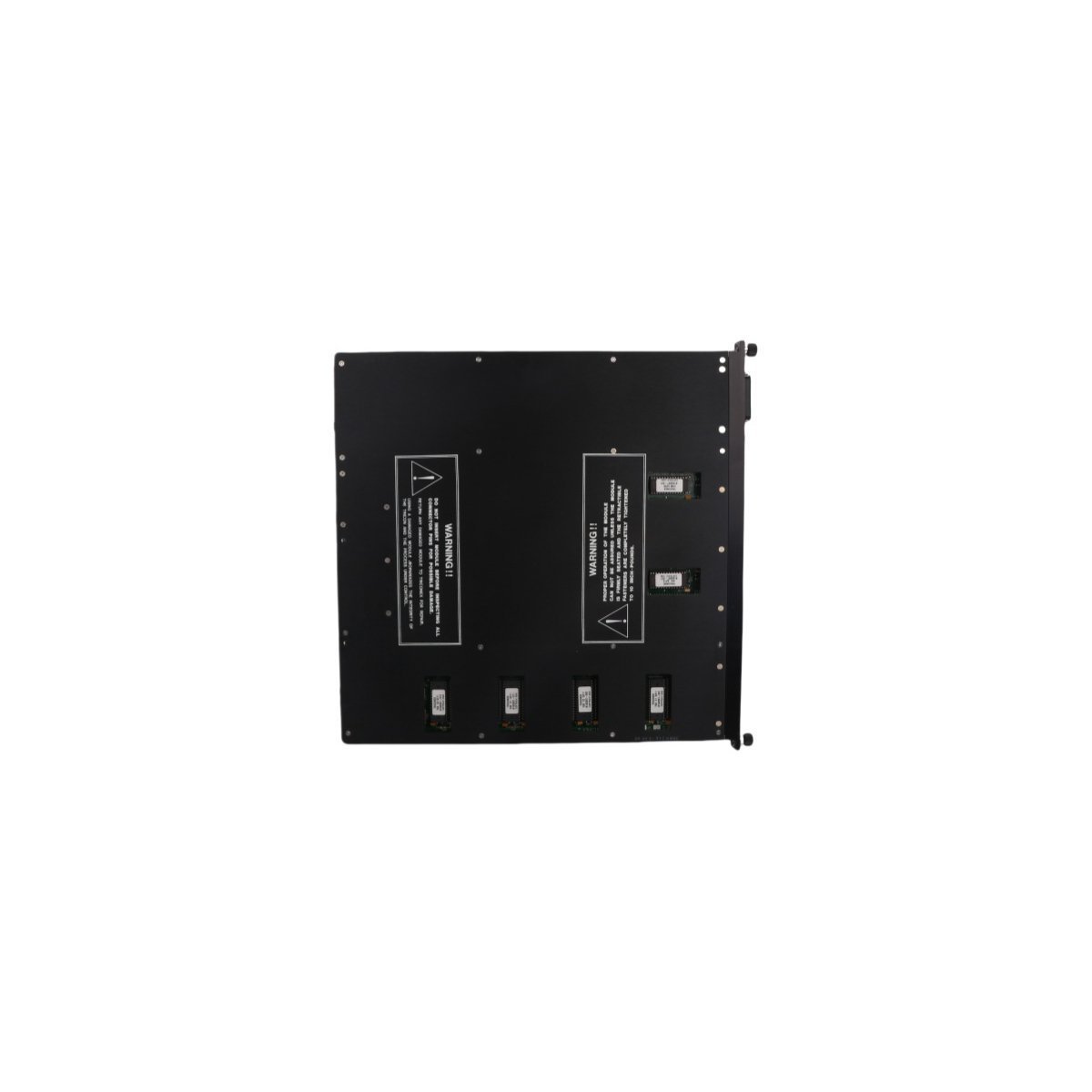

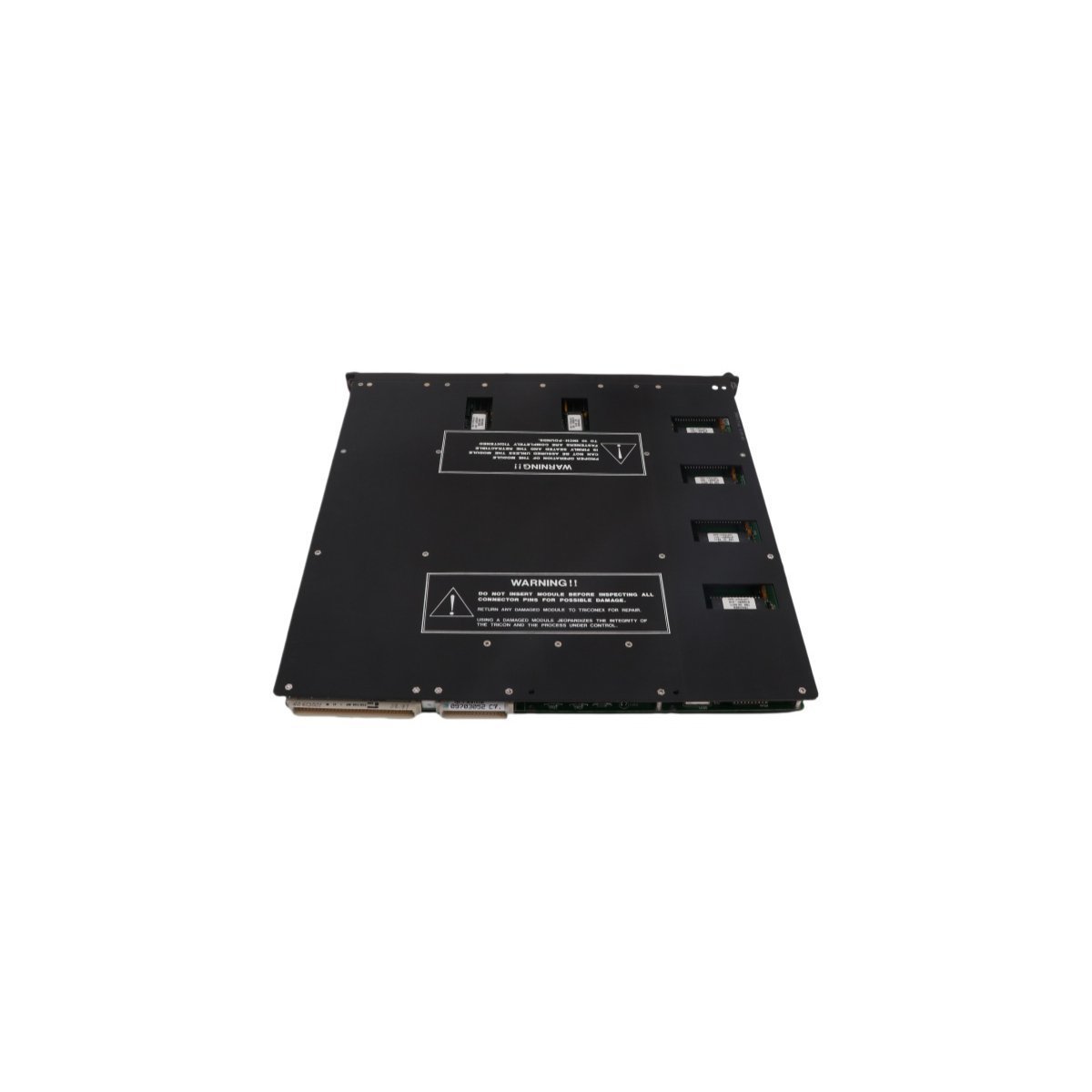

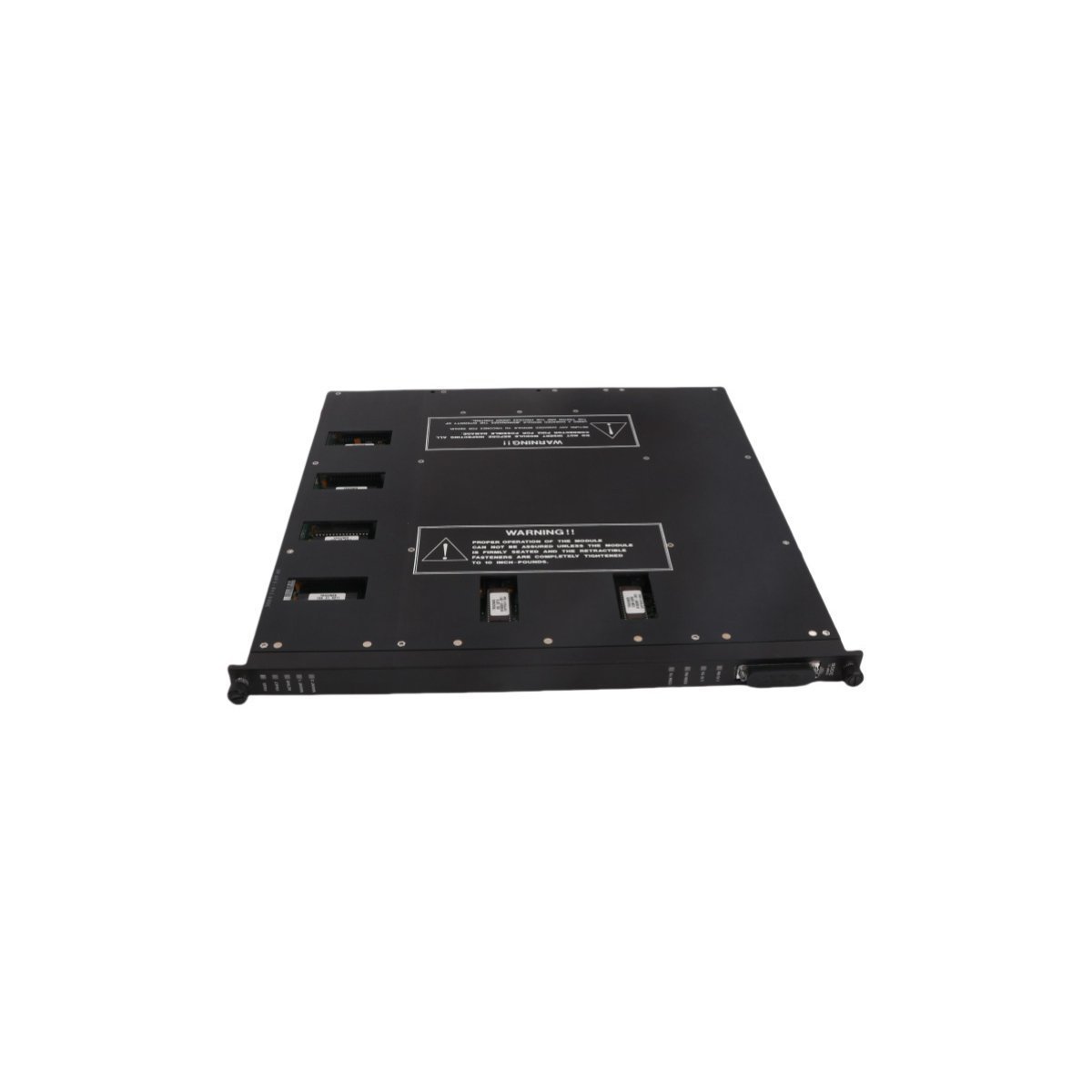

Triconex 3006 Main Processor Module

The Triconex 3006 serves as a high-integrity computational engine for the Tricon safety system. It utilizes a sophisticated Triple Modular Redundant (TMR) architecture to maintain continuous operation. Each module operates in parallel with two other processors within a synchronized triad. This configuration allows the system to identify and correct hardware faults in real time. Because the 3006 processes all safety logic through three independent channels, it provides unparalleled reliability.

The module executes complex control programs with extreme precision and speed. Furthermore, it manages data communication across the triplicated I/O bus effectively. This ensures that field data remains consistent throughout the entire control loop. The 3006 remains a standard for legacy and modern high-availability industrial configurations.

Diagnostics and Fault Management

Internal diagnostic routines constantly monitor the health of the 3006 circuitry. These background tests verify memory integrity and microprocessor health without interrupting the process. If a fault occurs, the module automatically isolates the affected channel. Meanwhile, the remaining two processors continue to manage the safety function safely.

Maintenance personnel can perform hot-swap procedures to replace a module under power. This capability eliminates the need for expensive plant shutdowns during hardware updates. Consequently, the 3006 reduces the total cost of ownership for safety instrumented systems. The front panel features clear status indicators for rapid troubleshooting and system health monitoring.

Industrial Applications and Safety Standards

The 3006 excels in sectors where operational failure poses significant risks. It frequently manages Emergency Shutdown (ESD) systems in offshore oil platforms. Additionally, chemical processing plants rely on this module for critical burner management. Its robust construction resists the electrical noise and vibration common in power generation facilities.

Compliance with international safety standards ensures the 3006 meets SIL 3 requirements. This certification guarantees performance in the most hazardous and demanding industrial environments. By providing a secure foundation for safety logic, it protects both personnel and equipment.

Technical Specifications and Dimensions
