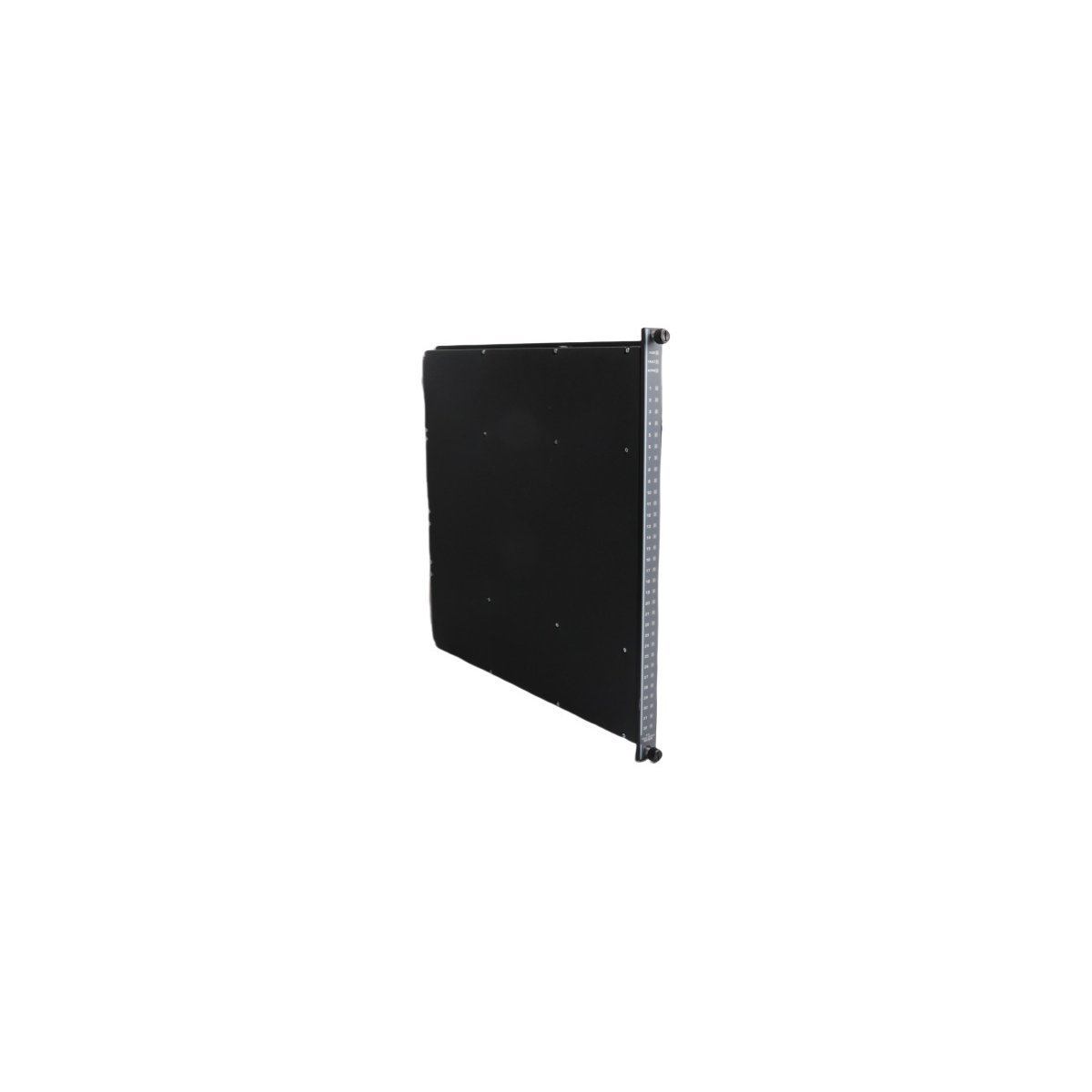

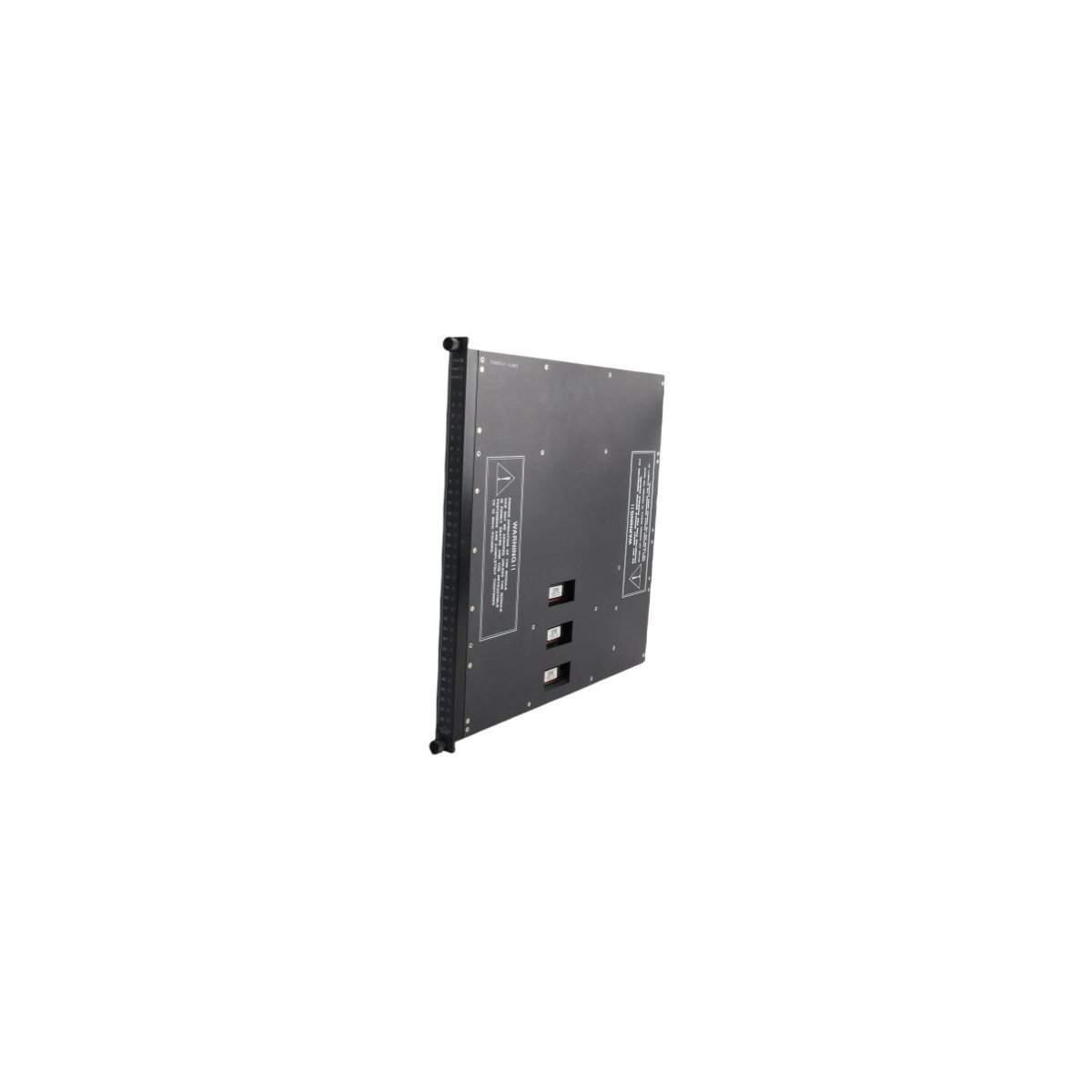

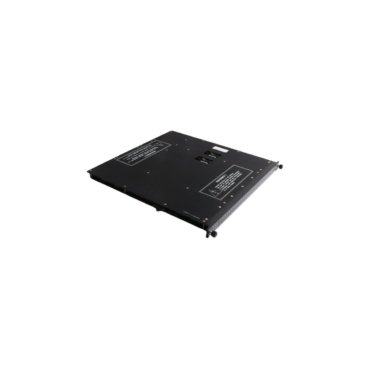

Triconex 3636R Relay Digital Output Module

The Triconex 3636R is a specialized Relay Output Module designed for use within the Tricon™ Triple Modular Redundant (TMR) safety system. By utilizing advanced relay technology, this module acts as the final control element interface, converting internal logic commands into physical contact closures. Because it is engineered for high-integrity environments, the 3636R ensures that safety-critical actions, such as motor trips or valve closures, are executed with absolute precision. Consequently, it is a fundamental component for facilities that prioritize fault-tolerant operation and rigorous process safety.

Advanced Relay Architecture and Reliability

Regarding its internal design, the 3636R module features 32 non-commoned (isolated) output points, each leveraging Single-Pole Double-Throw (SPDT) relay configurations. This architectural choice allows the module to manage a diverse array of current loads and signal types simultaneously. Furthermore, the module is built to sustain an extraordinary operational lifespan, with a rated cycle life exceeding one billion operations under optimal conditions. Due to this high level of durability, the 3636R significantly reduces the total cost of ownership by minimizing the frequency of maintenance intervals and hardware replacements.

Technical Specifications Summary

Strategic Industrial Application

Ultimately, the 3636R is the preferred choice for safety instrumented functions (SIF) where high-current switching or galvanic isolation is required. It is extensively utilized in Emergency Shutdown (ESD) systems and Fire and Gas (F&G) logic solvers. By providing a dependable physical break in electrical circuits, the 3636R empowers plant operators to manage high-risk processes with the highest degree of confidence.
