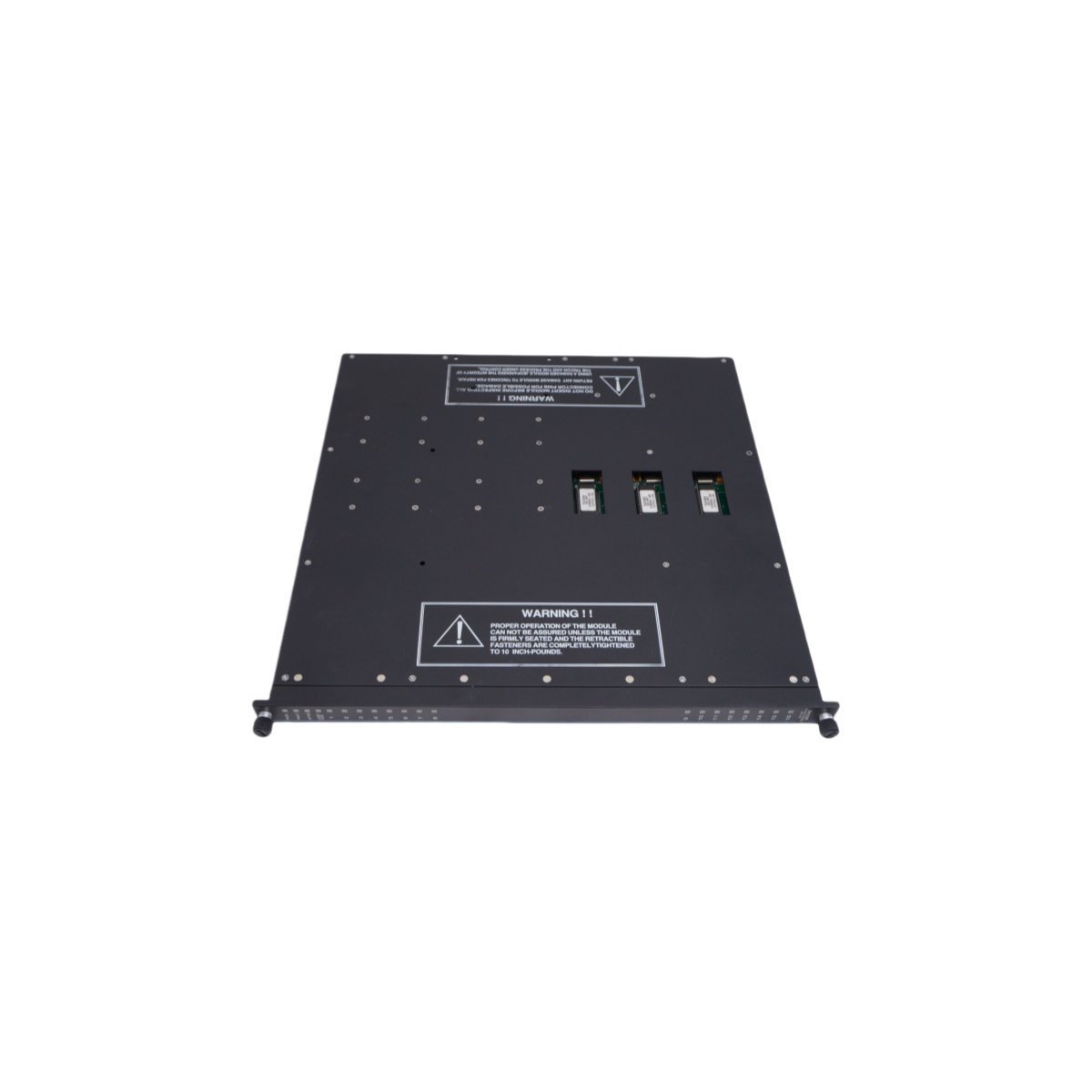

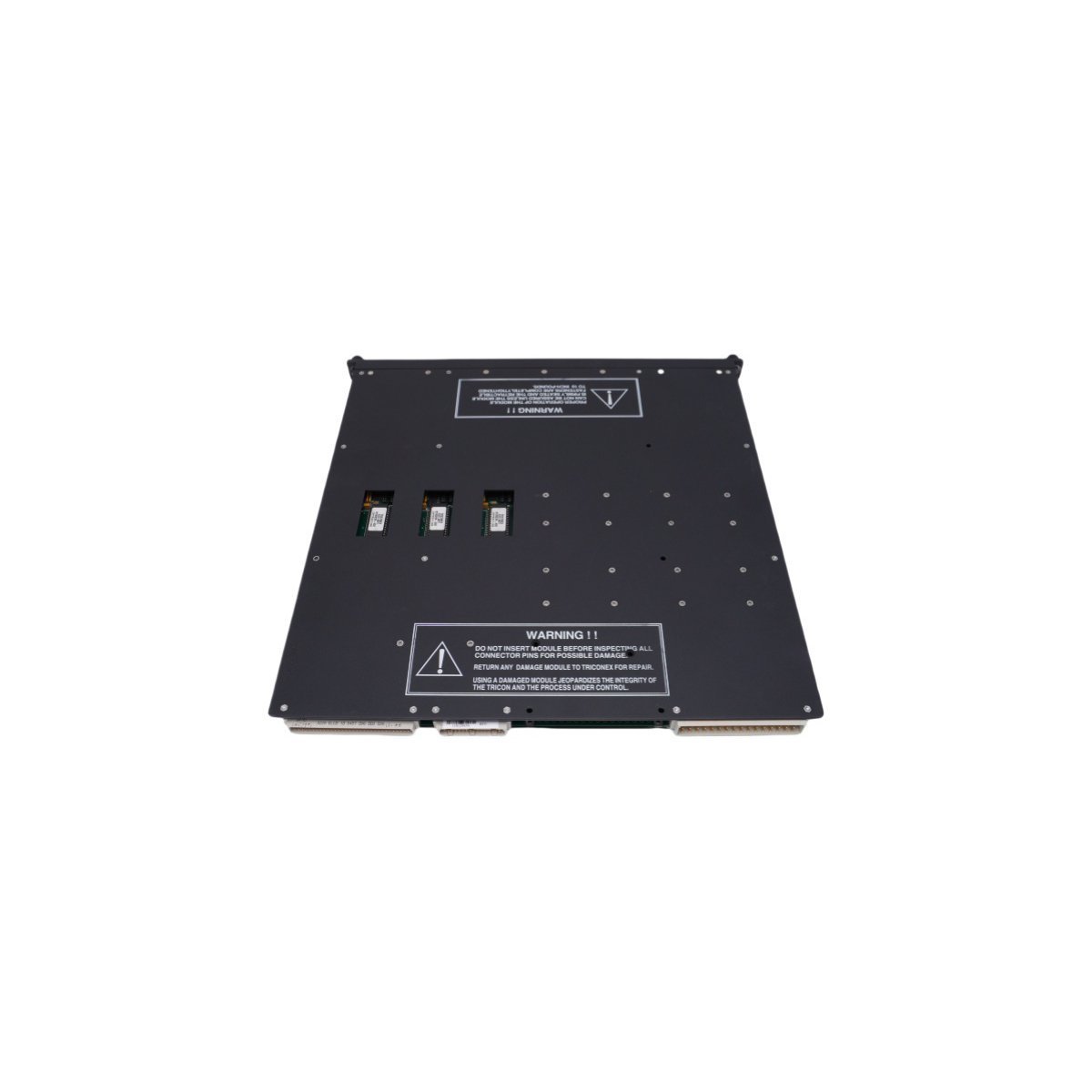

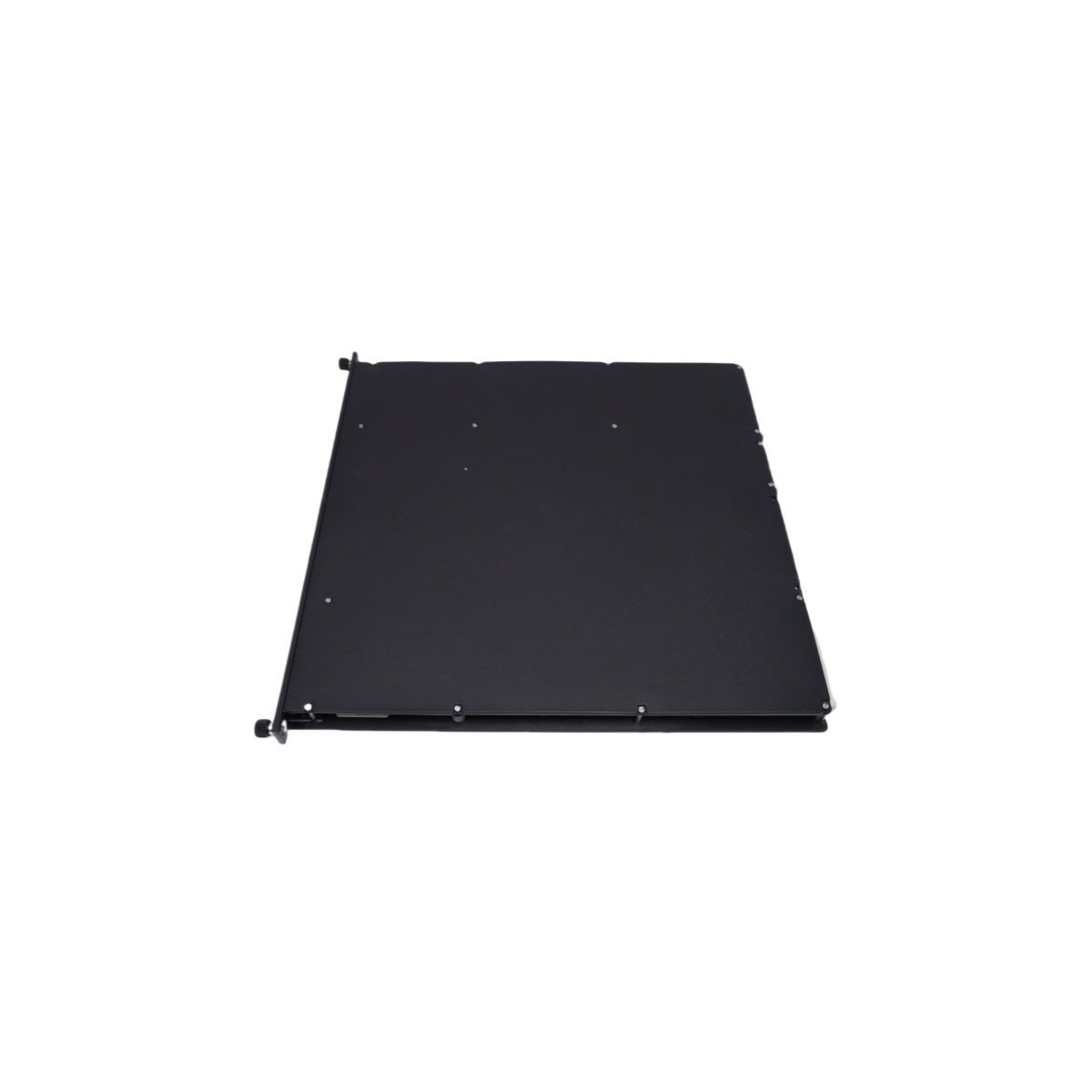

Triconex 3604E Digital Output Module 24VDC 16 Point TMR

The Triconex 3604E serves as a high-integrity digital output interface for the Tricon safety system. This module executes critical control commands by driving 16 independent 24 VDC field devices. Furthermore, the unit utilizes Triple Modular Redundancy (TMR) to ensure maximum hardware availability. Each output point receives signals from three isolated branches. The module then performs a specialized voting process to determine the final output state. Consequently, a single component failure does not compromise the safety function.

Standard industrial actuators, solenoids, and indicators connect directly to this module. Because the 3604E features advanced diagnostic capabilities, it detects potential circuit faults instantly. It specifically monitors for stuck-on or stuck-off conditions in the output switches. This continuous oversight prevents dangerous failures in high-risk processing environments.

Diagnostic Performance and Fault Tolerance

The 3604E maintains system uptime through its robust fault-tolerant design. Internal microprocessors execute routine “glitch” tests on each output switch. These tests verify the ability of the module to change states without affecting field devices. If the module identifies a faulty branch, it automatically isolates the error. Meanwhile, the remaining two branches continue to provide correct control logic.

Installation remains simple due to the standardized Triconex backplane interface. Users can perform hot-swap procedures to replace modules while the plant stays operational. This feature eliminates the need for system shutdowns during hardware maintenance. Additionally, the front panel LEDs provide clear visual status for each output channel.

Primary Industrial Applications

Safety engineers deploy the 3604E in various high-demand sectors. It typically manages final control elements in Emergency Shutdown (ESD) systems. Additionally, it provides reliable activation for Fire and Gas (F&G) suppression equipment. Many chemical plants and refineries utilize this module for Critical Control (CC) functions. Its SIL 3 certification guarantees performance in the most hazardous operating conditions.

Comprehensive Technical Specifications
