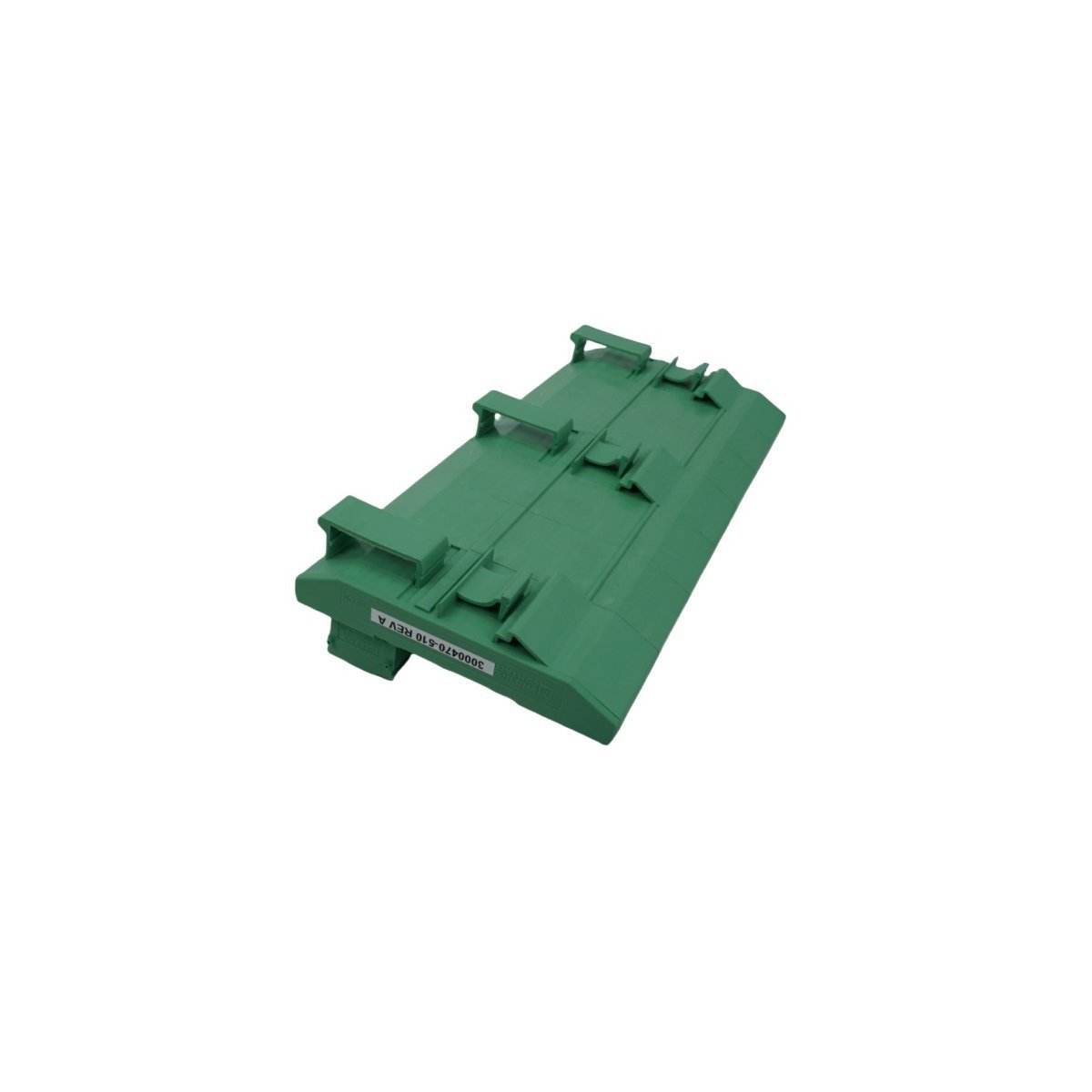

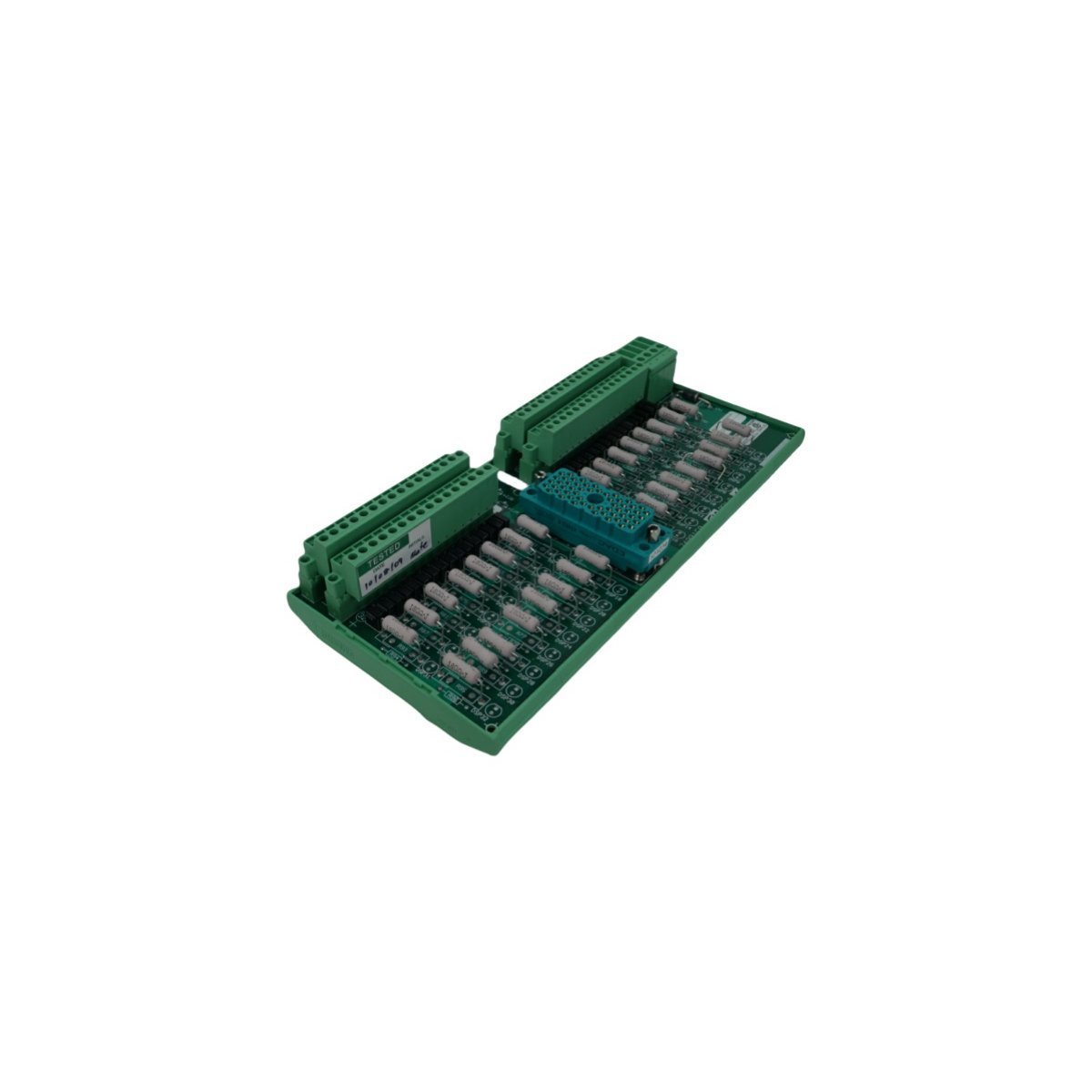

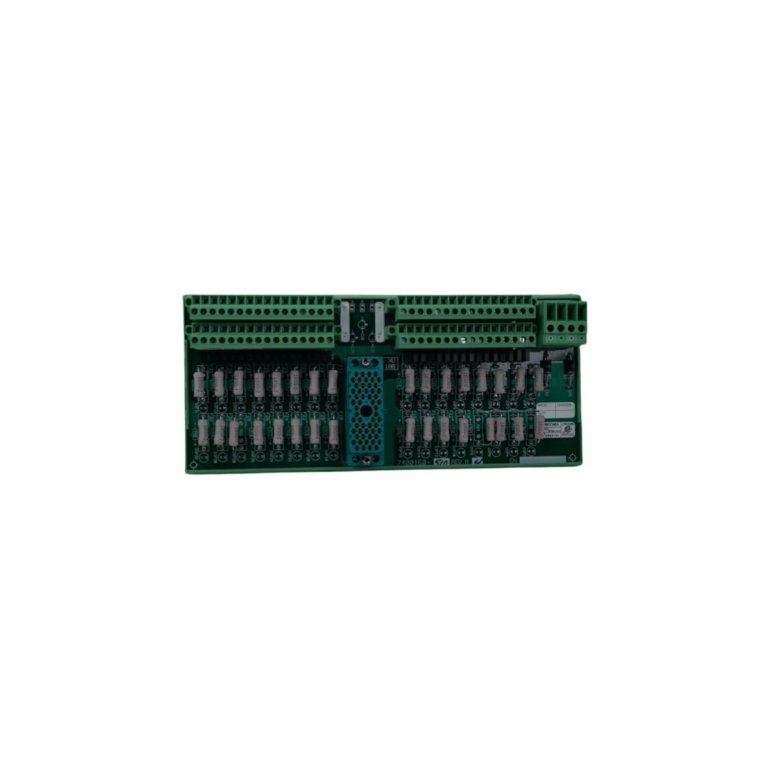

Triconex 9760-210 Invensys Digital Input Termination Panel

The Triconex 9760-210 serves as a critical interface between field wiring and the Tricon safety controller. This External Termination Panel (ETP) streamlines the connection of 32 digital input points. It effectively bridges field sensors with the Triple Modular Redundant (TMR) processor modules. Engineers utilize this panel to ensure high-signal integrity in Safety Instrumented Systems (SIS).

The hardware design prioritizes simplified installation and maintenance. Consequently, the panel reduces wiring complexity within the control cabinet. It supports high-density input configurations for large-scale industrial operations. This component is essential for maintaining the fault-tolerant architecture of Tricon v9 and v10 systems.

Operational Reliability and Environmental Durability

The 9760-210 excels in demanding environments due to its rugged construction. It operates reliably across a wide temperature range from -40°C to +70°C. Therefore, users can deploy the panel in geographically diverse locations without climate concerns. The passive circuitry within the termination board enhances overall system MTBF (Mean Time Between Failure).

Advanced diagnostic features allow for rapid identification of field wiring faults. This proactive monitoring capability prevents unexpected process interruptions. By using standardized connection interfaces, the panel minimizes human error during field commissioning. It provides a secure electrical path for critical data transmission to the main safety rack.

Industrial Applications and Standards

This termination panel is a staple in high-hazard industries like oil and gas. It frequently manages inputs for emergency shutdown (ESD) and fire and gas (F&G) systems. Furthermore, its compliance with international safety standards ensures long-term operational excellence. The 9760-210 supports various communication protocols when paired with appropriate Triconex modules. It remains a preferred choice for operators seeking SIL 3 level safety performance.

Primary Technical Characteristics
