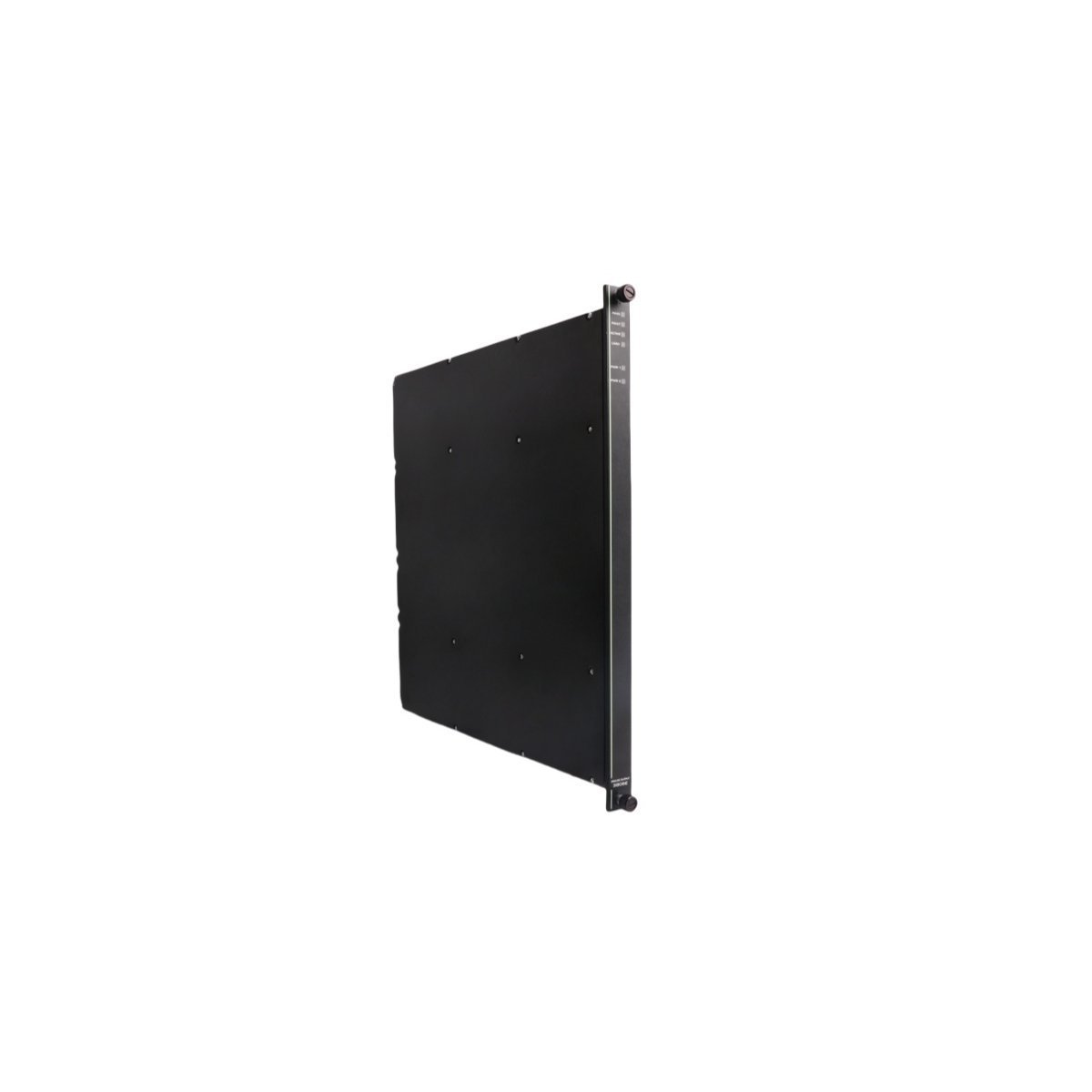

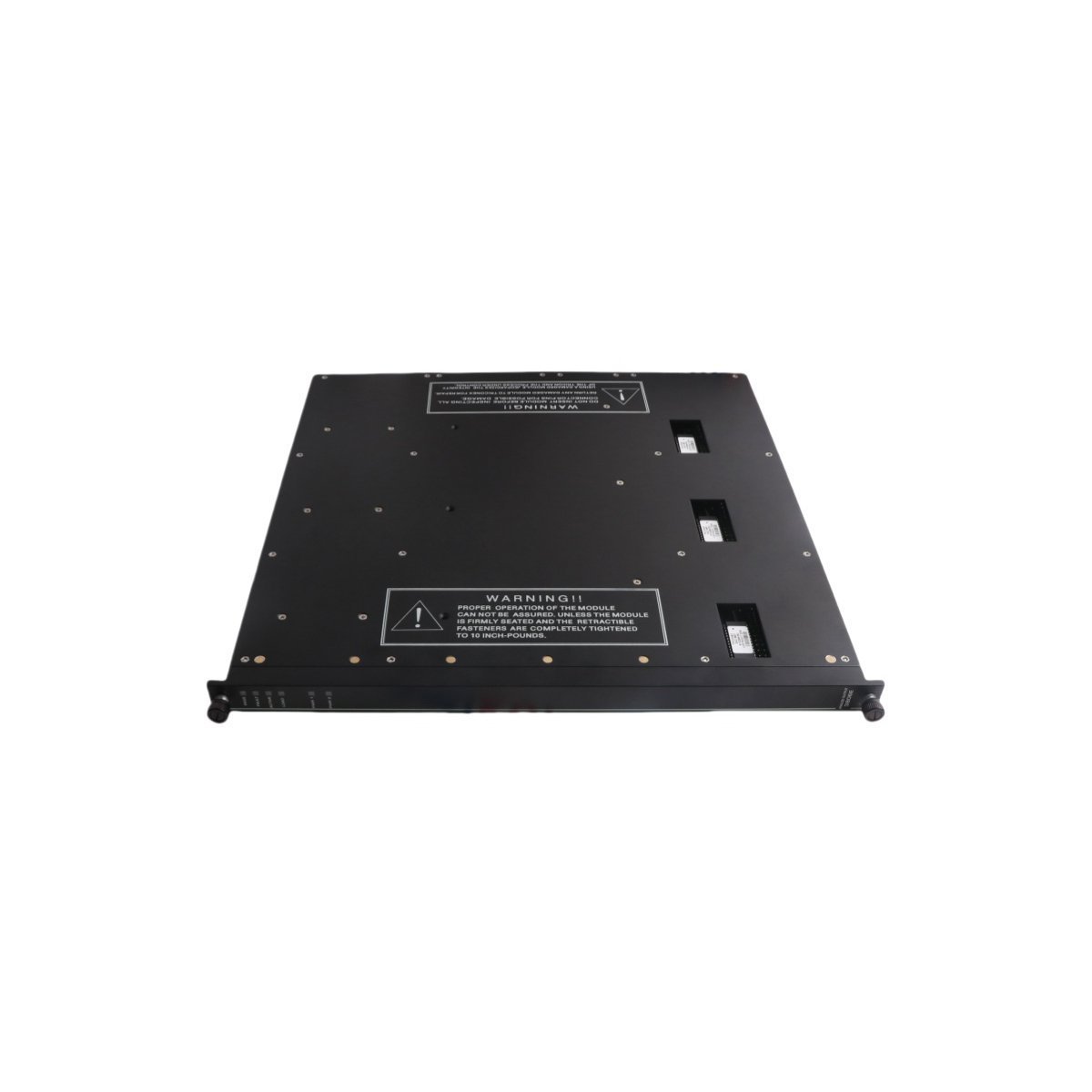

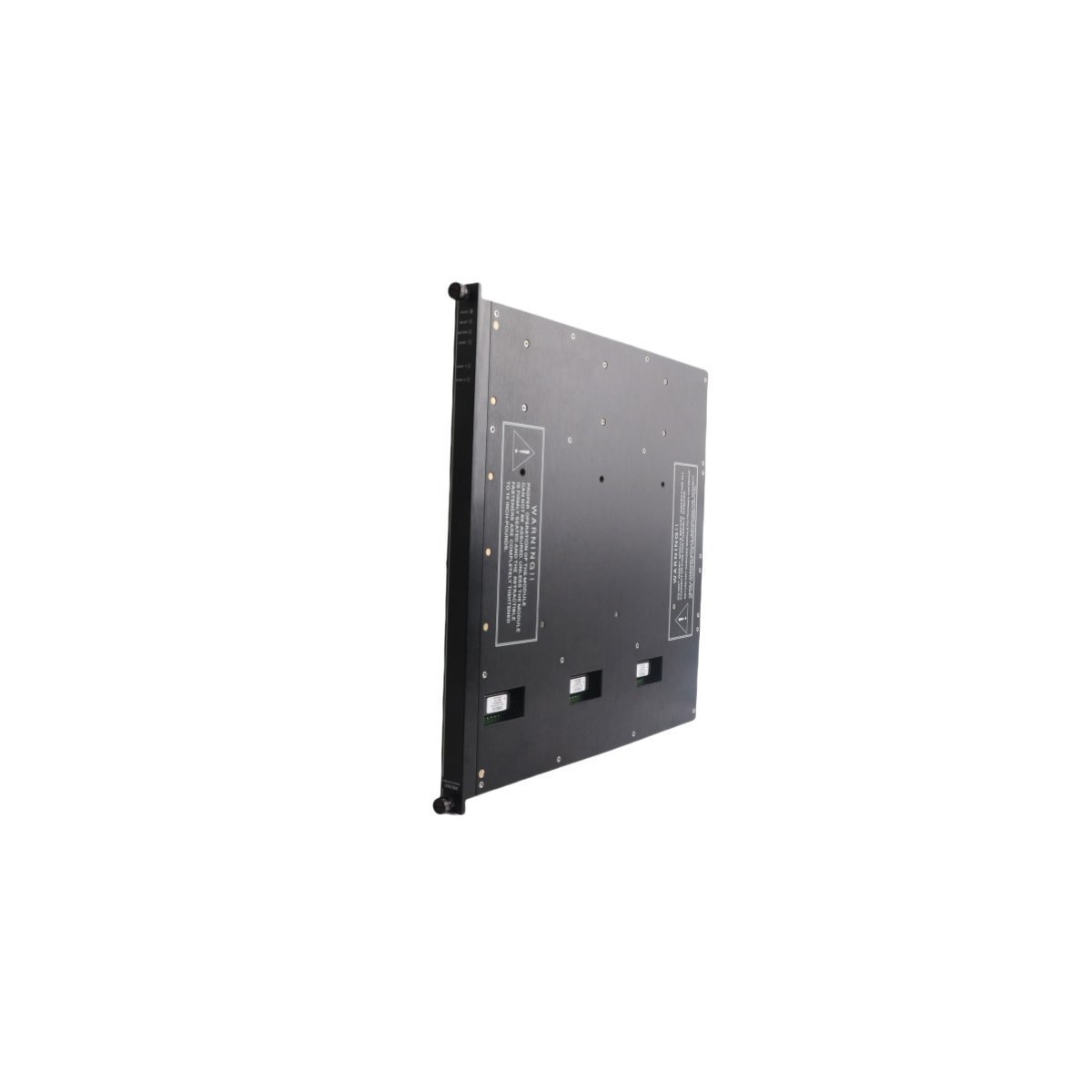

The Triconex 3806E serves as a high-precision analog output interface for critical process control. This module converts digital commands from the main processors into accurate current loop signals. It specifically drives field devices such as control valves and actuators in safety-critical loops.
This hardware utilizes Triple Modular Redundancy (TMR) to ensure maximum operational uptime. Three independent output circuits monitor each other to provide a voted, fault-tolerant signal. Furthermore, the 3806E includes comprehensive isolation between channels and internal logic. This architecture prevents electrical interference from affecting the safety system integrity.
Key Technical Specifications
- Manufacturer: Schneider Electric (Triconex)
- Model Number: 3806E
- Signal Type: Analog Output (Current and Voltage)
- Accuracy Rating: ±0.1% of Full Scale
- Output Channels: 6 or 8 (Configuration Dependent)
- Safety Rating: SIL3 Capable
- Module Weight: 2.16 kg
- Chassis Footprint: 2.2 x 40.7 x 39.8 cm
- Redundancy Type: Triple Modular Redundant (TMR)
- Fault Management: Internal Self-Diagnostics with Alarm Generation
Reliability and System Maintenance
The 3806E features robust self-diagnostic routines to detect hardware malfunctions instantly. These diagnostics trigger alarms immediately if an output deviation occurs. Therefore, operators can address issues before they impact plant safety.
Modern facilities often use this module to maintain legacy Tricon systems. The rugged construction ensures stable performance in high-vibration or high-temperature environments. It supports hot-swapping to allow module replacement while the process remains active. This capability eliminates the need for expensive system shutdowns during routine maintenance.
