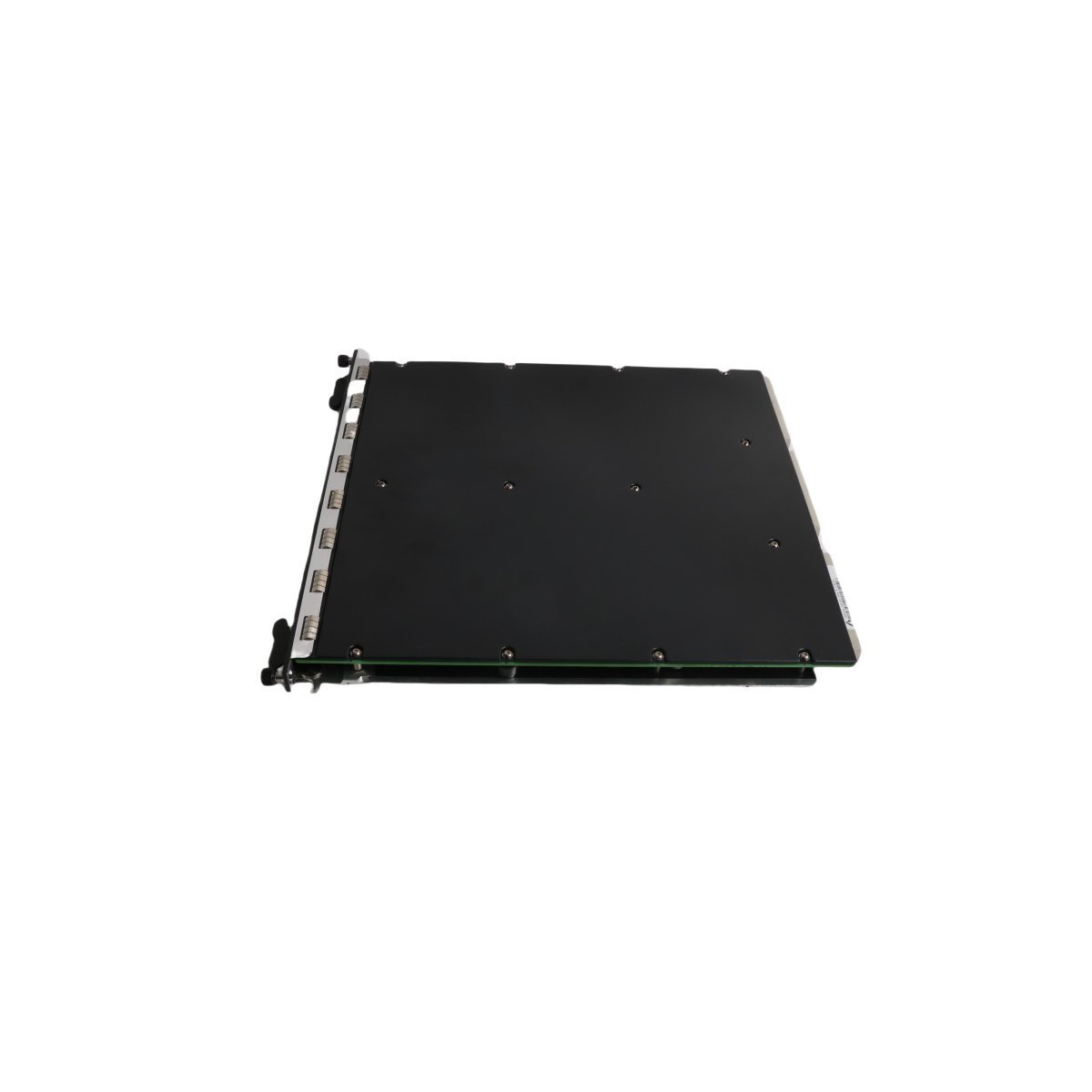

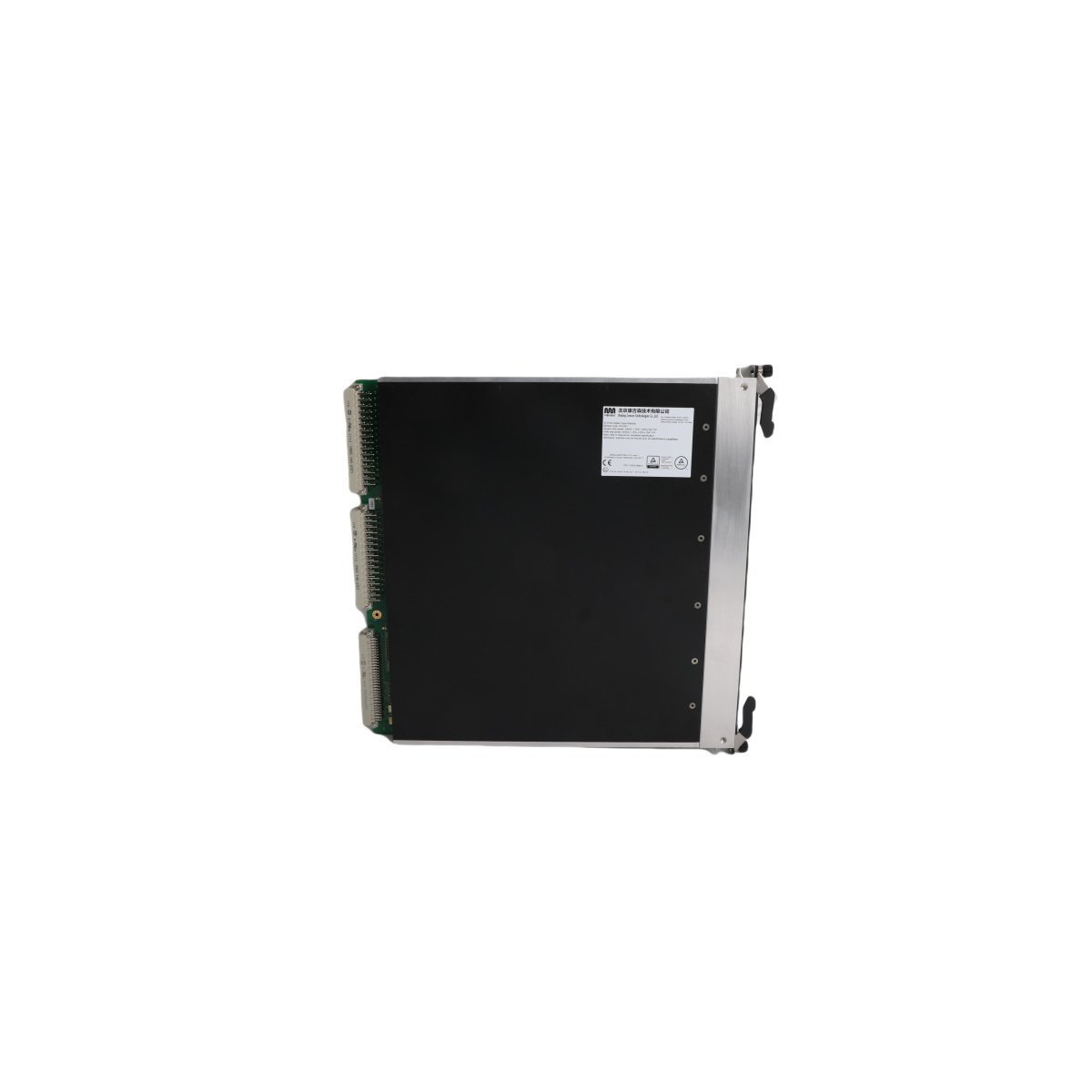

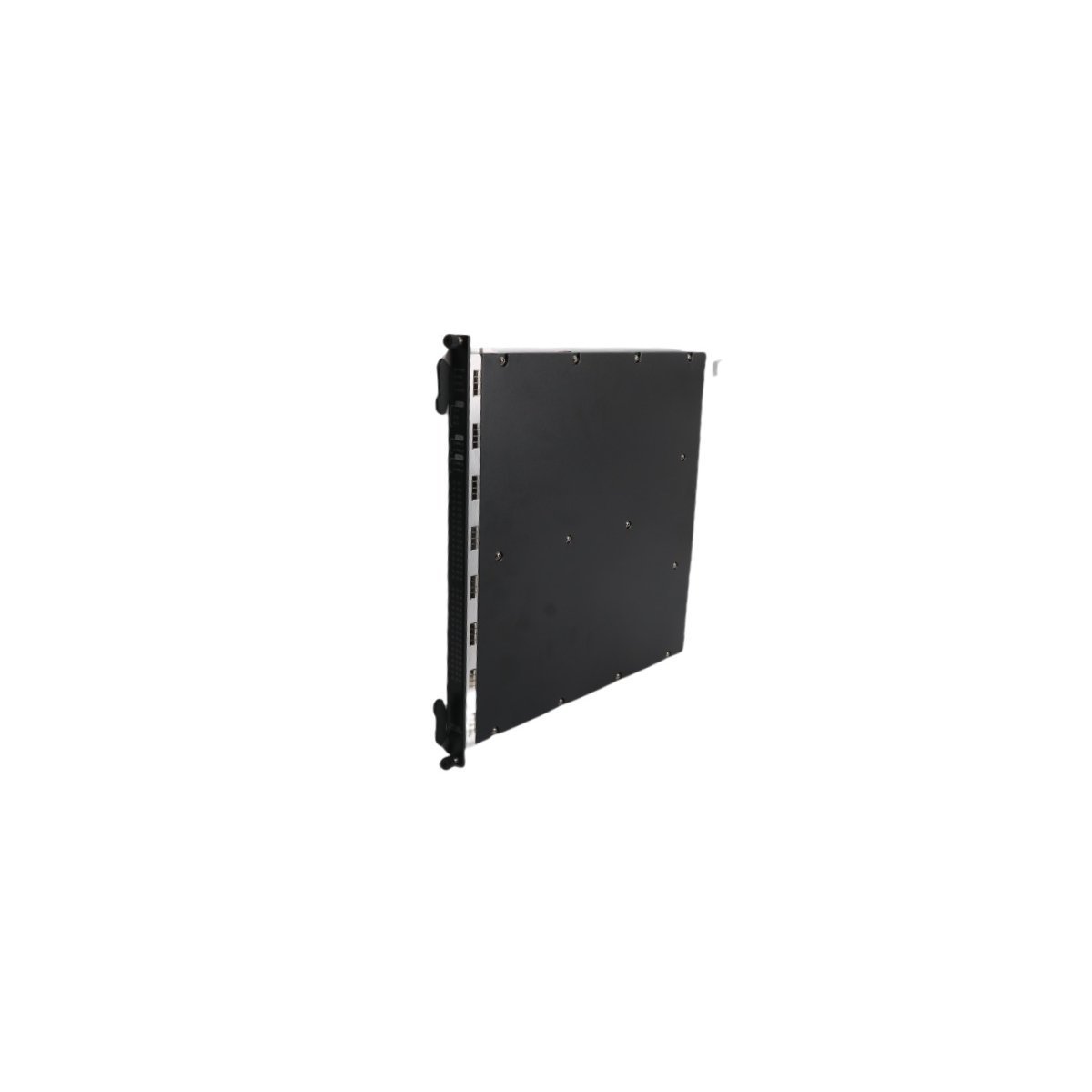

The Triconex DO3201 serves as a high-integrity digital output interface within the Triconex Safety Instrumented System (SIS). This module specifically manages critical control signals for industrial equipment. It utilizes a Triple Modular Redundant (TMR) architecture to achieve maximum fault tolerance.
The internal design features three isolated, parallel processing branches. These branches execute identical logic simultaneously. A hardware voting mechanism determines the final output state based on majority consensus. Consequently, the system remains fully operational even if a single hardware component fails.
Safety Certification and Applications
This module meets the stringent requirements for Safety Integrity Level 3 (SIL3) environments. TÜV Rheinland has certified the DO3201 for use in high-risk industrial safety loops. It effectively protects assets in petrochemical, oil and gas, and power generation facilities.
Furthermore, the DO3201 integrates seamlessly into the EcoStruxure Triconex architecture. This compatibility ensures streamlined communication between safety controllers and field devices. The hardware reduces the risk of nuisance trips and prevents costly unplanned downtime.
Product Specifications
- Manufacturer: Schneider Electric (Triconex)
- Model Identification: DO3201
- Module Type: Digital Output (TMR)
- Safety Rating: SIL3 Certified
- Mass: 1.74 kg
- Dimensions: 2.2 x 35.6 x 35 cm
- Country of Origin: USA
- System Environment: Tricon DCS
- HS Code: 8537101190
- Service Lifecycle: Active
