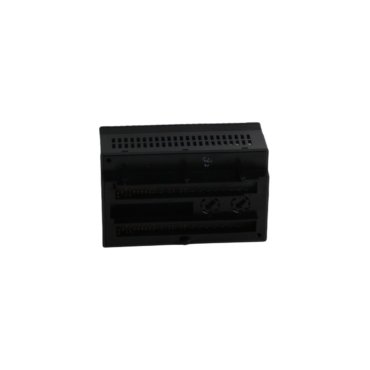

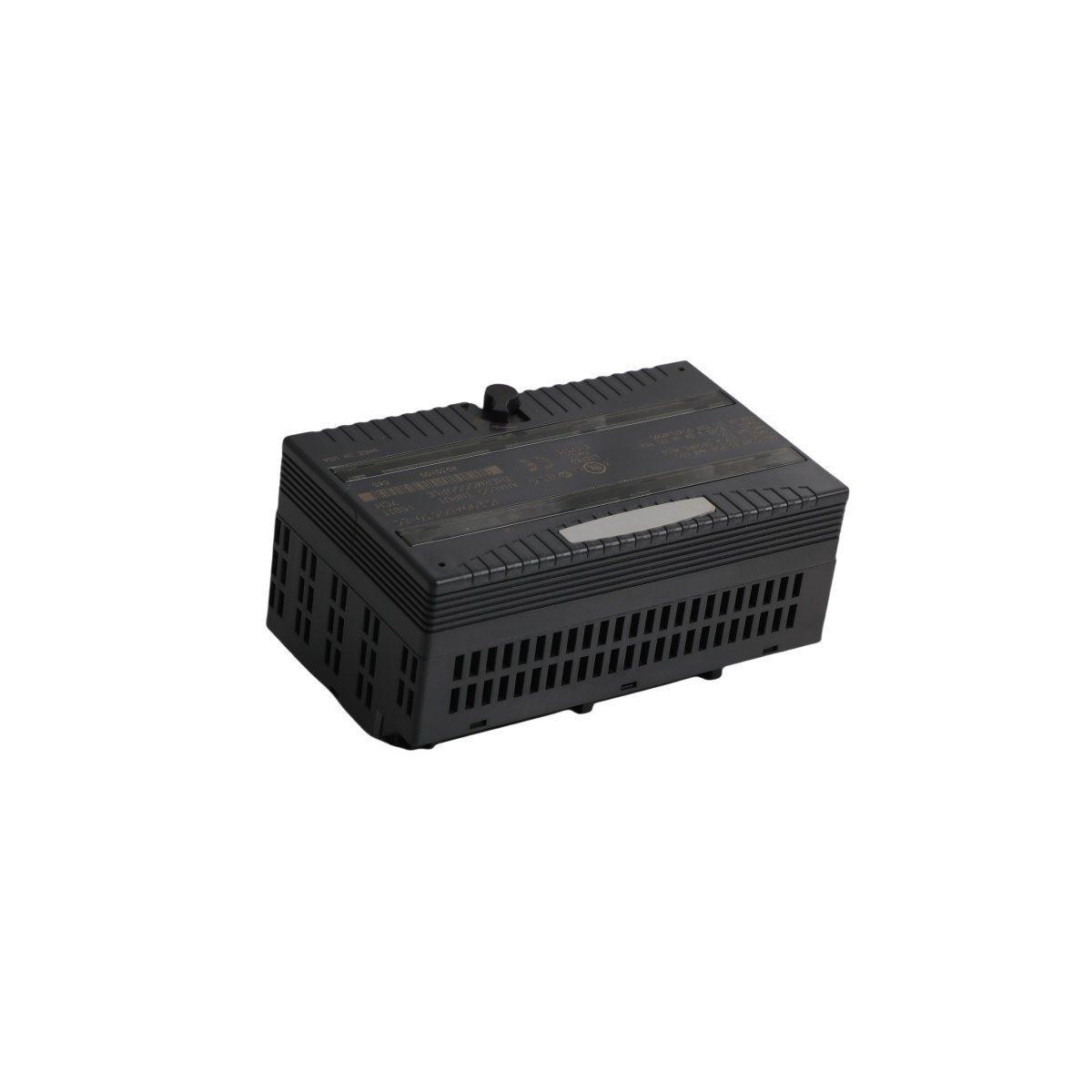

Name: GE Fanuc IC200ALG322 Analog Output Module
Brand: General Electric
SKU: IC200ALG322
Availability: InStock

Core Technical Specifications

The following data represents the electrical and physical characteristics of the IC200ALG322 module:

The GE Fanuc IC200ALG322 provides precise analog control signals within the VersaMax I/O family. This module features four voltage output channels to drive field equipment. It acts as a critical interface between the central PLC and external devices. Common applications include controlling variable speed drives, valve actuators, and instrumentation. The hardware utilizes a 12-bit resolution to ensure smooth and accurate signal transitions. While the PLC backplane provides logic power, the outputs require a separate external power supply.

Output Performance and Precision

Each channel on this module delivers a voltage range of -10.24 to +10.24 Volts DC. The module maintains an accuracy level between +/-0.3% and +/-1.0% across its operating temperature range. It successfully supports resistive loads with a minimum impedance of 5000 Ohms. Furthermore, the design includes crosstalk rejection of at least 70 dB between channels. This high level of signal separation prevents interference between different control loops. Consequently, the IC200ALG322 ensures stable output even in high-density installations.

Diagnostics and System Safety

The IC200ALG322 includes intelligent monitoring capabilities to protect industrial processes. It proactively identifies field-side power losses and reports these faults to the CPU. Operators can view these diagnostic alerts through HMI or SCADA interfaces. This real-time feedback helps maintenance teams confirm the integrity of all external connections. Additionally, the module features a robust design that resists high temperatures and industrial vibration. Users should avoid environments with extreme radiofrequency interference to maintain peak signal accuracy.
