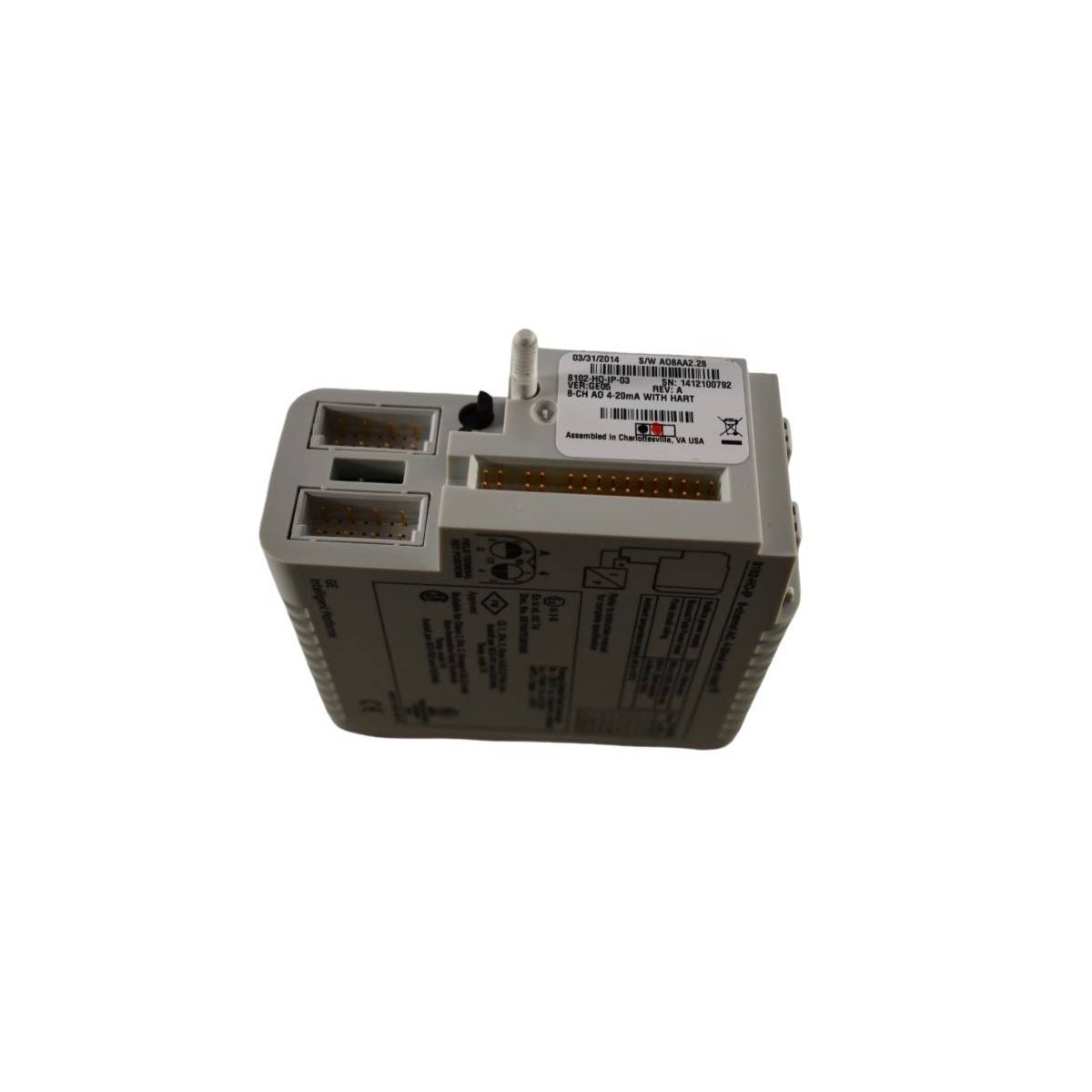

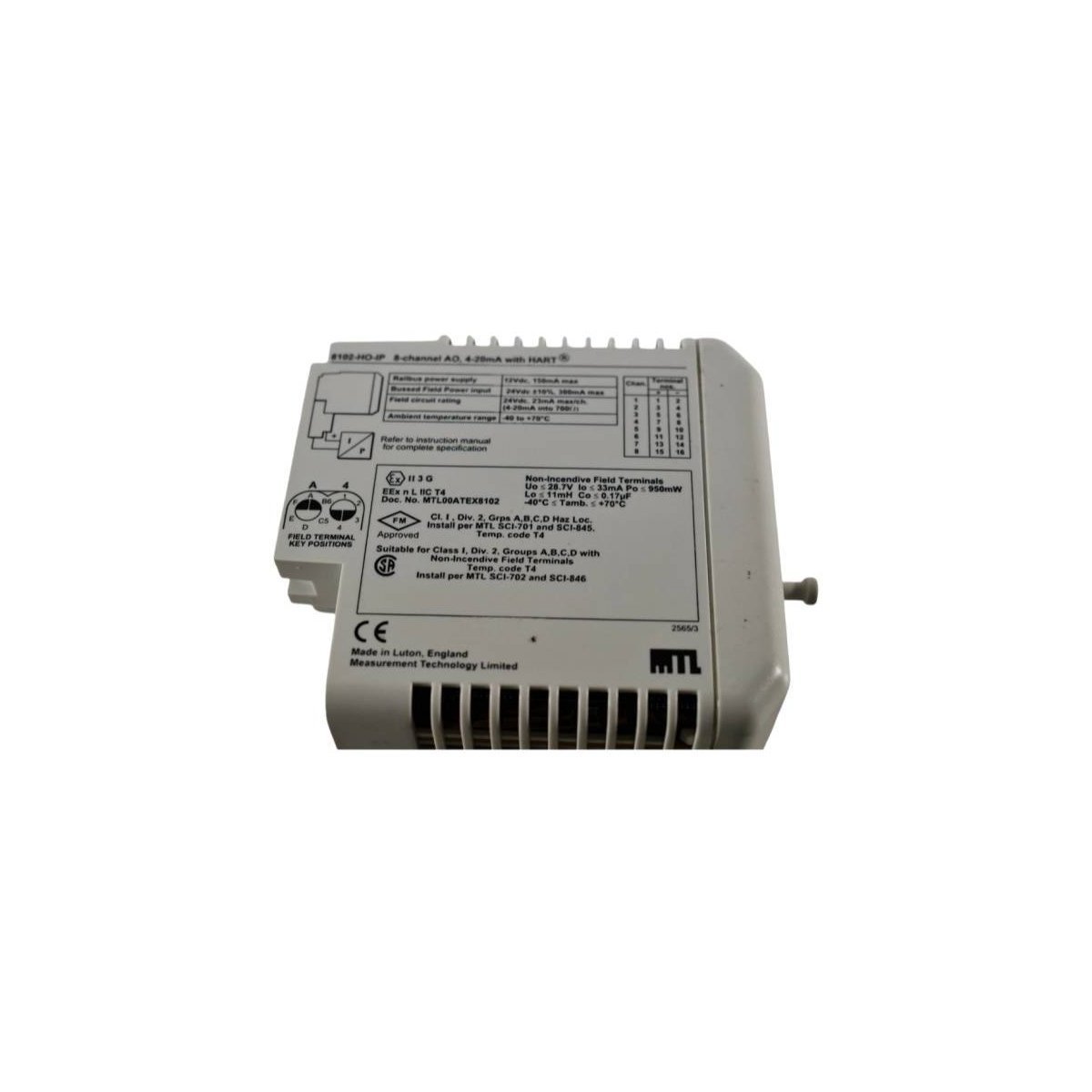

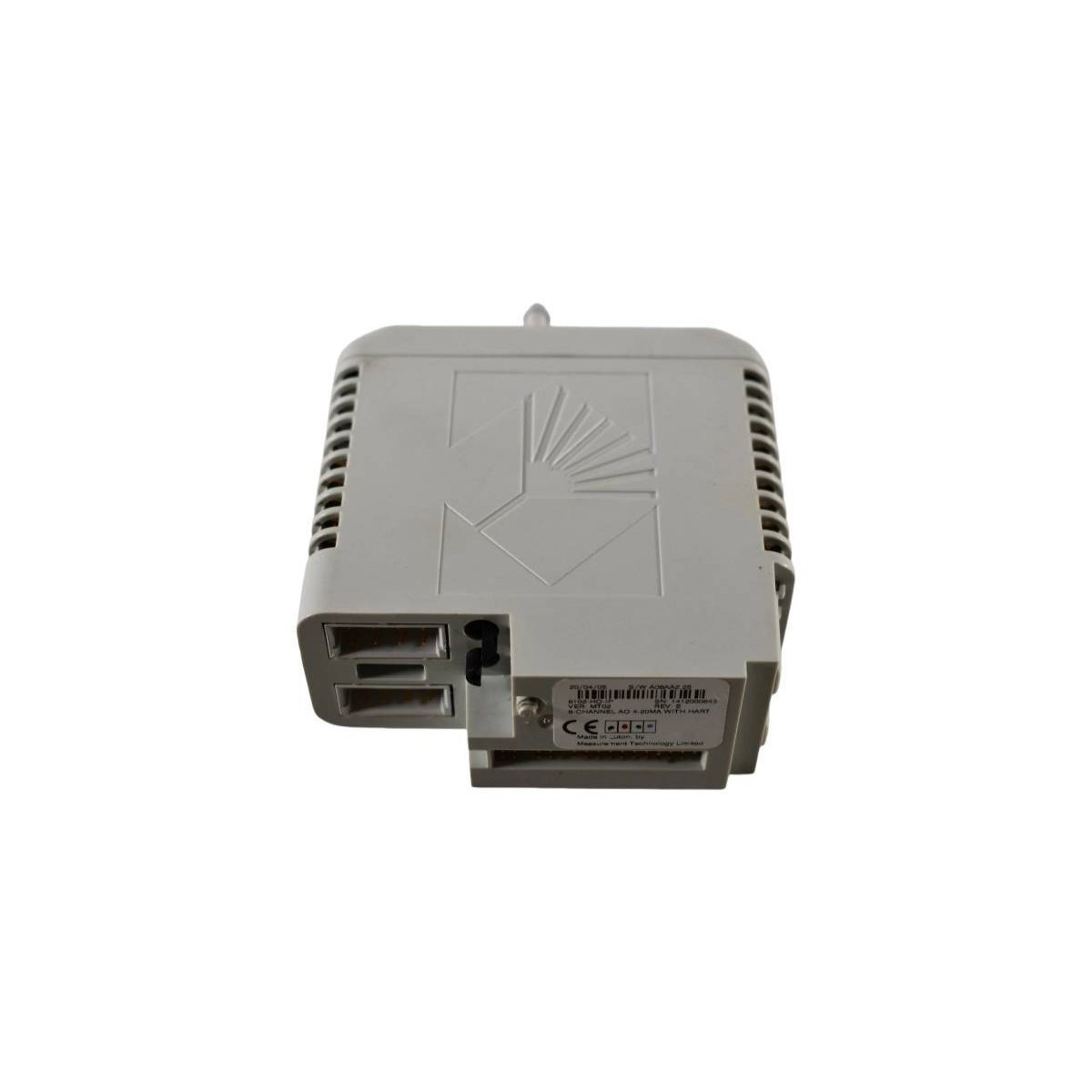

The GE 8102-HO-IP functions as a high-performance analog control interface within the Mark VIe and Series 8000 I/O families. This module provides eight independent channels for precise field device regulation. It converts digital processor commands into standardized 4-20 mA current signals. Industrial plants utilize this hardware to drive actuators, valve positioners, and remote indicators. Its rugged architecture supports continuous operation in demanding distributed control system (DCS) environments.
Technical Specifications
| Parameter | Specification |
| Brand | General Electric (GE) |
| Model Number | 8102-HO-IP |
| Module Type | Analog Output (AO) |
| Output Range | 4-20 mA |
| Channel Count | 8 Isolated Channels |
| Resolution | 12-bit |
| Accuracy | ±0.25% of Full Scale |
| Weight | 0.9 kg |
| Dimensions | 20 x 11.5 x 5.7 cm |
HART Communication and Diagnostics
The 8102-HO-IP supports the HART protocol through specialized pass-through functionality. This feature allows engineers to configure smart field instruments remotely. It enables the transmission of secondary process variables without disrupting the primary analog signal. Furthermore, the module monitors each channel for open circuit faults. These advanced diagnostics help maintenance teams identify wiring issues quickly. Consequently, the system maintains high availability in critical process loops.
Hazardous Area Safety Compliance
Safety remains a core focus of the 8102-HO-IP hardware design. The module carries FM non-incendive certification for use in hazardous locations. Its field circuits limit electrical energy to safe levels during operation. Specifically, it maintains a maximum open-circuit voltage (Voc) of 28.7V. It also restricts the short-circuit current (Isc) to 33mA. These parameters ensure compatibility with safety-rated instrumentation in explosive atmospheres.
System Integration and Performance
This module utilizes Railbus connectivity for high-speed data exchange with the controller. It achieves a rapid response time of 25ms for time-sensitive control applications. The bussed 24V DC field power design simplifies cabinet wiring significantly. Additionally, the 42mm compact form factor saves valuable space in control panels. The module also features electrical isolation to protect the internal bus from field-side interference.
