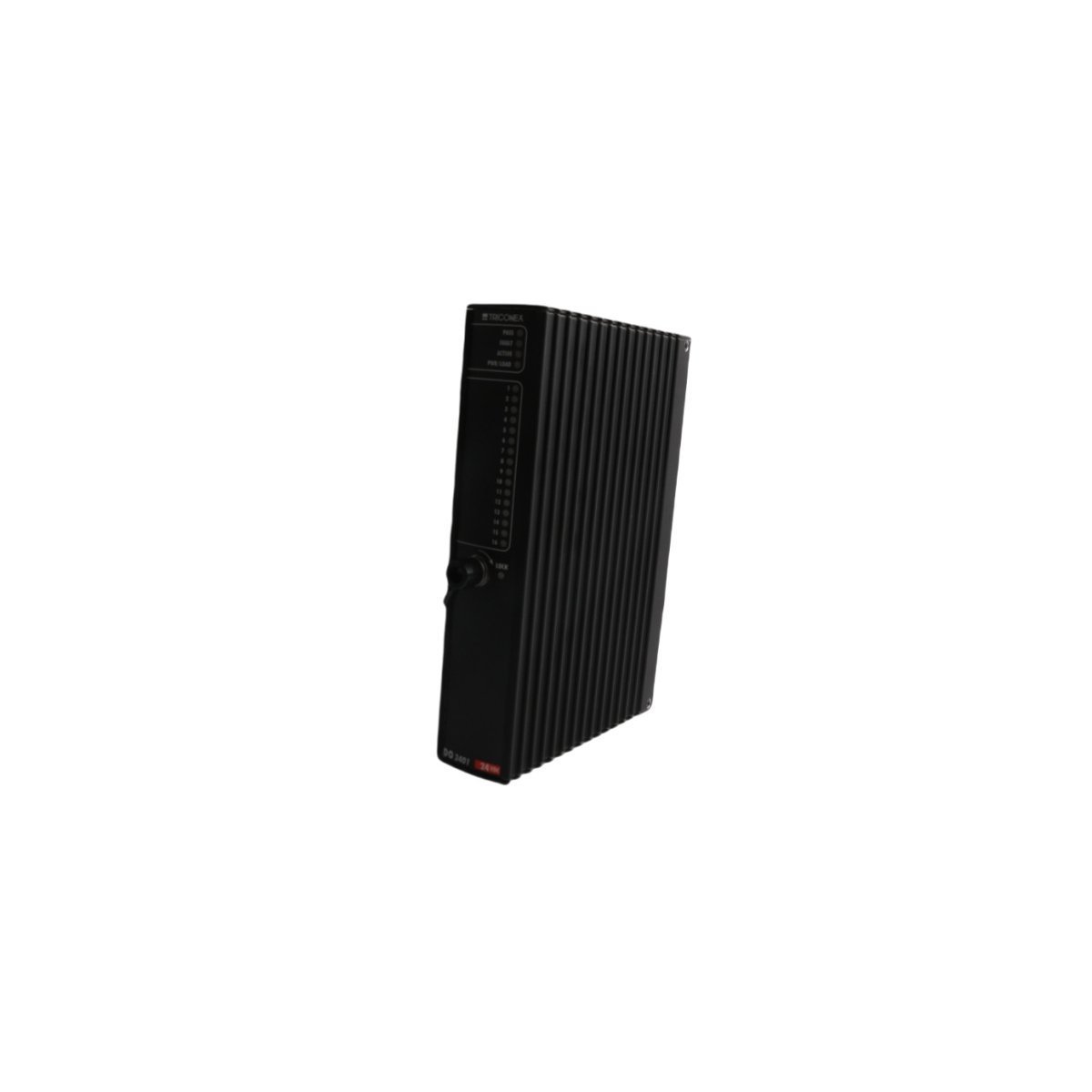

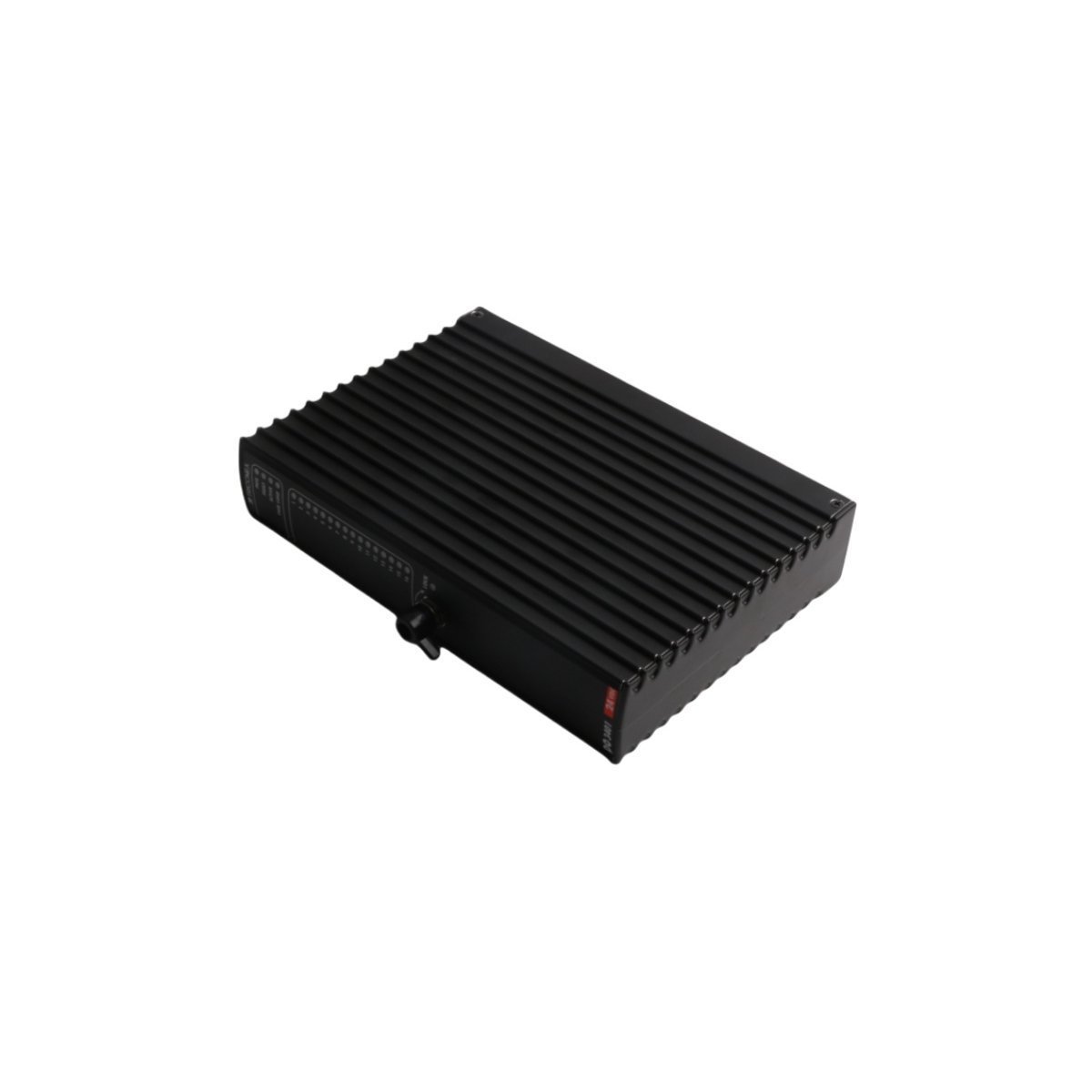

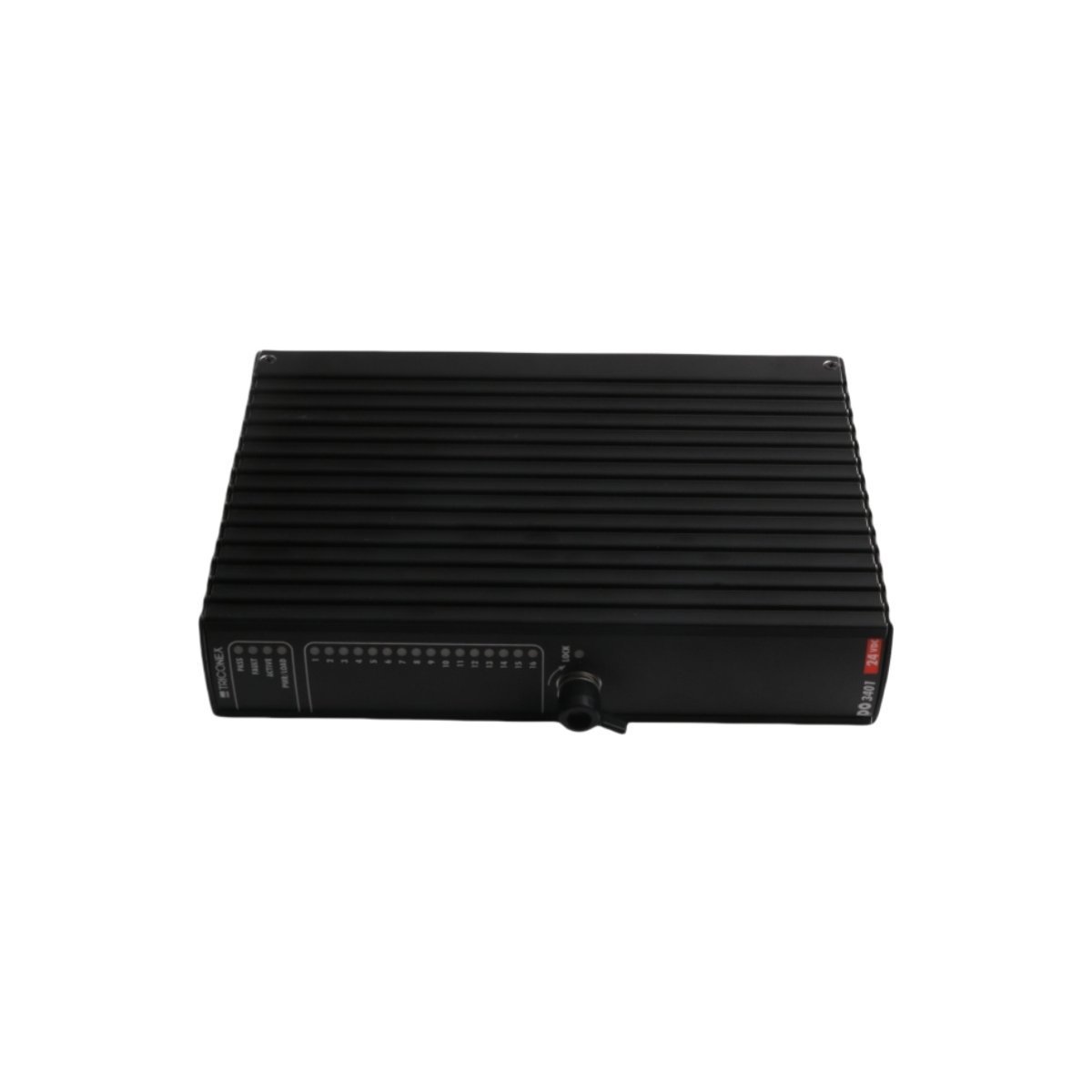

The Triconex DO 3401S2 stands as a cornerstone of the Tricon™ safety platform, providing 16 isolated digital output channels for high-integrity industrial applications. To ensure maximum system stability, the module implements complete electrical separation between every channel. This architectural choice prevents fault propagation, meaning a failure in a single field circuit cannot compromise adjacent outputs. Consequently, the DO 3401S2 offers the robust signal protection required for the most demanding environments in the oil, gas, and power sectors.
Technical Specifications Summary
| Feature | Specification Details |
| Brand | Triconex (Schneider Electric) |
| Model Number | DO 3401S2 |
| Module Type | TMR Digital Output Module |
| Output Channels | 16 (Isolated) |
| Voting Logic | Hardware-based TMR Voting |
| Weight | 1.3 kg |
| Dimensions | 4.3 x 18.8 x 21.8 cm |
| System Origin | USA |
| Safety Rating | SIL 3 Capable |
Key Technical Characteristics
- Triple Modular Redundancy: Employs three independent microprocessors to eliminate single points of failure within the output logic.
- Independent Channel Isolation: Provides 16 channels with full electrical separation to protect against localized circuit faults.
- SIL 3 Certified: Meets rigorous international safety standards for critical emergency shutdown (ESD) functions.
- On-Line Diagnostics: Continuously verifies output integrity and internal circuit health during normal operation.
- Hot-Swap Functionality: Enables module replacement without powering down the chassis or halting the safety instrumented function (SIF).
