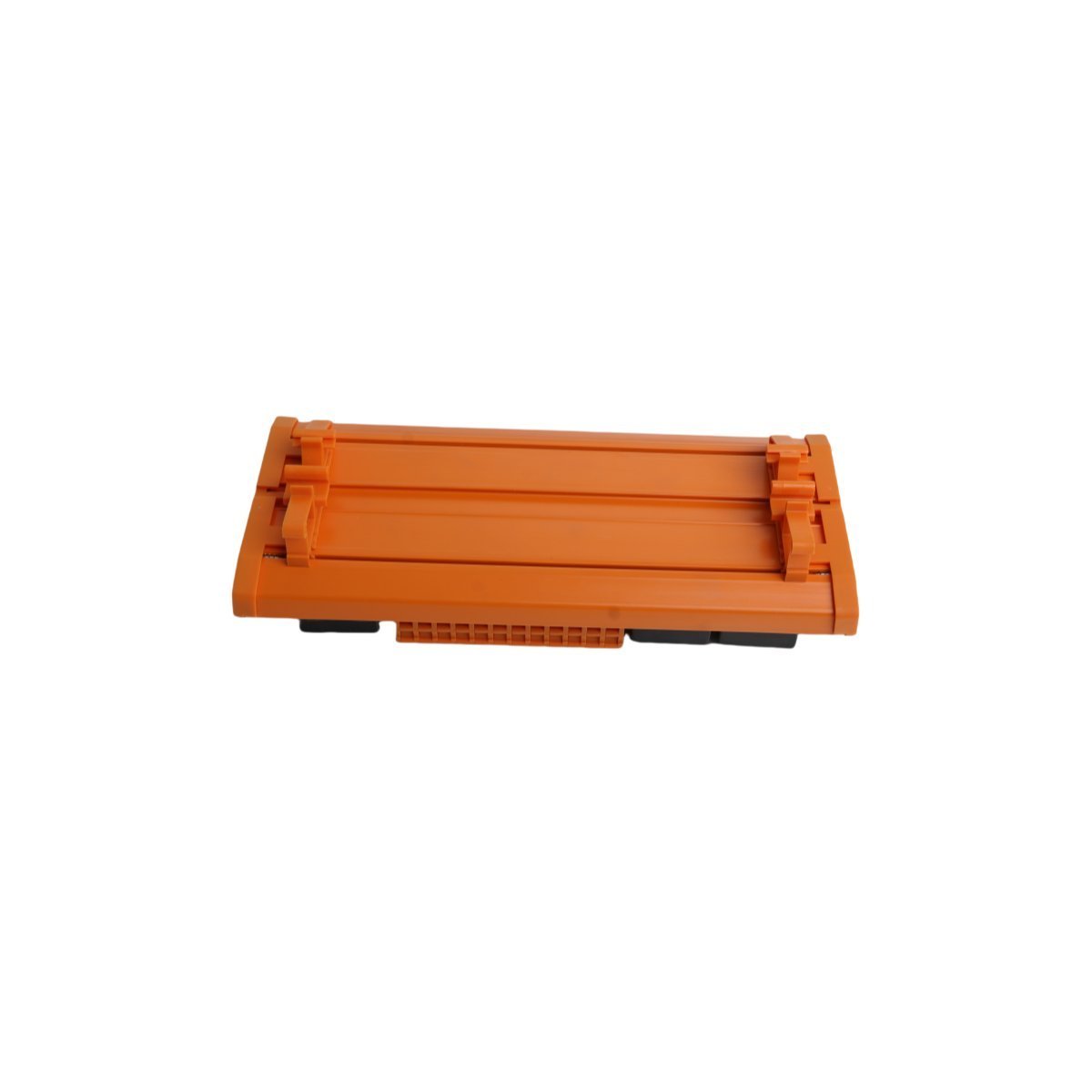

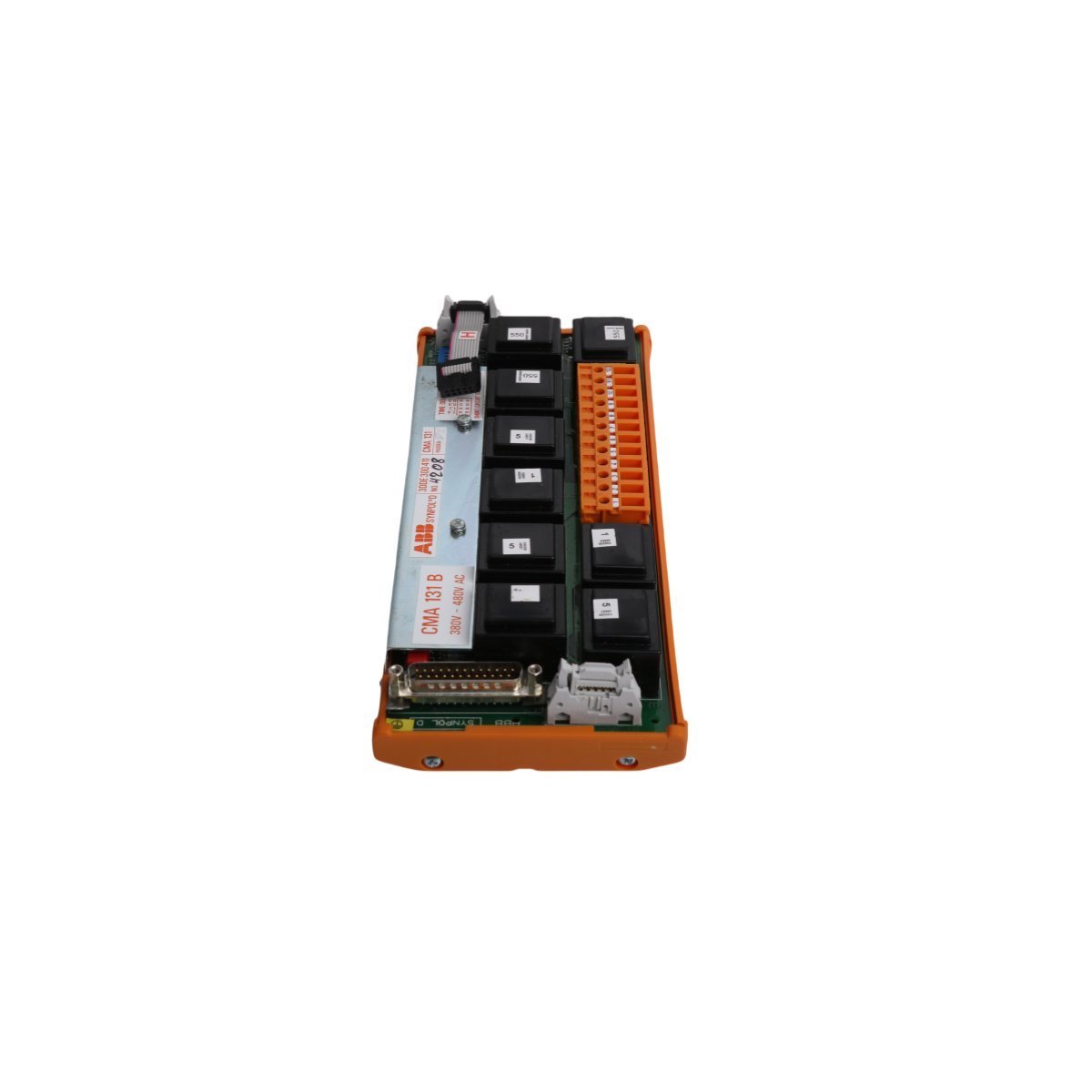

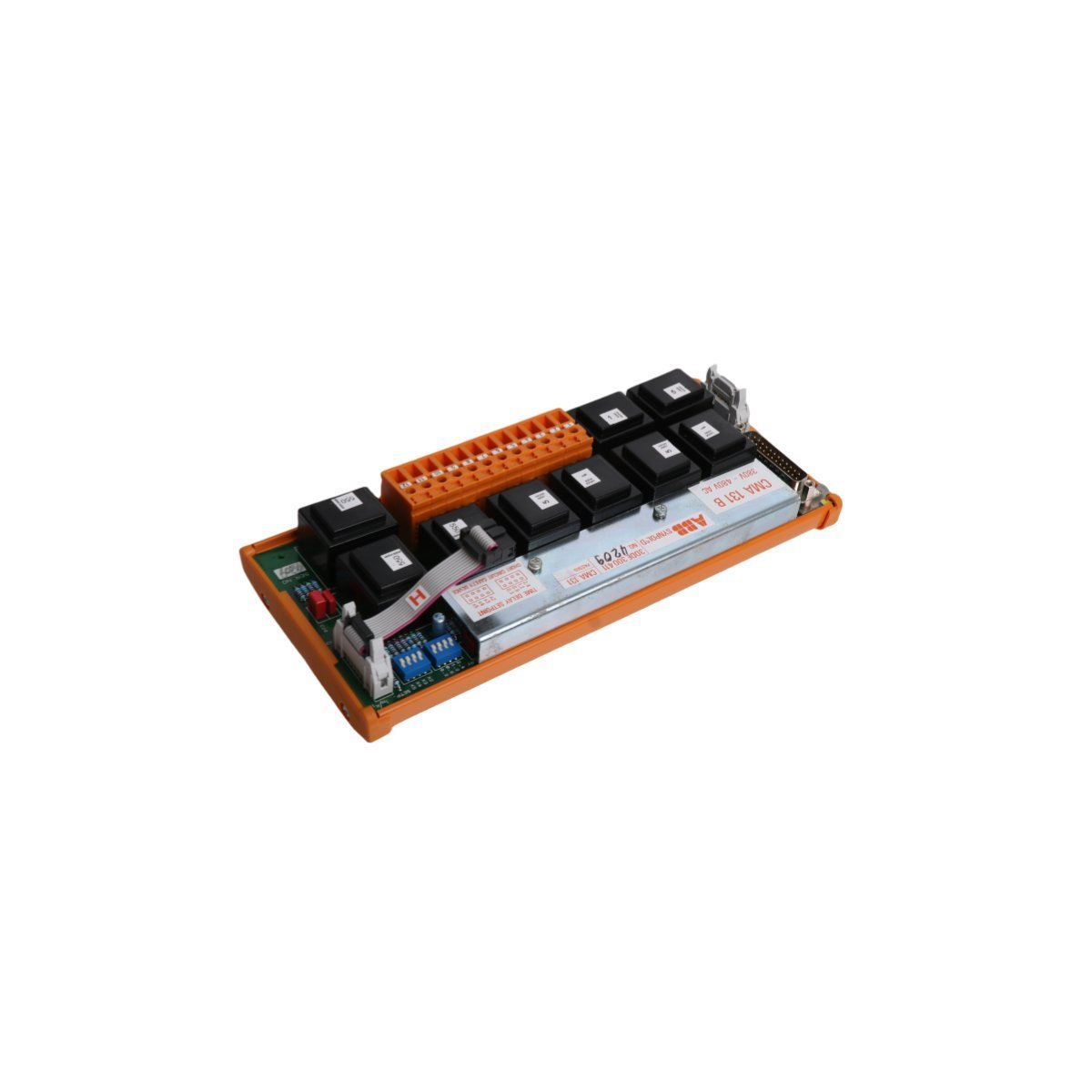

ABB CMA131 Servo Motor Drive Encoder Module

The ABB CMA131 serves as a high-performance interface between servo drives and position feedback sensors. This module belongs to the versatile AC500 PLC range. It specifically facilitates precise motion control by processing encoder data in real time. Because the unit handles high-speed pulse signals, it ensures accurate motor positioning for automated machinery. The CMA131 supports various encoder types to provide flexibility in complex industrial setups.

Motion applications require immediate data processing to maintain system stability. The CMA131 delivers low-latency feedback to the main control processor. Consequently, the drive system can react to load changes within milliseconds. This rapid response time optimizes the performance of high-speed production lines.

Robust Construction and Diagnostic Features

ABB engineers designed the CMA131 for continuous operation in demanding factory environments. The module features a rugged housing that protects internal electronics from electromagnetic interference. Furthermore, integrated diagnostic tools monitor the health of the encoder link constantly. If the module detects a signal loss, it triggers an immediate safety alarm. This proactive monitoring prevents mechanical damage and reduces unplanned maintenance.

Setup remains simple thanks to the modular design of the AC500 platform. Users can snap the module onto a standard terminal unit for quick installation. This hardware efficiency simplifies both new system builds and field upgrades. Additionally, the unit maintains its performance standards even under significant temperature variations.

Industrial Applications and Scalability

The CMA131 excels in robotics, packaging machinery, and textile manufacturing. It provides the reliable communication needed for synchronized multi-axis movements. Because it integrates seamlessly with ABB drives, it reduces overall engineering complexity. Many facilities also utilize this module for precise material handling and CNC applications. The CMA131 ensures that your automation network remains secure and highly efficient.

Technical Specifications and Module Data
