TPS02 ABB Symphony Plus Turbine Protection Slave Module

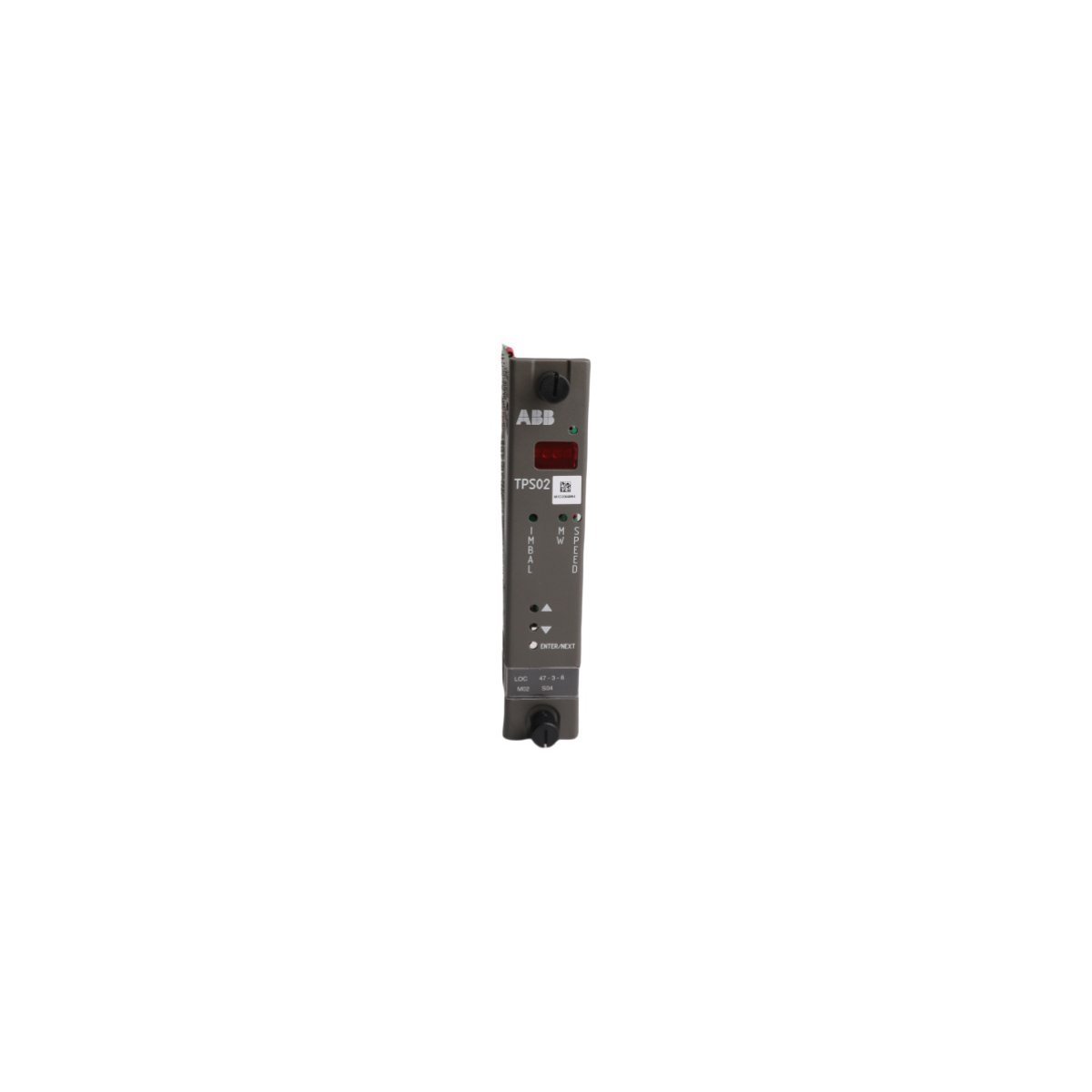

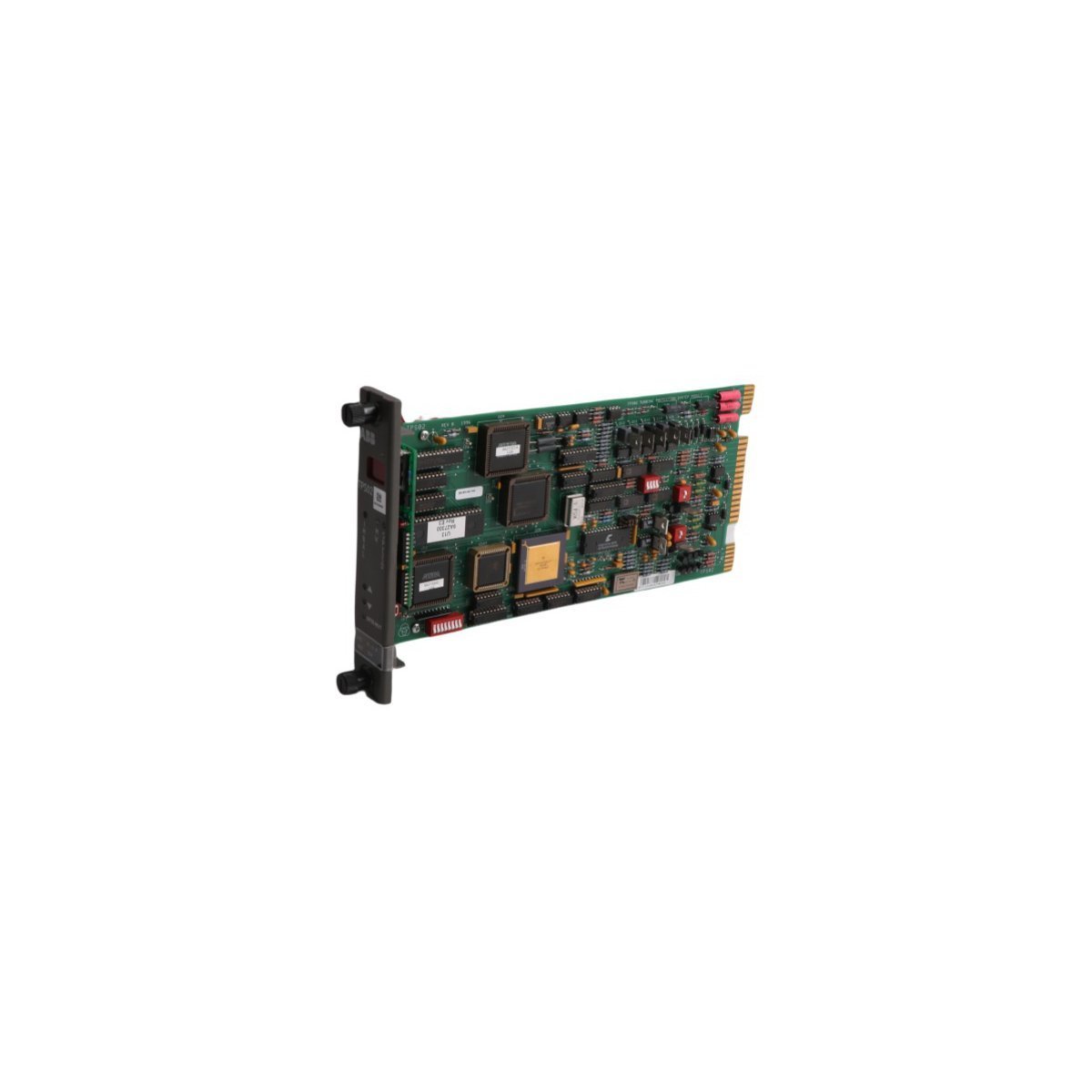

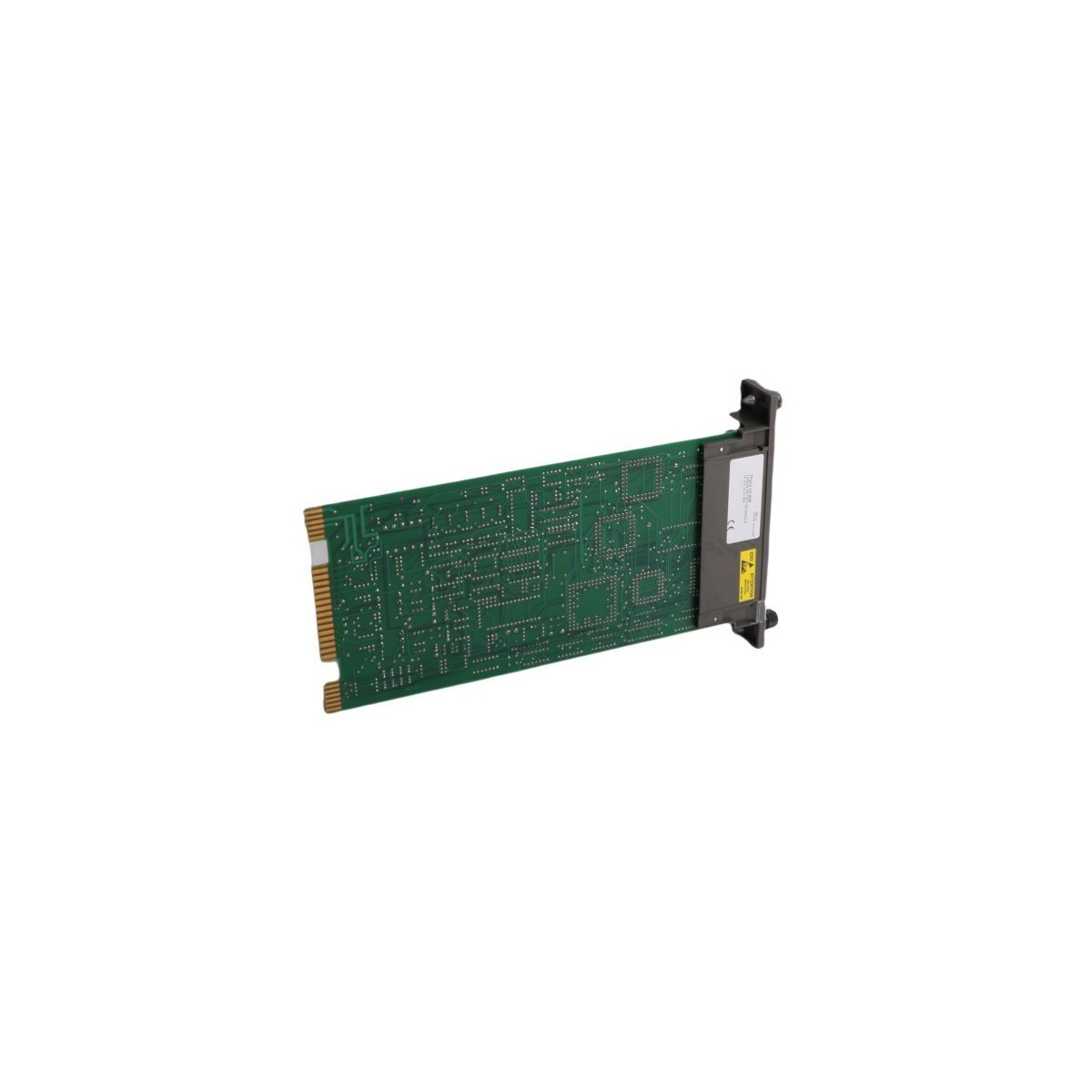

ABB TPS02 Turbine Protection Slave Module

The ABB TPS02, also cataloged as the TPS02 Turbine Protection Slave Module, operates as a dedicated hardware component for turbine safety logic execution within Ability Symphony Plus DCS platforms.

Hardware Specifications

ABB Industrial Control Characteristics

The TPS02 module integrates with the Ability Symphony Plus architecture to maintain deterministic control loops for turbine protection. The module hardware supports high-speed backplane bus communication, enabling real-time synchronization with master turbine control processors. Firmware flash compatibility ensures logical alignment with evolving system requirements, while the module hardware accommodates I/O density scaling within the protection cabinet. Furthermore, the internal logic executes signal processing with minimal latency, which permits rapid response to turbine overspeed or emergency trip conditions during transient process events.

Frequently Asked Questions

Q: Does the TPS02 support hot-swapping within an active protection rack?

A: No, this module requires system power-down prior to extraction to prevent potential damage to the backplane bus pins and to ensure the integrity of the turbine protection logic.

Q: How does the module handle firmware updates in a redundant architecture?

A: Updates occur via the system communication bus. Technicians must verify that the base station controller supports the specific firmware revision ID associated with the hardware before they initiate the flash sequence.

Field Installation Guidelines

1. Static Discharge Prevention: Always utilize an anti-static wrist strap connected to the chassis ground before handling the card to prevent electrostatic discharge damage to sensitive microelectronic components.
2. Backplane Insertion: Align the module within the designated chassis guide rails. Apply even pressure to the front faceplate until the connector fully seats into the backplane. Secure the card using the integrated captive screws to ensure proper grounding contact.
3. Signal Cabling: Route protection feedback signals separately from high-voltage power cables to minimize electromagnetic interference. Utilize shielded twisted-pair cabling for all control loops and ensure the shield drain wire connects to a dedicated earth busbar at the cabinet entry point.
4. Validation: After installation, measure the terminal feedback signals to confirm they fall within the nominal range specified by the turbine protection sequence before activating the protection logic.
