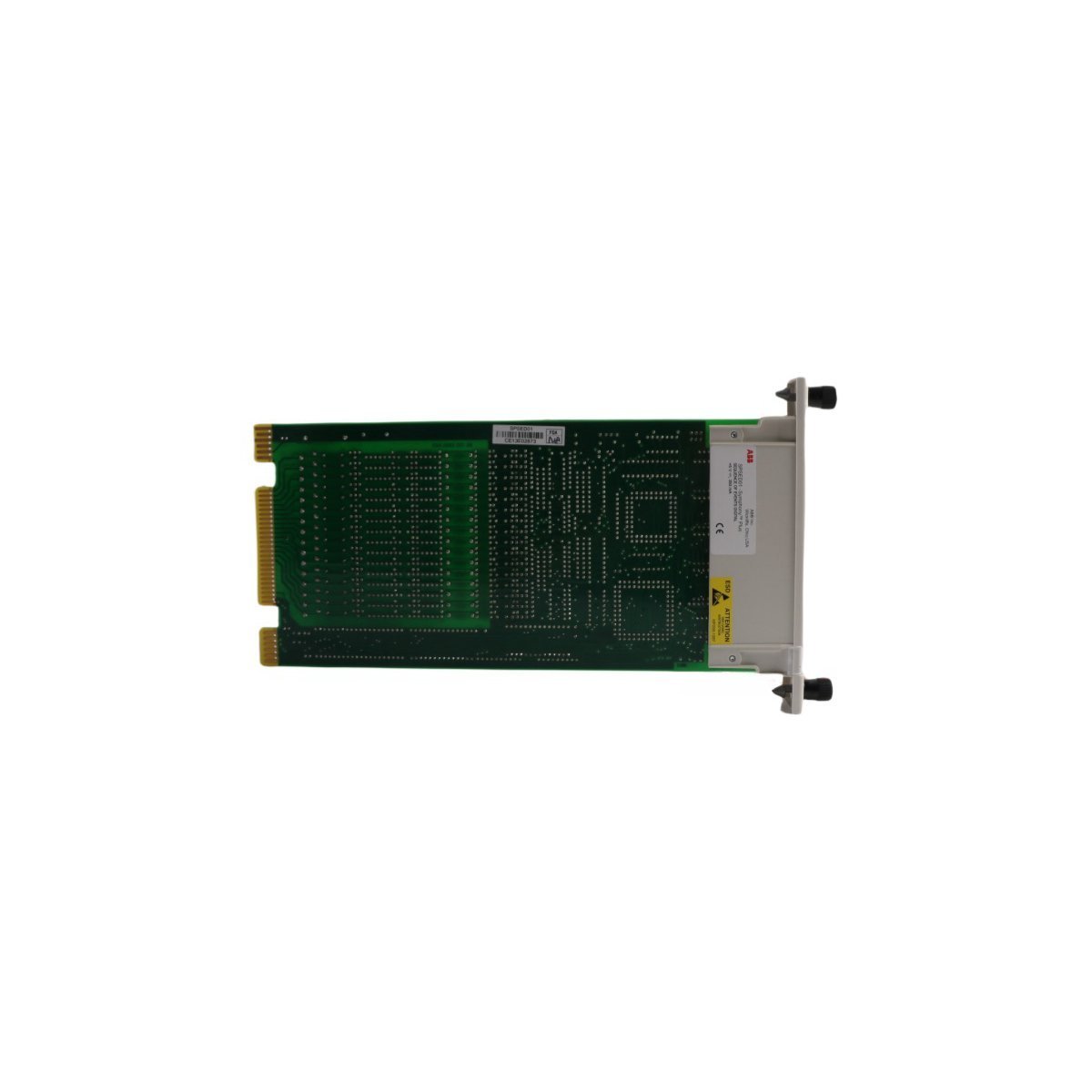

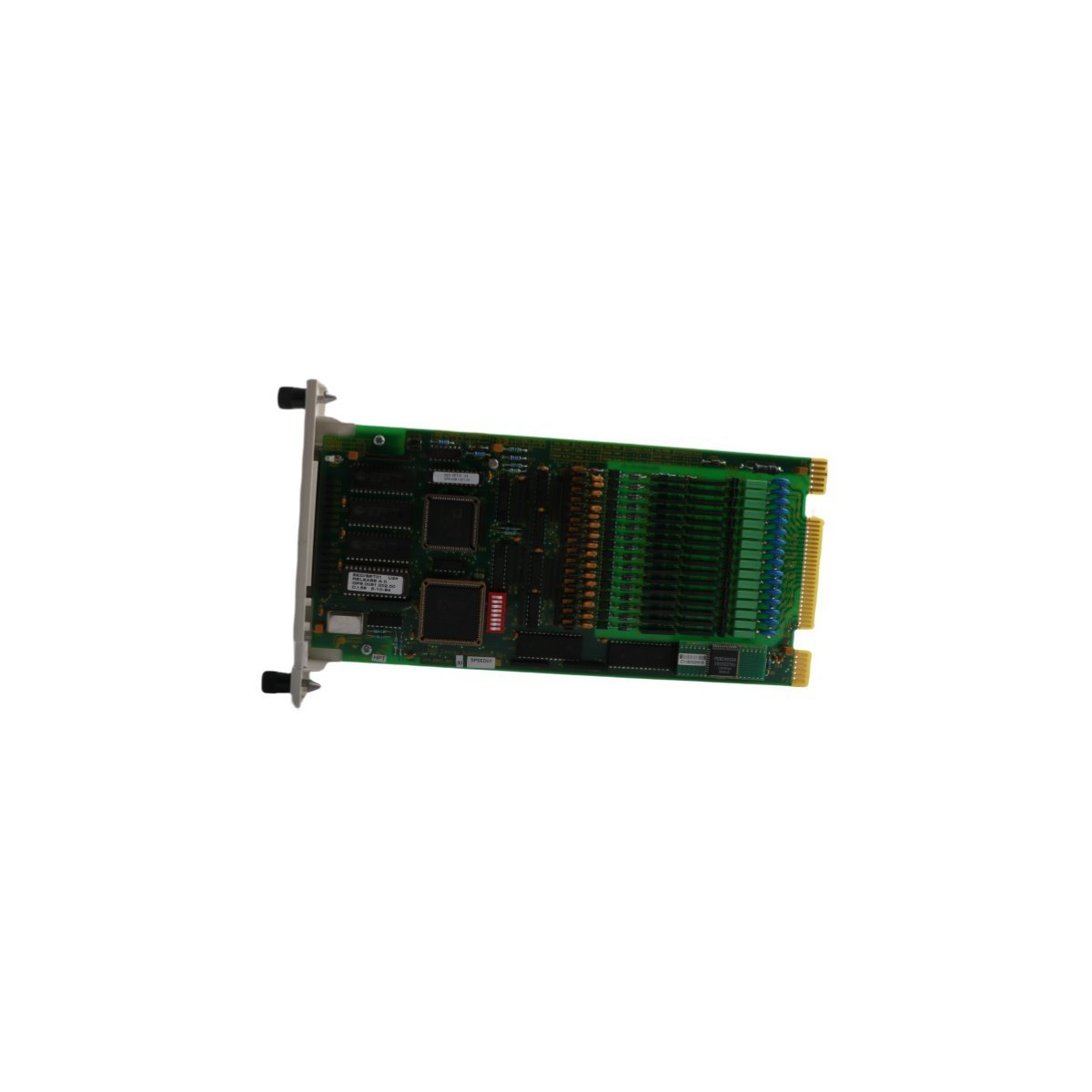

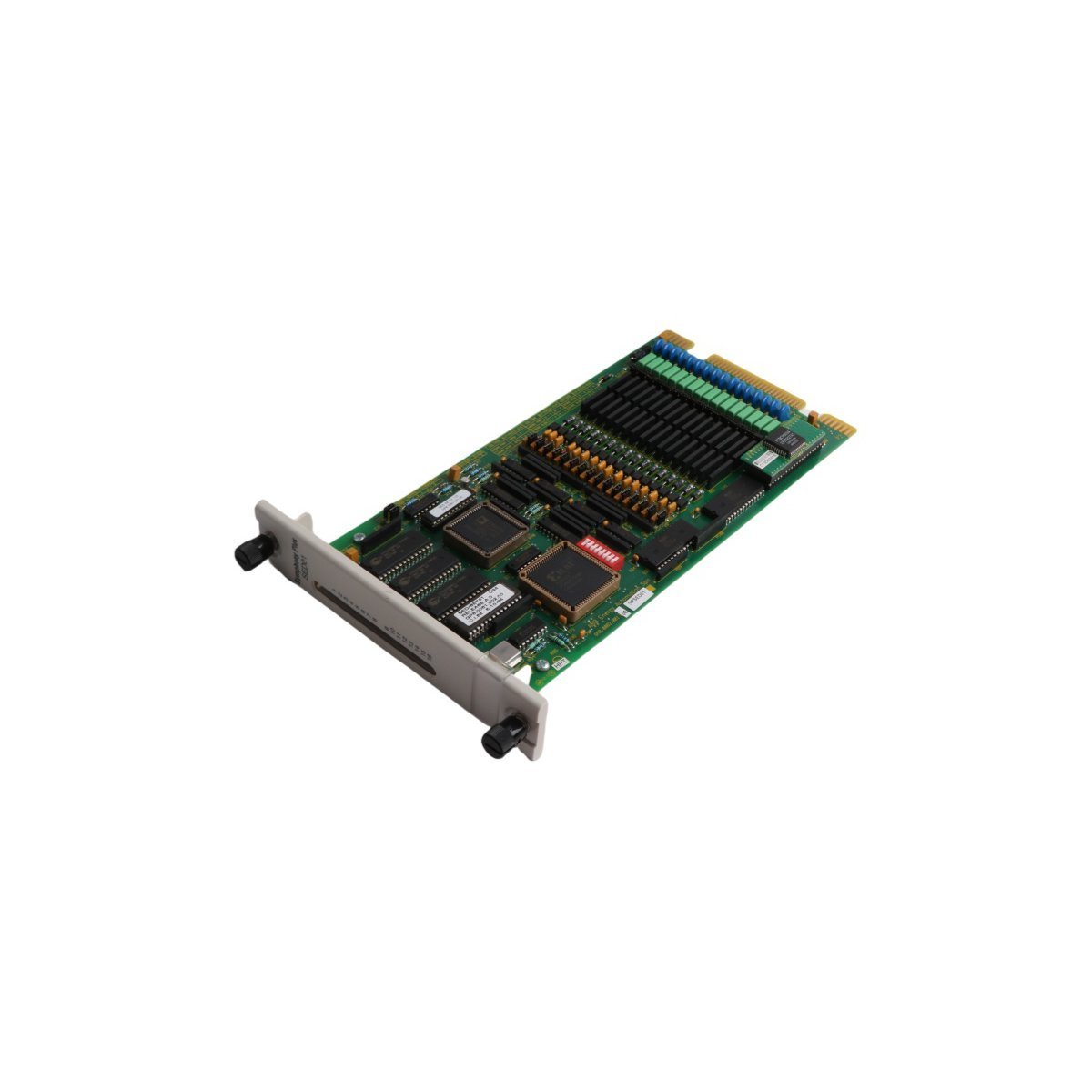

ABB SPSED01 Digital Input Module

The ABB SPSED01 is a high-performance digital input submodule designed for the Symphony Plus and Harmony distributed control systems. It is engineered specifically for Sequence of Events (SOE) recording, providing microsecond-level time-stamping for discrete signals. This capability allows plant operators to perform precise root-cause analysis by capturing the exact chronological order of digital state changes during system trips or process upsets. The module acts as a critical interface for monitoring high-speed field contacts, ensuring that rapid-fire event sequences are documented with absolute accuracy.

Industrial Applications

• Power Utilities: Monitoring circuit breaker statuses and protective relay operations for grid stability analysis.
• Oil and Gas Refining: Tracking emergency shutdown (ESD) valve sequences and pressure switch triggers.
• Chemical Processing: Recording rapid interlock transitions during high-pressure or exothermic reactions.
• Marine Automation: Logging critical engine and propulsion system alarms for maritime safety compliance.

Essential Specifications
