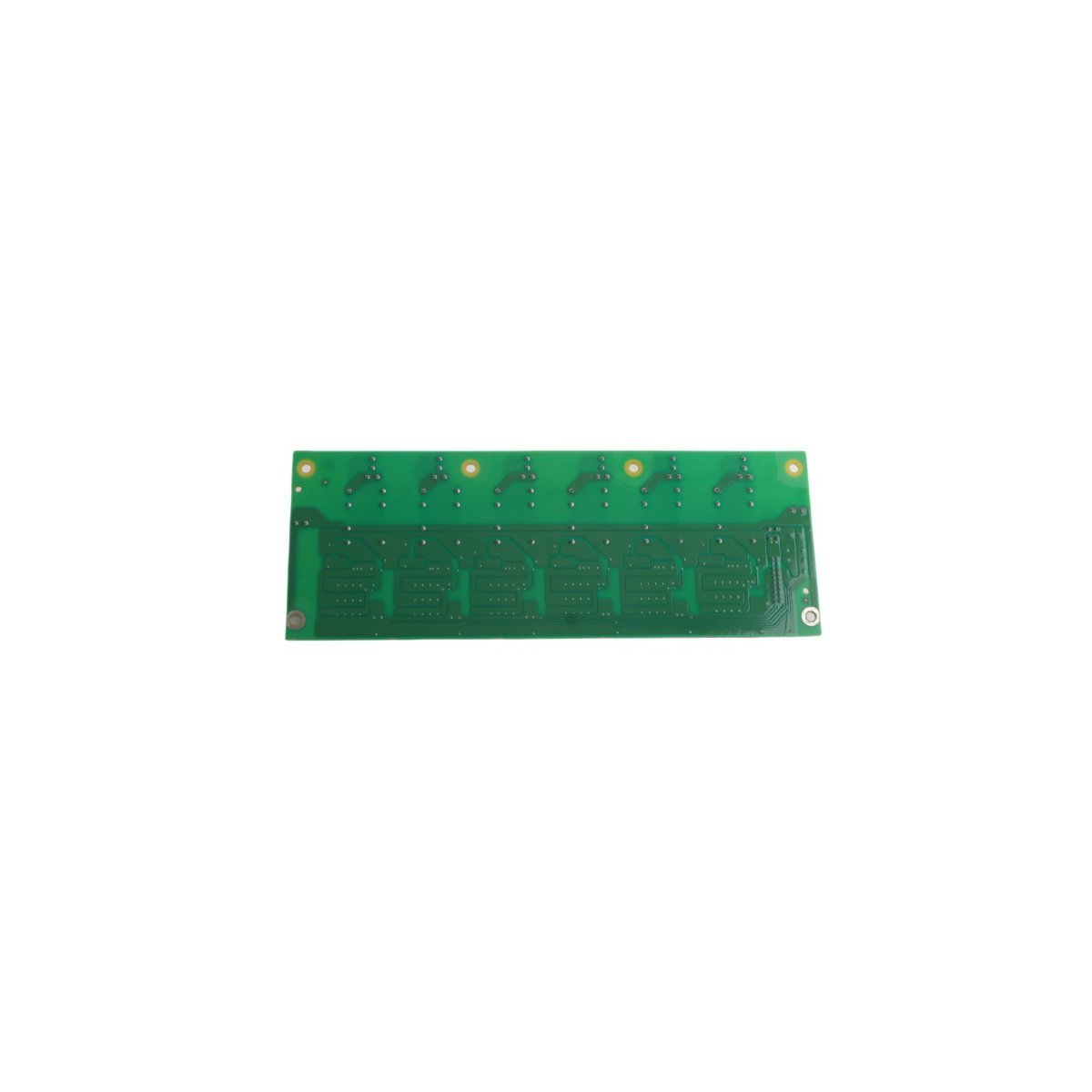

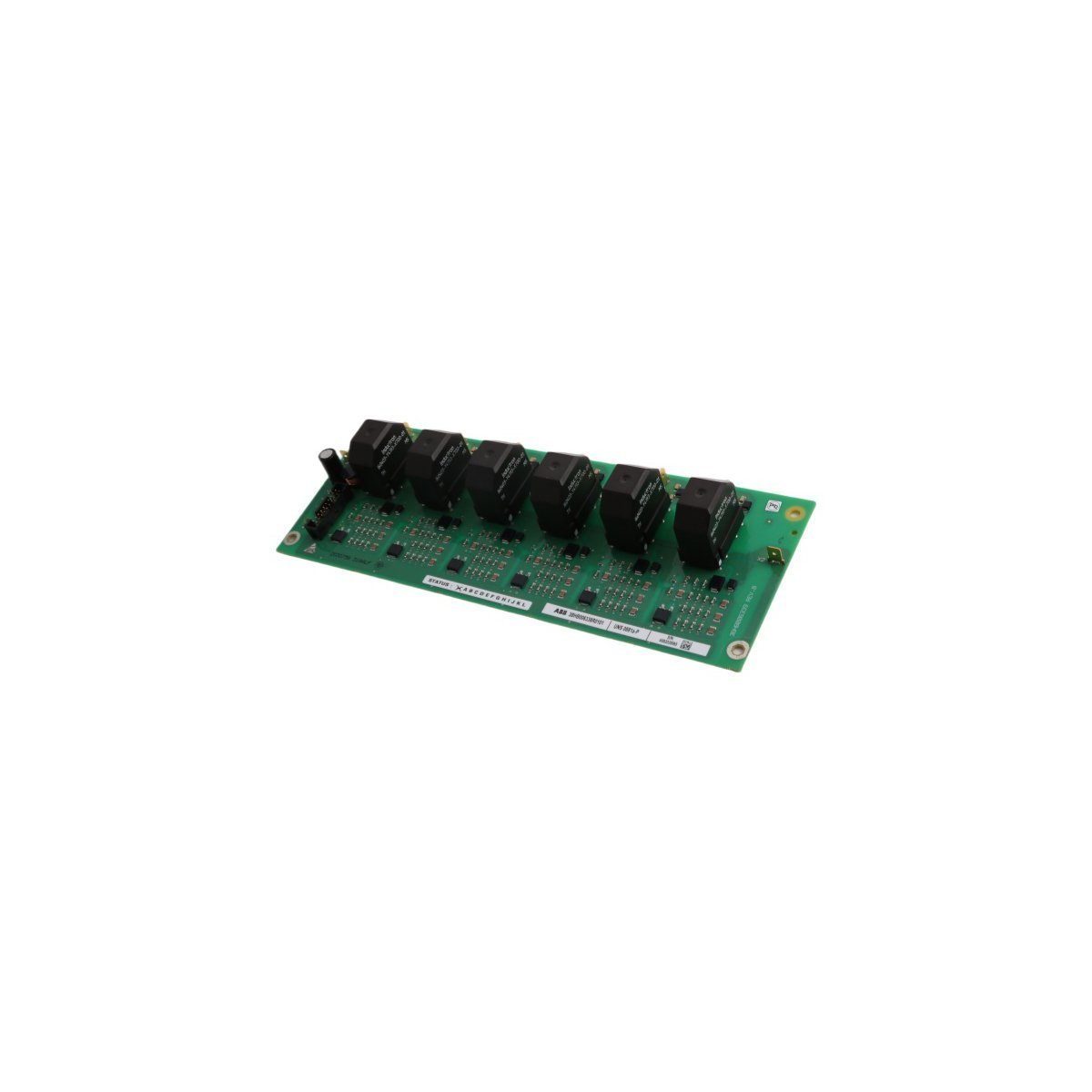

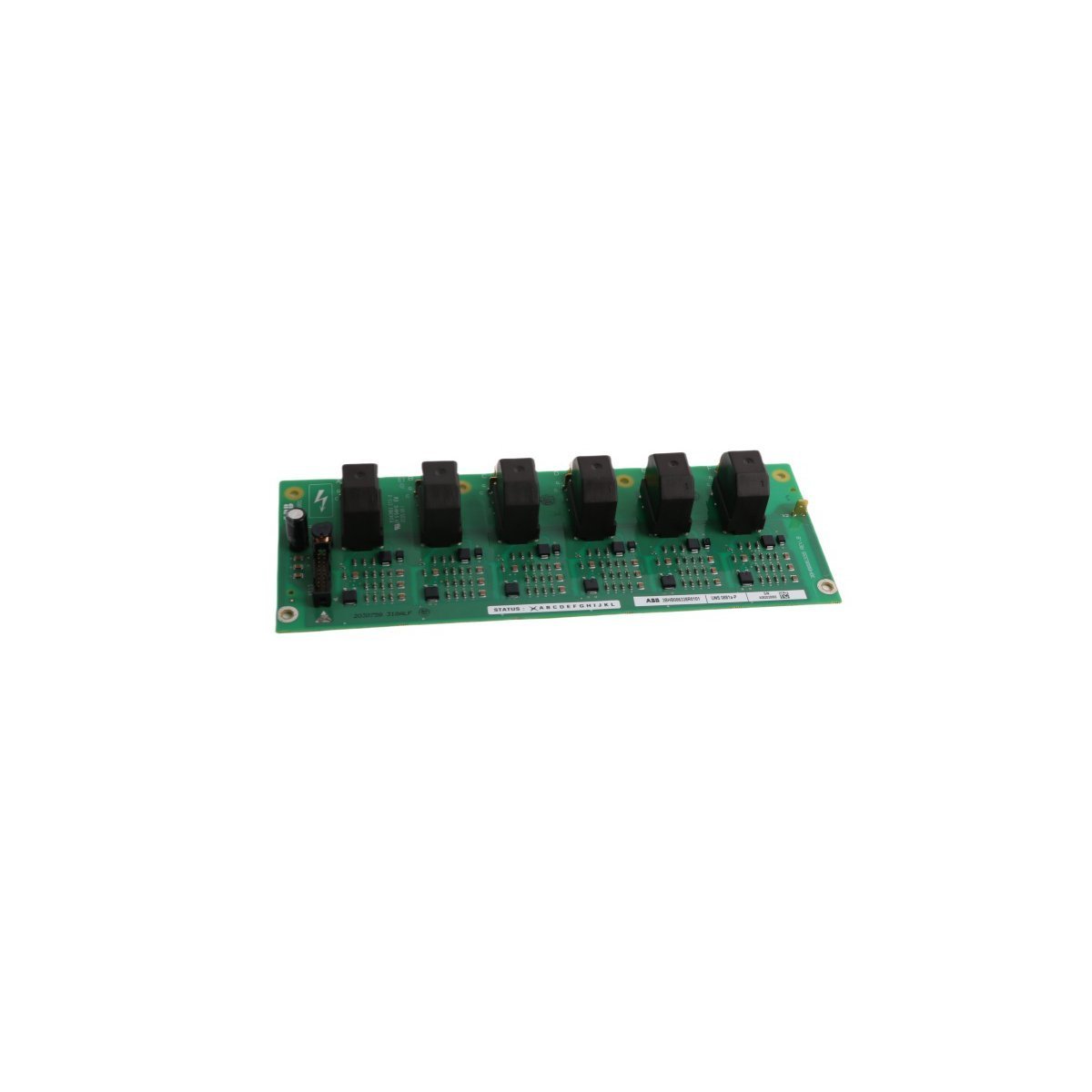

3BHB006338R0101 UNS0881 ABB UNITROL Excitation Circuit Board

ABB 3BHB006338R0101 UNS0881 Circuit Board

Configured for gate drive management within UNITROL excitation systems, the ABB 3BHB006338R0101 UNS0881 (3BHB006338R0101 Circuit Board) provides direct electrical gate signal execution for power electronics.

Suffix Breakdown & Model Matrix

Hardware Specifications

ABB Industrial Control Characteristics

The 3BHB006338R0101 UNS0881 functions within the UNITROL excitation architecture to manage power semiconductor switching. The board architecture supports backplane bus communication velocity sufficient for real-time synchronization with primary excitation controllers. Firmware flash compatibility allows the board to align with current excitation system logic, while the hardware design supports I/O density scaling required for multi-channel gate control. High-speed signal processing limits latency between the control command and the gate pulse output, which stabilizes the excitation field during transient generator events.

Frequently Asked Questions

Q: Does the 3BHB006338R0101 UNS0881 support hot-swapping during excitation system operation?

A: No, this board requires system power-down prior to extraction to prevent potential damage to the control circuitry and to ensure the excitation output remains in a safe, de-energized state.

Q: How does the module maintain electrical integrity in the excitation rack?

A: The board utilizes FR4 epoxy glass fiber construction, providing necessary electrical insulation and thermal stability. Technicians must ensure the board is seated firmly in the guide rails to maintain proper contact with the excitation backplane bus.

Field Installation Guidelines

1. Static Discharge Prevention: Always utilize an anti-static wrist strap connected to the chassis ground before handling the board to prevent electrostatic discharge damage to the sensitive gate driver integrated circuits.
2. Backplane Insertion: Align the circuit board within the designated cabinet guide rails. Apply even pressure to the front faceplate until the connector fully seats into the backplane. Secure the board using the integrated captive screws to ensure ground continuity.
3. Signal Cabling: Route gate feedback signals separately from high-power output cables to minimize electromagnetic interference. Utilize shielded twisted-pair cabling for all control logic inputs and ensure the shield drain wire connects to a dedicated earth busbar at the cabinet entry point.
4. Validation: After installation, perform a low-power control test to confirm that gate signals reach the power semiconductors before applying high-voltage excitation field power.
