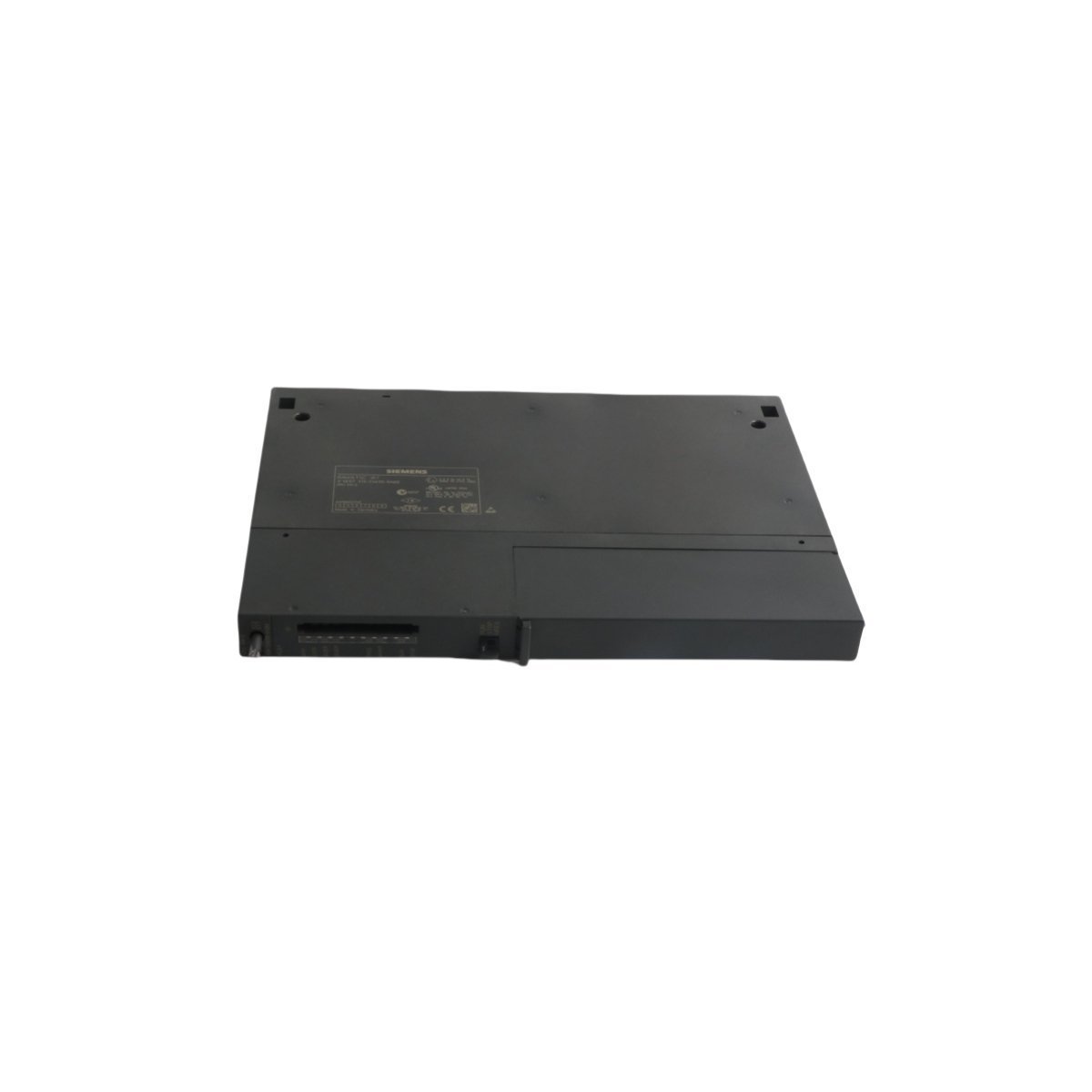

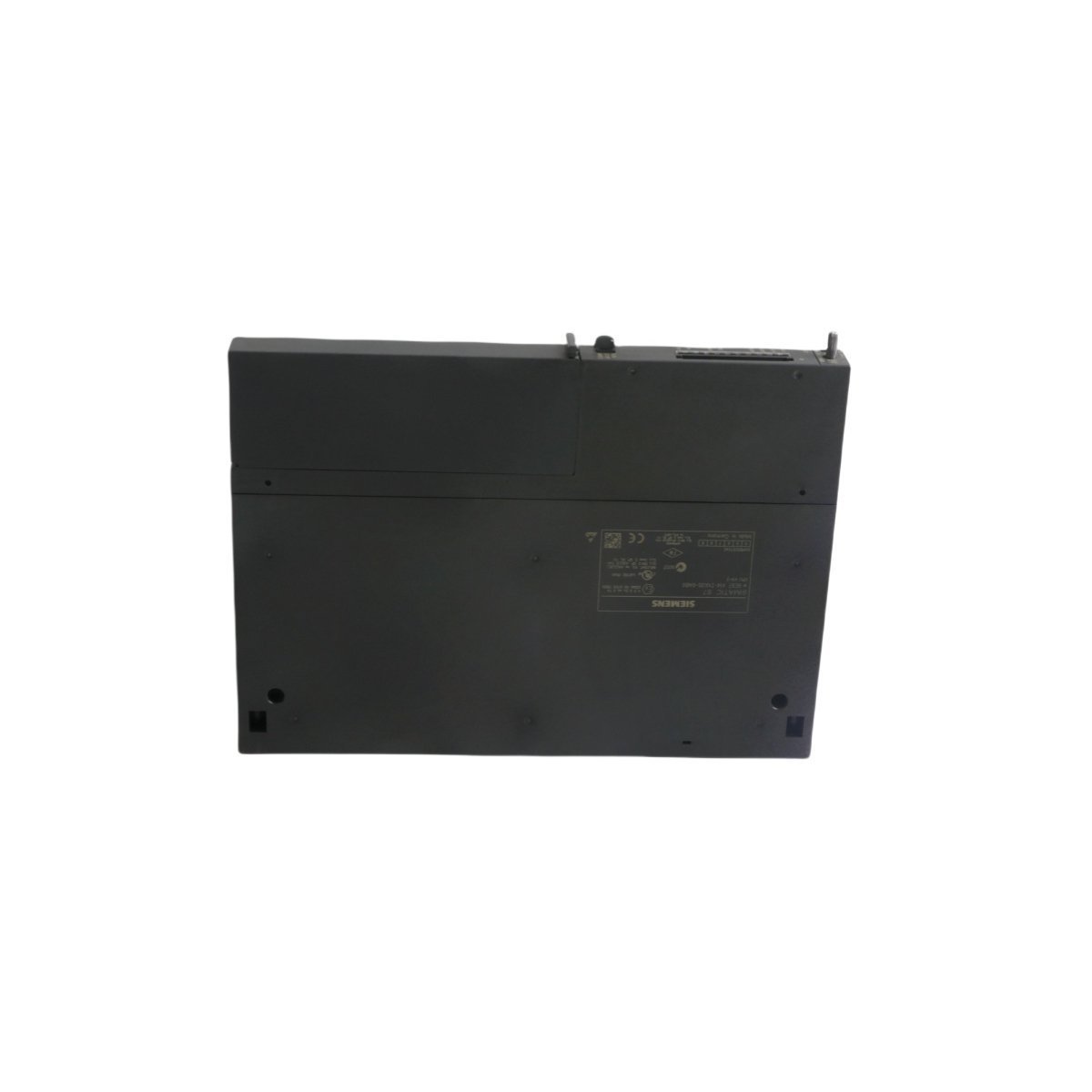

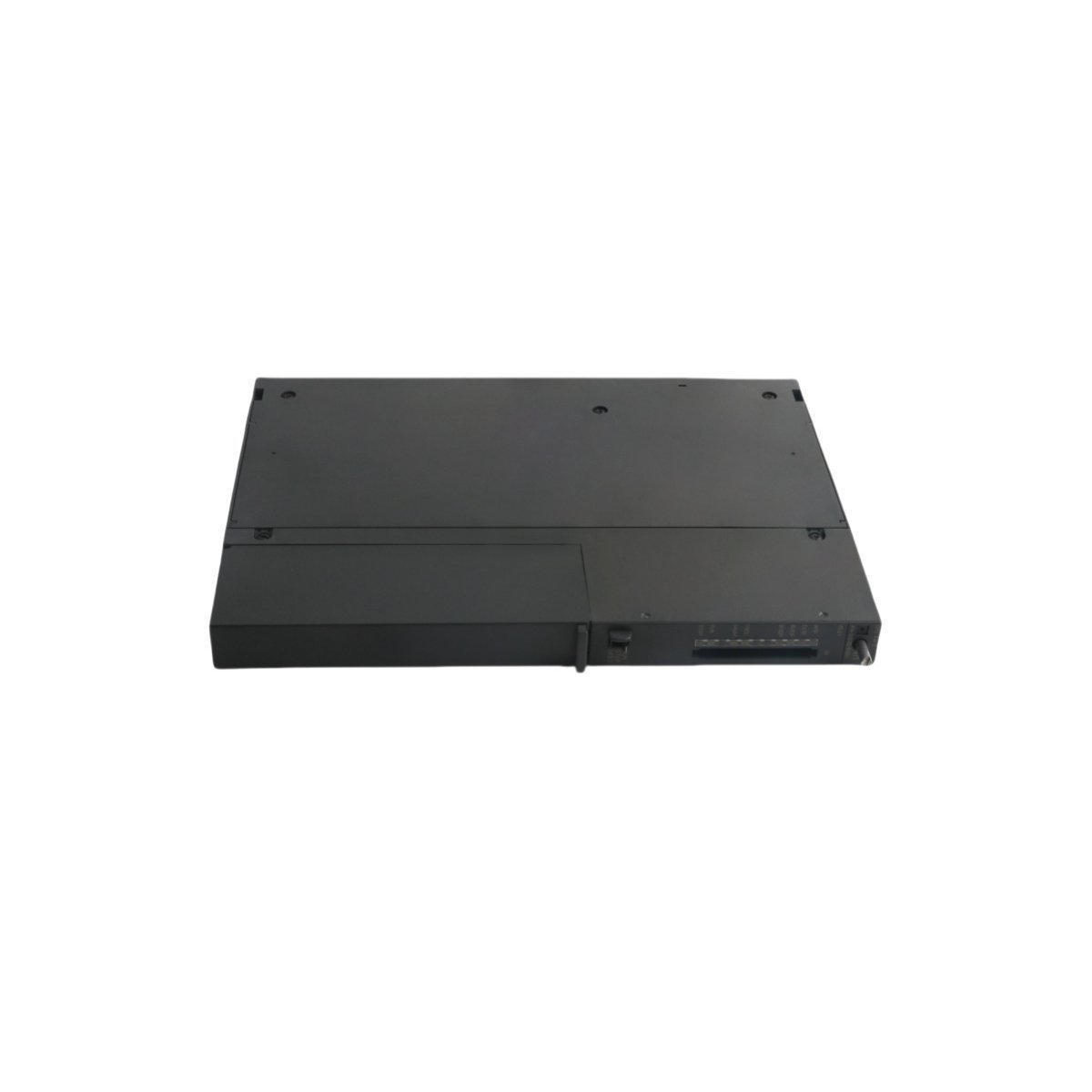

Siemens 6ES7414-2XK05-0AB0 CPU 414-2 Central Processing Unit

The Siemens 6ES7414-2XK05-0AB0 is a mid-range central processing unit designed for the SIMATIC S7-400 controller family. This processor handles complex automation tasks with high-speed execution and precision. It features a substantial 1 MB work memory, divided equally between programs and data. Consequently, it manages extensive user programs without compromising cycle times. The module excels in large-scale manufacturing and process engineering environments. Its balanced performance-to-cost ratio makes it a staple for sophisticated industrial machinery.

Advanced Networking and Communication

Integrated communication interfaces represent a significant strength of this CPU module. The unit includes a combined MPI/DP port and a dedicated PROFIBUS DP interface. These ports support high-speed data exchange across distributed I/O systems and human-machine interfaces. Furthermore, the CPU functions effectively as both a communication server and client. It supports versatile S7 communication services including PUT/GET and block-oriented transfers. This flexibility allows engineers to synchronize data seamlessly across PROFINET, Ethernet, and MPI networks.

Reliability and System Expandability

Users can expand the capabilities of the 6ES7414-2XK05-0AB0 through additional communication processors. For instance, adding a CP 443-1 enables robust Industrial Ethernet connectivity for plant-wide integration. The hardware supports hot-swapping within the S7-400 rack system to minimize maintenance downtime. Additionally, the CPU utilizes System Function Blocks (SFBs) to provide network-independent data transmission. This standardized approach simplifies the development of complex, multi-layered automation architectures. The unit ensures deterministic control and high system availability in mission-critical applications.

Technical Specifications
