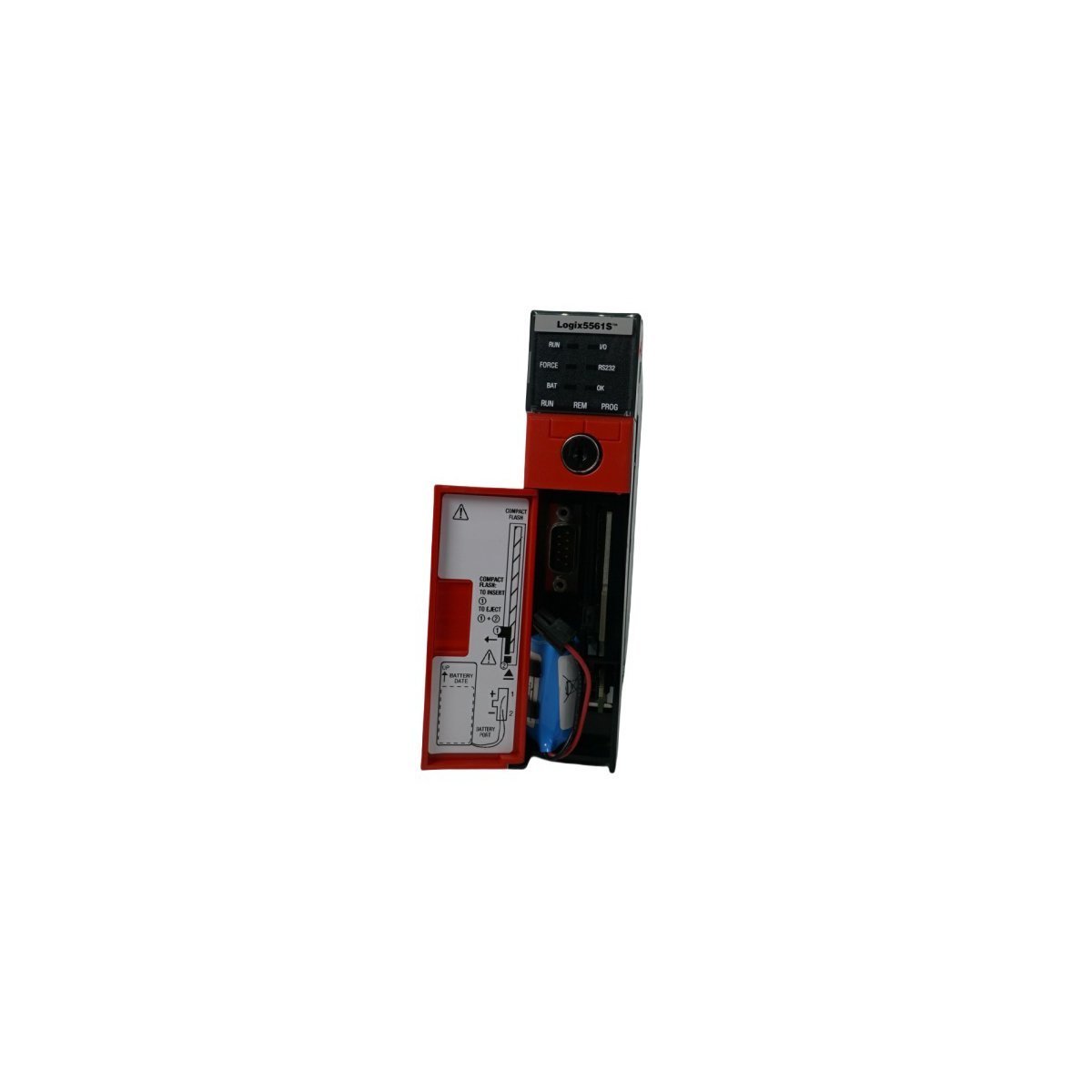

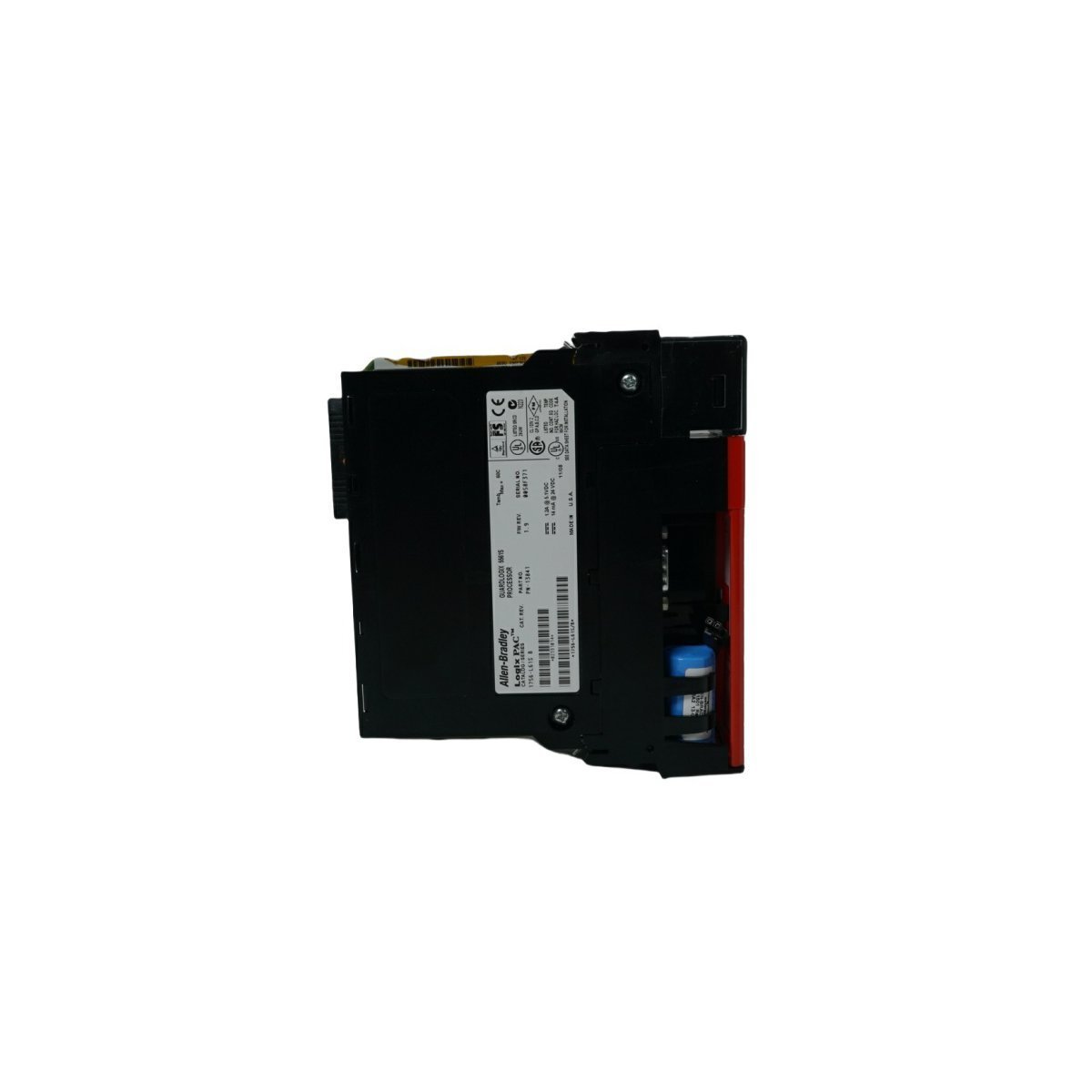

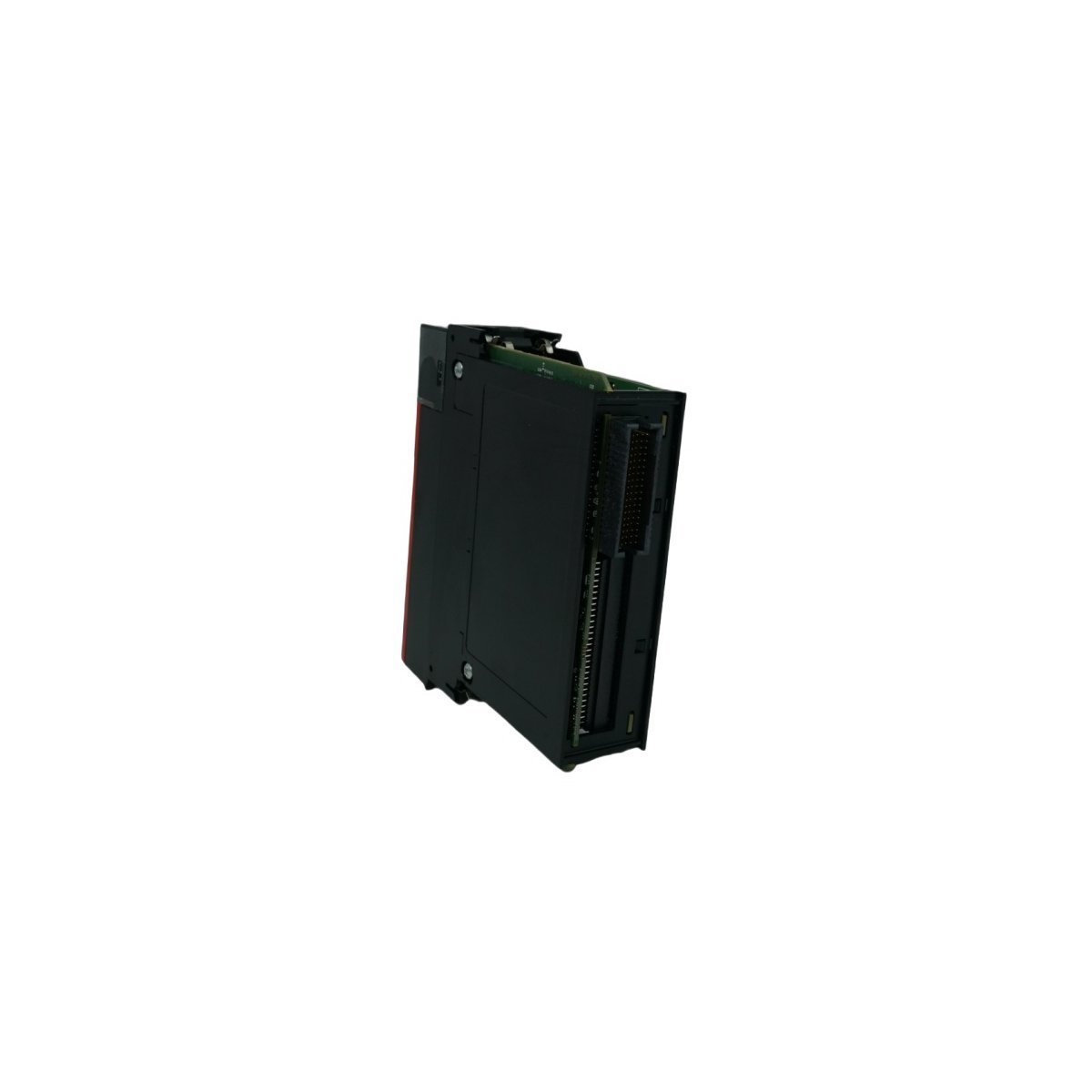

Allen-Bradley 1756-L61S Guardlogix Safety Cpu Module

The Allen-Bradley 1756-L61S acts as a primary processing unit for safety-integrated automation environments. This ControlLogix-based CPU manages both standard and safety-related logic within a single chassis. It provides a scalable solution for high-demand industrial tasks. The architecture supports SIL 3 and PLe safety integrity levels. This dual-processor approach ensures reliable performance during critical machine operations.

Technical Specifications

Performance and Network Integration

The module fits into any slot within a standard ControlLogix 1756 chassis. Multiple controllers can reside in the same backplane to distribute processing loads. While the CPU manages logic, users must install separate communication modules for network access. It effectively controls I/O over EtherNet/IP, ControlNet, and DeviceNet protocols. This flexibility allows for extensive monitoring across large-scale industrial facilities.

Environmental Resilience and Protection

Rockwell Automation applies a conformal coating to the 1756-L61S internal circuitry. This specialized layer resists moisture, dust, and airborne chemical contaminants. Consequently, the module performs reliably in harsh manufacturing zones. The unit features an open-style enclosure design for optimal airflow. It manages energy efficiently with a low power dissipation of only 3.5 Watts.

Key Industrial Applications

This GuardLogix CPU is a standard choice for automotive and heavy machinery sectors. It excels in applications requiring emergency stop coordination and light curtain monitoring. The 1756-L61S simplifies complex safety programming through integrated engineering software. It eliminates the need for redundant wiring between standard and safety systems. This integration reduces overall system costs and improves diagnostic speed.
