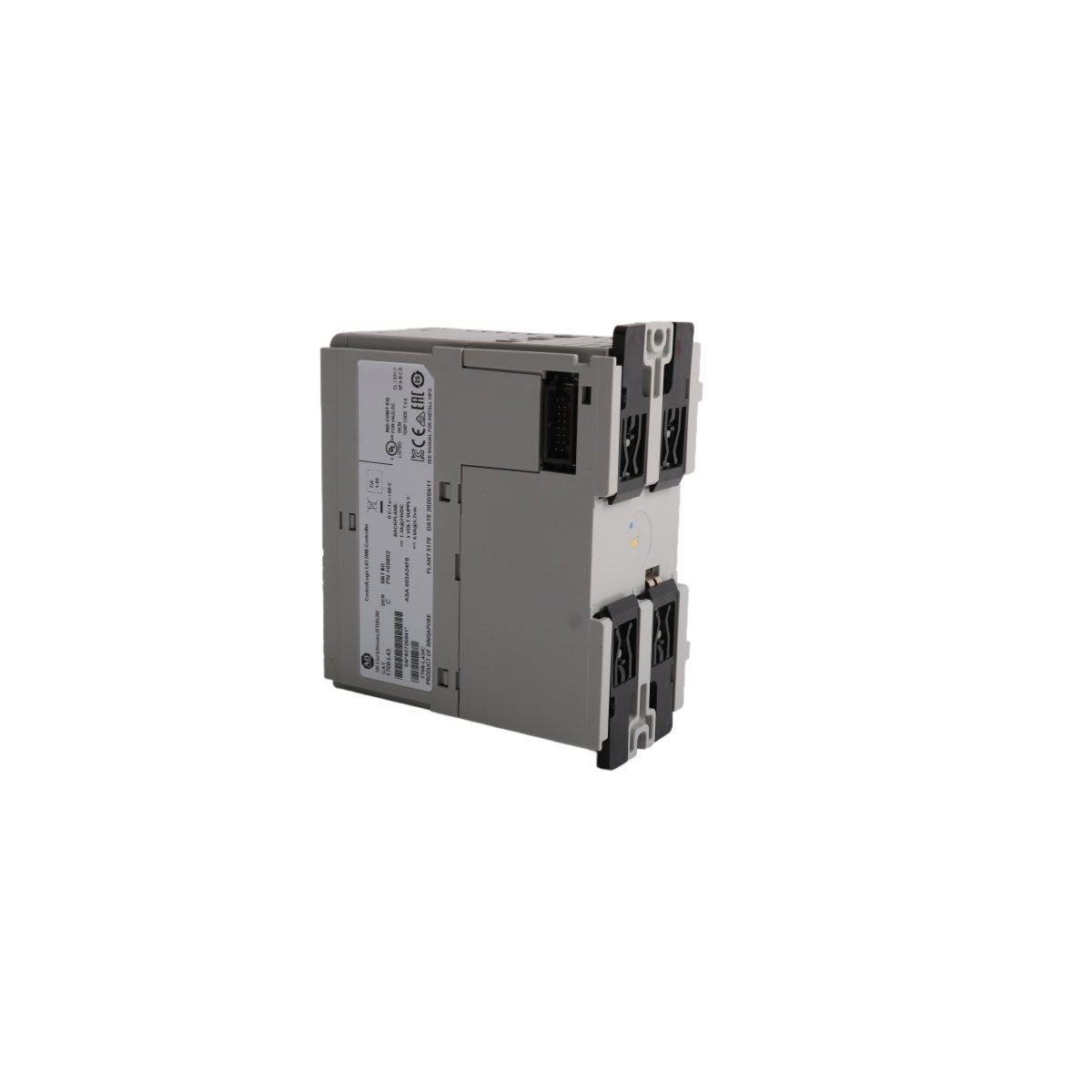

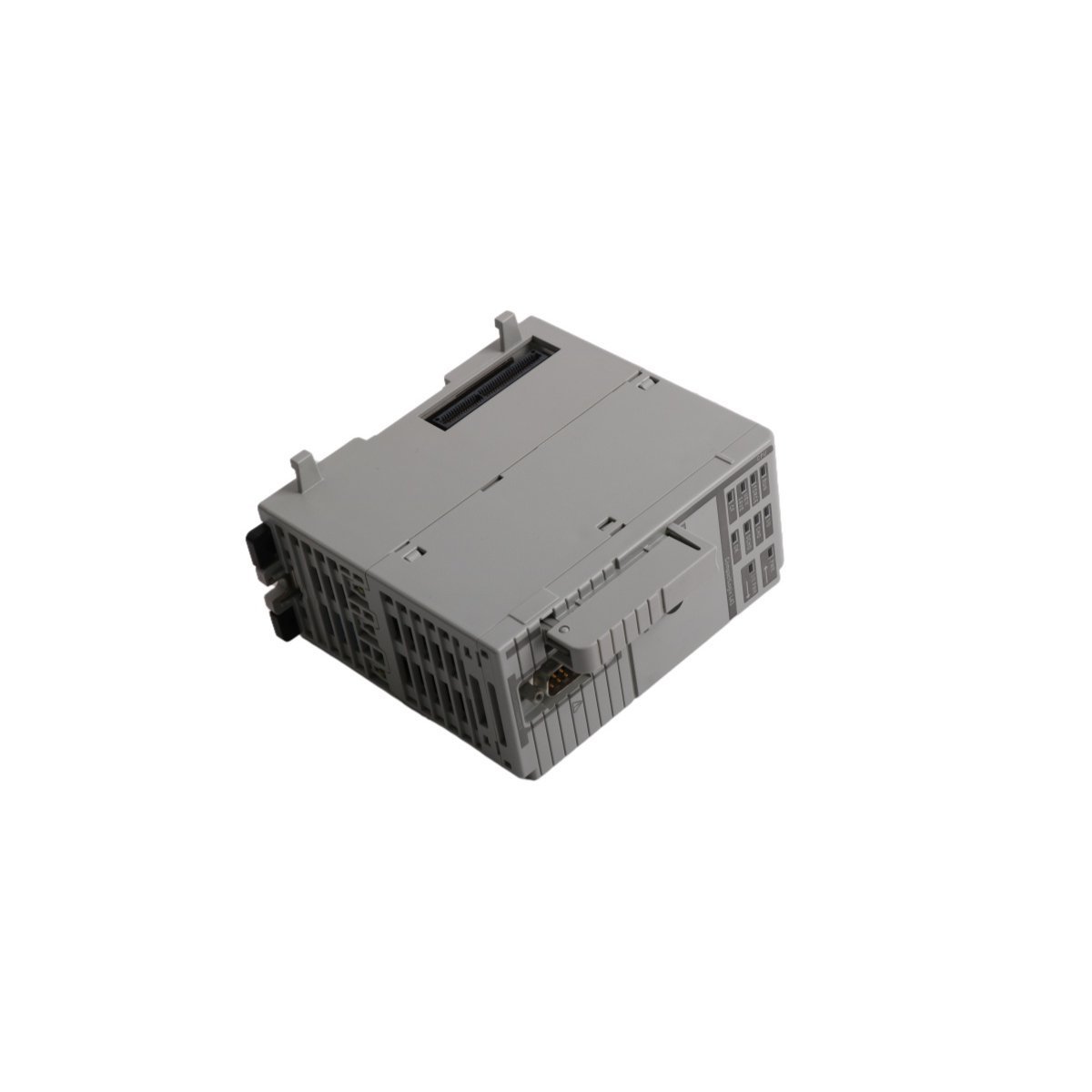

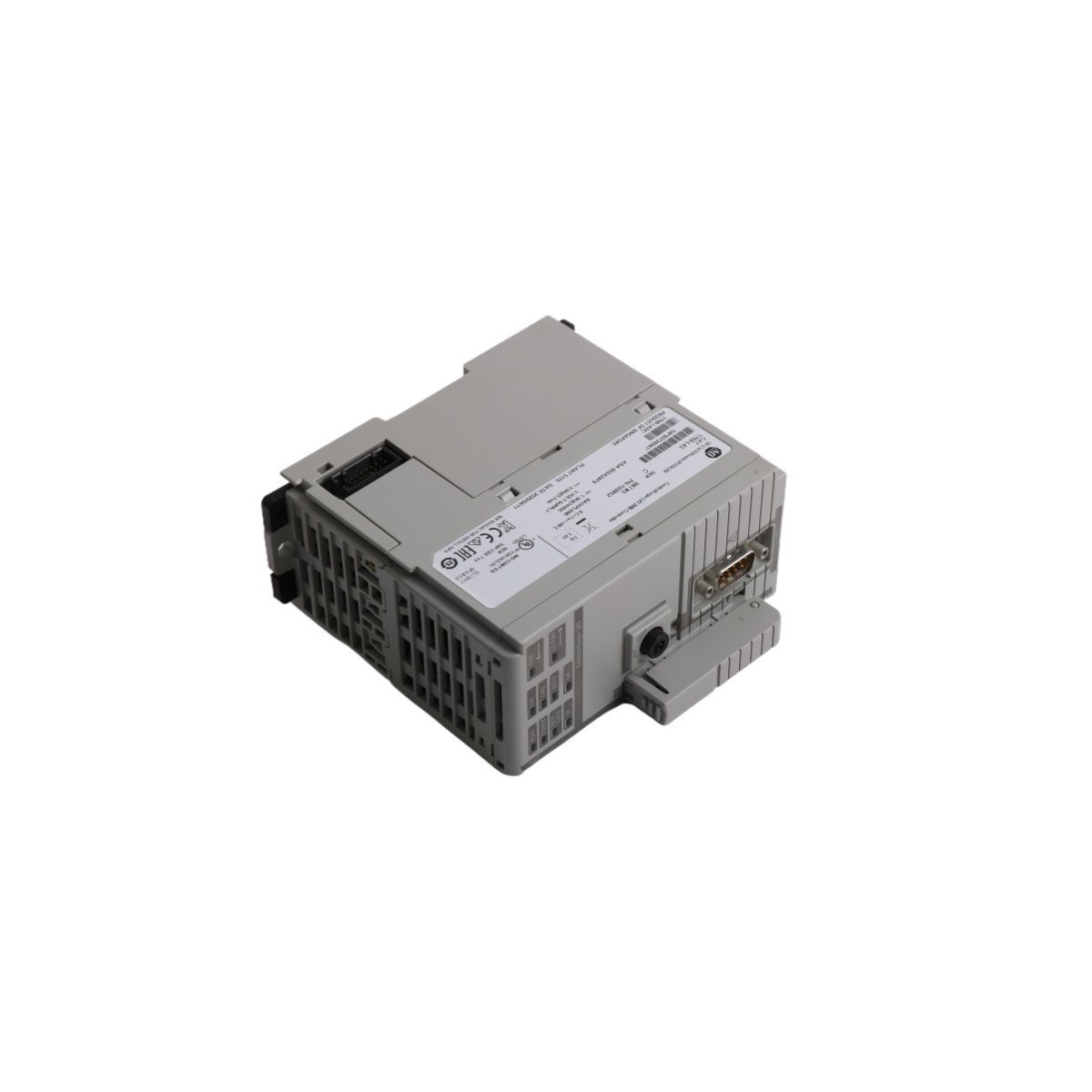

Allen-Bradley 1768-L43 Processor Module

The Allen-Bradley 1768-L43 functions as a powerful mid-range controller within the CompactLogix family. This module excels at synchronizing complex logic with integrated motion tasks. It specifically targets mid-sized automation systems requiring high-speed data processing. Therefore, the unit provides a seamless bridge between standard discrete control and advanced servo applications. Users benefit from a unified programming environment for all control disciplines.

Memory Capacity and Storage Options

Scalable I/O and Communication

The 1768-L43 architecture supports expansion through the high-speed 1768 backplane. It also interfaces with up to sixteen 1769 Compact I/O modules for local signals. An integrated RS-232 serial port provides immediate connectivity for basic peripheral devices. Furthermore, users can add 1768 communication modules for EtherNet/IP or ControlNet networking. This modularity allows the system to grow alongside production requirements.

Diagnostics and Operational Control

A three-position front key switch offers manual control over processor modes. Operators can quickly toggle between Run, Program, and Remote states. Multiple diagnostic LEDs provide real-time feedback on battery status and I/O faults. These visual indicators simplify troubleshooting and reduce system downtime. Robust internal circuitry ensures the processor maintains stability in high-vibration environments.

Industrial Software Integration

The controller utilizes Studio 5000 or RSLogix 5000 software for configuration and design. This software compatibility supports multiple languages including Sequential Function Charts. Consequently, engineers can develop sophisticated control strategies with minimal effort. The 1768-L43 remains a versatile solution for packaging, assembly, and material handling. Its proven reliability makes it a staple in global industrial facilities.
