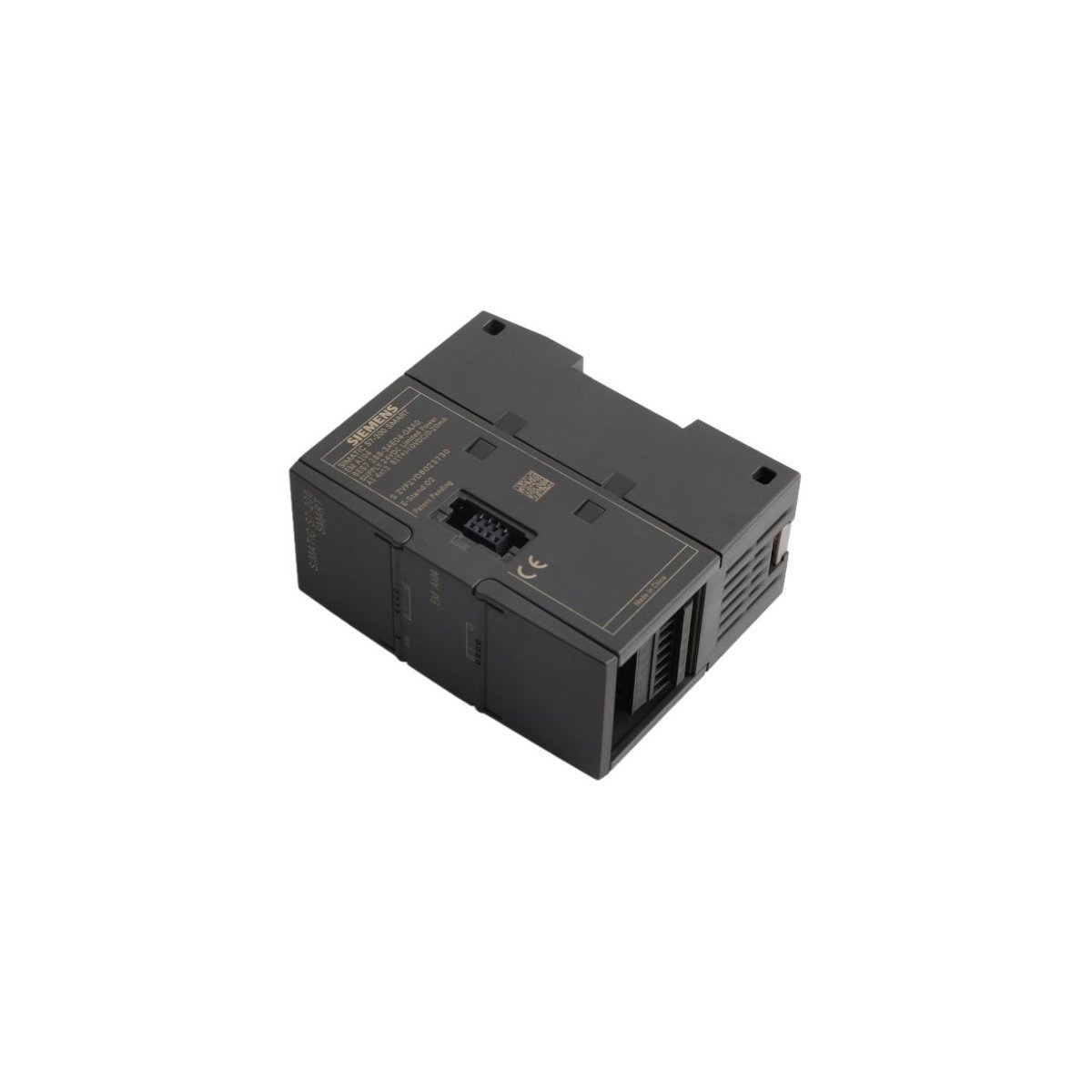

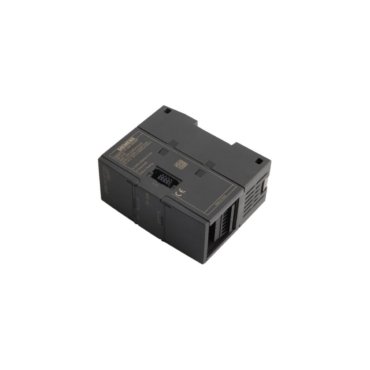

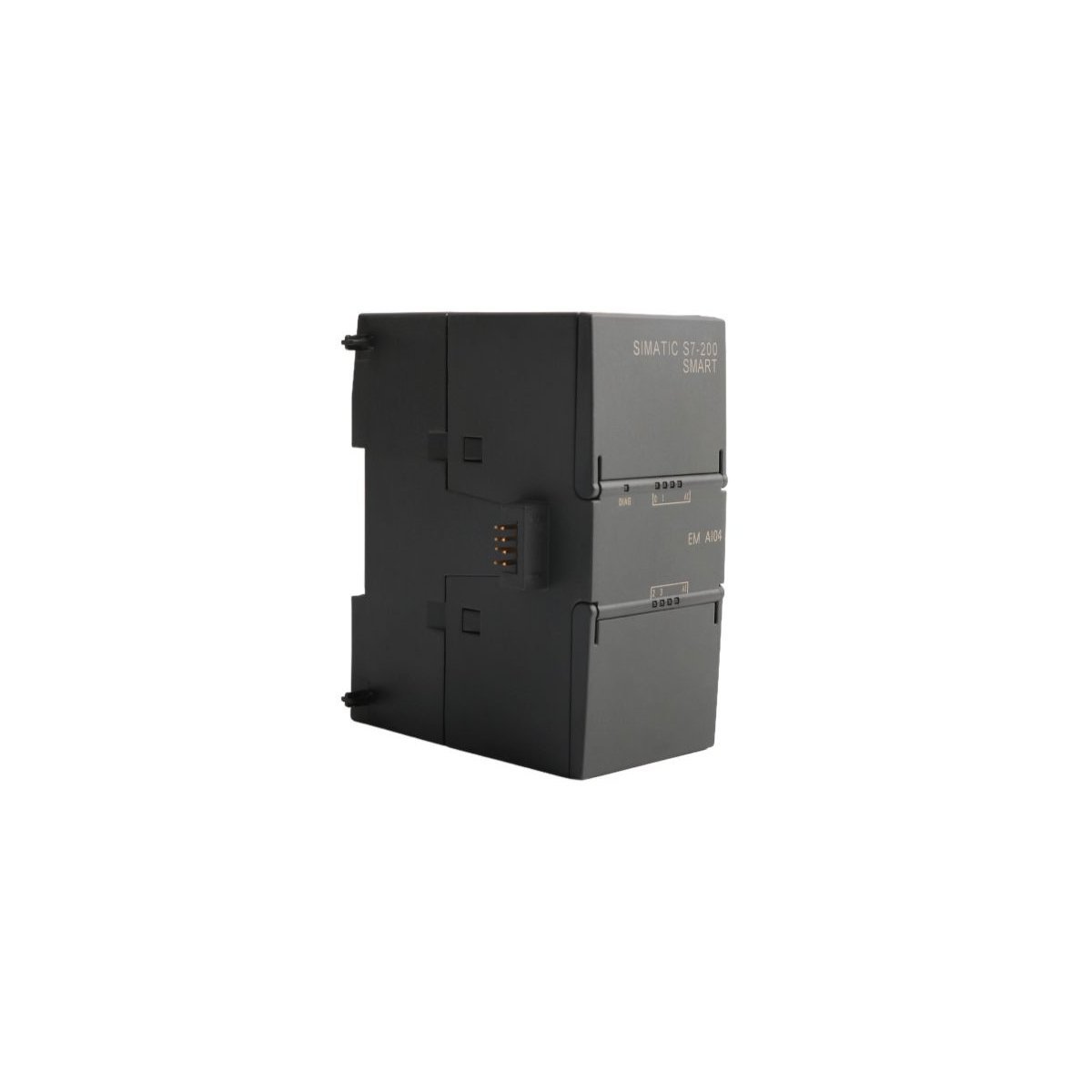

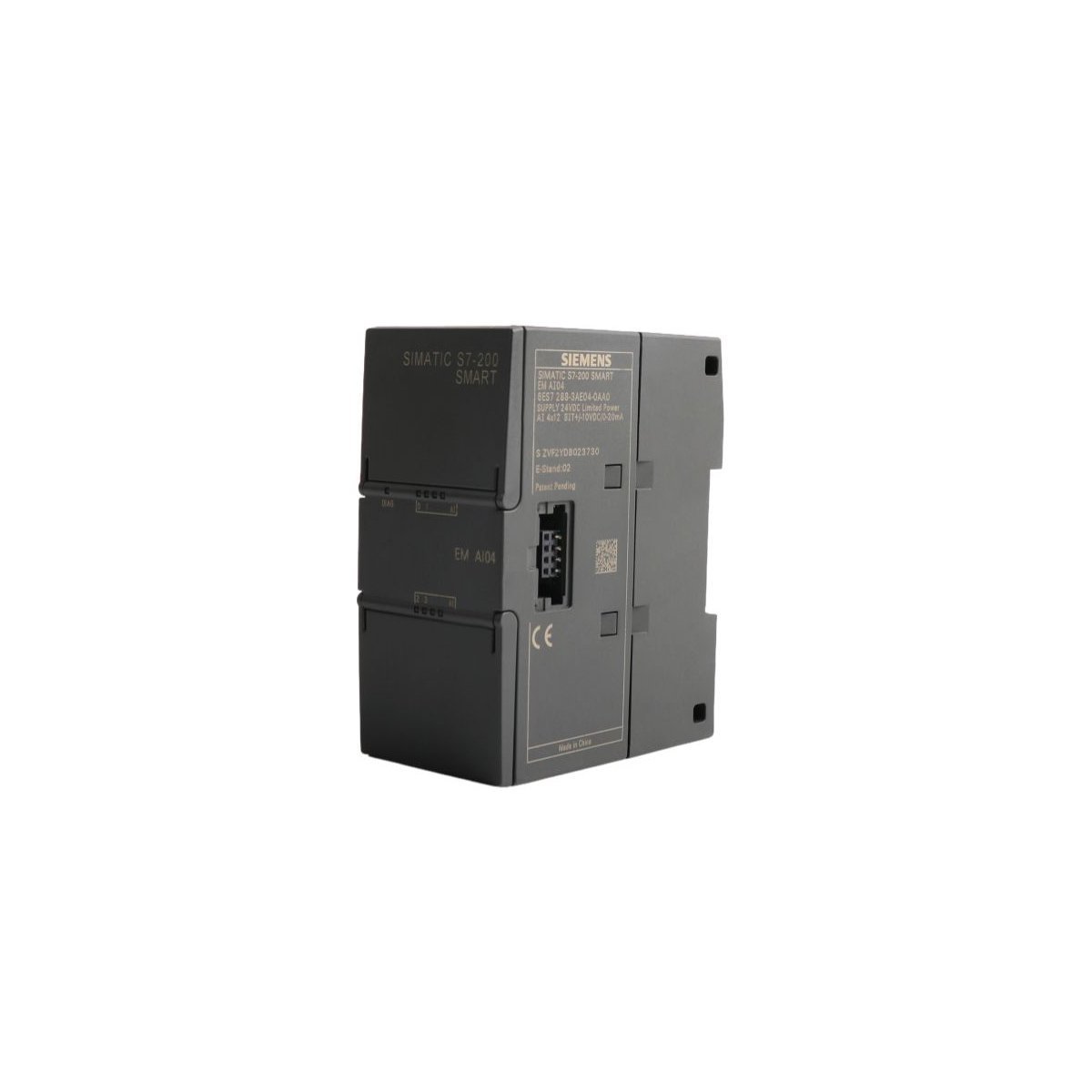

Siemens 6ES7288-3AE04-0AA0 Analog Input Module

The Siemens 6ES7288-3AE04-0AA0 expansion module provides four high-precision analog input channels. This component specifically enhances the SIMATIC S7-200 SMART PLC series. It effectively converts continuous physical signals into digital data for the controller. Consequently, the module allows for the precise monitoring of various industrial sensors. It excels in applications requiring accurate data from temperature, pressure, or flow transmitters. The compact hardware design facilitates efficient space utilization within electrical control cabinets.

Versatile Input Configuration

This analog module supports a wide variety of industrial signal standards. Users can easily configure each channel for either voltage or current measurements. Supported voltage ranges include ±2.5V, ±5V, and 0-10V DC. Additionally, the unit processes standard current signals such as 0-20 mA and 4-20 mA. A 12-bit resolution plus sign bit ensures high granularity for sensitive process variables. Furthermore, the module connects directly to the CPU backplane for high-speed data synchronization. This seamless integration optimizes the overall responsiveness of the automation system.

Industrial Reliability and Integration

The SM AI04 module reflects the robust engineering standards of the Siemens S7-200 SMART family. It provides reliable performance in harsh manufacturing environments. Moreover, the STEP 7-Micro/WIN SMART software simplifies the configuration process for engineers. This tool allows for rapid scaling and parameterization of each analog input. The module also features diagnostics to detect wire breaks or overflow conditions. Because of its flexible design, it serves as a cost-effective solution for expanding system capabilities. It remains an essential choice for modernizing distributed control architectures.
