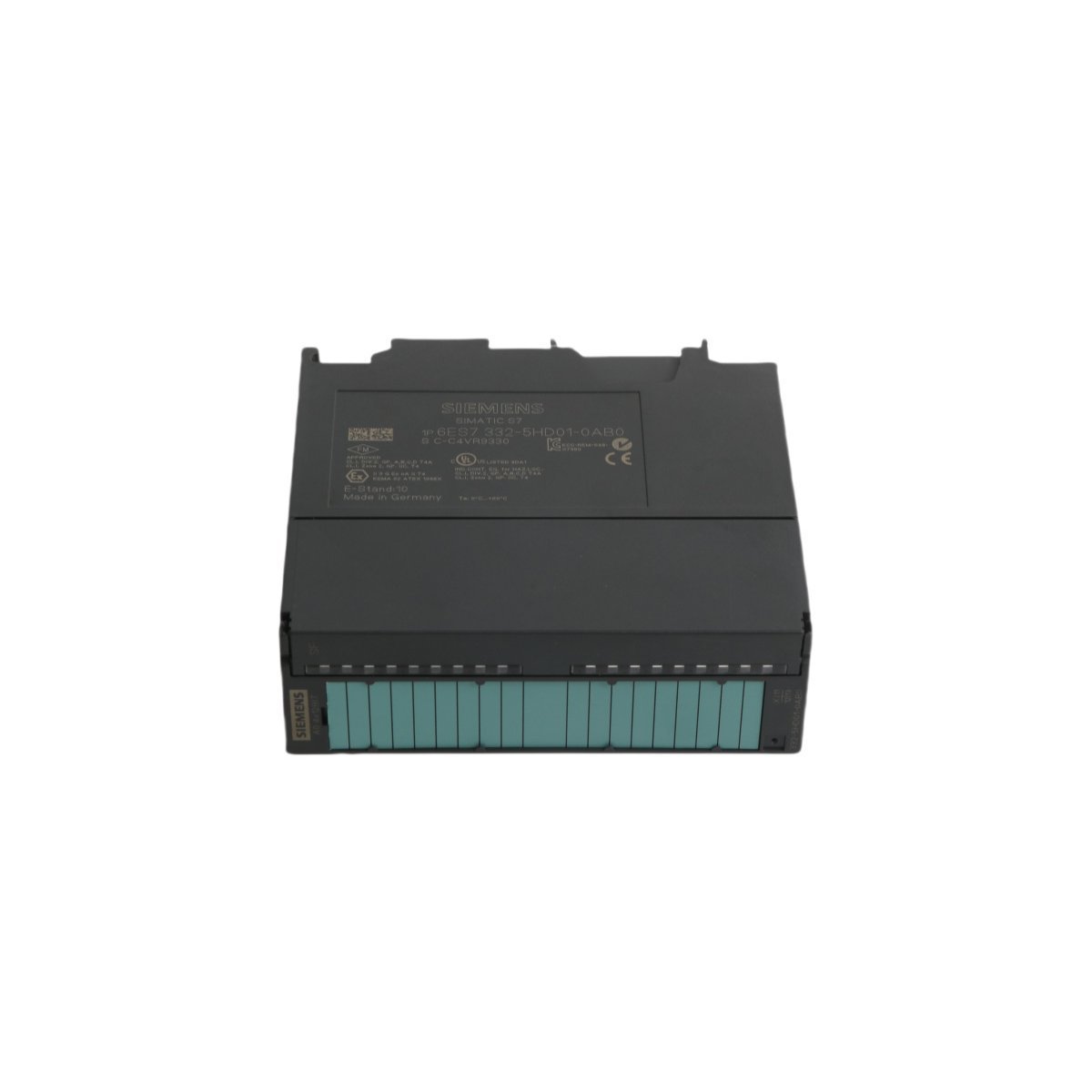

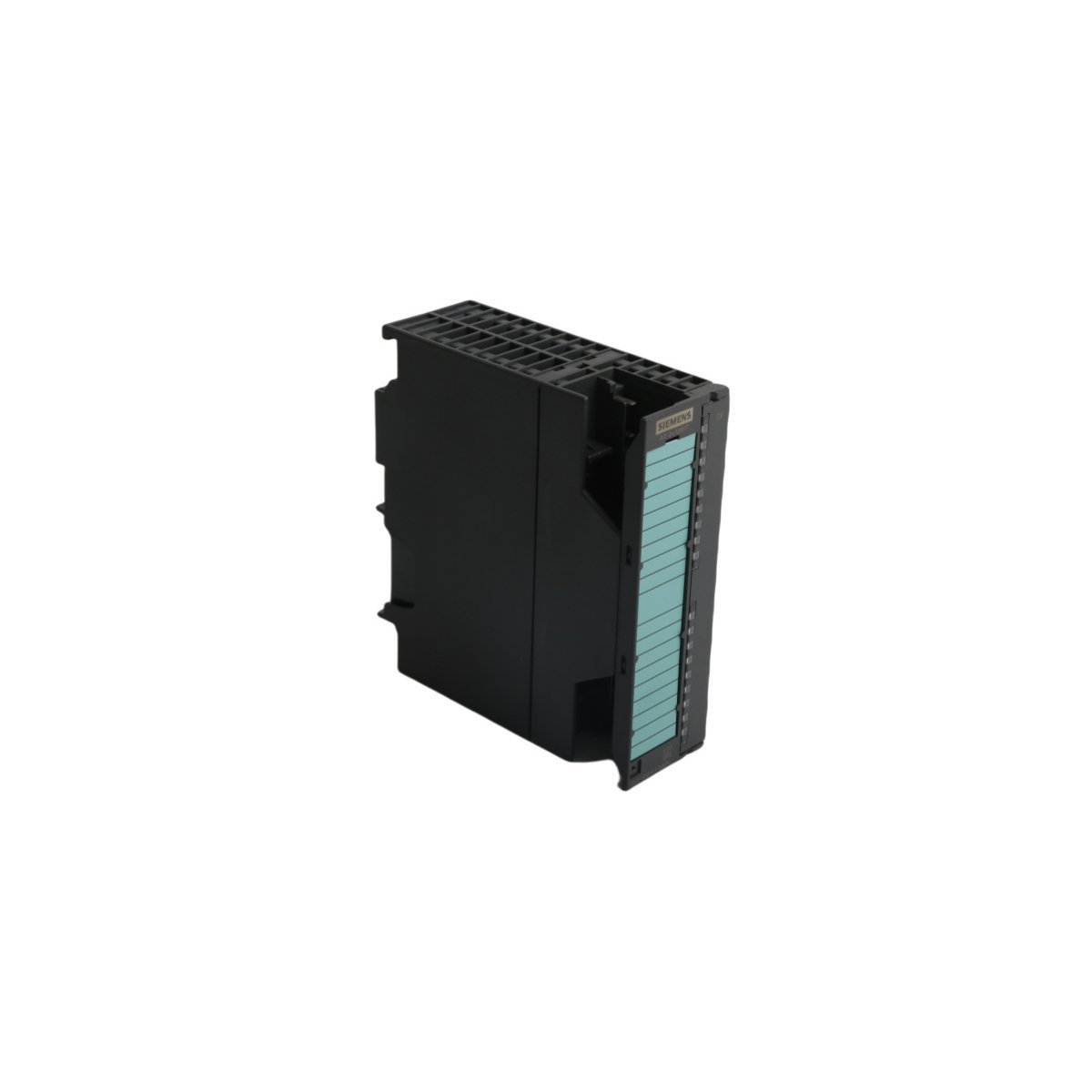

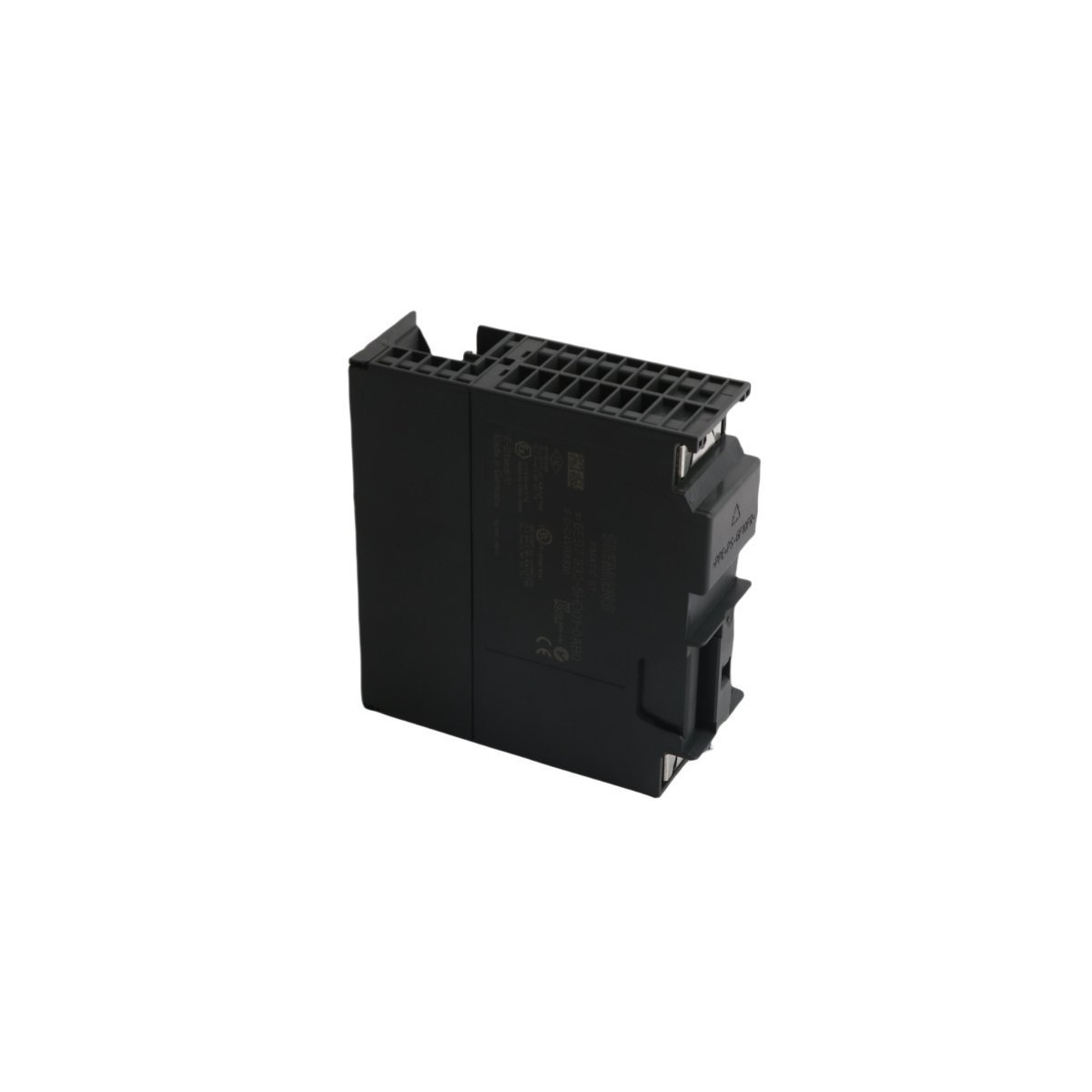

The Siemens 6ES7332-5HD01-0AB0 provides high-accuracy signal conversion for the SIMATIC S7-300 PLC series. This SM 332 module features four isolated output channels. Each channel converts digital CPU values into standard industrial analog signals. Consequently, it effectively drives proportional valves, frequency converters, and various actuators. The hardware utilizes a 12-bit resolution to ensure smooth control curves. This precision makes it ideal for complex automation tasks in manufacturing.
Versatile Output Configurations
This analog module supports multiple signal types to meet diverse field requirements. Users can configure channels for voltage outputs ranging from 1V to 5V or ±10V. Additionally, it provides standard current signals like 0-20mA and 4-20mA. Integrated short-circuit protection safeguards the voltage outputs against wiring errors. Simultaneously, the module monitors current loops for open circuit conditions. These electrical safeguards improve system uptime and prevent hardware damage.
Key Technical Specifications
- Brand: Siemens
- Series: SIMATIC S7-300
- Model Number: 6ES7332-5HD01-0AB0
- Module Type: Analog Output (SM 332)
- Output Channels: 4 Channels
- Resolution: 12 Bits
- Voltage Ranges: ±10V, 1-5V, 0-10V
- Current Ranges: ±20mA, 0-20mA, 4-20mA
- Operational Temperature: 0°C to +60°C
- Weight: 0.22 kg
- Dimensions: 40 x 125 x 120 mm
Simplified Engineering and Maintenance
Integration into the S7-300 system is straightforward via the STEP 7 software. The module supports diagnostic interrupts for rapid fault identification. Maintenance teams can access real-time status data through the PLC interface. Moreover, the front connector design facilitates easy wiring and replacement. The durable German engineering ensures a long service life in industrial cabinets. This component remains a standard choice for modernizing legacy automation systems.
