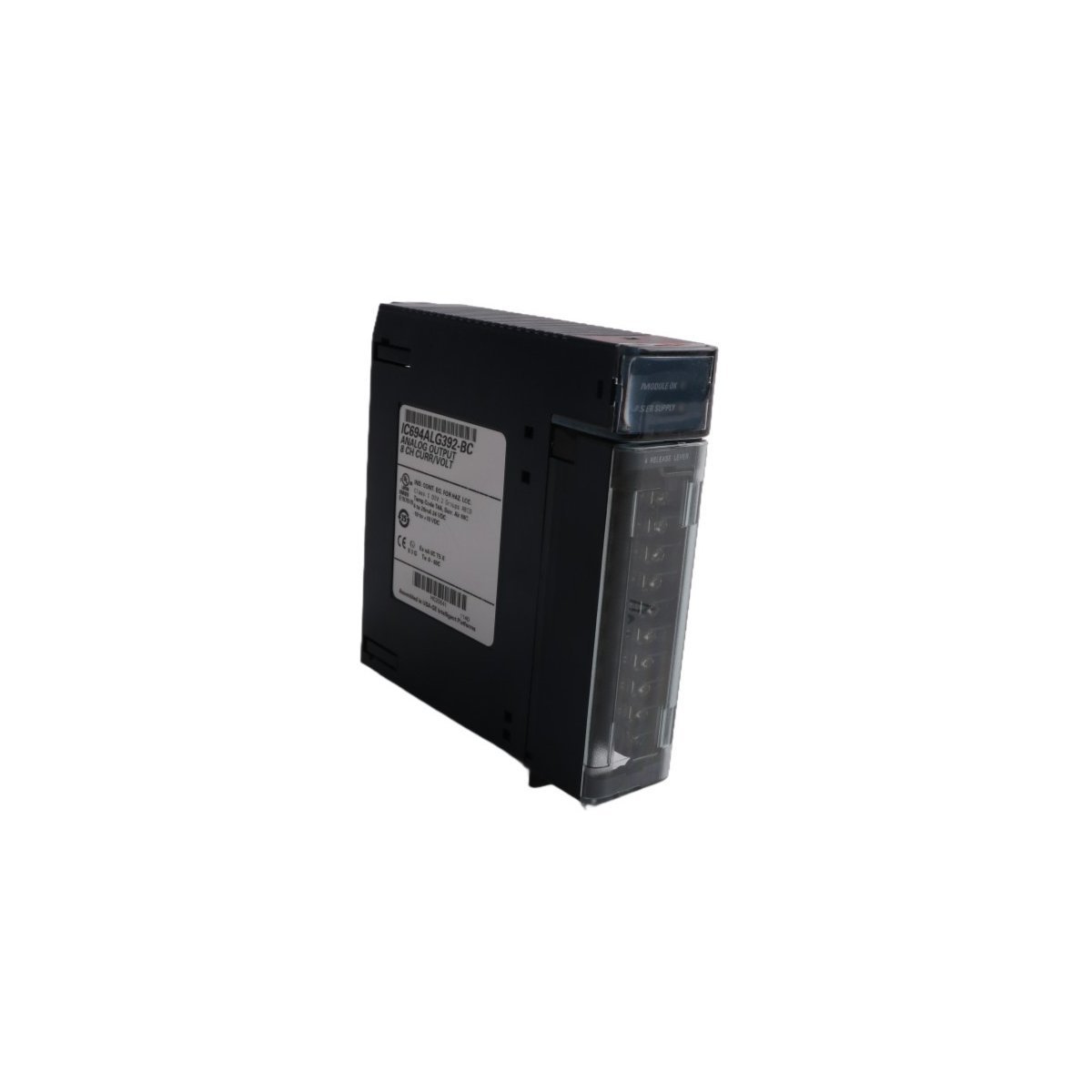

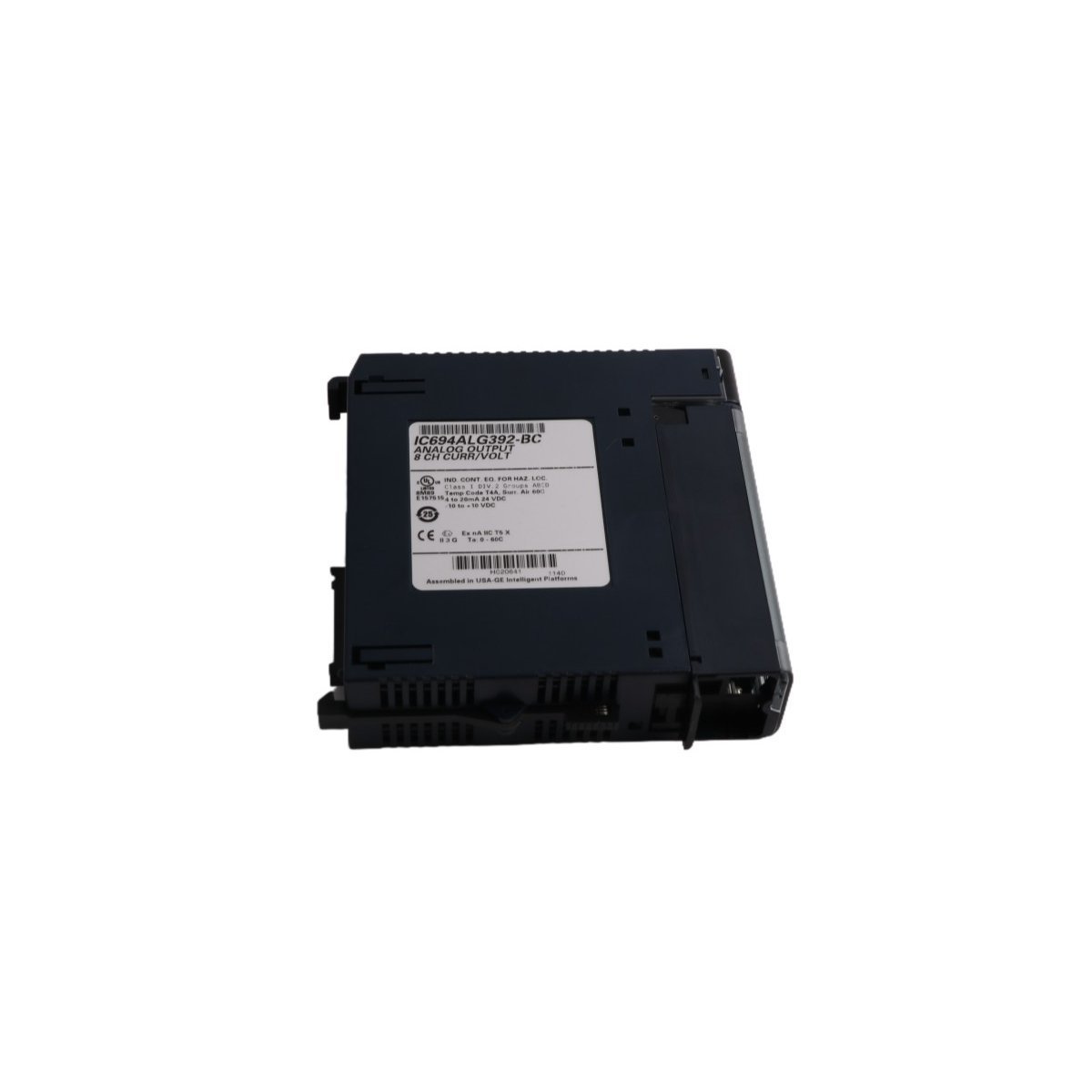

Technical Specifications
| Feature | Details |
| Brand | General Electric (GE) |
| Model Number | IC694ALG392 |
| Series | PACSystems RX3i |
| Output Channels | 8 Independent Channels |
| Voltage Ranges | 0 to 10 V (Unipolar), -10 to +10 V (Bipolar) |
| Current Ranges | 4 to 20 mA, 0 to 20 mA |
| Resolution | 15-bit to 16-bit (Range Dependent) |
| Update Rate | 8 ms (All Channels) |
| Power Source | 24V DC External / 5V DC Backplane |
Advanced Signal Processing
The IC694ALG392 hardware offers exceptional flexibility for complex PID control loops. Each channel functions as an automatic controller or a manual station based on software configuration. Furthermore, the 16-bit resolution ensures smooth signal transitions for sensitive process equipment.
Operators can define the module’s behavior during a CPU stop or power failure. The outputs either hold the last known value or reset to a safe zero state. This programmable failsafe logic prevents mechanical damage during unexpected system interruptions.
Power Management and Installation
This module optimizes power consumption by utilizing both backplane and external sources. It draws approximately 110mA from the 5V DC RX3i backplane during operation. Additionally, an external 24V DC supply provides the necessary current for the output loops.
The compact design fits into any available universal slot within the RX3i rack. Technicians benefit from the module’s hot-swap capability in compatible backplanes. This feature allows for hardware maintenance without powering down the entire control system.
Diagnostics and System Protection
The IC694ALG392 includes comprehensive diagnostic tools to ensure maximum uptime. In current mode, the module automatically detects open-wire conditions in the field. It immediately reports these faults to the RX3i CPU for rapid troubleshooting.
LED indicators on the front panel provide real-time status for power and module health. While the internal electronics are robust, users must install the module in an appropriately rated enclosure. This protects the sensitive 16-bit circuitry from moisture and conductive atmospheric contaminants.
