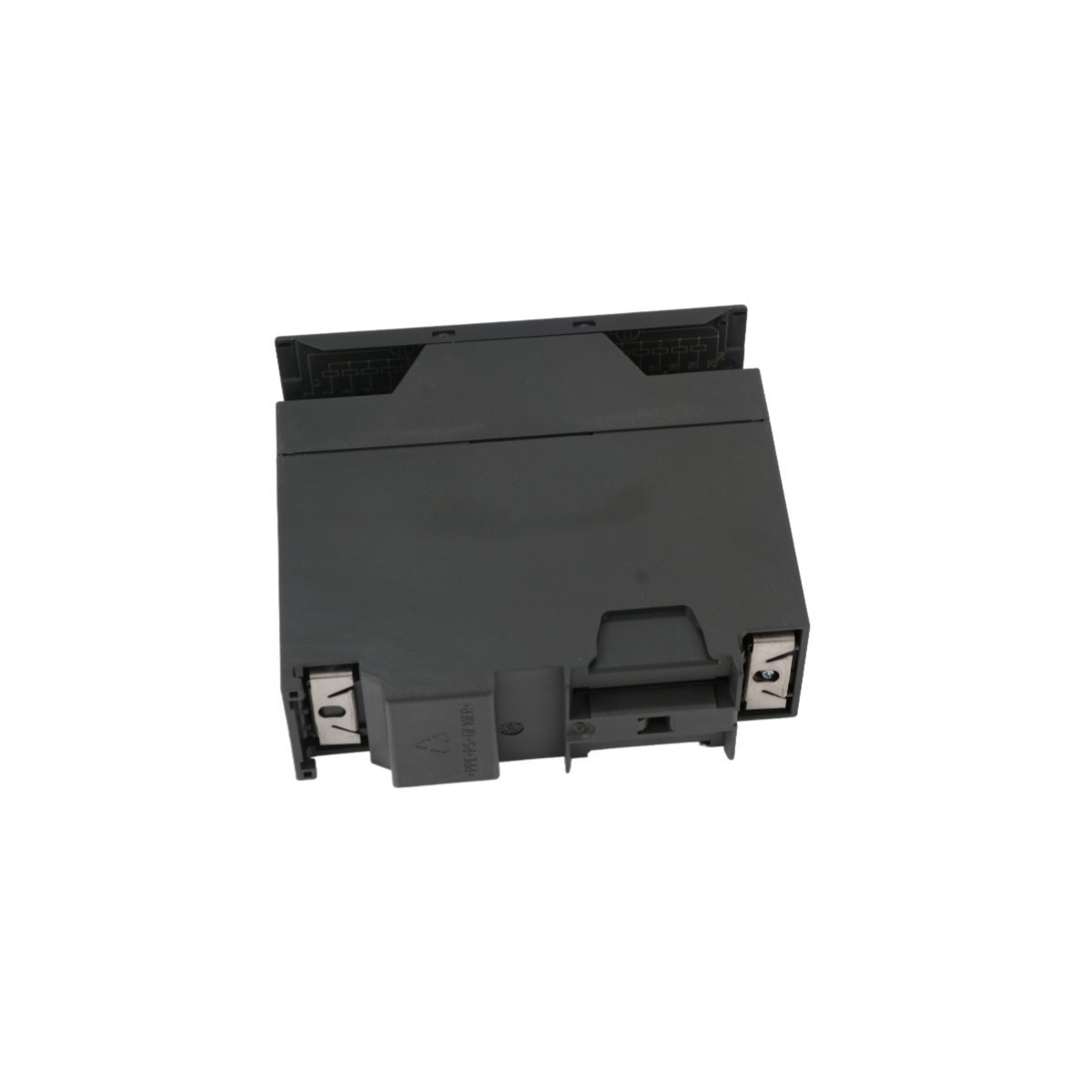

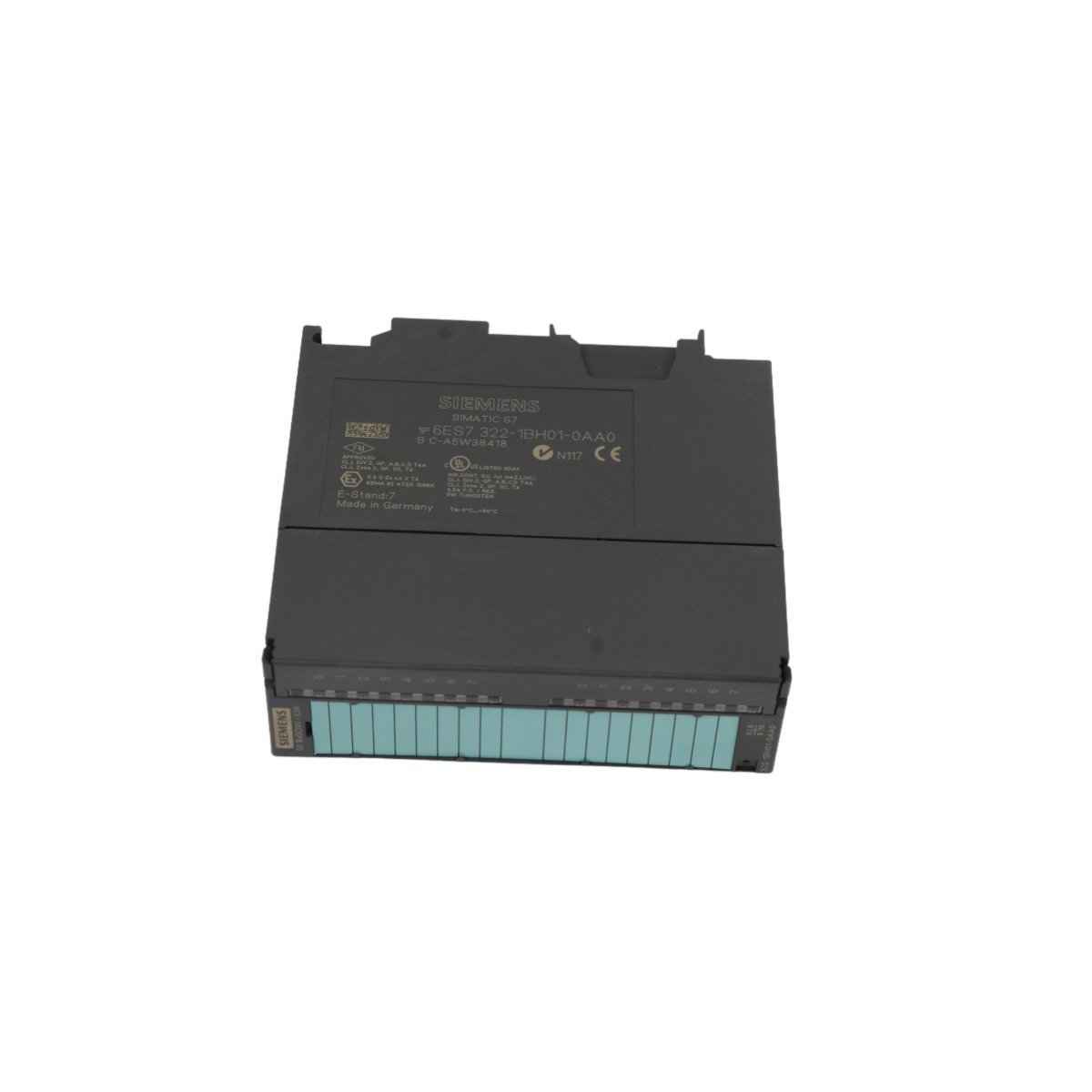

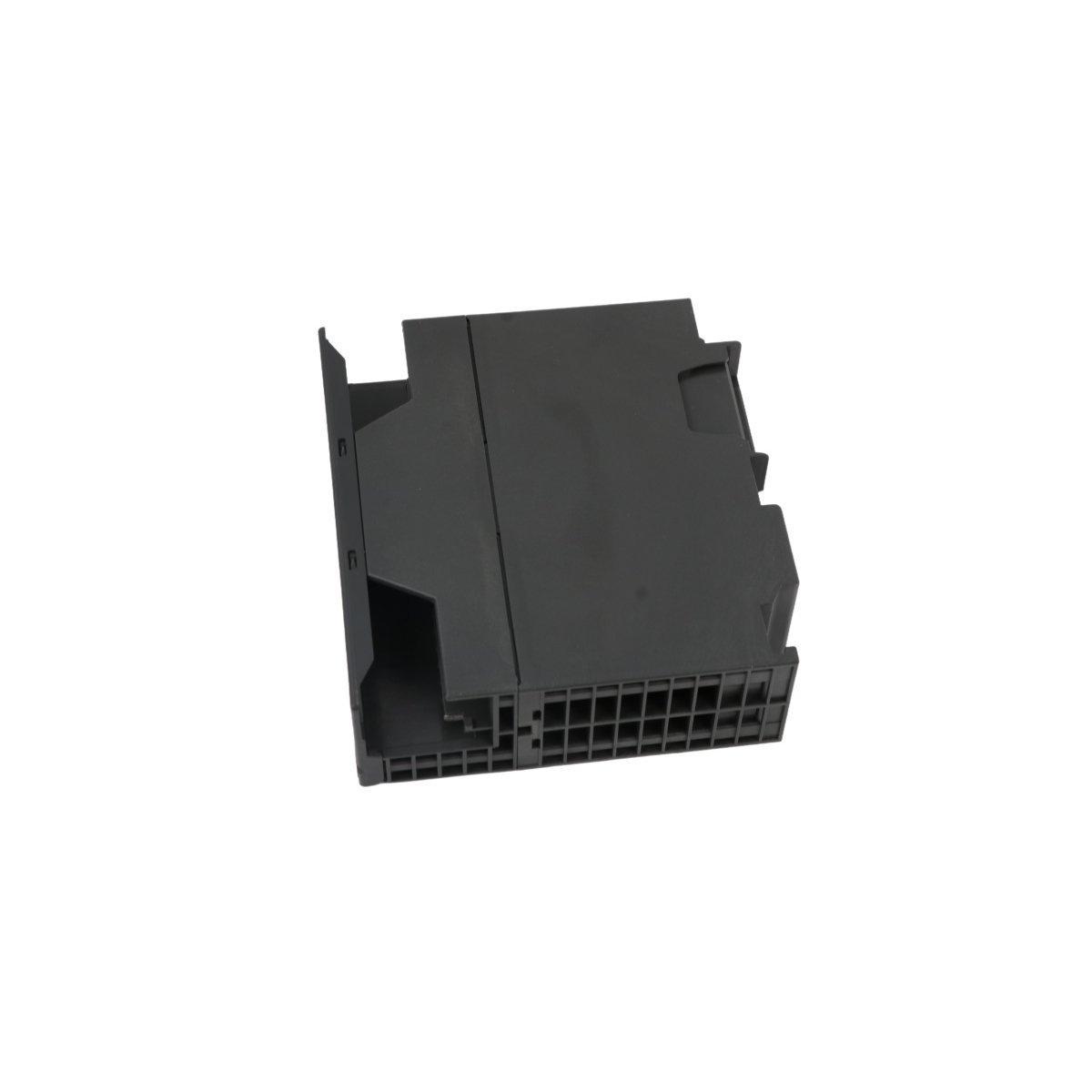

The Siemens 6ES7322-1BH01-0AA0 serves as a reliable interface between the PLC and field devices. This SM322 digital output module features 16 individual channels. It specifically controls 24V DC actuators like valves and relay coils. The compact design allows for high-density wiring within the SIMATIC S7-300 rack. Consequently, users can manage complex machinery without excessive cabinet space. This module remains a standard choice for modern factory automation projects.
Electrical Isolation and Safety Features
Safety and signal integrity are core strengths of the SM322 series. The module provides 500V AC galvanic isolation between internal circuitry and external field loads. This protection effectively shields the CPU from electrical noise and voltage spikes. Furthermore, each output channel includes integrated short-circuit protection. The transistor-based design ensures fast switching speeds for dynamic processes. These features prevent costly downtime and extend the lifespan of the entire control system.
Key Technical Specifications
- Manufacturer: Siemens
- Product Series: SIMATIC S7-300
- Model Number: 6ES7322-1BH01-0AA0
- Module Type: SM322 Digital Output
- Channel Count: 16 Outputs
- Output Type: Transistors (Sourcing)
- Rated Load Voltage: 24V DC
- Output Current: 0.5A per channel
- Total Module Current: 8A (Max)
- Front Connector: 20-pole
- Weight: 0.24 kg
- Dimensions: 40mm x 125mm x 117mm
Industrial Applications and Durability
Engineers frequently deploy this module in material handling and packaging systems. It excels in environments requiring frequent switching of low-to-medium power loads. The rugged housing withstands typical industrial vibrations and temperature variations. Because it belongs to the established S7-300 family, long-term spare part availability is guaranteed. This ensures that your automation infrastructure remains operational for many years.
