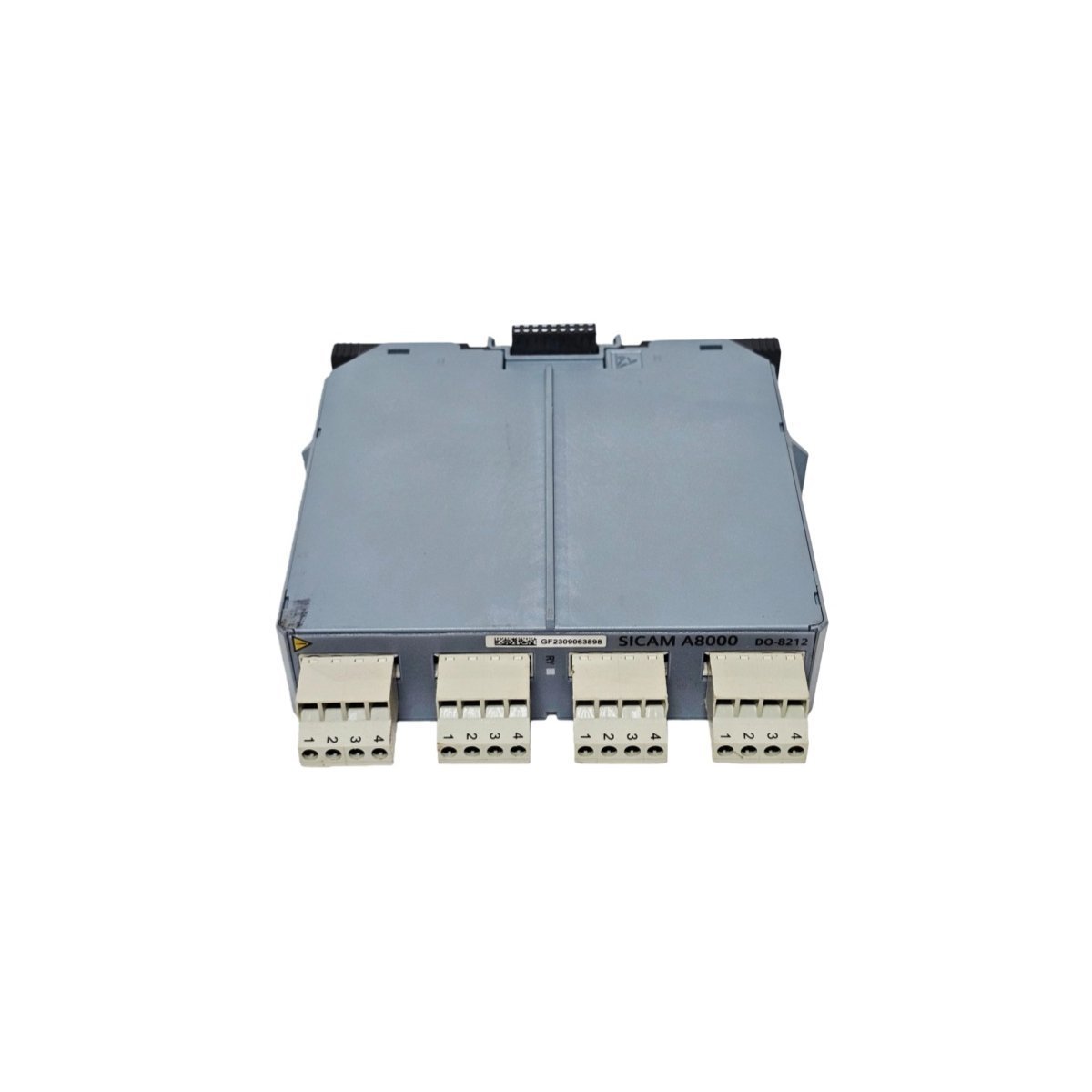

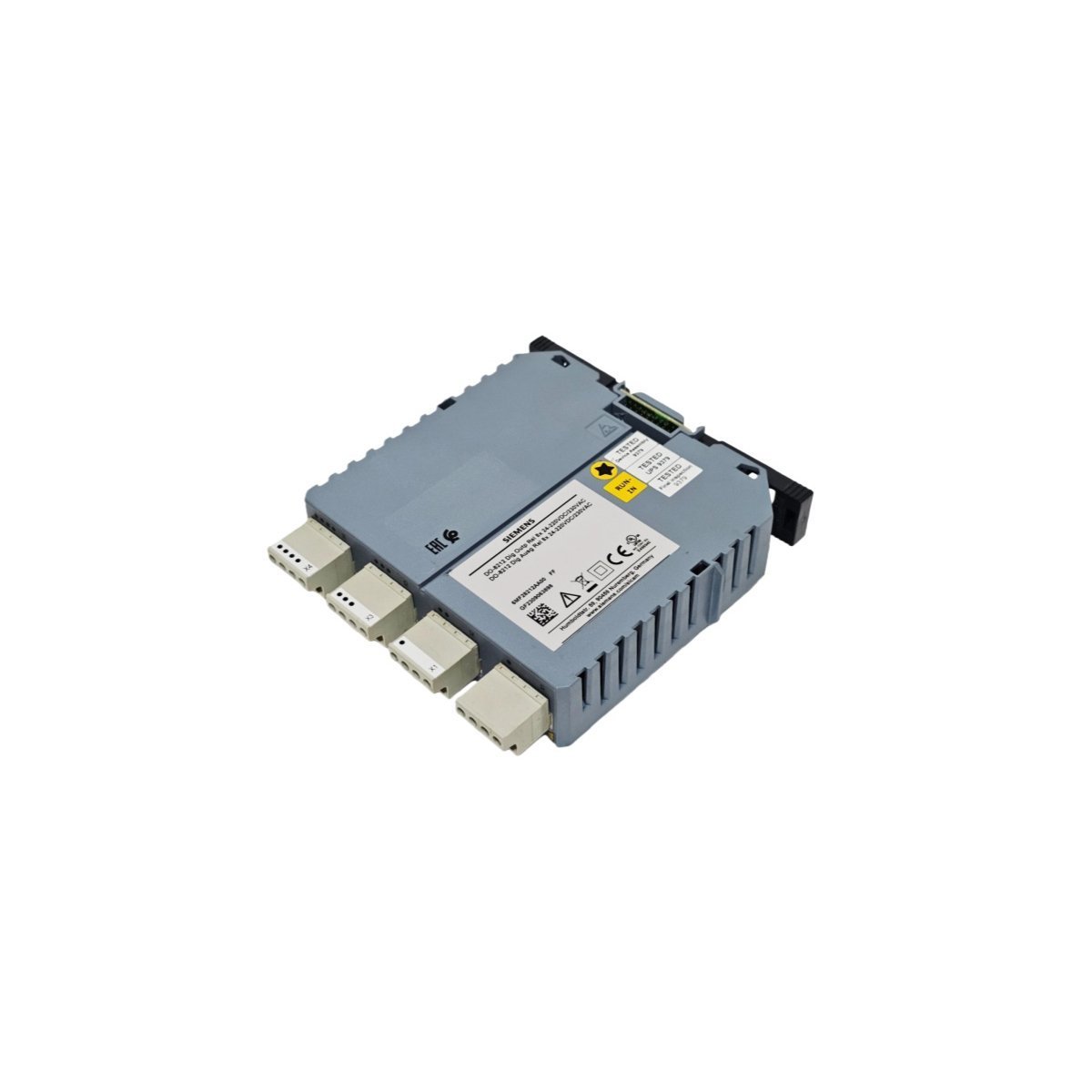

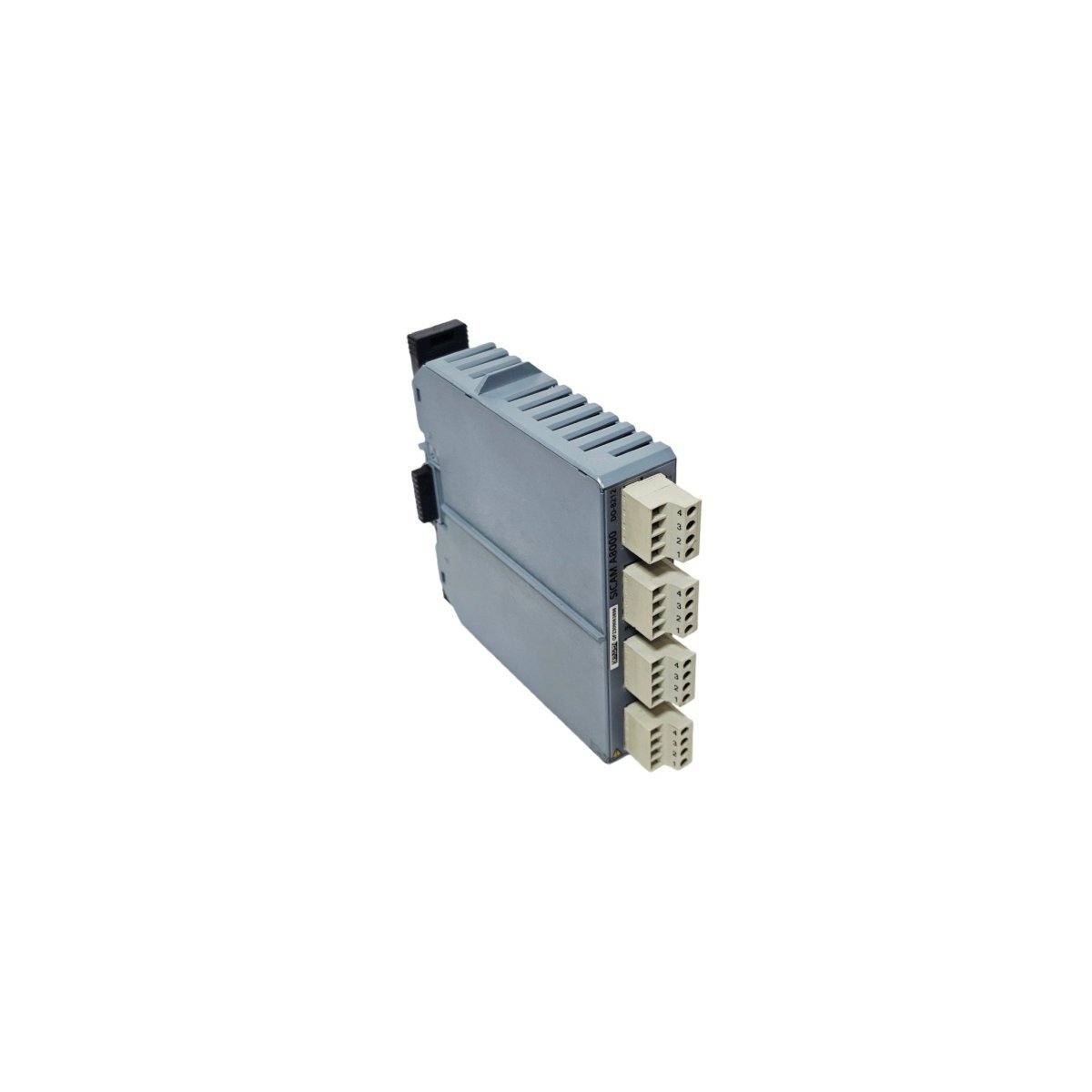

The Siemens 6MF28212AA00 belongs to the specialized SICAM A8000 series. This DO-8212 digital output module provides eight robust channels for critical control tasks. Engineers primarily use this unit in telecontrol and substation automation. Because it features a compact 30mm width, it saves valuable space on the DIN rail. The module excels in power distribution networks and industrial switchgear environments. It bridges the gap between digital control logic and high-voltage field equipment.
Versatile Electrical Load Handling
This module manages a wide variety of electrical signals with ease. It supports both AC voltages from 110V to 230V and DC ranges from 24V to 220V. Consequently, one module can control diverse actuators and command relays. Each of the four isolated output groups features galvanic separation. This design choice significantly improves overall system safety. Furthermore, the unit handles switching capacities up to 1250VA for AC loads. It also supports 30W to 150W for DC applications depending on voltage levels.
Key Technical Characteristics
- Brand: Siemens
- Series: SICAM A8000
- Model: DO-8212
- Part Number: 6MF28212AA00
- Output Channels: 8 Digital Outputs (4 isolated groups)
- AC Voltage Range: 110V – 230V (50/60 Hz)
- DC Voltage Range: 24V – 220V
- Maximum Power Consumption: 800 mW
- Insulation Strength: 5kV surge resistance
- Dimensions: 30mm x 125mm x 115mm
- Weight: 0.95 kg
Secure Integration and Compliance
Security remains a top priority for modern power automation systems. The Siemens 6MF28212AA00 meets BDEW cybersecurity requirements for energy grid components. It integrates smoothly with SICAM CP-80xx bundles for complex automation concepts. Furthermore, the module facilitates three-level intelligence for monitoring and remote control. Its robust dielectric strength protects the internal PLC logic from field interference. By choosing this module, operators ensure long-term stability for their digital substation infrastructure.
