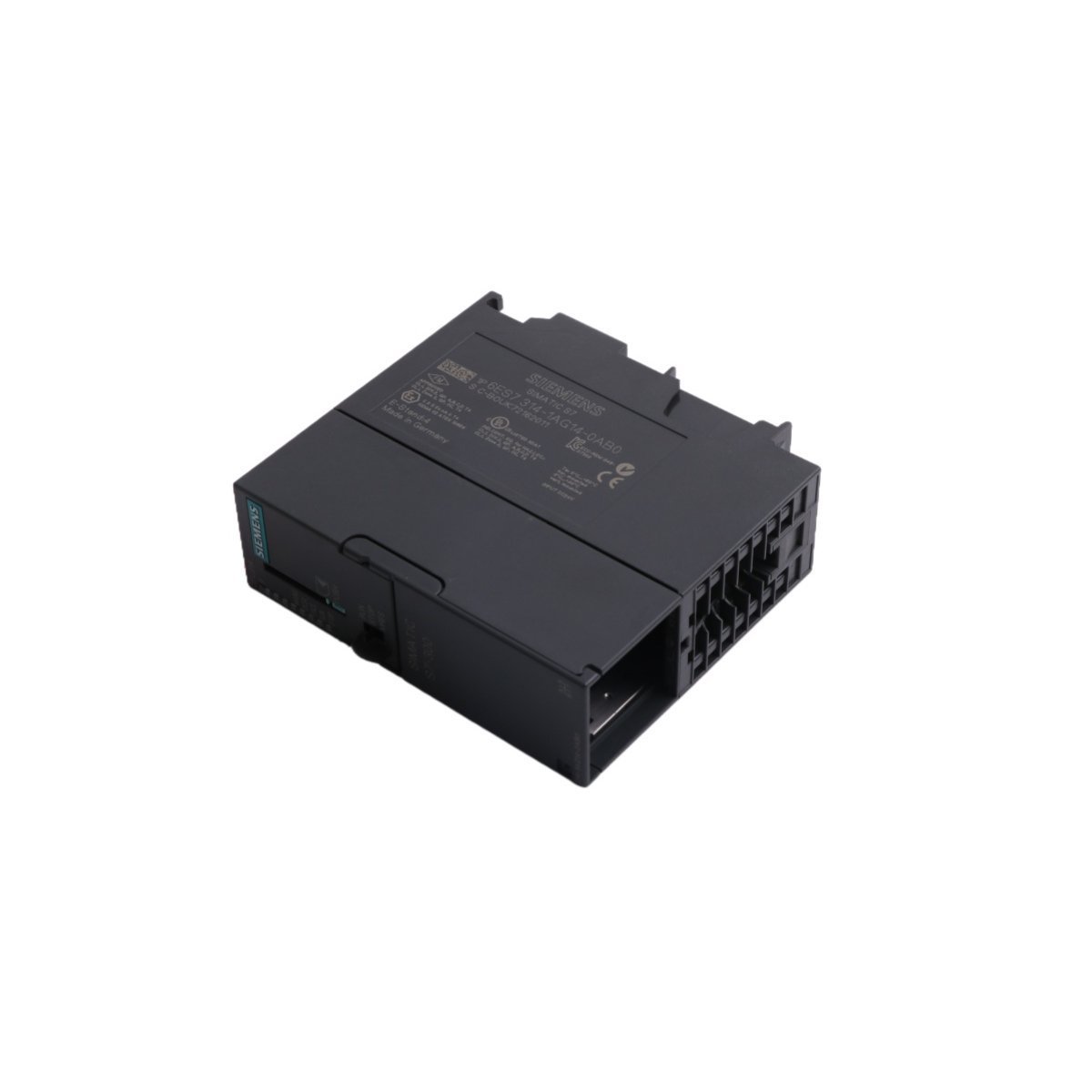

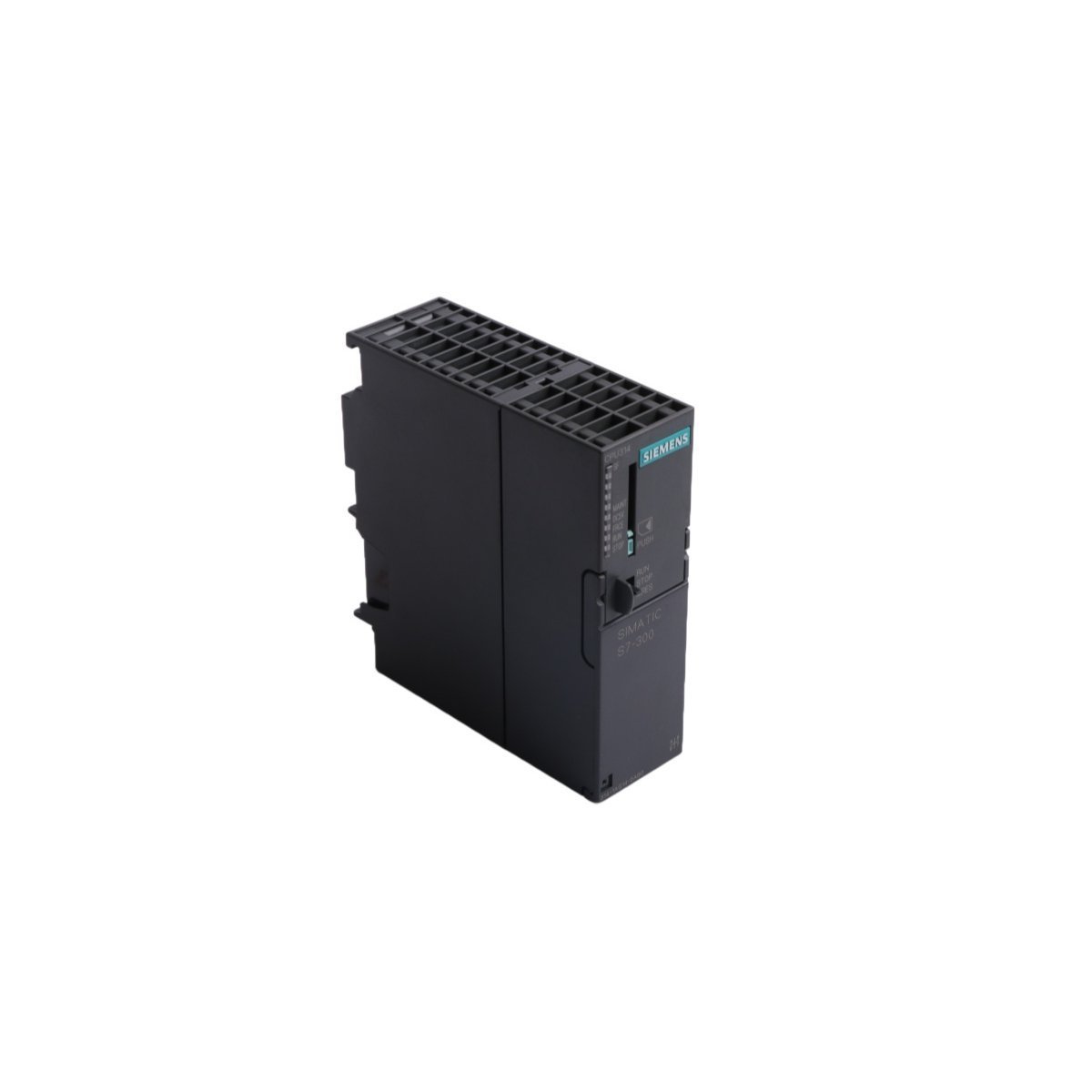

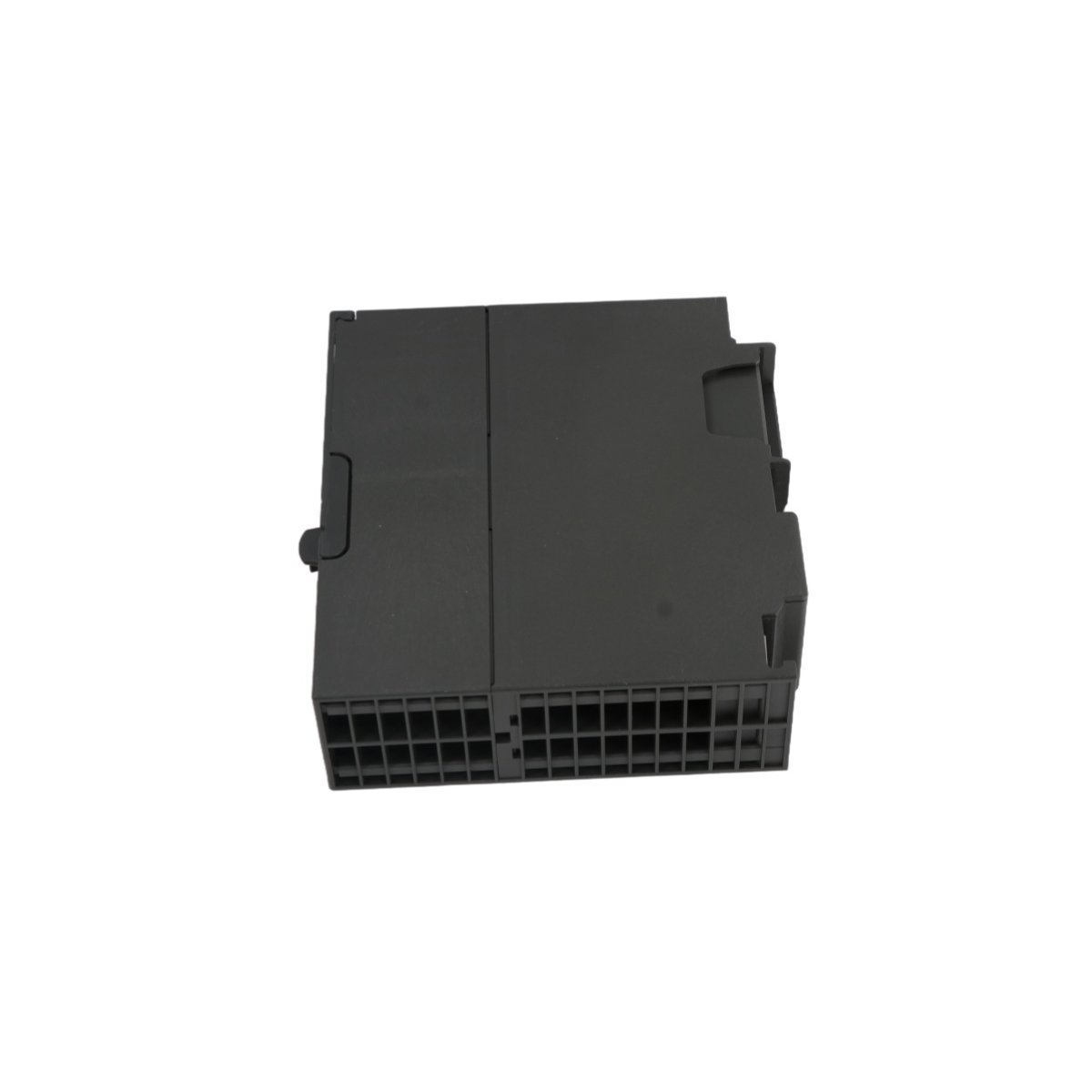

Siemens 6ES7314-1AG14-0AB0 CPU Processor Module

The Siemens 6ES7314-1AG14-0AB0 serves as a high-performance central processing unit for the SIMATIC S7-300 system. This CPU 314 module handles medium-scale automation tasks with high efficiency. It features 128 KB of integrated work memory for user programs and data. Furthermore, the processor executes bit instructions in just 0.06 μs. This rapid processing speed ensures precise control over fast-moving industrial machinery. The unit operates on a standard 24V DC power supply for industrial compatibility. It functions as a reliable brain for diverse factory automation architectures.

Integrated Connectivity and Expansion

Connectivity remains a major advantage of the 6ES7314-1AG14-0AB0 processor. It includes an integrated MPI interface for communication with other controllers and HMI devices. Additionally, the CPU supports expansion via various S7-300 signal modules and function modules. This flexibility allows the system to scale as production requirements change. The module effectively manages up to 1024 digital I/O points and 256 analog channels. Moreover, the hardware requires a SIMATIC Micro Memory Card for non-volatile data storage. This setup protects your critical logic during unexpected power losses.

Efficient Engineering and Industrial Reliability

Siemens designed this CPU to thrive in demanding manufacturing environments. The compact 40mm wide housing saves valuable space on the mounting rail. Consequently, it fits easily into small control cabinets and localized enclosures. The processor supports a wide variety of programming languages through STEP 7 software. Maintenance stays simple thanks to clear diagnostic LEDs and status indicators on the front. It excels in applications like packaging machinery, material handling, and general manufacturing. This module provides a proven balance of processing power and cost-effectiveness for global industries.

Technical Specifications
