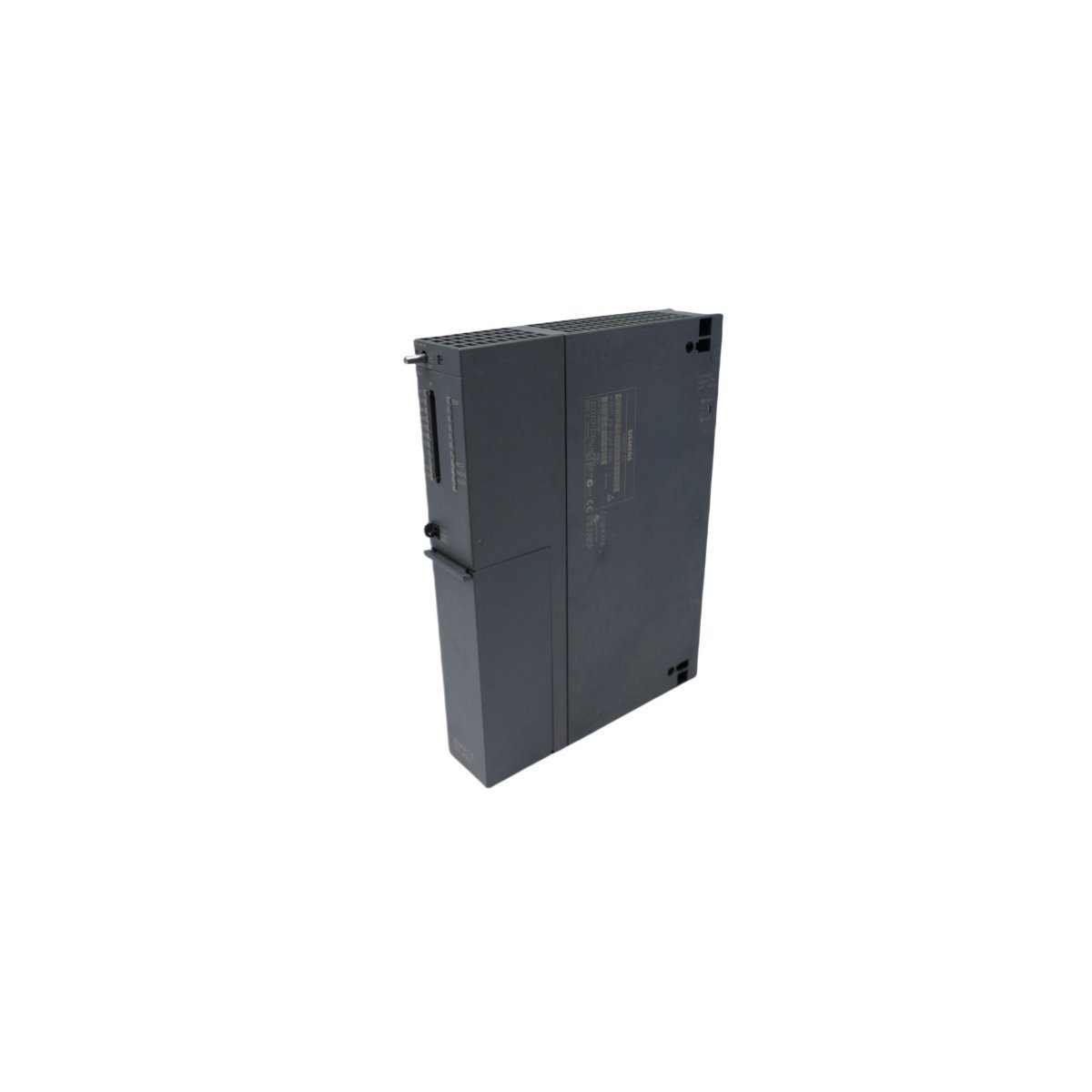

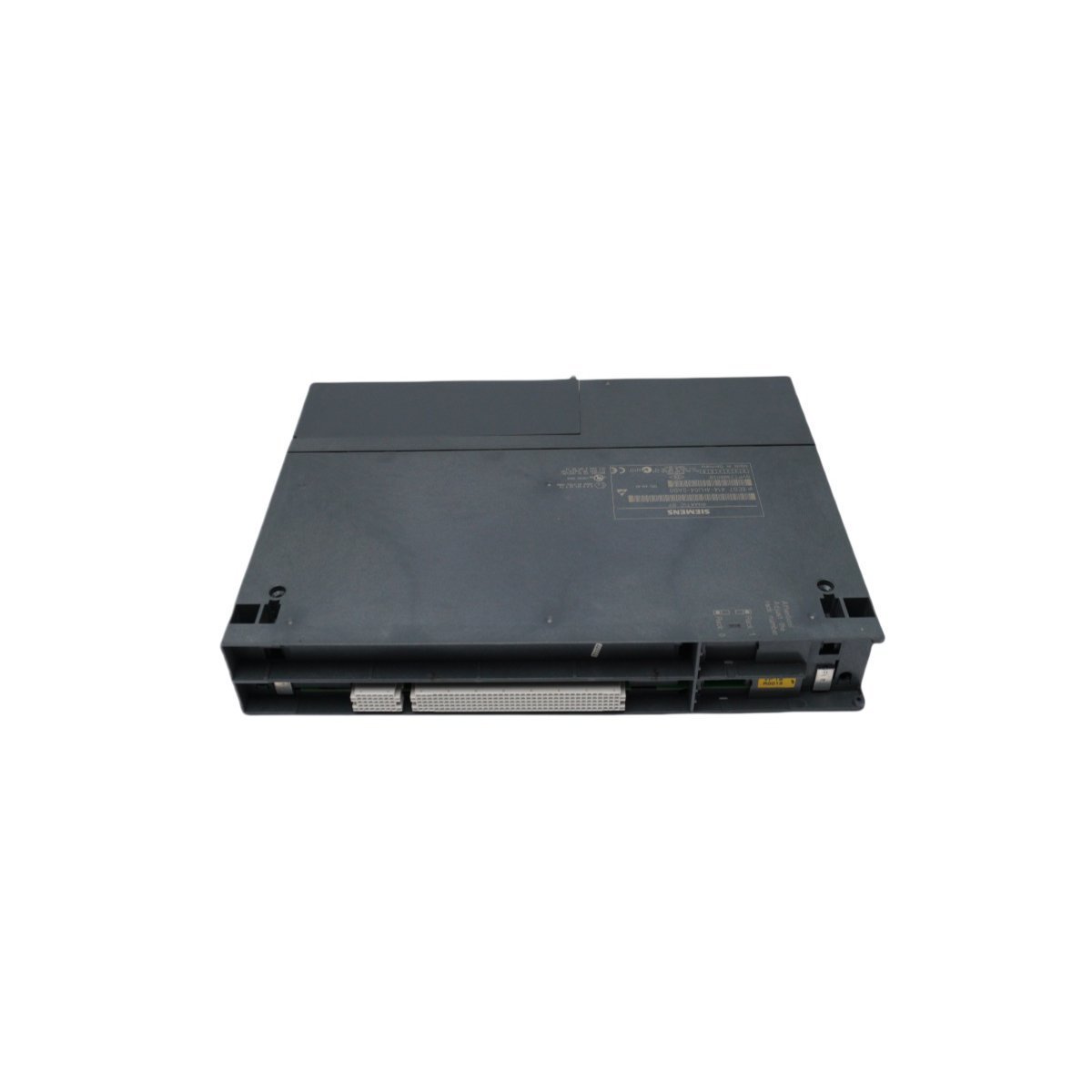

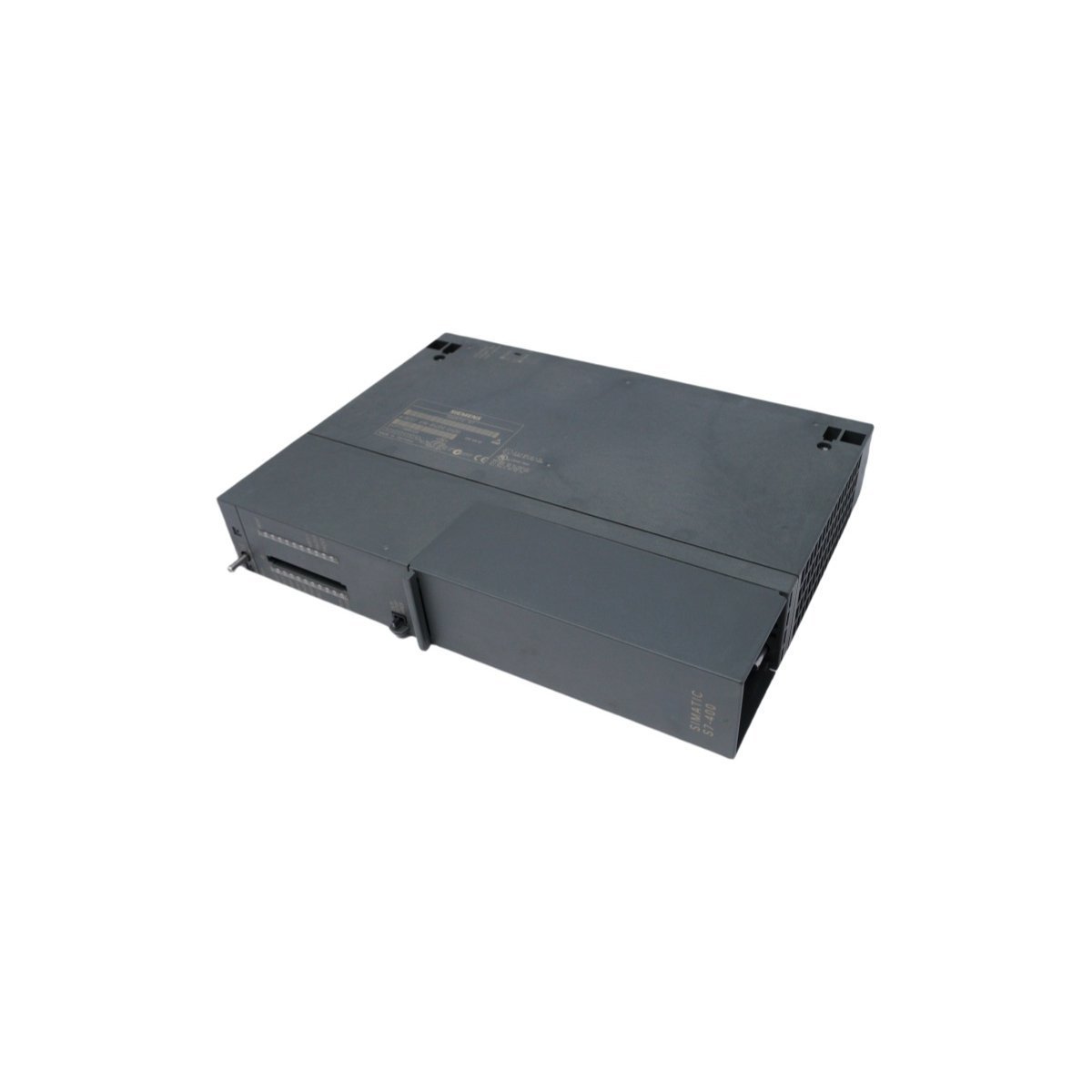

Siemens 6ES7414-4HJ04-0AB0 Processor Module

The Siemens 6ES7414-4HJ04-0AB0 is a robust central processing unit for the SIMATIC S7-400H redundant system. This module excels in mid-to-high-range applications where system downtime is unacceptable. It features a substantial 1.4 MB total work memory for code and data. Specifically, 700 KB supports the user program while another 700 KB manages data blocks. The processor executes bit instructions in a rapid 0.045 μs to maintain high system throughput. Furthermore, this unit operates efficiently in multi-processor configurations within a single rack. It allows engineers to distribute complex control tasks across several CPUs simultaneously.

Flexible Network Integration

Communication remains a core strength of this S7-400 processor. The hardware includes an integrated MPI/DP interface and an additional PROFIBUS DP port. Consequently, the module connects seamlessly to diverse field devices and supervisory systems. It manages up to 128 I/O modules to accommodate extensive plant layouts. Users can also integrate high-level languages and graphical programming via SIMATIC engineering tools. The CPU supports advanced diagnostics to identify faults before they cause system failures. Moreover, its fanless design ensures a longer service life in dusty industrial settings.

Scalable Solutions for Critical Infrastructure

The 6ES7414-4HJ04-0AB0 is perfect for process industries like oil, gas, and chemical manufacturing. This module provides the necessary redundancy for safety-critical and high-availability operations. Its modular architecture allows for easy upgrades as automation requirements expand. Additionally, the unit maintains high engineering efficiency through standardized STEP 7 software. The physical design facilitates quick installation and replacement on the S7-400 backplane. As a result, this processor offers a reliable foundation for sophisticated motion control and HMI networking.

Technical Specifications
