1747-L532 Allen-Bradley SLC 5/03 CPU Processors

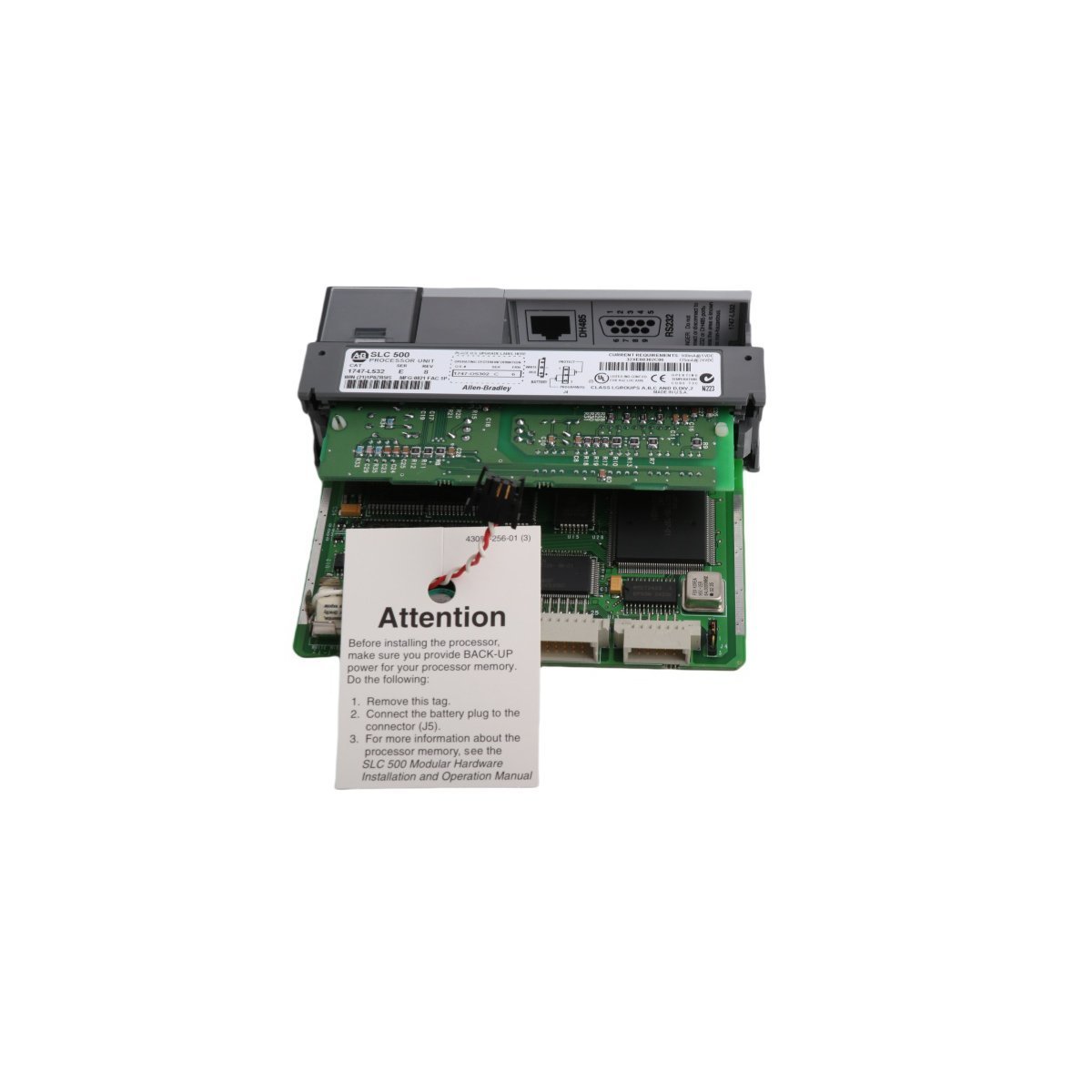

Allen-Bradley 1747-L532 SLC 5/03 16K Controller

The Allen-Bradley 1747-L532, also cataloged as the 1747-L532 SLC 5/03 16K Controller, operates as a dedicated hardware component for mid-range industrial control task execution within SLC 500 platform systems. The internal hardware executes ladder logic programs using a 16K memory capacity and routes field data via the integrated DH-485 network channel. Technicians insert the processor module directly into the local rack backplane to coordinate distributed industrial automation behaviors.

Hardware Specifications

SLC 500 Backplane Bus Communication Velocity and Density Attributes

The 1747-L532 processing core interfaces directly with the SLC 500 chassis backplane to regulate bus communication velocity and preserve timing synchronicity. The hardware design supports flexible I/O density scaling options, allowing engineers to address multiple local and expansion rack configurations without experiencing transmission lag. Furthermore, strict firmware flash compatibility validation protocols protect the system data paths, ensuring deterministic scanning periods when exchanging instructions with local I/O modules or external Ethernet router bridges.

Frequently Asked Questions

Q: Does the 1747-L532 controller module allow hot-swapping inside the local chassis?

A: No. Operators must isolate and disconnect all electrical power from the local chassis backplane prior to insertion or removal of the controller to prevent circuit degradation.

Q: How does the hardware maintain the 16K user program data during an unexpected power interruption?

A: The processor uses built-in backup memory circuit capacitors to safeguard critical programming states and register configurations until standard operational power returns.

Q: What action must technicians execute when the DH-485 communication channel fails to establish online synchronization?

A: Technicians must verify terminal resistance continuity across the physical network loop and check that the specific node configuration parameters match the parent network layout rules.

Field Installation Guidelines

Turn off all electrical supply feeds entering the target SLC 500 chassis before beginning installation. Align the plastic circuit board edges of the 1747-L532 module with the dedicated slot tracking channels located on the leftmost position of the rack. Slide the hardware firmly into the slot until the backplane connectors seat completely and the plastic locking tabs securely clamp the module faceplate. Wire the DH-485 connection port using specified industrial-grade shielded twisted-pair cables. Ground the communication cable shield at a single low-impedance ground point to eliminate inductive signal cross-talk from adjacent high-voltage motor conductors.
