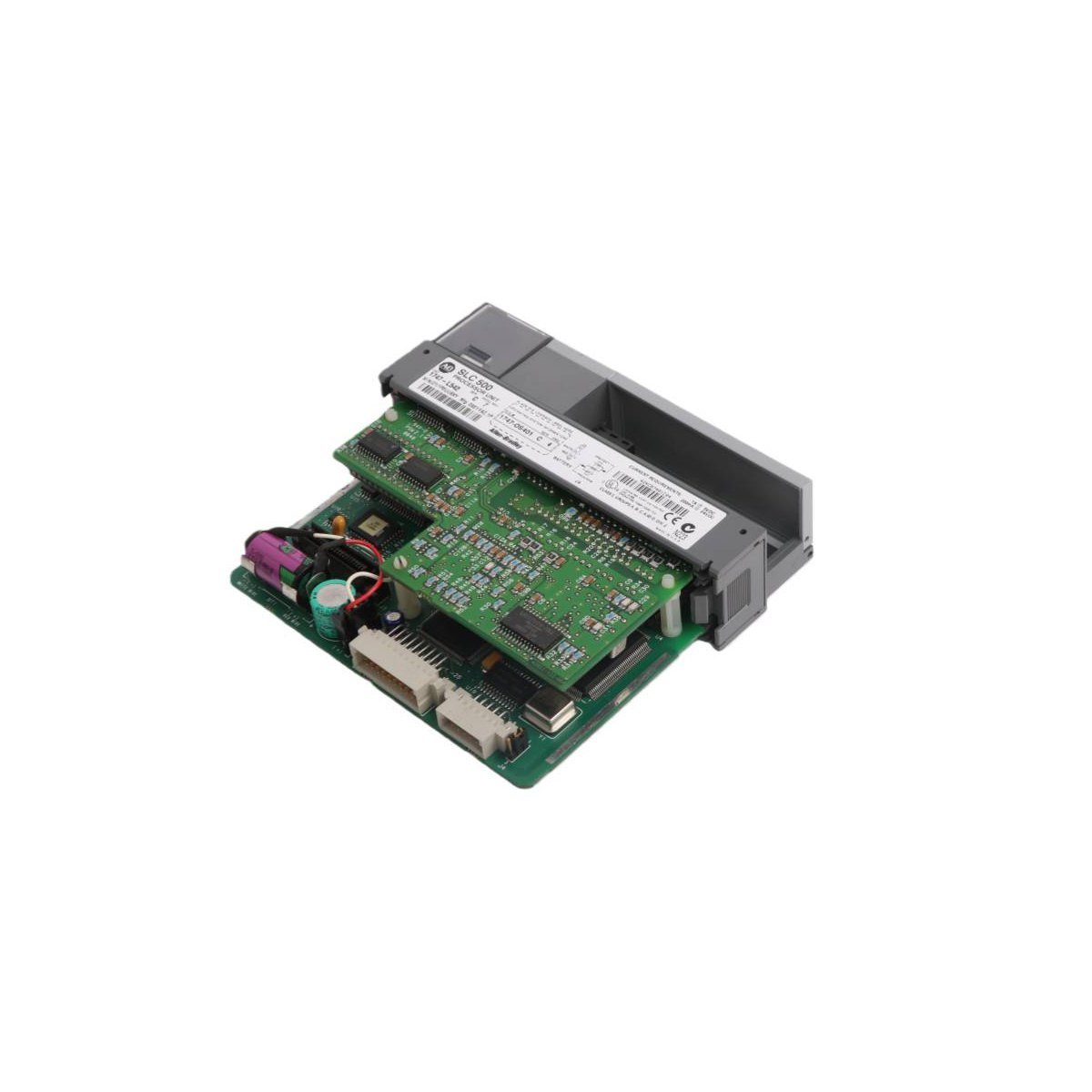

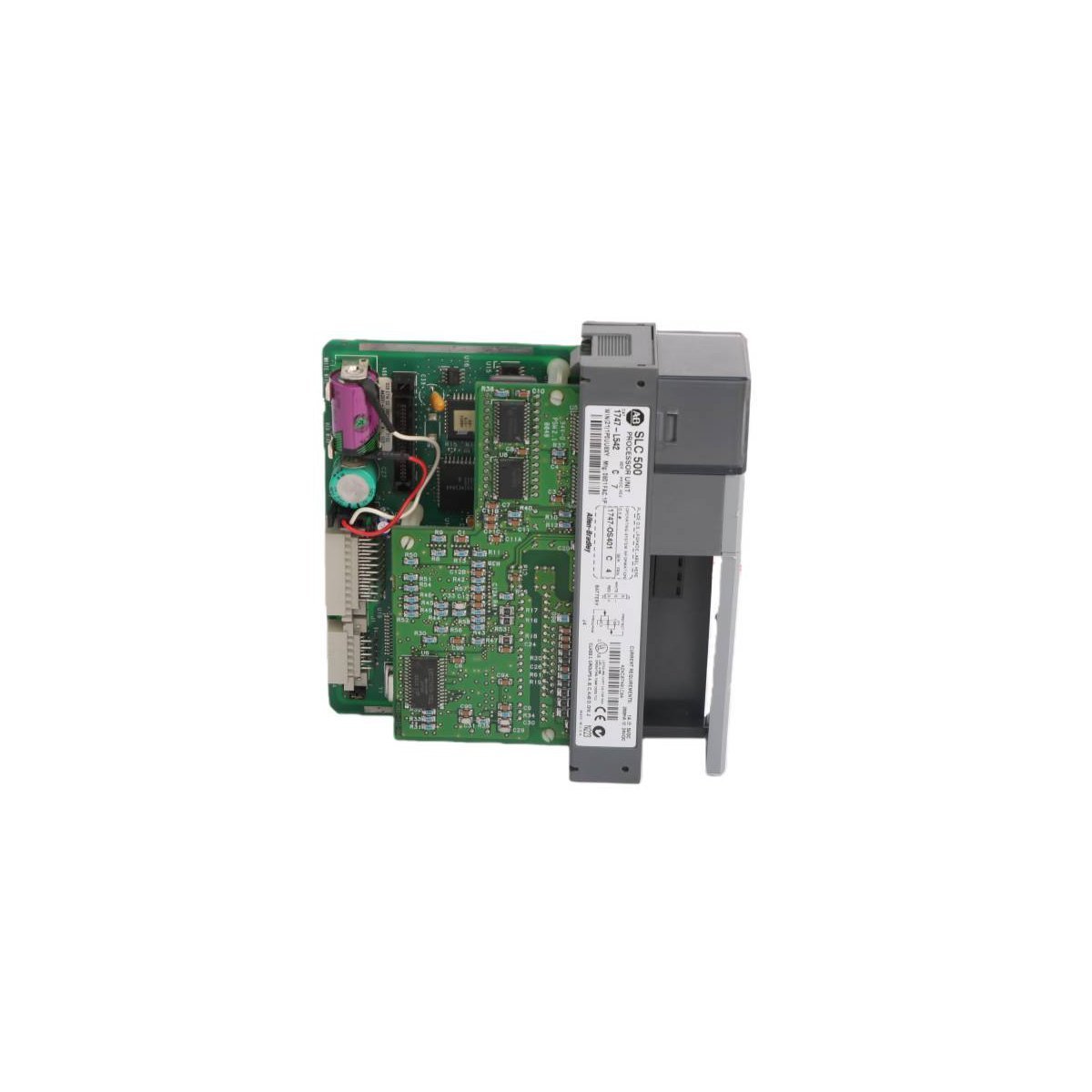

Allen-Bradley 1747-L542 SLC 5/04 32K Memory Processor Module

Product Description

The Allen-Bradley 1747-L542 serves as a modular central processing unit for the SLC 500 automation platform. This hardware coordinates local and remote hardware modules to automate medium-scale industrial machinery.

Technical Profile and Specifications

• Product Line: SLC 500 Series
• Processor Model: SLC 5/04
• User Memory Capacity: 32 KB total words
• Maximum Local I/O Capacity: 4096 discrete points
• Chassis Location Requirement: Slot 0 of any standard SLC chassis
• Backplane Current Drawing: 1.0 Ampere at 5 Volts DC / 0.20 Amperes at 24 Volts DC
• Integrated Communication Interfaces: Data Highway Plus (DH+) port and RS-232 serial port
• Program Execution Speed: 0.9 milliseconds per kiloword typical
• Memory Backup Systems: Lithium battery-backed RAM and optional Flash EPROM
• Operating Temperature Limits: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
• Approximate Hardware Mass: 0.9 kg
• Physical Proportions: 3.5 cm x 13.0 cm x 14.5 cm

Advanced Capabilities and Functional Overview

This controller executes complex ladder logic programs with high efficiency. It connects seamlessly to plant-wide networks through its integrated Data Highway Plus channel. This specific connection delivers much faster peer-to-peer data transfers than standard serial links. Additionally, the separate RS-232 port handles local programming, operator interface connections, and SCADA communications simultaneously.

The device mounts exclusively into the first slot of an SLC chassis. It draws power directly through the backplane connections to minimize external infrastructure needs. Furthermore, the system permits expansion across three local chassis to increase application flexibility. For data protection, the onboard lithium battery sustains variable files during power outages, while Flash memory prevents total program loss.

Diagnostics and Industrial Resilience

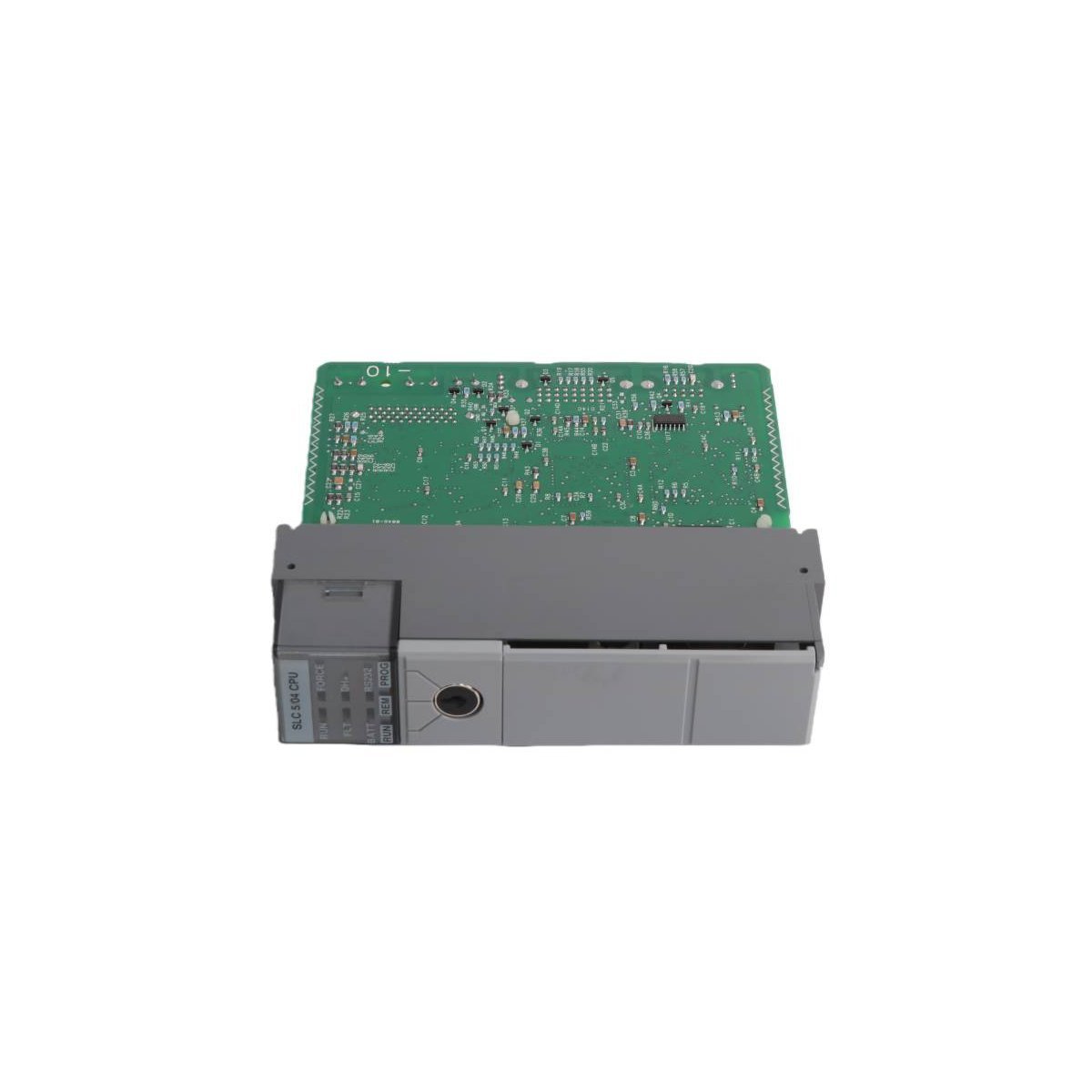

A set of six front-panel LED indicators simplifies maintenance work by showing clear hardware states. These lights clearly display power status, CPU faults, forces, and active network telemetry. Consequently, technicians can isolate system errors without opening programming software.

The rugged construction withstands the harsh vibrations and thermal swings of factory floors. Industries globally deploy this module in material handling, chemical processing, and assembly systems. The controller completely avoids standard Ethernet routing hardware, relying instead on reliable industrial fieldbuses.
