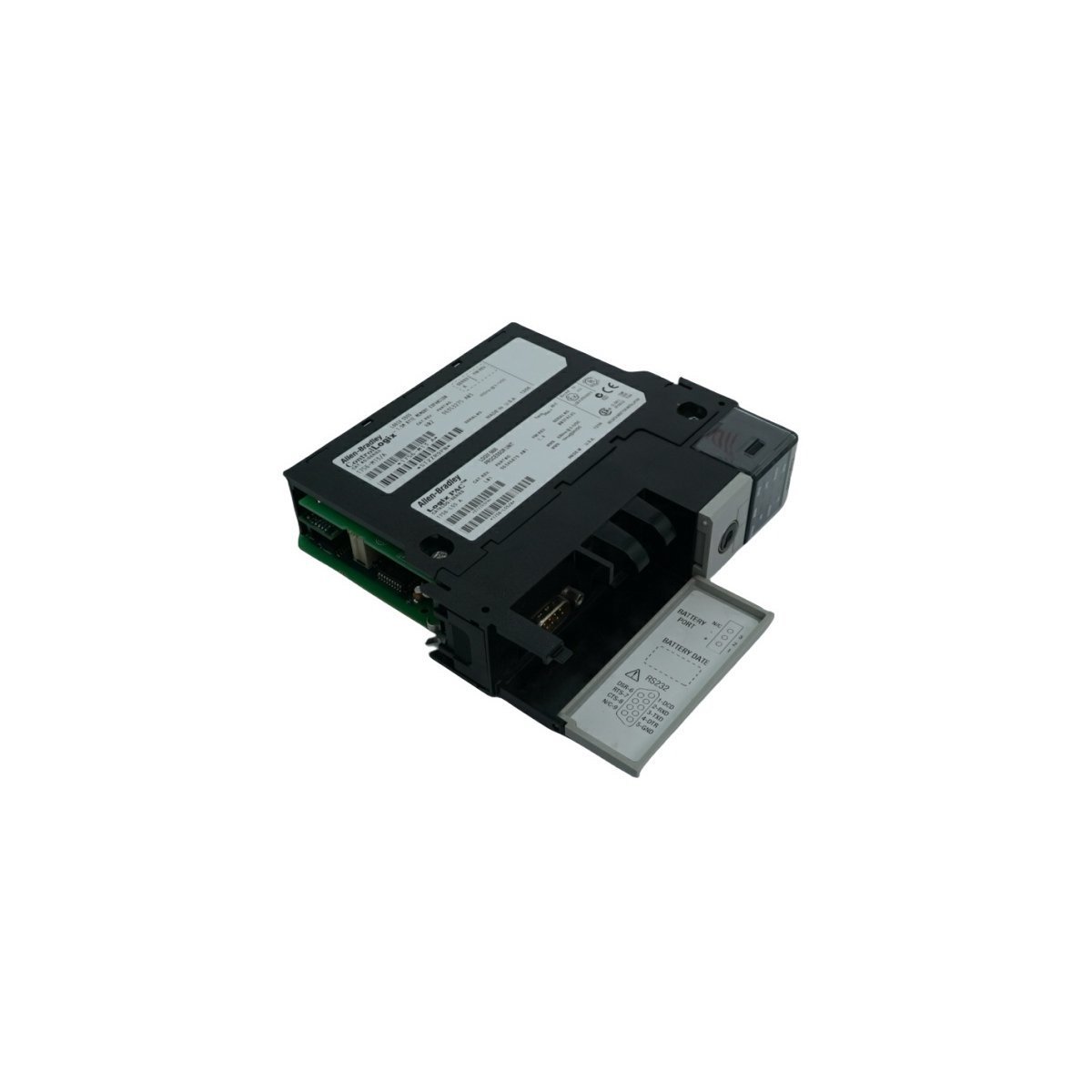

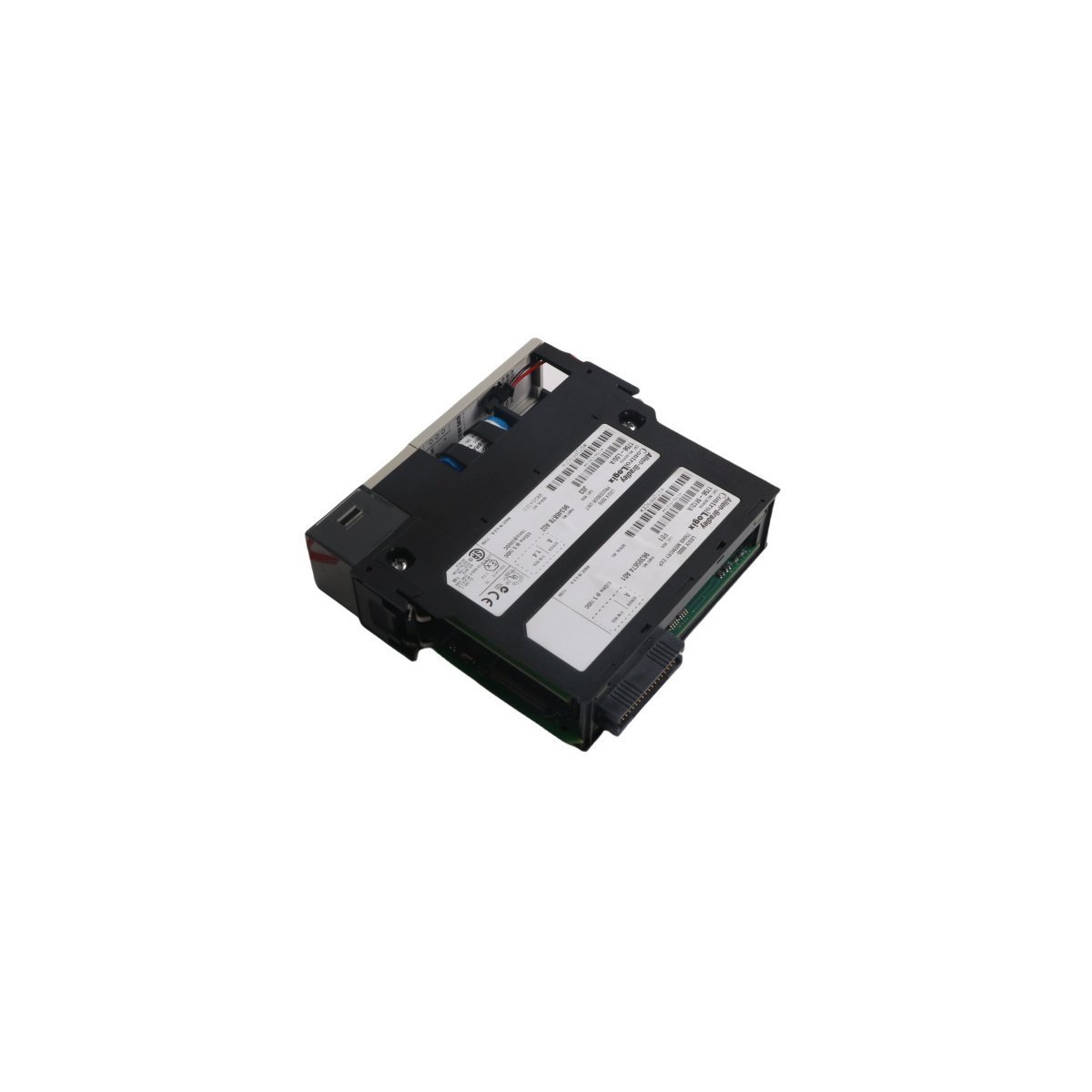

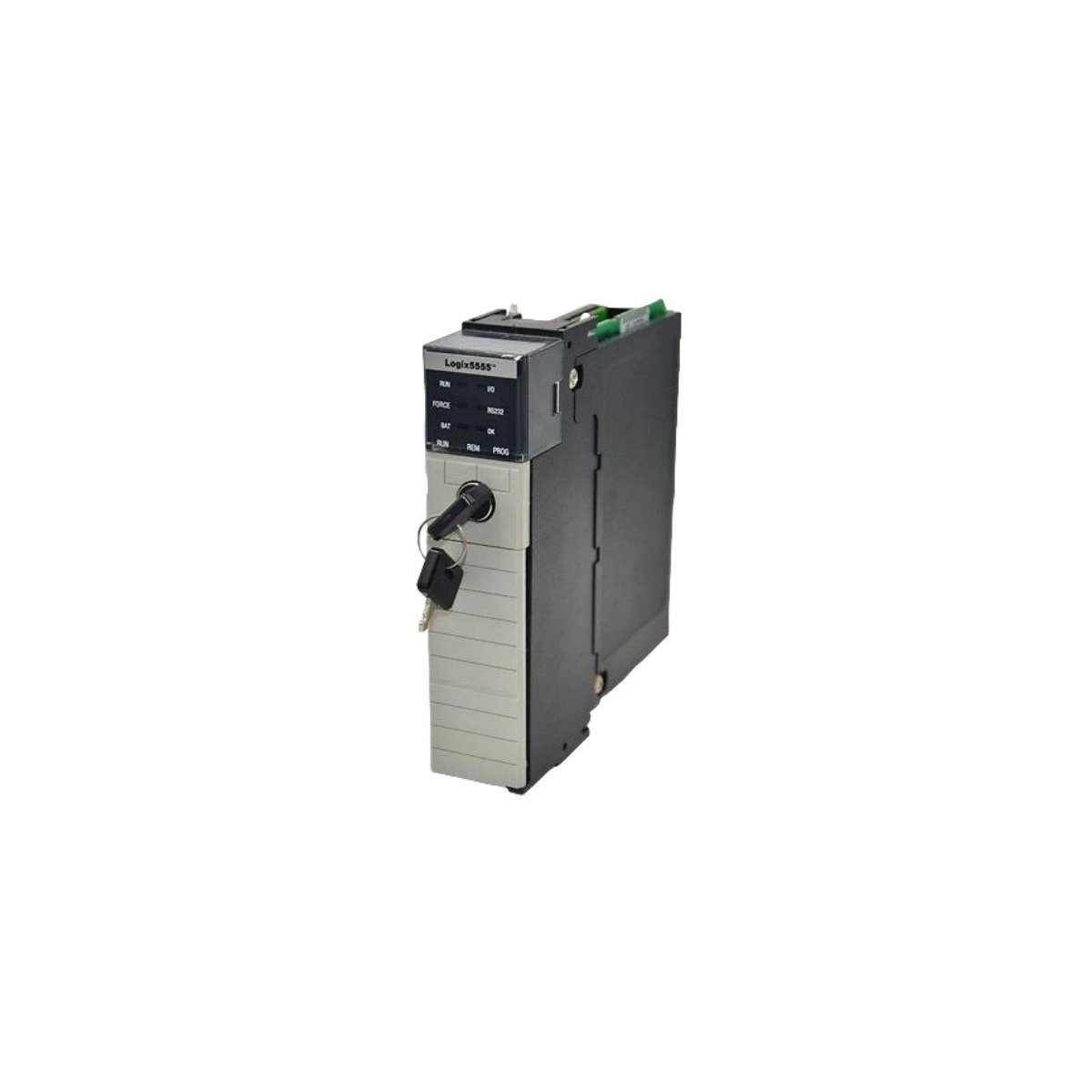

Allen-Bradley 1756-L55M14 Controller Processor

The Allen-Bradley 1756-L55M14 serves as a primary processing unit within the ControlLogix 5555 platform. This module features a significant 3.5 MB of user memory for logic and data storage. Additionally, the processor reserves 208 KB of dedicated memory for I/O configurations. These specifications support the demands of large-scale automation and complex industrial algorithms. Because the unit lacks internal nonvolatile storage, users must maintain a reliable battery backup. This ensures program retention during power cycles or unplanned outages.

Network Integration and Communication

Connectivity remains a core advantage of the Logix5555 architecture. The 1756-L55M14 supports a wide variety of industrial protocols via separate communication modules. Specifically, it integrates with EtherNet/IP, ControlNet, DeviceNet, and Data Highway Plus networks. Furthermore, the processor handles Remote I/O and SynchLink for high-speed synchronization between controllers. For legacy or third-party devices, it executes Modbus and DH-485 communication through ladder logic routines. This versatility allows the controller to act as a central hub in multi-vendor environments.

Industrial Durability and Electrical Performance

Engineers designed this processor to operate reliably in challenging factory conditions. The 1756-L55M14 functions effectively within a temperature range of 0 to 60°C. Moreover, the hardware resists operational shocks up to 30g and vibrations up to 2g. The module draws 1.25A at 5.1V DC from the backplane for logic operations. Thermal dissipation stays under 19.4 BTU per hour to maintain cabinet efficiency. Consequently, the unit provides stable performance in high-density ControlLogix chassis configurations.
