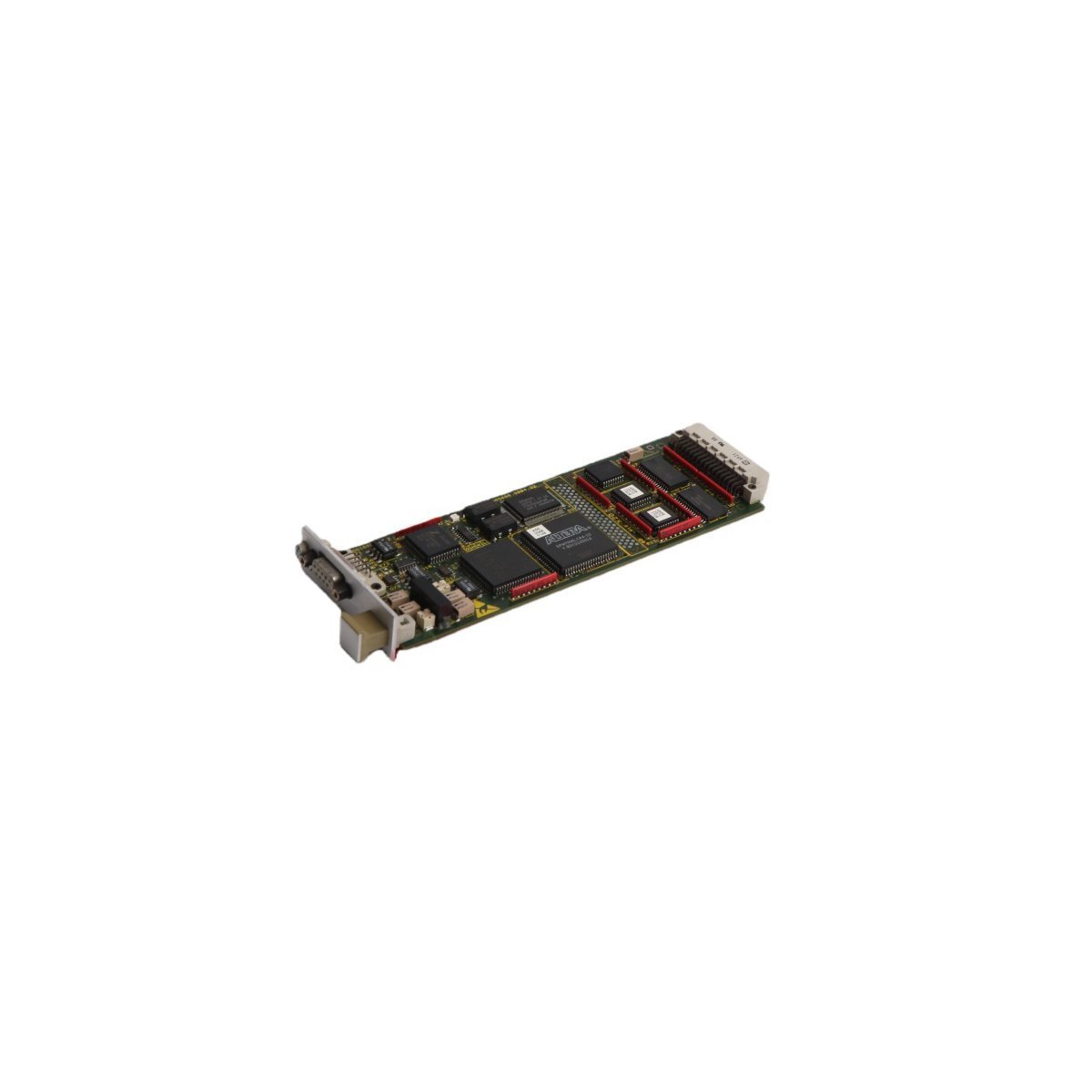

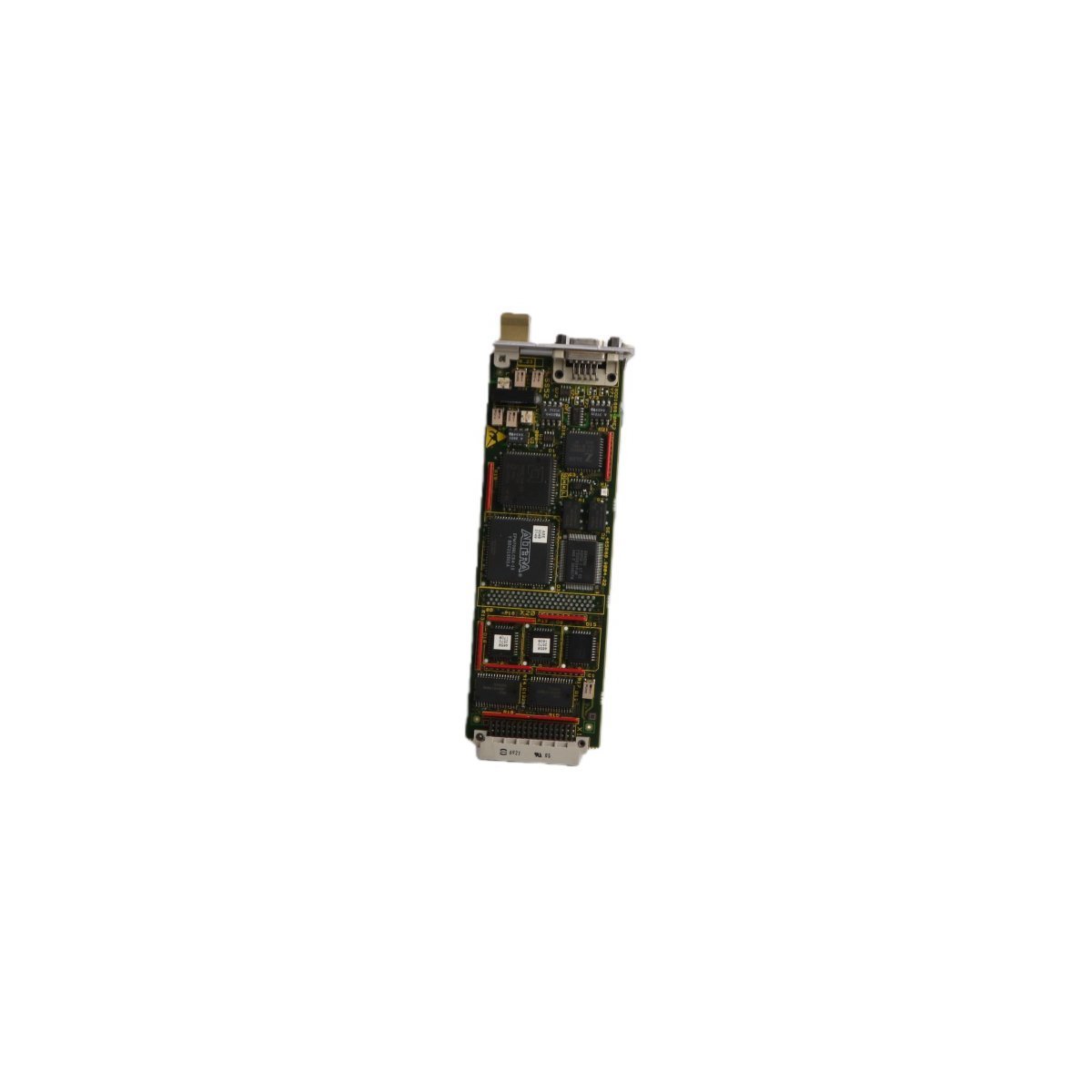

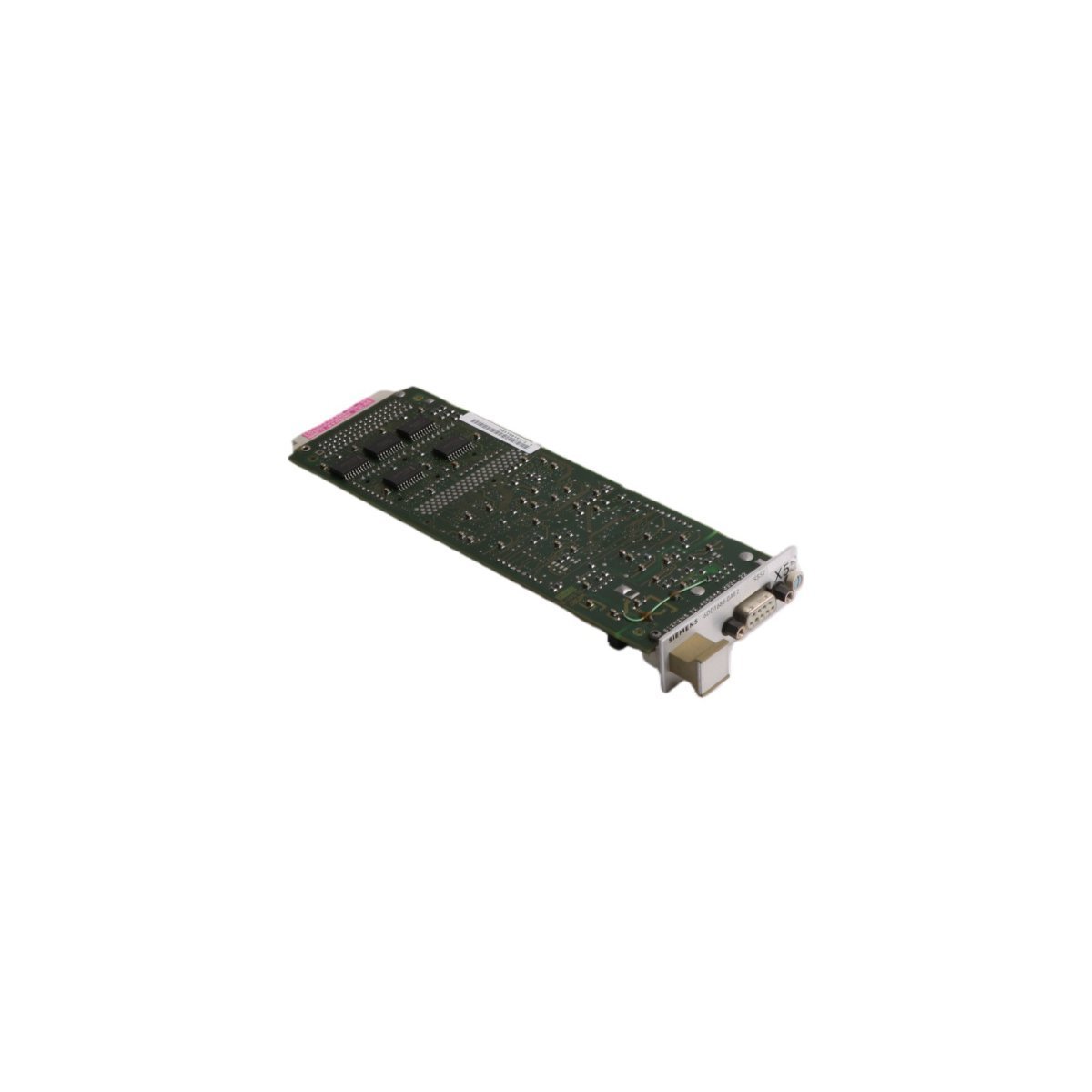

Siemens 6DD1688-0AE2 Communication Module

The Siemens 6DD1688-0AE2 serves as a specialized communication submodule within the SIMADYN D control framework. This hardware functions as an SS52 master interface to establish reliable PROFIBUS DP connections. It resides on the CS7 carrier module to facilitate high-speed data exchange. Consequently, it enables deterministic communication between central processors and distributed field equipment. This module remains essential for high-performance automation tasks requiring synchronized network timing.

Advanced Master Interface Capabilities

This submodule provides a robust master-level interface for the SINEC L2 bus system. It utilizes 16 kilobytes of dual-port RAM for efficient memory mapping. Furthermore, the integrated RS-485 port ensures stable signal transmission over long distances. Electrical isolation on the X5 connector protects the internal circuitry from external electrical surges. These features make the module ideal for maintaining signal integrity in heavy industrial environments. Therefore, it ensures continuous uptime for critical process control networks.

Technical Specifications

Reliability in Complex Control Environments

The SS52 module bridges the gap between central control and peripheral device layers. It provides the necessary bandwidth for complex closed-loop control algorithms. Moreover, the hardware design minimizes latency during intensive data cycles. This efficiency supports the high-speed requirements of metal processing and paper mills. Using genuine Siemens communication submodules protects the integrity of your automation infrastructure. It remains a trusted solution for legacy SIMADYN D system expansions.
