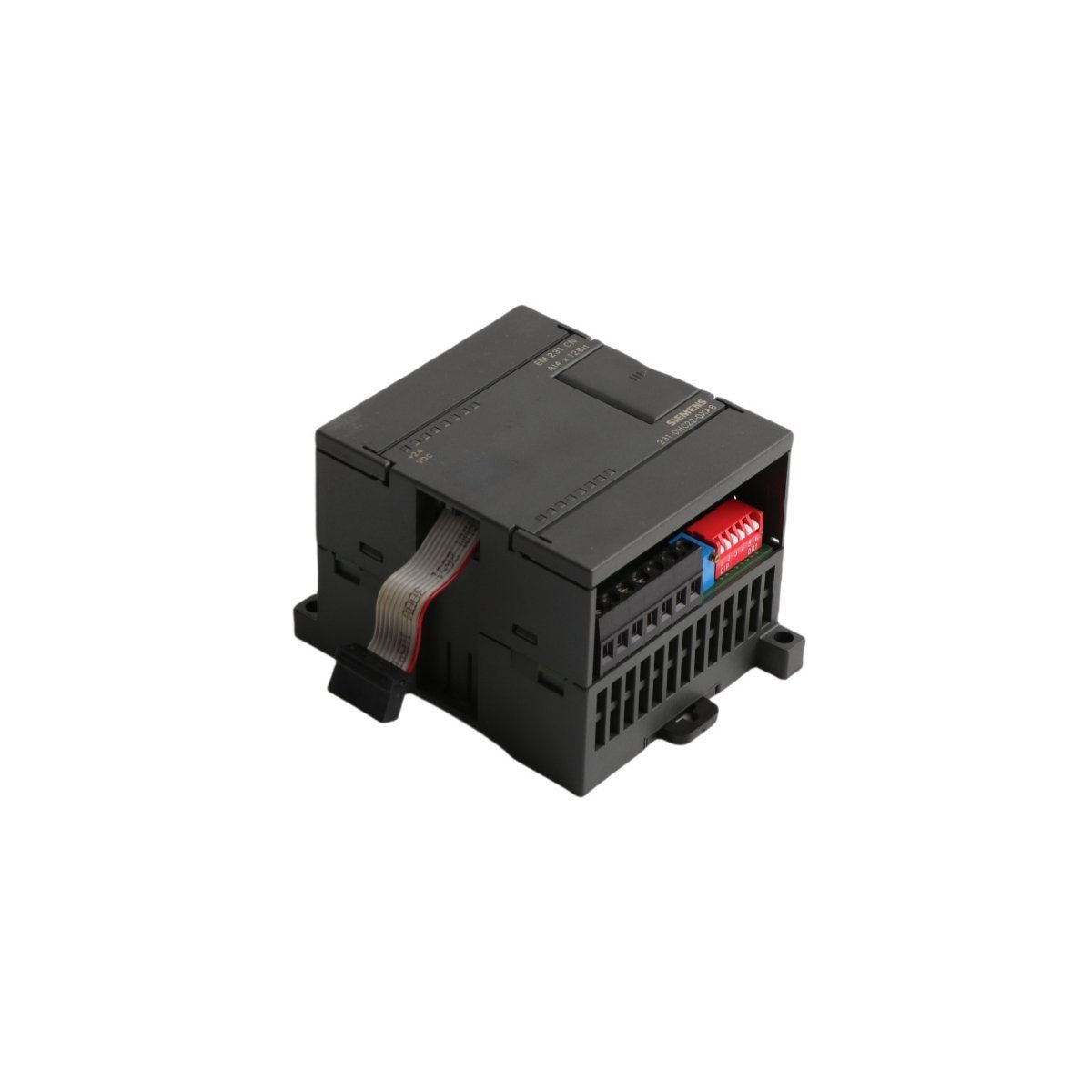

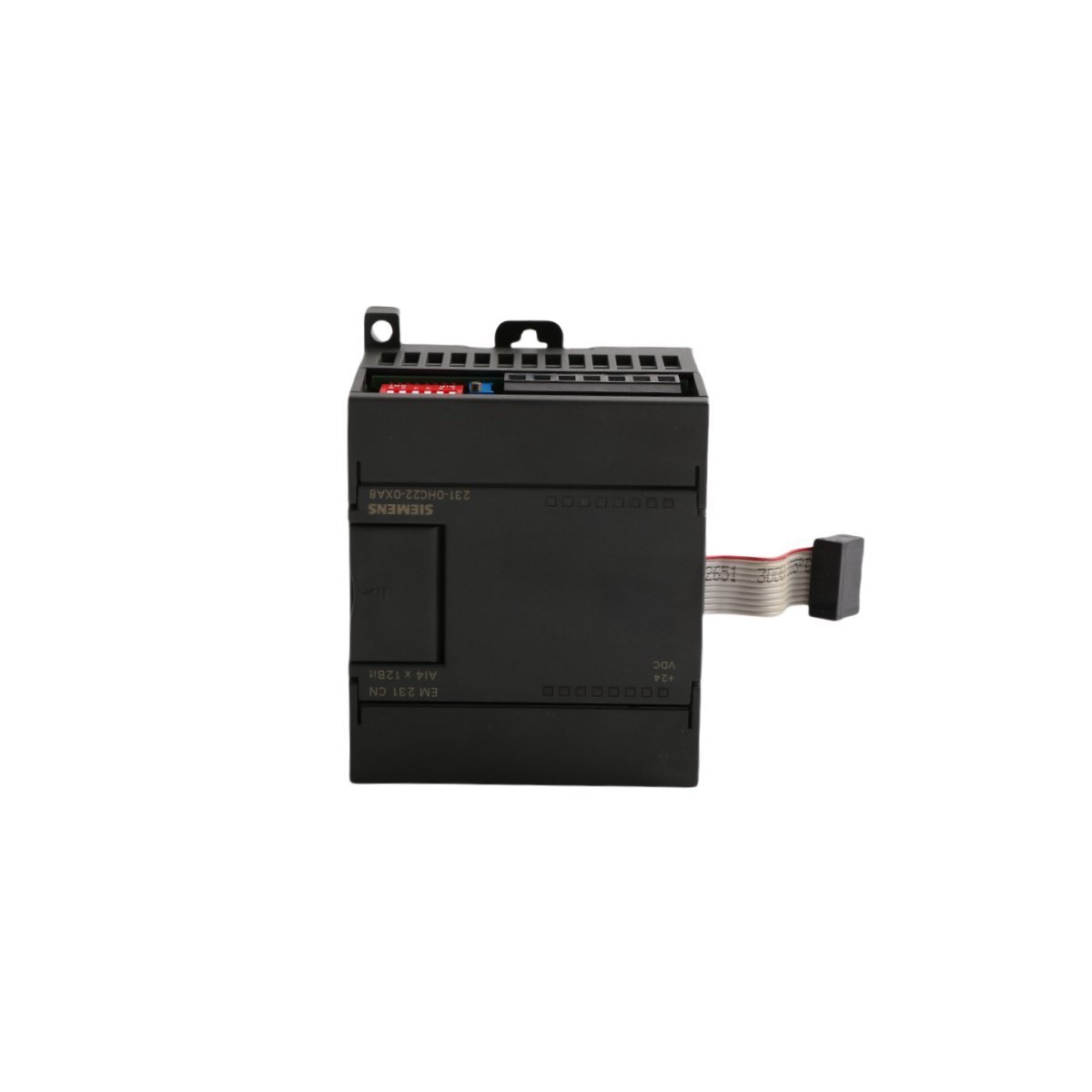

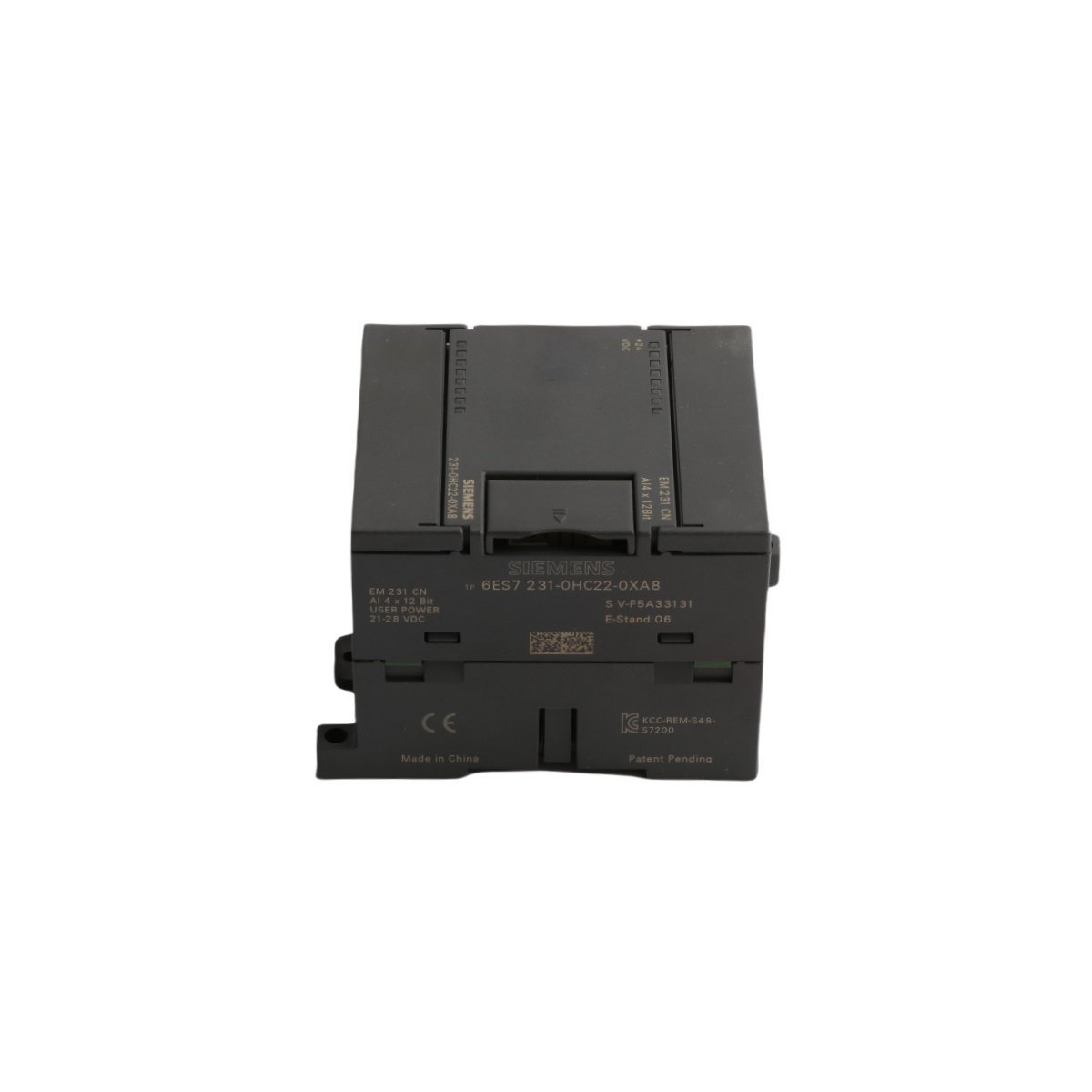

Siemens 6ES7231-0HC22-0XA8 Analog Input Module

The Siemens 6ES7231-0HC22-0XA8 functions as a dedicated expansion module for the SIMATIC S7-200 CN PLC series. This unit specializes in converting continuous physical signals into digital data for the central processor. It provides four individual analog input channels to monitor multiple field devices simultaneously. Specifically designed for the regional S7-22X CN CPUs, this module ensures perfect hardware synchronization. Consequently, it offers a cost-effective way to expand the sensory capabilities of localized automation controllers.

High-Resolution Voltage Measurement and Signal Integrity

This EM 231 expansion module supports a standard 0 to 10V DC voltage input range. It utilizes a 12-bit analog-to-digital converter (ADC) to maintain high measurement granularity. Because the module employs differential inputs, it effectively suppresses common-mode noise and electromagnetic interference. This design choice protects signal accuracy in demanding factory environments. Furthermore, the low 2W power consumption minimizes the thermal load on the PLC rack. These characteristics make it highly suitable for precision monitoring in process control applications.

Technical Specifications

Professional Diagnostics and Maintenance

System maintenance remains simple through the integrated status indicators on the module faceplate. These LEDs provide immediate feedback regarding the operational state and potential wiring faults. The module facilitates rapid replacement during service intervals to minimize system downtime. By maintaining high isolation between channels, the hardware prevents ground loop issues across the automation network. This reliability supports the long-term health of your industrial infrastructure.
