F7553 HIMA Communication Module for H41q/H51q Safety Racks

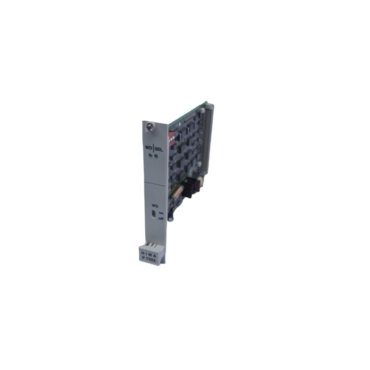

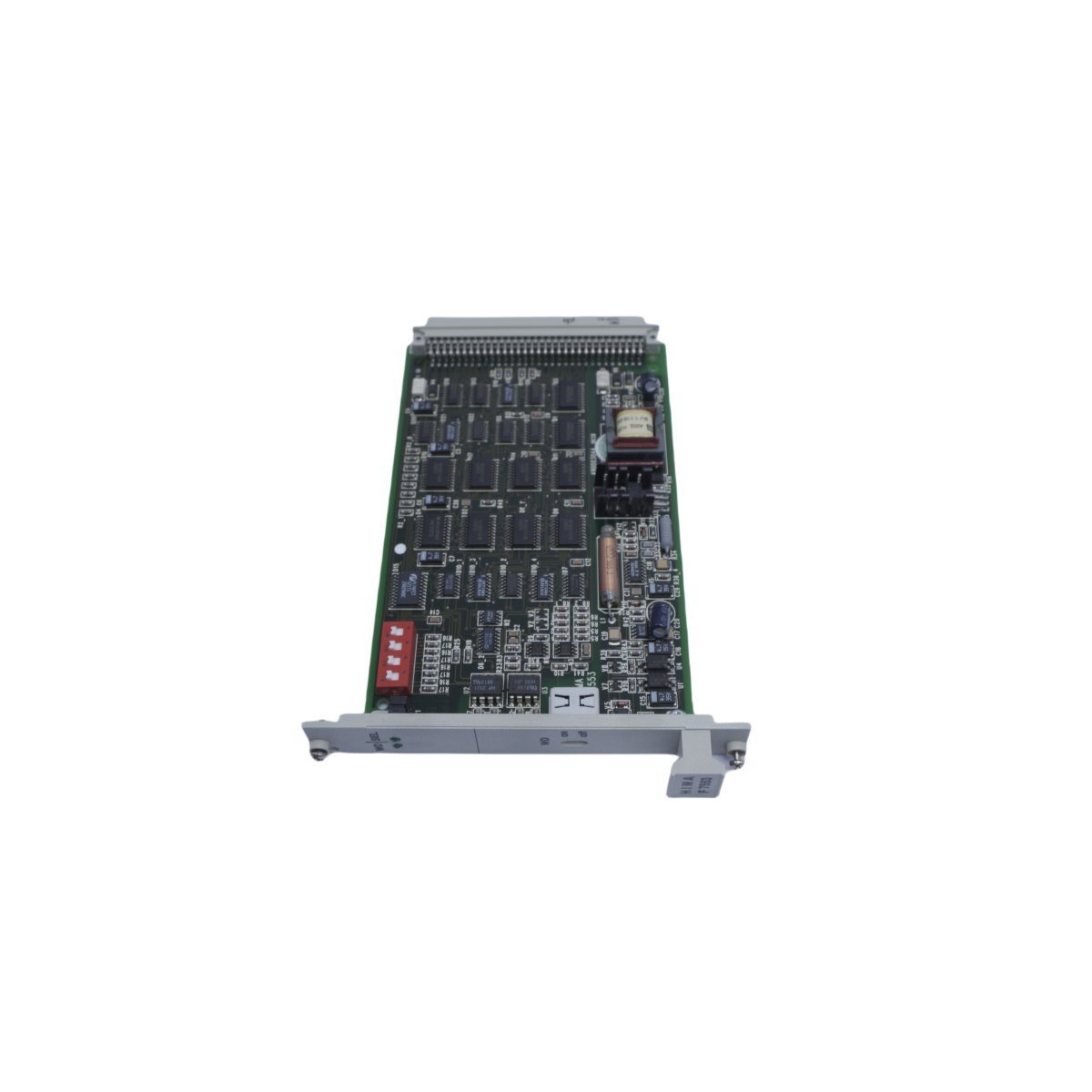

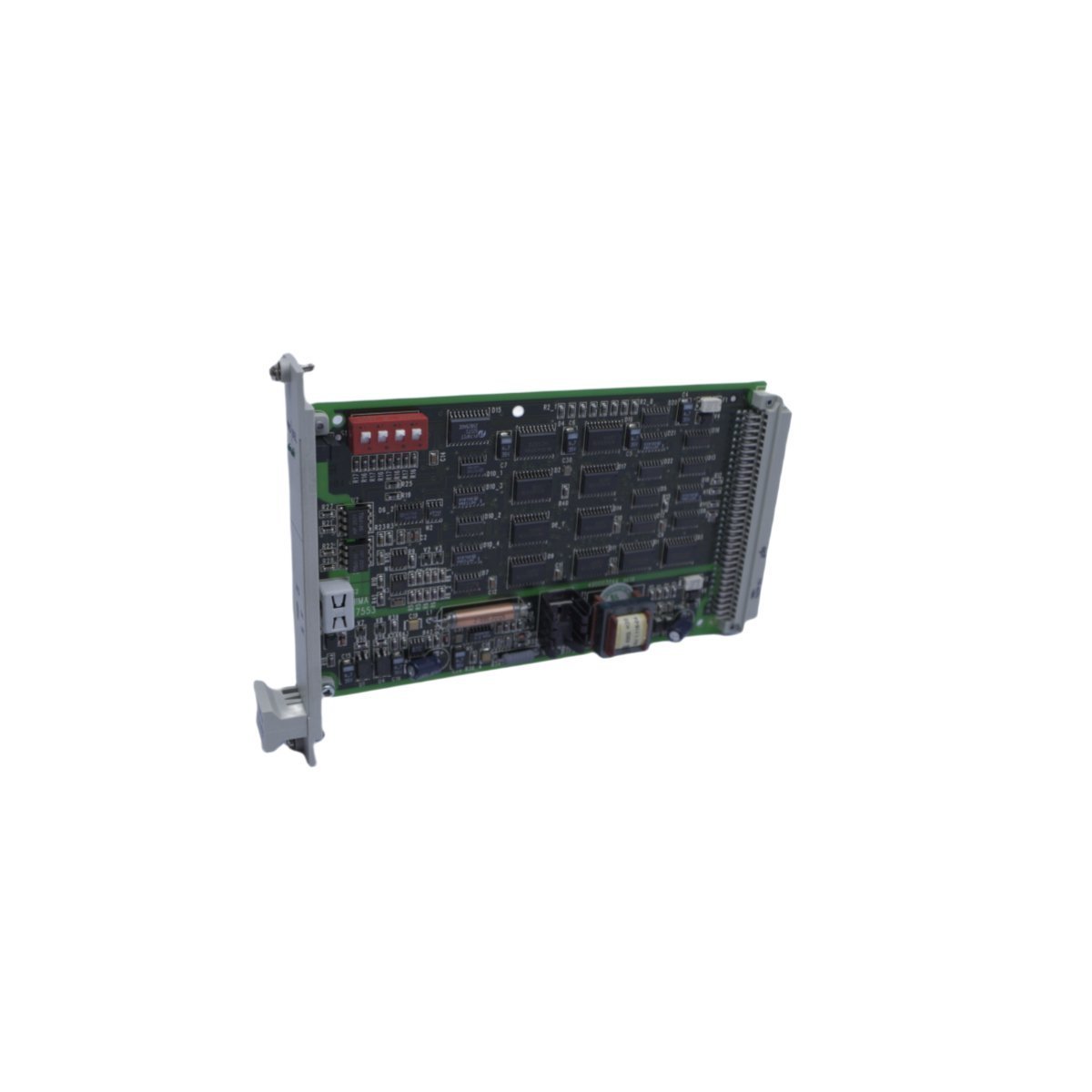

HIMA F7553 H41q/H51q System Coupling Module

The HIMA F7553 acts as a high-integrity coupling and communication interface designed specifically for the H41q and H51q safety-related automation systems.

Technical Function and Role

The F7553 Coupling Module facilitates secure data exchange and synchronization within HIMA’s legacy safety architectures. It serves as a critical bridge for inter-system communication, ensuring that safety-critical data moves across the bus without compromising the integrity of the loop. By managing these complex data links, the module allows for distributed safety control while maintaining a unified response to emergency conditions. Furthermore, HIMA engineered this module to support the deterministic nature required for SIL-rated environments, where timing and data accuracy are non-negotiable.

Advanced Diagnostics and Fault Tolerance

This module incorporates sophisticated diagnostic routines that monitor the health of communication paths in real-time. Whenever the system detects a signal anomaly or internal hardware fault, the F7553 triggers immediate safety protocols to prevent hazardous states. Its fault-tolerant design ensures that even during a communication disruption, the safety functions remain prioritized. Consequently, these proactive monitoring features significantly lower the Mean Time to Repair (MTTR) and protect high-value assets from process excursions.

Integration and System Compatibility

The F7553 seamlessly integrates into existing H41q and H51q racks, providing a streamlined path for upgrading or maintaining legacy DCS environments. Transitioning to new configurations becomes more efficient because the module utilizes HIMA’s proven engineering standards, which reduces the need for extensive recoding. Additionally, the compact physical footprint of the F7553 permits high-density installations in control cabinets where space is limited. Operators benefit from a straightforward interface that simplifies the monitoring of communication statuses and link health.

Technical Specifications
