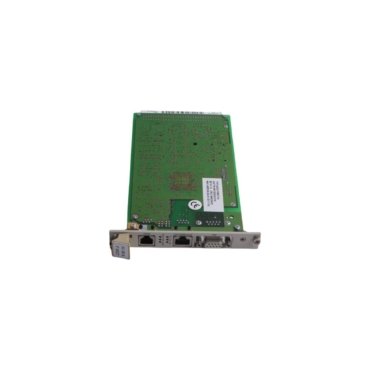

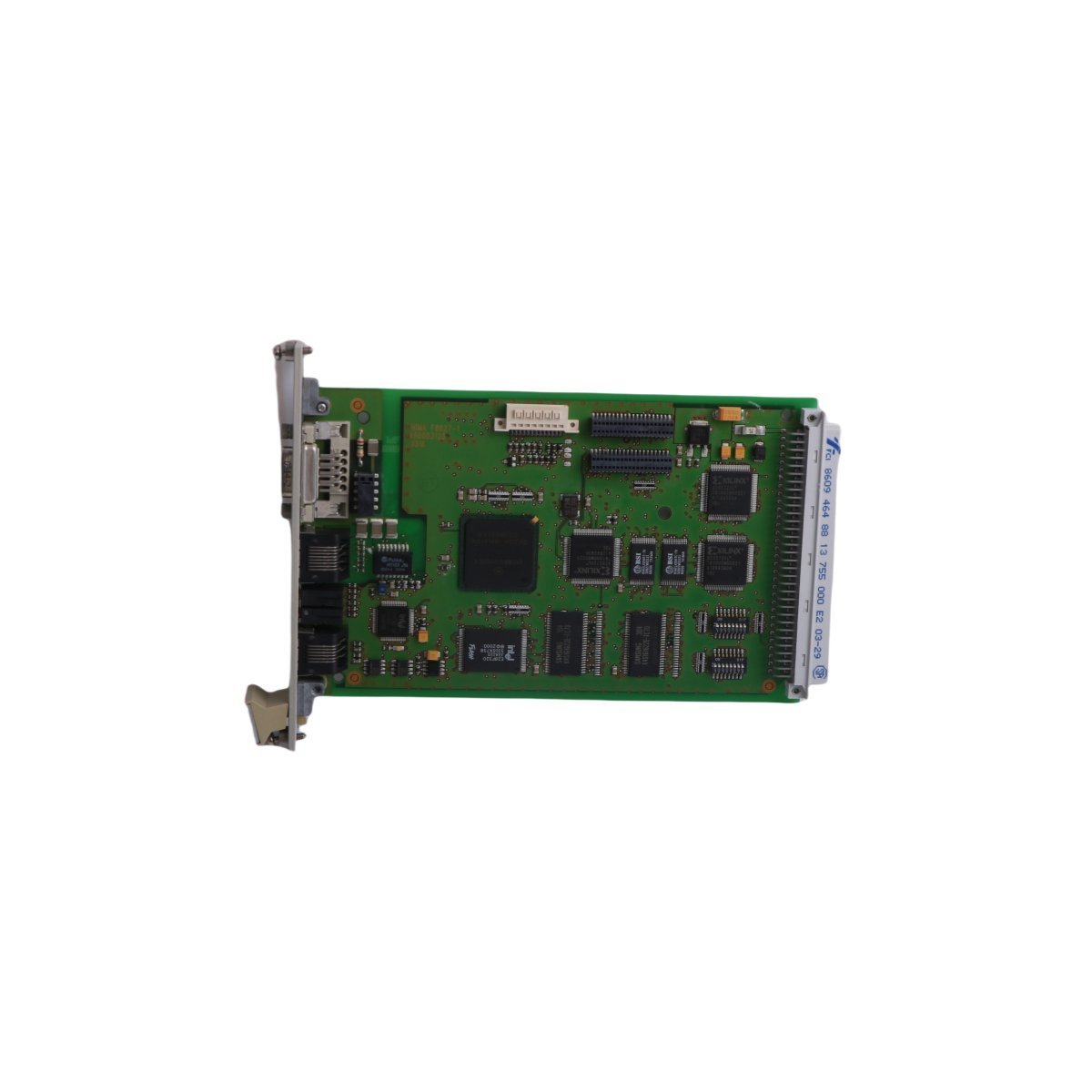

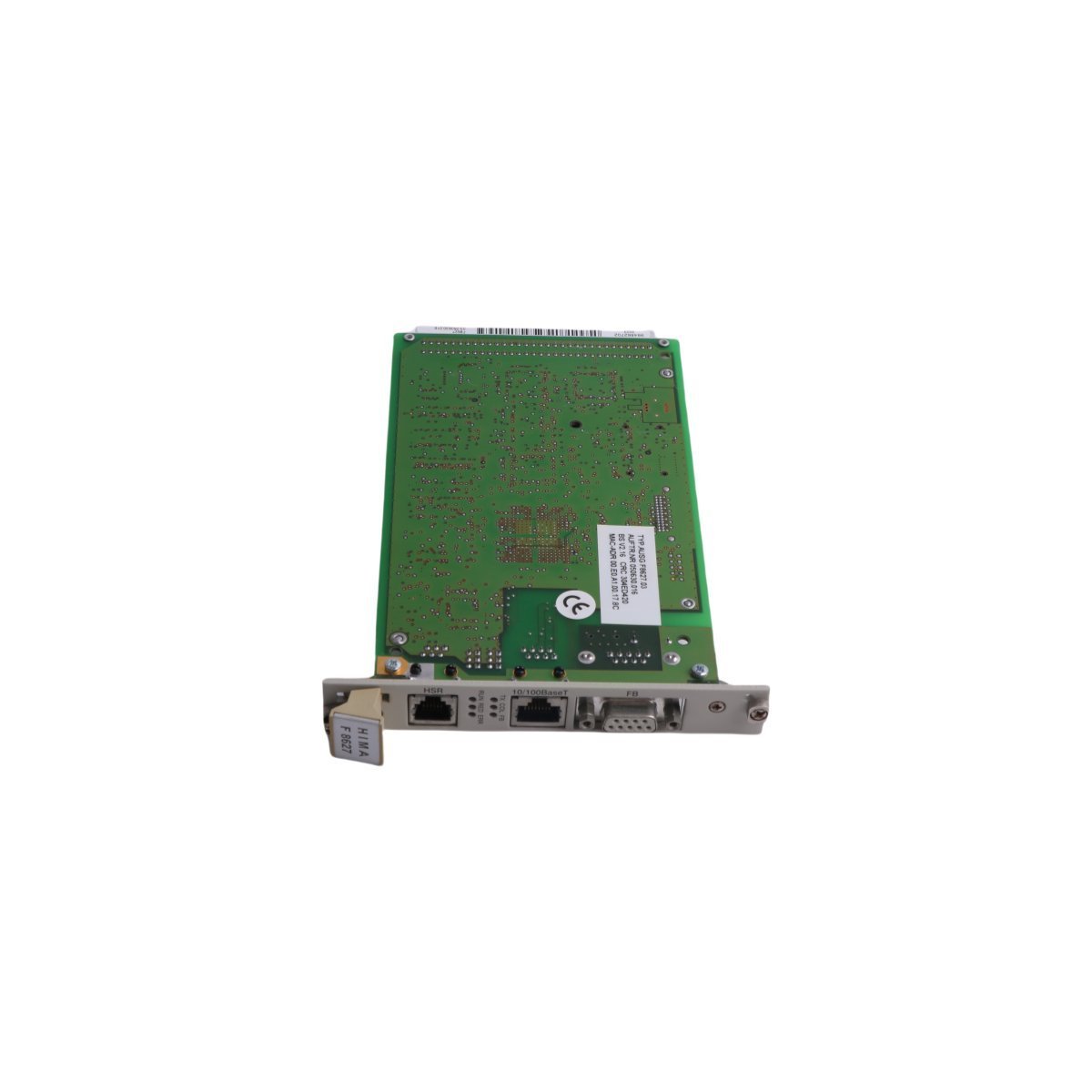

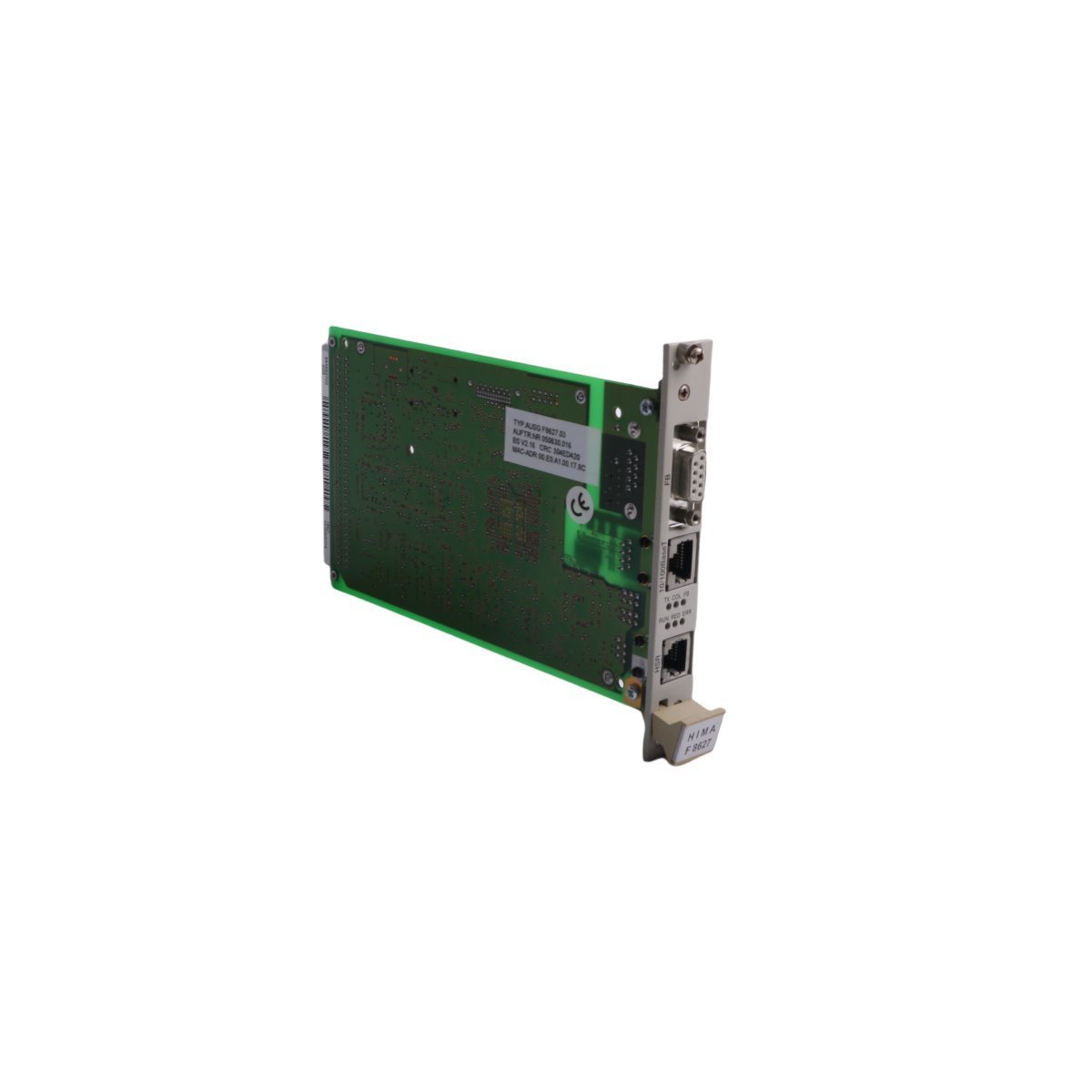

The HIMA F8627 serves as a high-speed communication gateway for H41q and H51q safety systems. This module establishes a secure data bridge between the safety logic and external control networks. It specifically manages Ethernet-based protocols to facilitate real-time process monitoring. By handling complex data traffic, it offloads communication tasks from the main processor. This ensures that the safety controller maintains its focus on critical logic execution. Consequently, the module enables seamless connectivity with Distributed Control Systems (DCS) and human-machine interfaces.
Diagnostic Intelligence and Process Security
This communication module incorporates advanced self-diagnostic features to ensure maximum system availability. It continuously monitors the integrity of the network link and internal hardware states. When it detects a fault, the system immediately alerts the operator through the diagnostic software. This proactive approach minimizes unplanned downtime during 24/7 industrial operations. Furthermore, the unit supports redundant configurations to prevent single points of failure. These mechanisms provide the high levels of reliability required for safety-instrumented systems (SIS).
Technical Specifications
The following data outlines the physical and functional parameters of the F8627 module:
- Manufacturer: HIMA
- Series: H41q / H51q Systems
- Model Number: F8627
- Component Type: Communication Module
- Physical Interface: Ethernet / RJ-45
- Power Consumption: 5 VDC / Approx. 1.5W
- Operating Weight: 0.14 kg
- Dimensions: 2.0 x 18.5 x 12.8 cm
- Manufacturing Origin: Germany
- Safety Compliance: SIL 3 (within certified systems)
Hardware Architecture and Cabinet Deployment
The F8627 features a slim-profile design to maximize space efficiency within industrial control racks. Its compact 20mm width allows for high-density networking in standardized enclosures. Because it uses the standardized HIMA backplane interface, installation requires no specialized wiring. The module’s passive cooling design ensures stable operation without the need for internal fans. Moreover, the ruggedized housing protects delicate electronics from industrial electromagnetic interference. This design makes it suitable for demanding environments like offshore platforms or chemical refineries.
