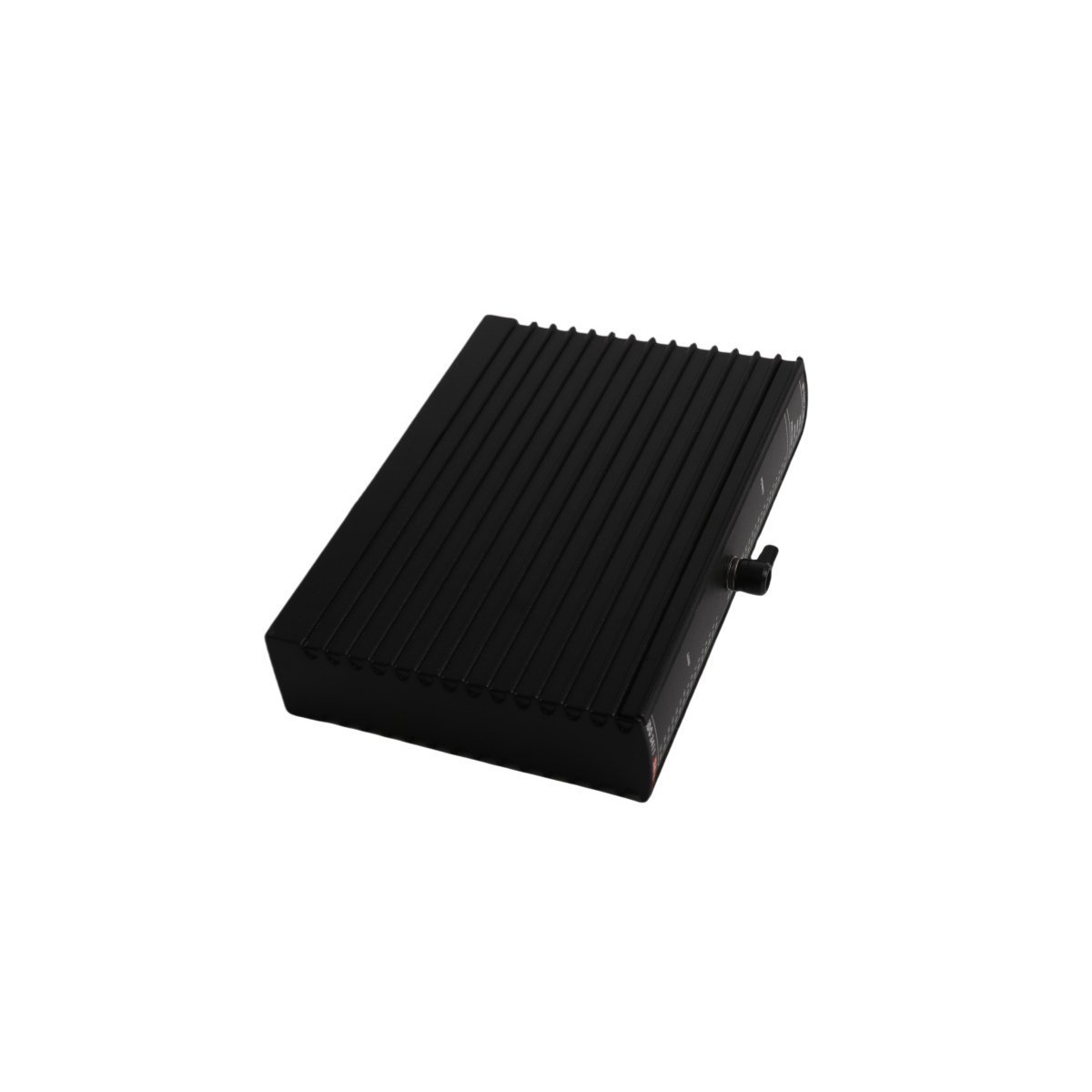

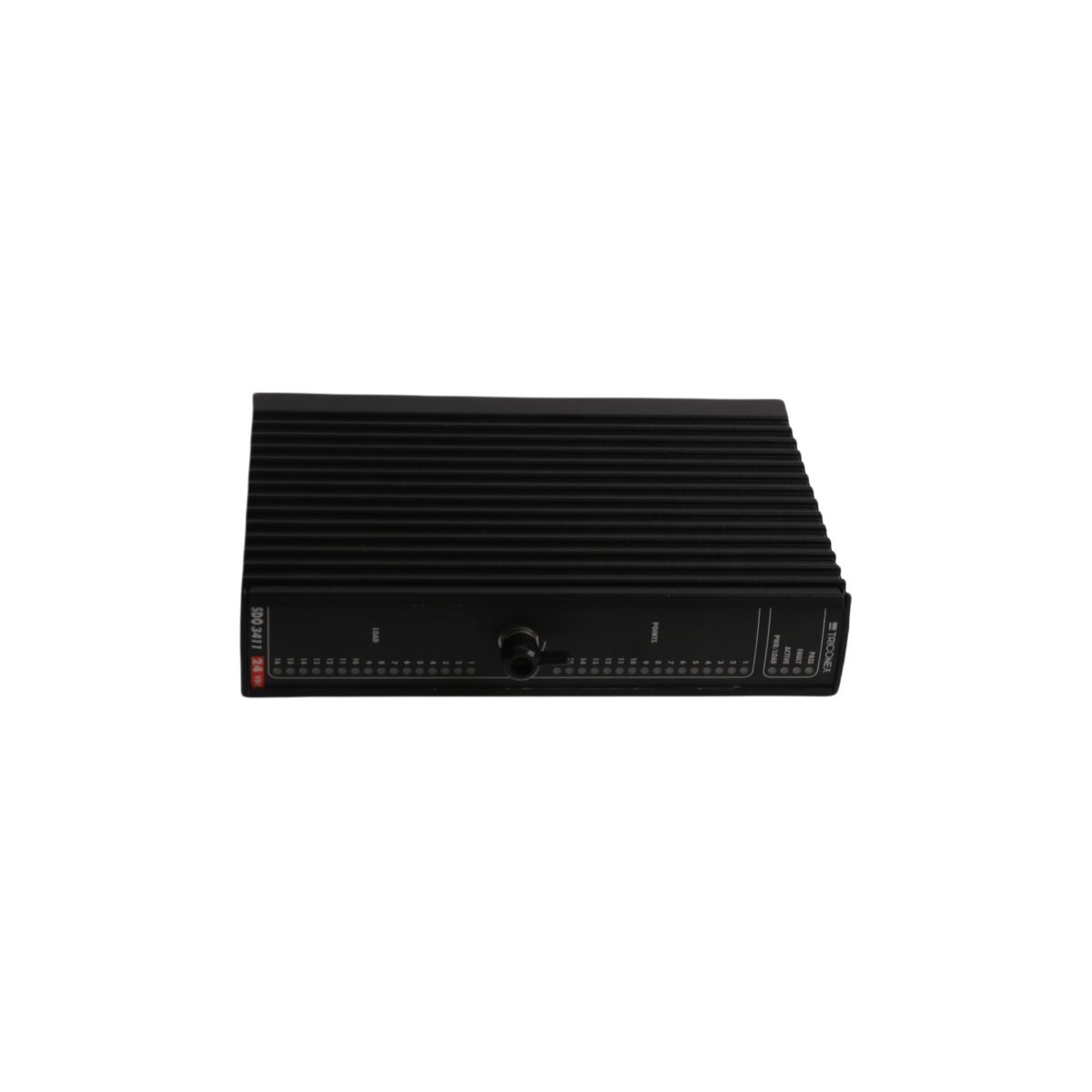

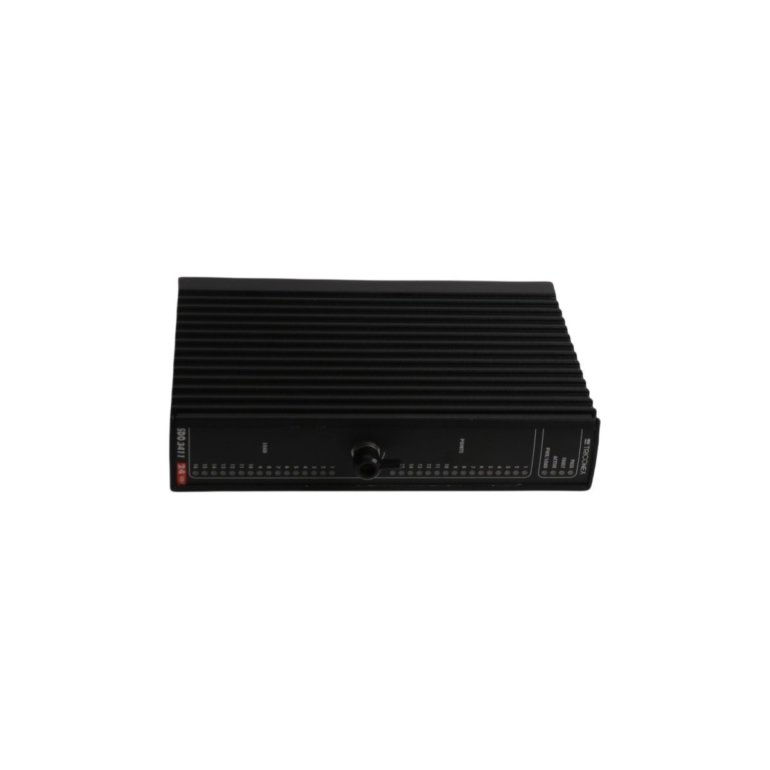

The Triconex SDO3411 S2 functions as a premier Supervised Digital Output (SDO) module specifically built for the Tricon™ Triple Modular Redundant (TMR) safety platform. Engineers utilize this module to drive safety-critical field actuators where both output integrity and constant availability are non-negotiable. By implementing a quadruplicated output voting architecture, the SDO3411 S2 guarantees that the system executes safety commands reliably, even if internal hardware faults occur. Consequently, this hardware serves as a vital safeguard in high-hazard settings like Emergency Shutdown (ESD) systems and Burner Management Systems (BMS).
Technical Specifications Summary
| Specification | Details |
| Brand | Triconex (Schneider Electric) |
| Model Number | SDO3411 S2 |
| Module Type | Supervised Digital Output (TMR) |
| Output Channels | 16 Channels |
| Voting Architecture | Quadruplicated (Transistor-based) |
| Weight | 0.9 kg |
| Dimensions | 3.2 x 26.5 x 36.0 cm |
| Safety Rating | SIL 3 Capable |
| Product Origin | USA |
Key Technical Characteristics
- Triple Modular Redundancy: The module processes three separate logic signals through quadruplicated hardware voting to remove any single point of failure.
- 16 Supervised Channels: It provides 16 discrete output points, each featuring dedicated monitoring for both load health and wiring integrity.
- Non-Invasive Diagnostics: The system identifies field wiring issues and internal switch faults without needing to cycle the actual output state.
- High-Speed Execution: Optimized circuitry allows for millisecond response times, ensuring rapid action during an emergency trip demand.
- Enhanced Thermal Management: The hardware design supports high-availability performance across wide and challenging industrial temperature ranges.
