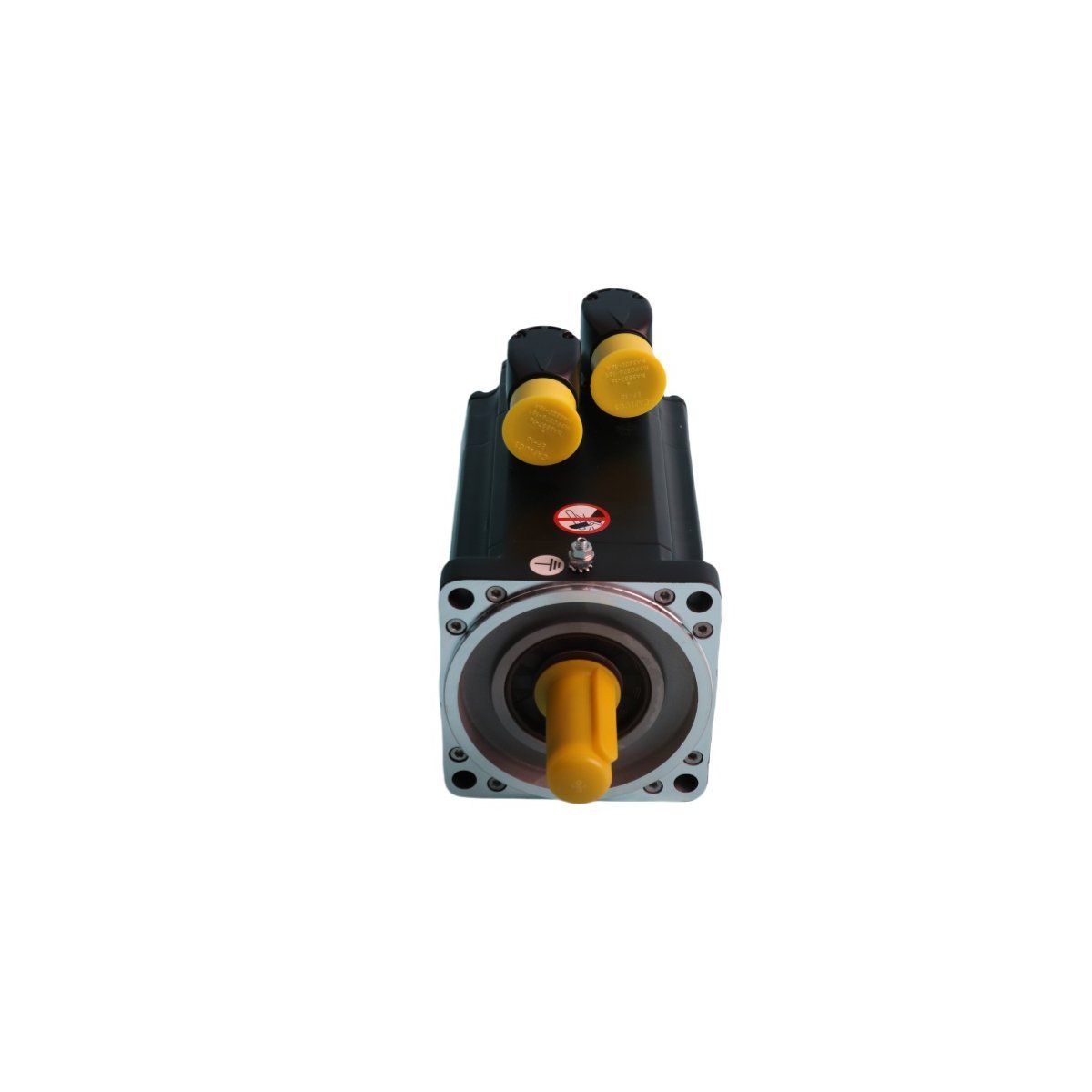

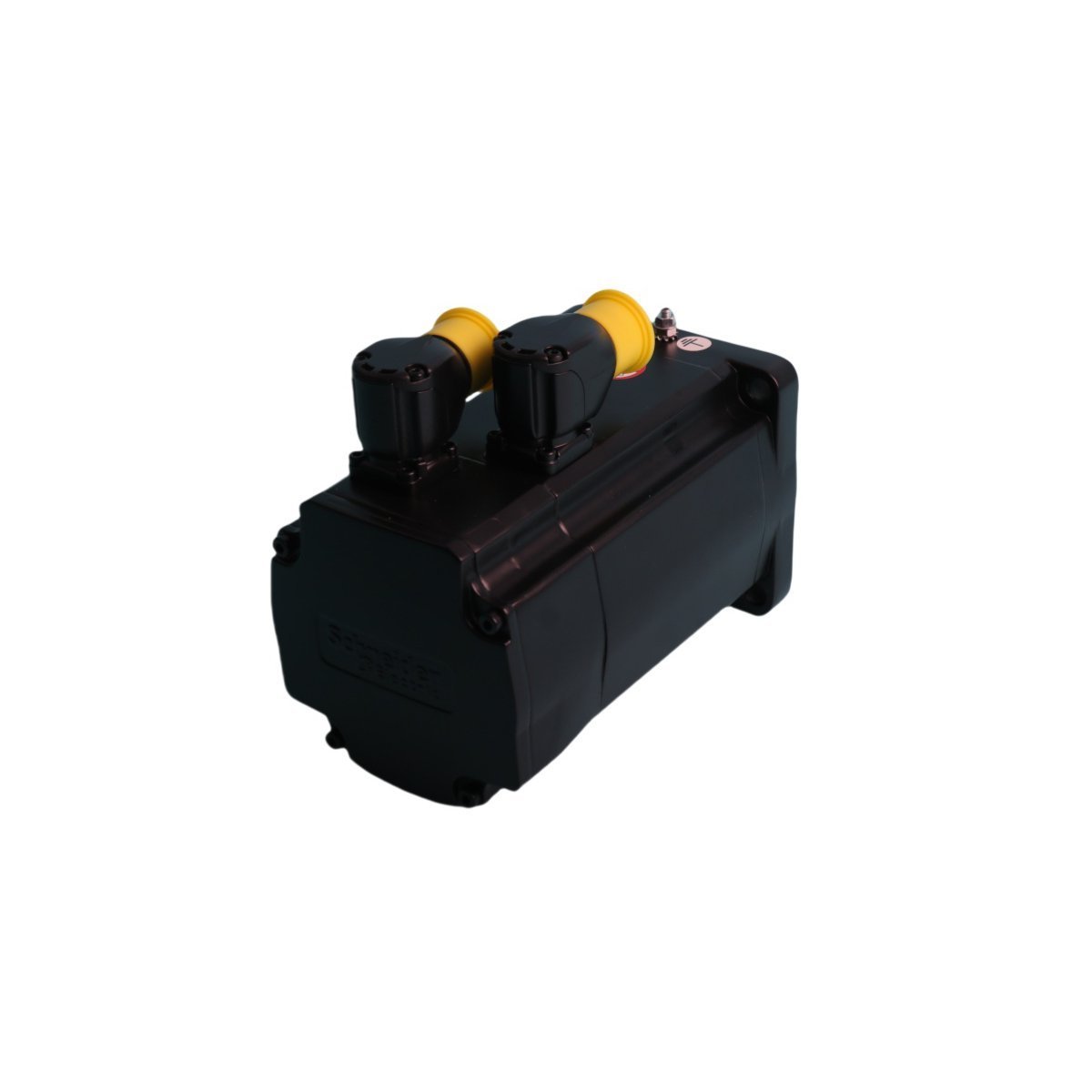

The Schneider Electric SH31001P11A2000 is a high-performance 4-pole synchronous servo motor. It belongs to the Lexium SH3 series. This motor serves the PacDrive 3 automation platform efficiently. It converts electrical energy into precise mechanical motion for complex industrial tasks. The unit supports a broad supply voltage range from 115V to 480V. It operates seamlessly with Lexium 52 and Lexium 62 drive systems.
Mechanical Design and Thermal Management
The motor utilizes natural convection cooling to maintain optimal temperatures. This design eliminates the need for external ventilation fans. It features rotatable right-angle connectors for flexible wiring in tight spaces. The 95mm centering collar ensures perfect alignment during installation. The compact 168.5mm body length facilitates integration into space-constrained machinery. It weighs approximately 4.3 kg to balance power density and handling.
Industrial Applications
This servo motor excels in high-speed packaging and material handling sectors. It provides the necessary accuracy for multi-axis robotic systems. Engineers use it in labeling machines and high-precision printing presses. The motor also supports automated assembly lines and metalworking machinery. It delivers repeatable positioning accuracy for demanding motion control cycles.
Primary Technical Specifications
- Continuous Power Output: 1190 W
- Maximum Mechanical Speed: 6000 RPM
- Continuous Stall Torque: 3.3 N.m
- Peak Stall Torque: 9.6 N.m
- Torque Constant: 0.84 N.m/A
- Feedback System: Integrated Hiperface absolute single-turn encoder
- Shaft Type: 19mm x 40mm shaft featuring a parallel key
- Protection Rating: IP54 standard with IP65 options available
- Mounting Flange: 100mm international standard square flange
