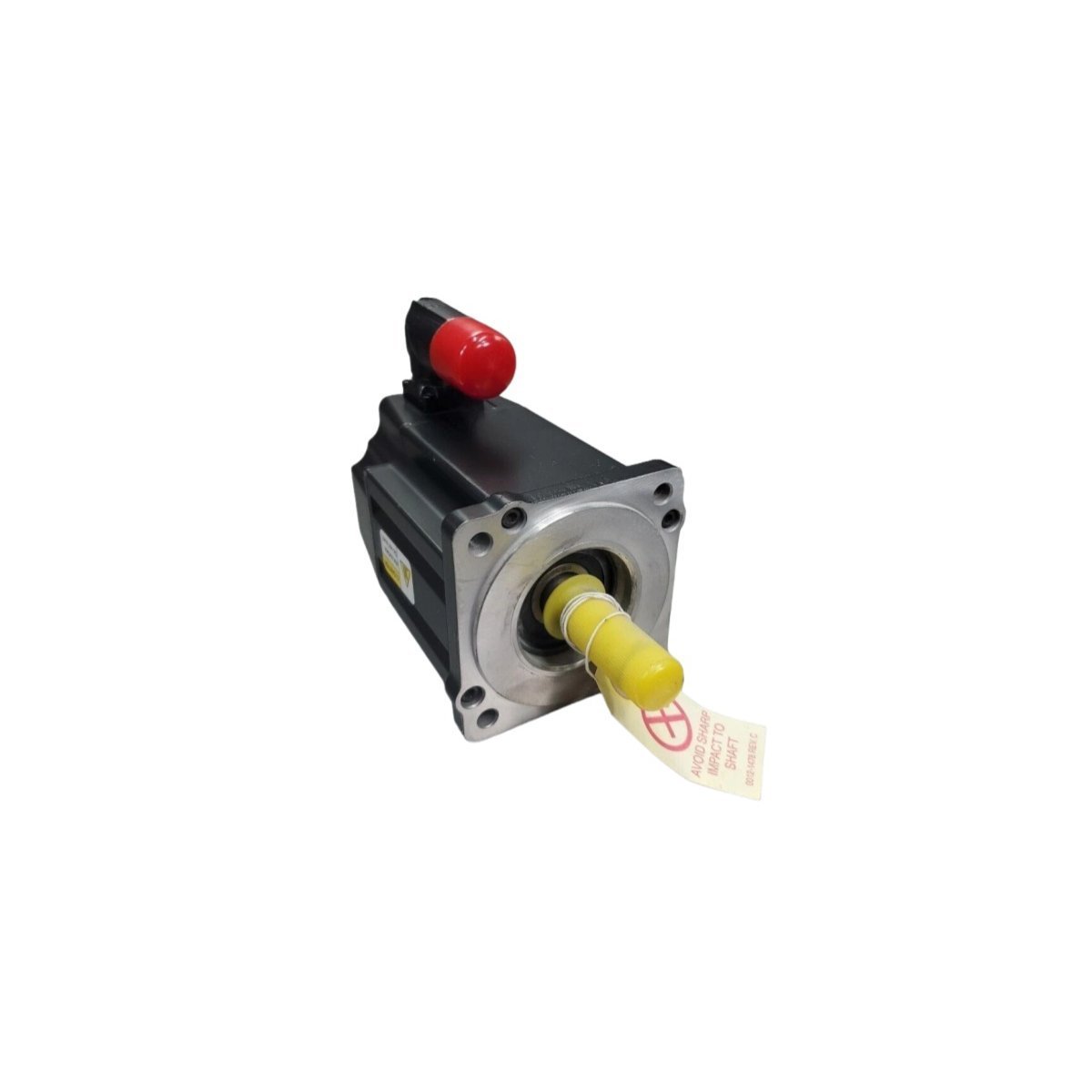

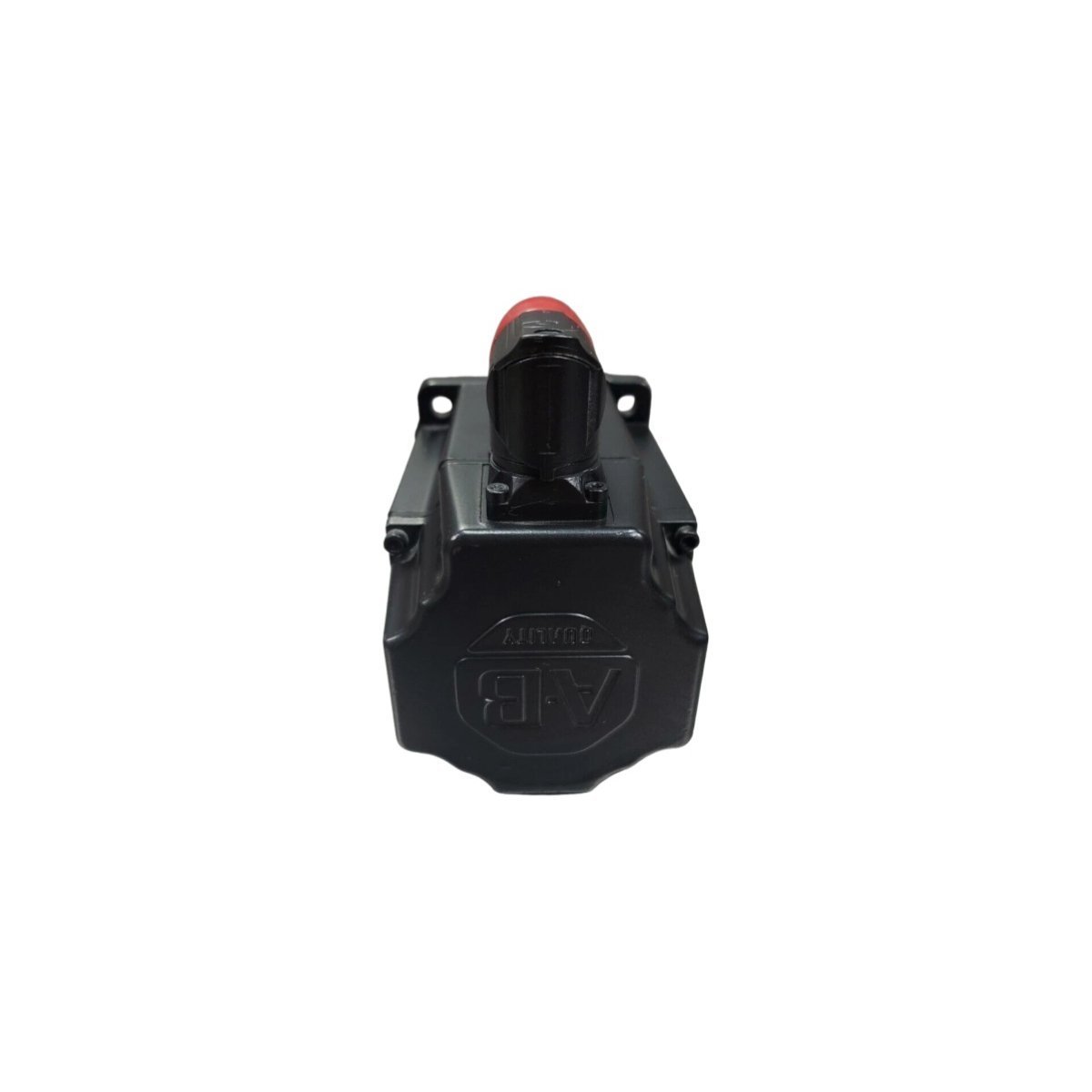

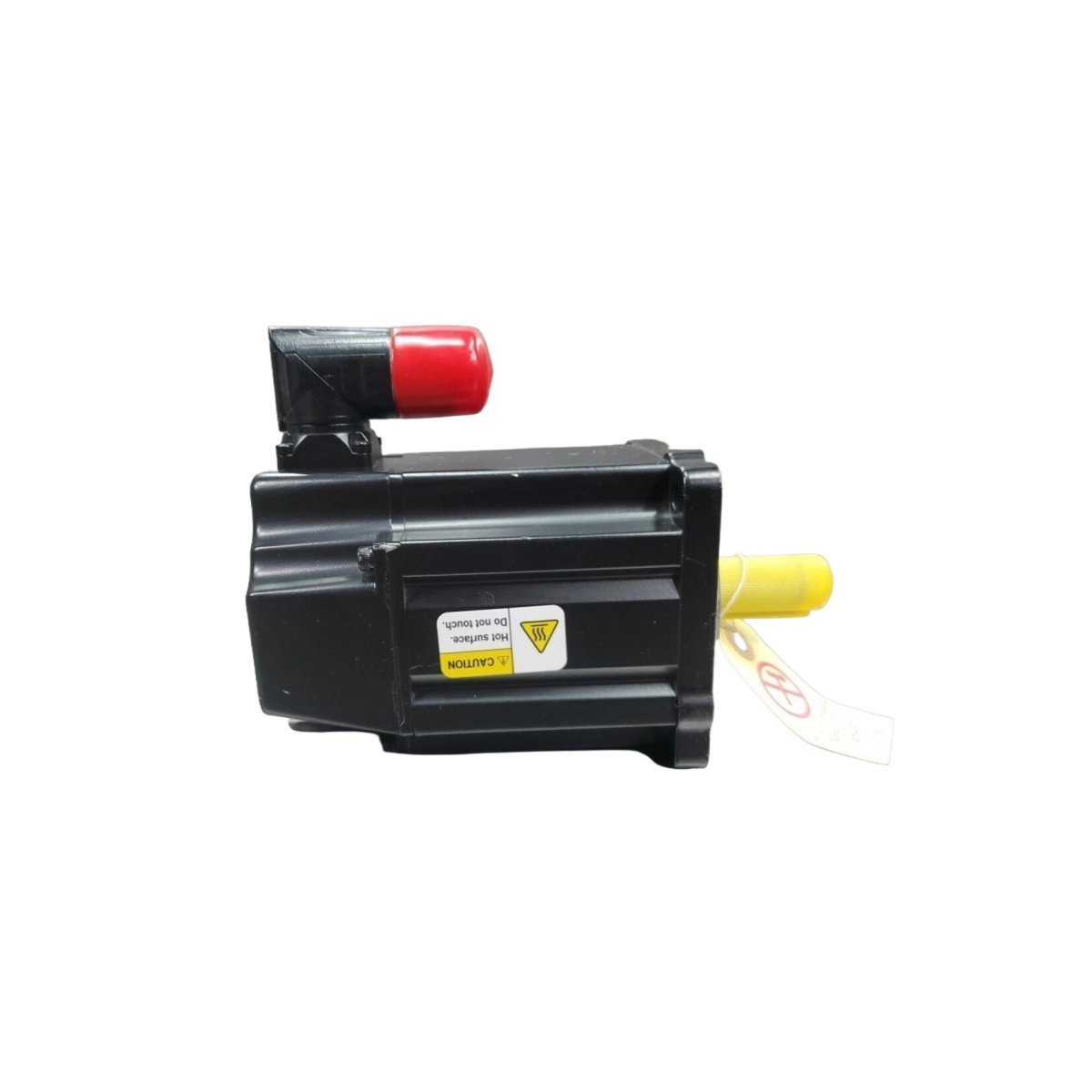

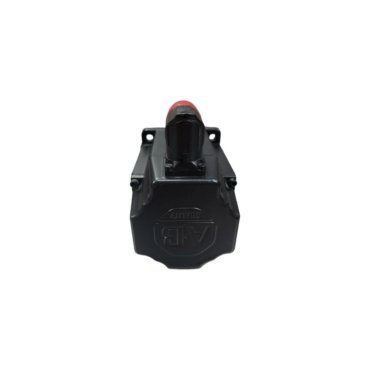

Allen Bradley VPL-B1001M-CK12AA Servo Motor

The Allen Bradley VPL-B1001M-CK12AA is a high-performance brushless servo motor engineered for the Kinetix 5500 drive platform. This low-inertia motor excels in applications requiring rapid start-stop cycles and high-speed positioning. By utilizing a permanent magnet design, the unit delivers consistent torque across its entire operating range. It effectively serves industries like high-speed packaging, electronic assembly, and precision printing. The compact 100mm frame allows for seamless integration into tight machine layouts. Consequently, manufacturers achieve better throughput without increasing the machine footprint.

Technical Specifications

Precision Feedback and High-Speed Performance

This VPL series motor features an advanced Hiperface DSL digital encoder for superior resolution. The 18-bit single-turn feedback ensures extremely accurate position control for complex motion profiles. Furthermore, the motor supports a maximum speed of 6000 RPM for high-velocity tasks. The single-cable technology simplifies installation by combining power and feedback into one connection. This design significantly reduces wiring errors and maintenance requirements. Therefore, the system provides a cleaner installation and higher signal integrity.

Mechanical Design and Installation

The VPL-B1001M-CK12AA utilizes an IEC metric flange with a precision mounting pilot. This construction guarantees perfect alignment with gearboxes or drive components. Additionally, the rotatable right-angle SpeedTec DIN connector offers 325 degrees of movement. This flexibility allows for easy cable routing in various cabinet configurations. The motor lacks an internal holding brake to minimize weight and rotor inertia. Designers must account for this when planning vertical load applications. Proper mounting ensures the unit maintains its rated environmental protection during long-term operation.
