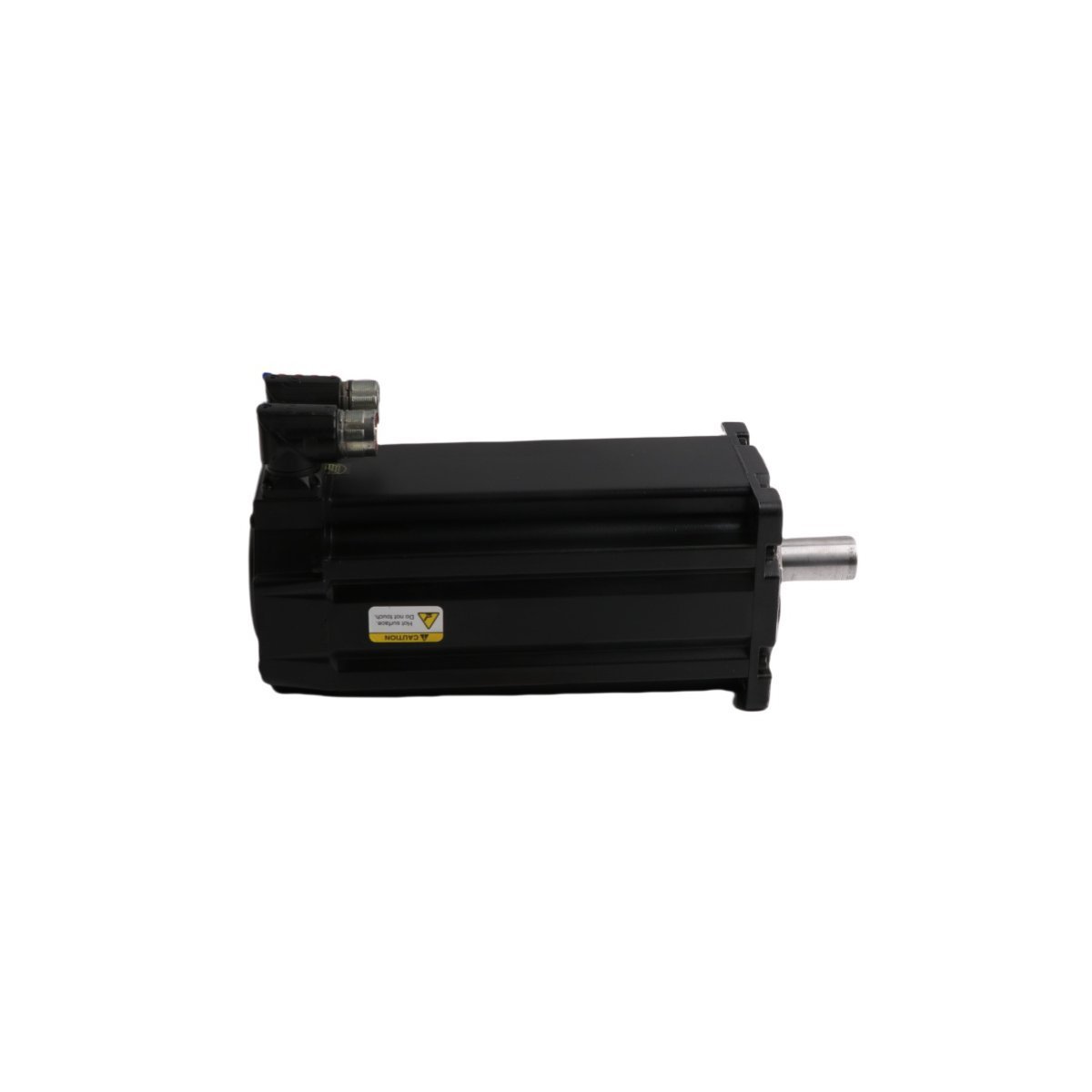

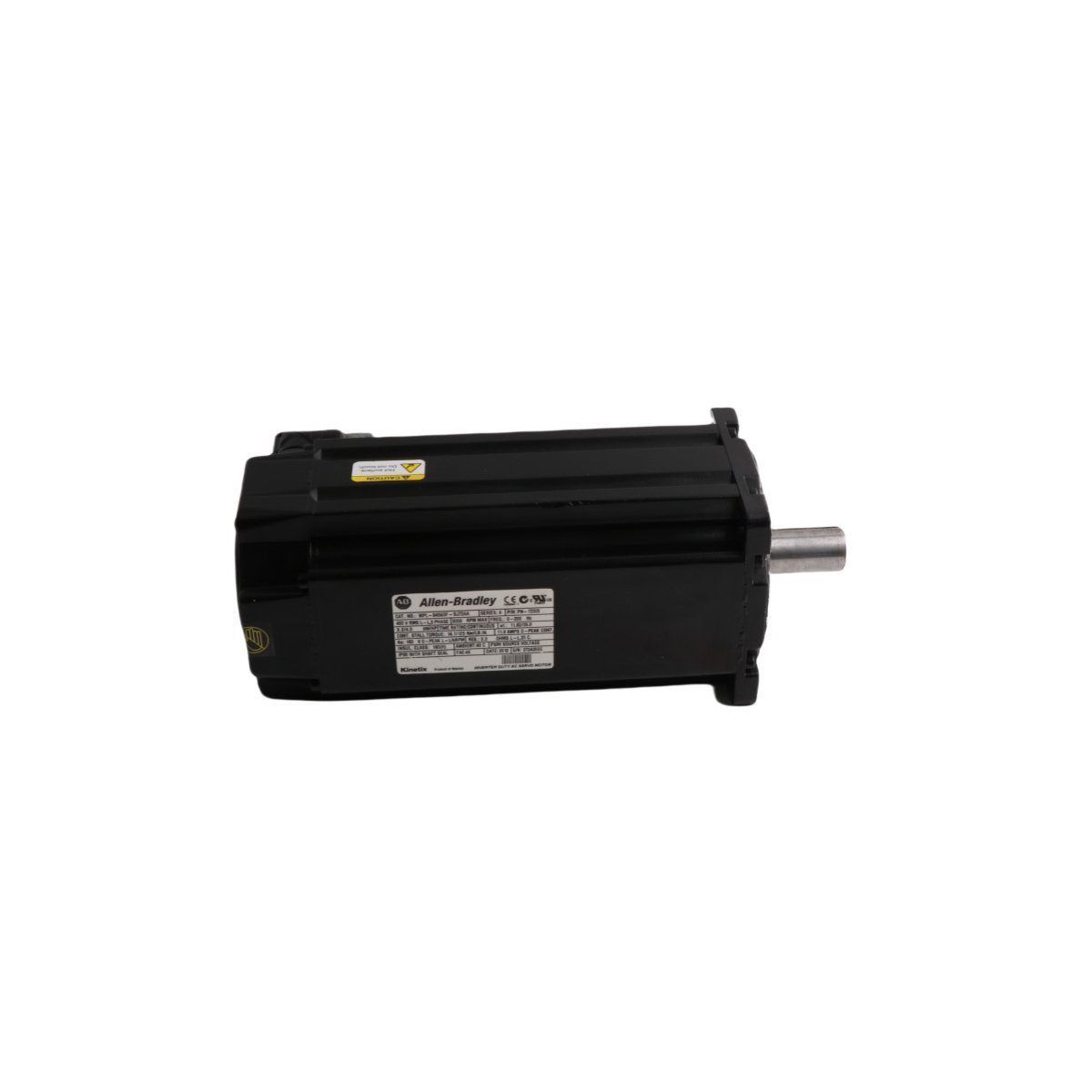

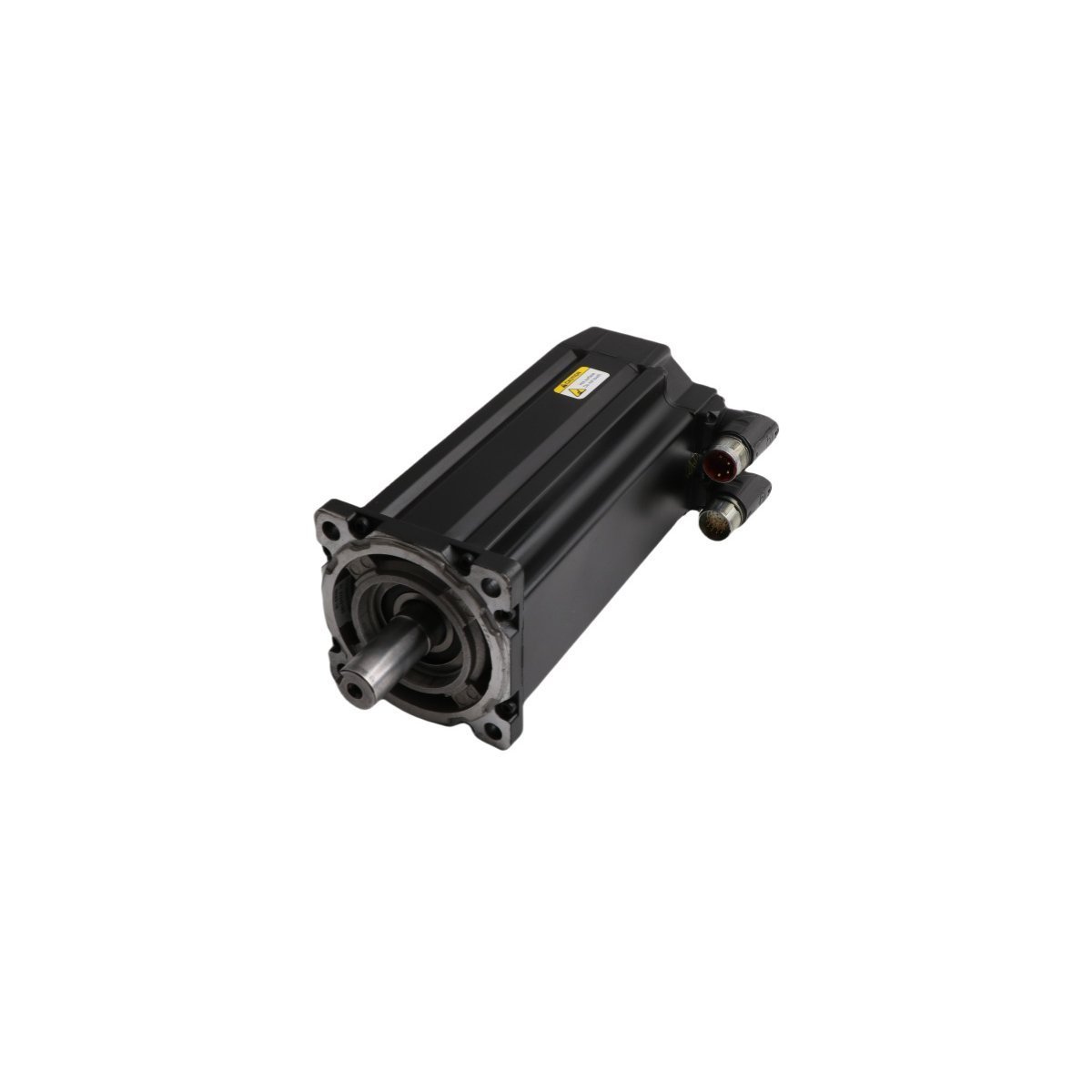

Allen Bradley MPL-B4560F-SJ72AA Servo Motor

The MPL-B4560F-SJ72AA is a high-performance AC rotary servo motor. It belongs to the Allen Bradley Kinetix MP-Series family. Engineers designed this unit for demanding industrial automation tasks. It excels in applications requiring rapid acceleration. The low-inertia rotor design ensures superior dynamic response. Furthermore, it integrates seamlessly with Kinetix drives for precise motion control.

Performance and Feedback

This brushless motor operates at a rated speed of 3,000 RPM. It utilizes a 460V AC power input for high-efficiency torque production. A high-resolution single-turn optical encoder provides critical position feedback. This encoder features 1,024 SIN/COS cycles per revolution. Consequently, the motor maintains exceptional accuracy during high-speed operations. The 130 mm frame size offers high torque density in a compact footprint.

Mechanical Construction

The hardware includes a keyed shaft for secure mechanical coupling. For electrical connections, it features 180-degree rotatable SpeedTec DIN connectors. This design simplifies cable routing in tight spaces. An IEC metric flange allows for standardized mounting across various platforms. Although this model is brakeless, it provides robust durability for continuous duty. The enclosure provides standard protection suitable for typical industrial environments.
