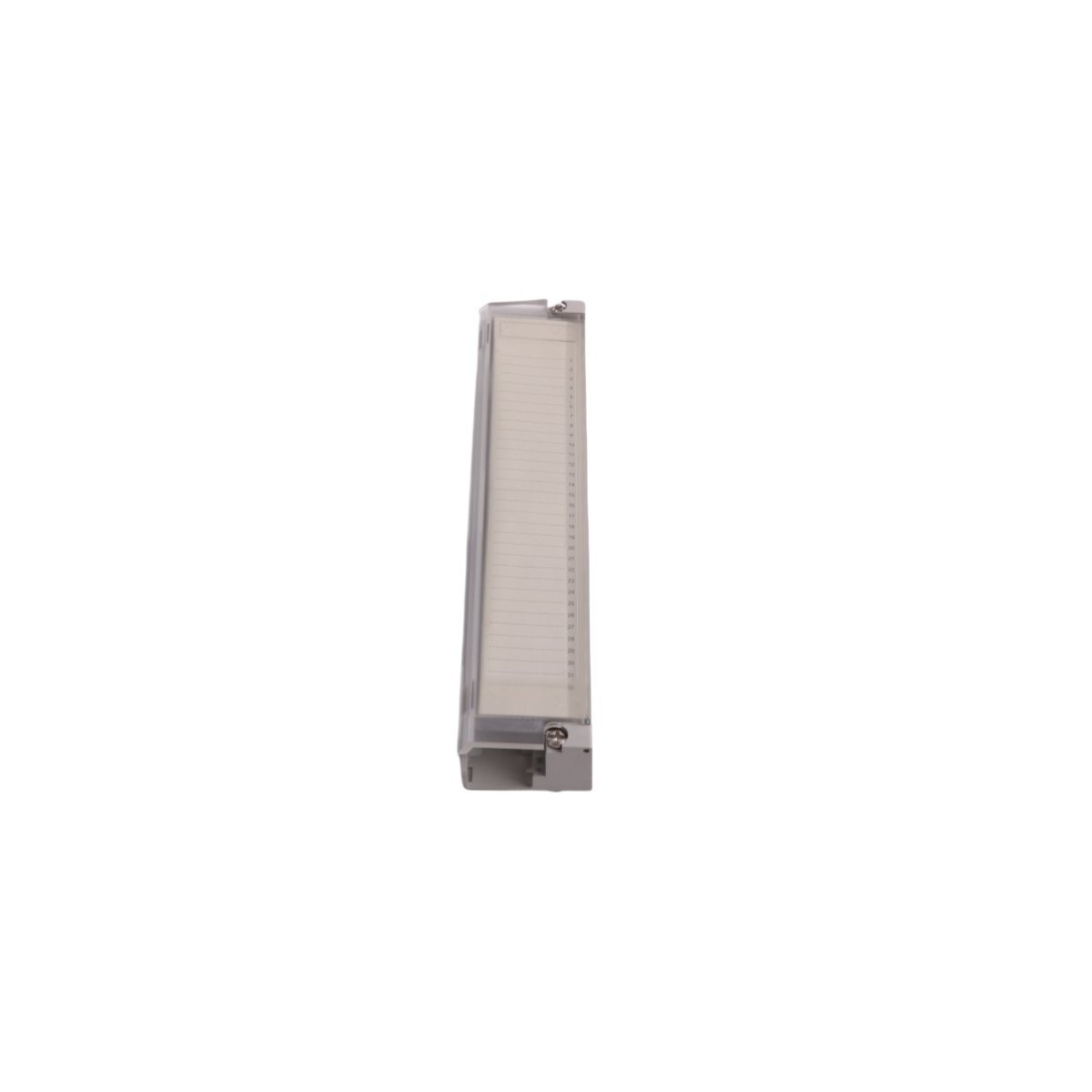

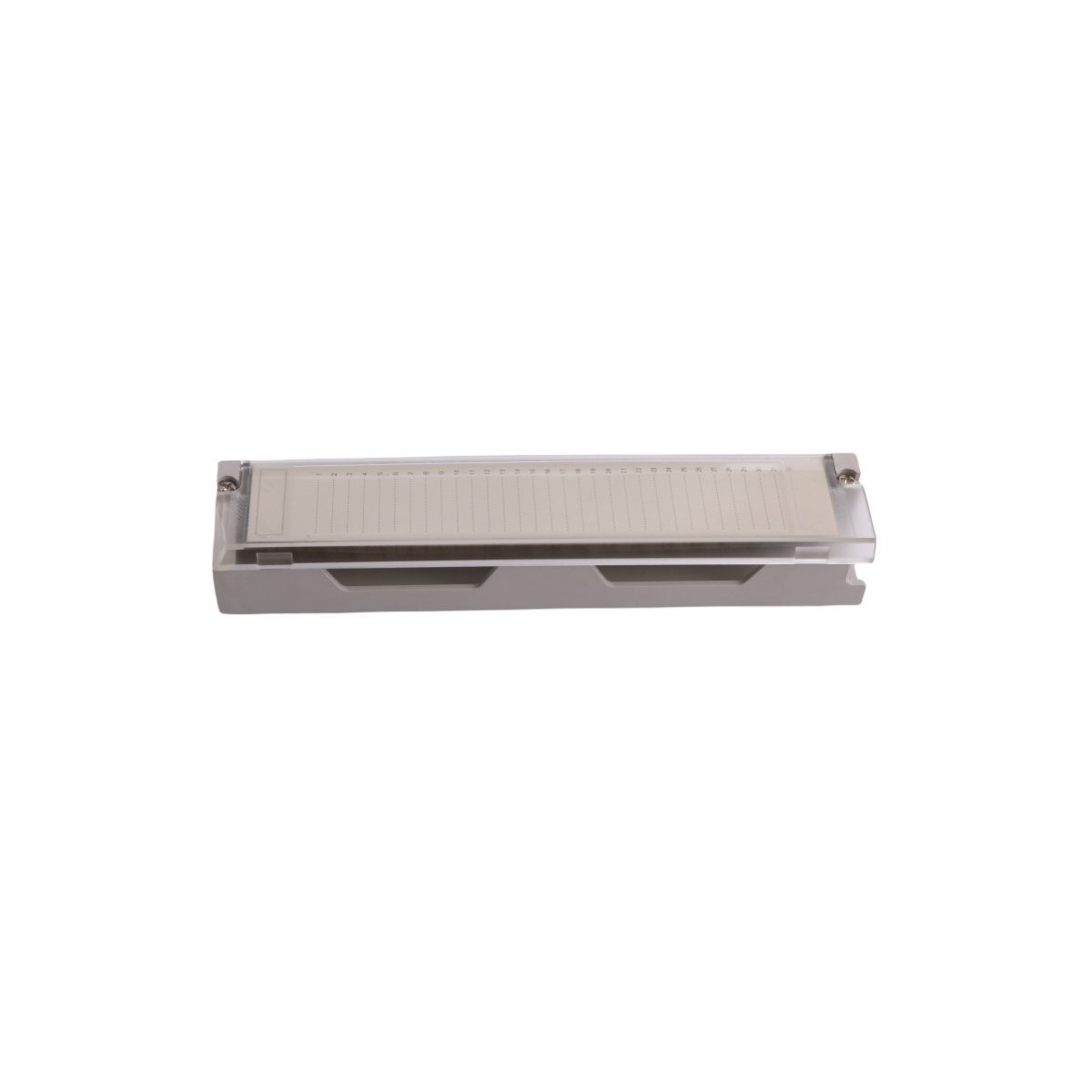

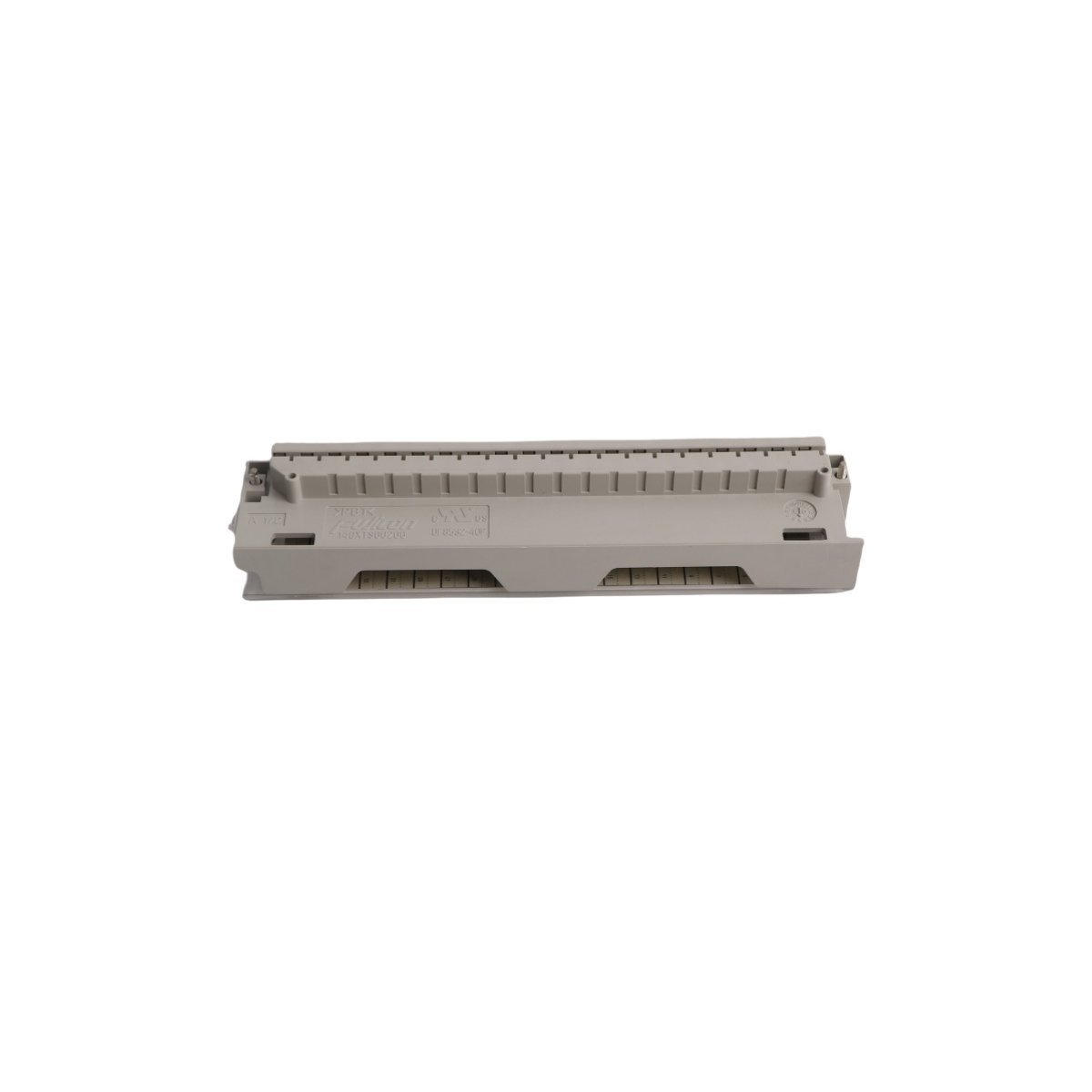

Schneider Electric 140XTS00200 Modicon Quantum Screw Terminal Block

Brief Product Description

The Schneider Electric 140XTS00200 is a high-density 40-position removable screw terminal block designed for Modicon Quantum I/O modules. It provides a secure, vibration-resistant interface for field wiring, ensuring reliable signal transmission between field devices and the PLC.

Technical Functionality and Design

The 140XTS00200 acts as the primary physical interface for Modicon Quantum I/O modules, facilitating the organized termination of field wiring. This screw-type terminal block employs a removable design, which allows technicians to replace I/O modules without disconnecting individual field wires. Consequently, this feature significantly reduces system downtime during maintenance or hardware upgrades.

Furthermore, the robust screw-clamping mechanism provides superior mechanical retention. This design choice prevents wire loosening caused by industrial vibrations or thermal expansion. By maintaining constant contact pressure, the 140XTS00200 preserves signal integrity for both discrete and analog data streams within the automation architecture.

Operational Environment and Applications

Schneider Electric engineered the 140XTS00200 to perform reliably under standard industrial conditions. The module maintains full functionality within an operating temperature range of 0°C to 60°C. Additionally, the unit withstands extreme storage temperatures from -40°C to 85°C, ensuring hardware longevity even in non-climate-controlled environments.

Due to its integration with the Modicon Quantum series, this terminal block serves critical roles in various sectors, including:

• Power generation and energy distribution monitoring.
• Large-scale water and wastewater treatment facilities.
• Complex process control in the chemical and pharmaceutical industries.
• High-speed manufacturing and assembly lines.

Technical Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon Quantum
• Model Number: 140XTS00200
• Type: Removable Screw Terminal Block
• Number of Positions: 40
• Tightening Torque: 0.4…0.5 N.m
• Dimensions: 5 x 27 x 27 cm
• Weight: 0.8 kg
• Country of Origin: France
• Compliance: CE, UL, CSA, RoHS

Installation and Maintenance Benefits

The 140XTS00200 prioritizes ease of use for onsite engineers. Clear labeling on the terminal face assists in accurate wire mapping, while the spacious housing accommodates various wire gauges safely. Because the module utilizes a high-quality thermoplastic housing, it offers excellent dielectric properties and resistance to chemical exposure common in factory settings. Transitioning to this terminal block ensures a standardized, high-reliability connection point across the entire PLC rack.
